HP NC373F Manuel utilisateur

HP NC373F PCI Express Multifunction Gigabit

Server Adapter

User Guide

Part Number 417728-00B

une 2007 (Second Edition)

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP

shall not be liable for technical or editorial errors or omissions contained herein.

Audience assumptions

This document is for the person who installs, administers, and troubleshoots servers and storage systems. HP assumes you are qualified in the

servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.

Contents 3

Contents

Technician notes........................................................................................................................... 4

Where to go for additional help.................................................................................................................. 4

HP contact information ..................................................................................................................... 5

Introduction.................................................................................................................................. 6

Overview ................................................................................................................................................. 6

LED indicators........................................................................................................................................... 7

Installing an adapter ..................................................................................................................... 8

Installation overview .................................................................................................................................. 8

Preventing electrostatic discharge................................................................................................................ 8

Installing an adapter in a server .................................................................................................................. 9

Installing a low profile bracket .................................................................................................................... 9

Connecting the network cable................................................................................................................... 10

Specifications............................................................................................................................. 11

HP NC373F PCI Express Multifunction Gigabit Server Adapter specifications ................................................. 11

Regulatory compliance notices ..................................................................................................... 12

Regulatory compliance identification numbers............................................................................................. 12

European Union regulatory notice ............................................................................................................. 12

Korean class B notice............................................................................................................................... 13

BSMI notice............................................................................................................................................ 13

Laser compliance .................................................................................................................................... 13

Disposal of waste equipment by users in private households in the European Union......................................... 14

Electrostatic discharge................................................................................................................. 15

Preventing electrostatic discharge.............................................................................................................. 15

Grounding methods to prevent electrostatic discharge.................................................................................. 15

Acronyms and abbreviations........................................................................................................ 16

Index......................................................................................................................................... 17

Technician notes 4

Technician notes

In this section

Where to go for additional help ................................................................................................................ 4

WARNING: Only authorized technicians trained by HP should attempt to repair this

equipment. All troubleshooting and repair procedures are detailed to allow only

subassembly/module-level repair. Because of the complexity of the individual boards and

subassemblies, no one should attempt to make repairs at the component level or to make

modifications to any printed wiring board. Improper repairs can create a safety hazard.

WARNING: To reduce the risk of electric shock, personal injury, and damage to the

equipment:

•Do not attempt to service any parts of the equipment other than those specified in the

following procedure. Any other activities may require that you shut down the server and

remove the power cord.

•Installation and maintenance of this product must be performed by individuals who are

knowledgeable about the procedures, precautions and hazards associated with the

product.

WARNING: To reduce the risk of electric shock or damage to the equipment:

•Do not disable the power cord grounding plug. The grounding plug is an important safety

feature.

•Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all

times.

•Unplug the power cord from the power supply to disconnect power to the equipment.

CAUTION: To properly ventilate the system, you must provide at least 7.6 cm (3.0 in) of

clearance at the front and back of the server.

CAUTION: The server is designed to be electrically grounded (earthed). To ensure proper

operation, plug the AC power cord into a properly grounded AC outlet only.

NOTE: Any indications of component replacement or printed wiring board modifications may

void any warranty.

Where to go for additional help

1. Go to the HP website (http://www.hp.com).

2. Click Software & Driver Downloads from the left menu bar.

Technician notes 5

3. Type the product name in the For product box and press Enter. For example, type NC370T.

4. Download the drivers, firmware, or documentation as needed.

HP contact information

For the name of the nearest HP authorized reseller:

•In the United States, see the HP US service locator webpage (http://www.hp.com/service_locator).

•In other locations, see the Contact HP worldwide (in English) webpage

(http://welcome.hp.com/country/us/en/wwcontact.html).

For HP technical support:

•In the United States, for contact options see the Contact HP United States webpage

(http://welcome.hp.com/country/us/en/contact_us.html). To contact HP by phone:

oCall 1-800-HP-INVENT (1-800-474-6836). This service is available 24 hours a day, 7 days a

week. For continuous quality improvement, calls may be recorded or monitored.

oIf you have purchased a Care Pack (service upgrade), call 1-800-633-3600. For more

information about Care Packs, refer to the HP website (http://www.hp.com).

•In other locations, see the Contact HP worldwide (in English) webpage

(http://welcome.hp.com/country/us/en/wwcontact.html).

Introduction 6

Introduction

In this section

Overview ................................................................................................................................................ 6

LED indicators.......................................................................................................................................... 7

Overview

The HP NC373F PCI Express Multifunction Gigabit Server Adapter is a high-performance Ethernet

adapter that delivers 1000 Mb/s Ethernet over fiber cabling. The network connection is made through an

LC fiber port. The LED indicator shows the activity and link status. See LED indicators (on page 7) for

details.

The NC373F is a supported option for selected HP ProLiant servers and offers support for both standard

and low-profile slots.

In addition to features that have shipped with other server adapters, the NC373F adapter will also

support Receive Side Scaling, TCP/IP Offload Engine (TOE), Accelerated iSCSI, and Remote Direct

Memory Access (RDMA) when those features become available. For details about each of these

advanced features and for other information regarding the latest functionality, features, and operating

system support for this server adapter, see the HP website

(http://h18004.www1.hp.com/products/servers/networking/index-nic.html).

Introduction 7

LED indicators

The NC373F adapter has a single fiber LC port and LED indicator for link activity.

LED indicator Status Description

LNK/ACT Off No link to the adapter is established. The

adapter is not receiving power or the cable

connection is faulty. No link to the adapter is

established.

On Link to the adapter is established. The adapter

is receiving power and the cable connection is

good.

Flashing The adapter is sending or receiving network

data at 1000 Mb/s.

Installing an adapter 8

Installing an adapter

In this section

Installation overview ................................................................................................................................. 8

Preventing electrostatic discharge............................................................................................................... 8

Installing an adapter in a server................................................................................................................. 9

Installing a low profile bracket................................................................................................................... 9

Connecting the network cable.................................................................................................................. 10

Installation overview

This chapter describes installation precautions, how to install the adapter, and how to connect the network

cable.

WARNING: To reduce the risk of personal injury or damage to the equipment, consult the

safety information and user documentation provided with the server before attempting the

installation.

Many servers are capable of providing energy levels that are considered hazardous and are

intended to be serviced only by qualified personnel who have been trained to deal with these

hazards. Do not remove enclosures or attempt to bypass any interlocks that may be provided

for the purpose of removing these hazardous conditions.

WARNING: Installation of this adapter should be performed by individuals who are both

qualified in the servicing of computer equipment, and trained in the hazards associated with

products capable of producing hazardous energy levels.

This adapter is intended to be installed in Certified (UL or CSA) ITE equipment having

instructions for adding and removing user installed components such as PCI, PCI-X, and PCI

Express devices. Refer to the equipment instructions to verify that it is suitable for user installed

components and that it has the power capacity to support all of the installed components.

NOTE: Before removing the cover of your server, refer to the HP documentation for the proper

methods for installing a PCI card and avoiding electric shock hazards.

Preventing electrostatic discharge

To prevent damaging the system, be aware of the precautions you need to follow when setting up the

system or handling parts. A discharge of static electricity from a finger or other conductor may damage

system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the

device.

To prevent electrostatic damage:

•Avoid hand contact by transporting and storing products in static-safe containers.

•Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

Installing an adapter 9

•Place parts on a grounded surface before removing them from their containers.

•Avoid touching pins, leads, or circuitry.

•Always be properly grounded when touching a static-sensitive component or assembly.

Installing an adapter in a server

See the HP ProLiant server documentation for additional information on how to safely install a PCI Express

card in the server.

CAUTION: If the server is not PCI Hot Plug compliant, power it down and unplug the power

cord from the power outlet before removing the server access panel. Failure to do so may

damage the adapter or server.

1. Power down the server.

2. Remove the power cord and server access panel. Then remove the cover bracket from a PCI Express

slot.

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the

internal system components to cool before touching them.

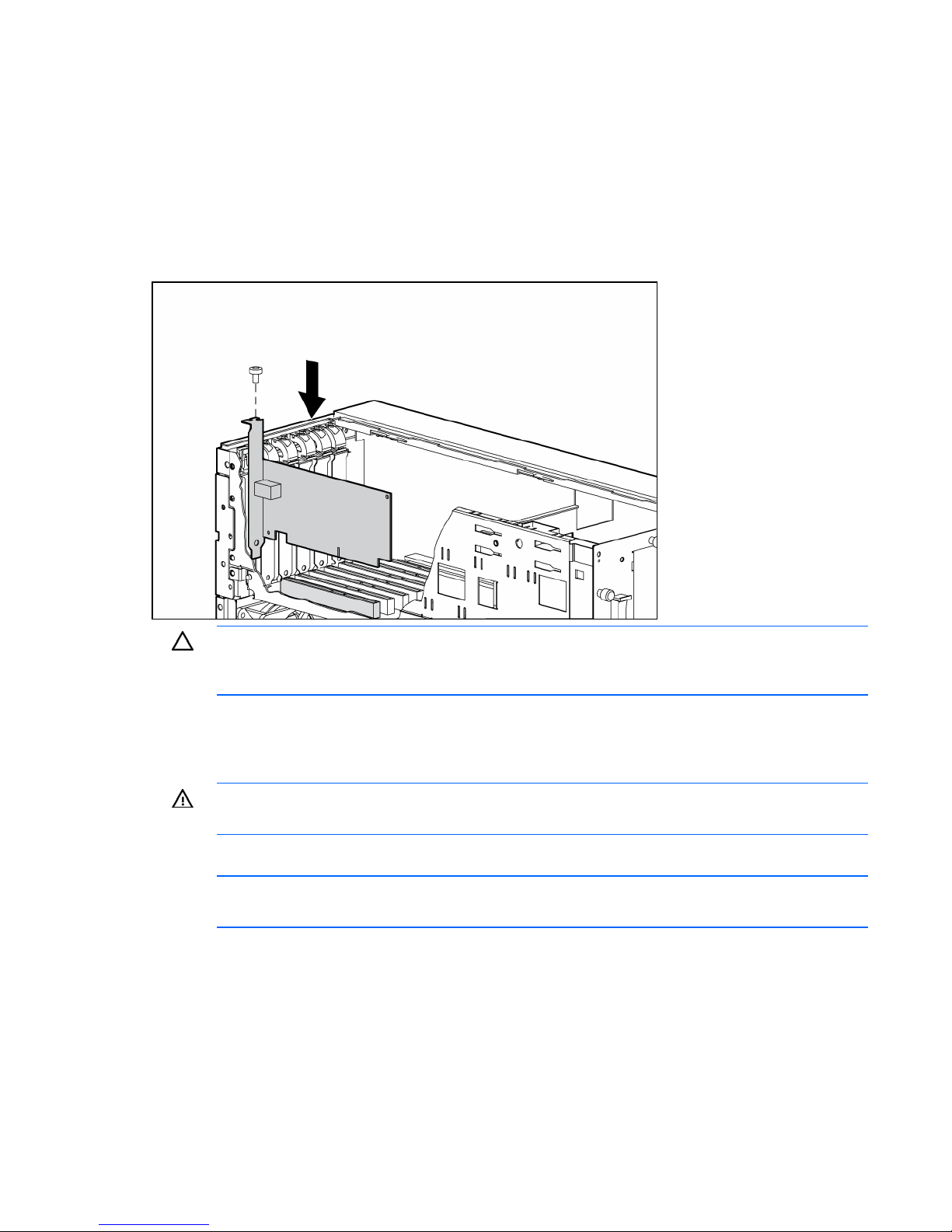

3. Firmly seat the adapter in a PCI Express slot and secure the adapter bracket.

NOTE: For 1U type servers you may need to replace the standard profile bracket with a low

profile bracket. See Installing a low profile bracket (on page 9).

4. Replace the access panel and plug in the power cord.

Installing a low profile bracket

You may have to install a low profile bracket to complete the product installation. The low profile bracket

replaces the existing standard profile bracket shipped on the product.

To install a low profile bracket:

Installing an adapter 10

1. Using a correctly sized slotted screwdriver, carefully remove the two board lock screws located at

the top and bottom of the connector.

2. Remove the standard profile bracket and place the low profile bracket over the connector. Be careful

not to damage the connector or bind the low profile bracket to the connector.

Connecting the network cable

The HP NC373F PCI Express Multifunction Gigabit Server Adapter uses an LC fiber port. This port

supports multimode fiber with a maximum cable length dependent on the fiber type, mode, and cable

size. See Specifications (on page 11) for the maximum cable length.

To insert the LC connector into the adapter port, line up the slot on the fiber connector with the adapter

and gently push until the retainers click into place.

Autres manuels pour NC373F

Table des matières

Autres manuels HP Carte réseau

HP 517 Manuel utilisateur

HP Ethernet USB Network Adapter hn210e Manuel utilisateur

HP AB290A Manuel utilisateur

HP External Devices Manuel utilisateur

HP StorageWorks FC1142SR Instructions d'utilisation

HP D7522A 10/100 3Com 3C905C-TX Manuel utilisateur

HP NC510C Manuel utilisateur

HP 3C509B-TP Manuel utilisateur

HP External Media Cards Manuel utilisateur

HP AD331A Manuel utilisateur

HP Ethernet USB Network Adapter hn210e Manuel utilisateur

HP ESL E-Series Manuel utilisateur

HP hn210p Manuel utilisateur

HP 10BT NightDIRECTOR/100 Manuel utilisateur

HP Broadband Service Analyzer Manuel utilisateur

HP StorageWorks AB232A Manuel utilisateur

HP hn210w Manuel utilisateur

HP 3C339 Manuel utilisateur

HP Q6275A Manuel utilisateur

HP FlexFabric 10Gb 2-port 534FLR Instructions d'utilisation

HP UT-300 Manuel utilisateur

HP NC320T Manuel utilisateur

HP HP-UX SNAplus2 Mode d’emploi

HP 441877-00B Manuel utilisateur

Manuels Carte réseau populaires d'autres marques

FirstComm

FirstComm OBiWiFi5G Manuel utilisateur

Sun Microsystems

Sun Microsystems Interface Adapter Manuel utilisateur

TRENDnet

TRENDnet TU2-ETG Manuel utilisateur

YASKAWA

YASKAWA SI-EN3 Manuel utilisateur

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuel utilisateur

Belkin

Belkin F5D7050 Manuel utilisateur

3Com

3Com EtherLink 3C509B Manuel utilisateur

TRENDnet

TRENDnet TEG-PCITX Manuel utilisateur

Cisco

Cisco MC16E Manuel utilisateur

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuel utilisateur

TwinMOS

TwinMOS Booming Manuel utilisateur

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuel utilisateur

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuel utilisateur

National Instruments

National Instruments NI 9234 Manuel utilisateur

Hama

Hama 49276 Manuel utilisateur

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuel d'utilisation

Compaq

Compaq Wireless LAN 100 Manuel utilisateur

Bose

Bose PowerMatch Dante Manuel utilisateur
