Honeywell Hyperion 1300G Manuel utilisateur

Hyperion 1300g

Linear Scanner

Quick Start Guide

HP1300-QS Rev A

12/10

Aller à www.honeywellaidc.com pour le français.

Vai a www.honeywellaidc.com per l'italiano.

Gehe zu www.honeywellaidc.com für Deutsch.

Ir a www.honeywellaidc.com para español.

Para Português, acesse www.honeywellaidc.com.br.

Перейти на русскоязычный сайт www.honeywellaidc.com.

日本語 : www.honeywellaidc.com をご覧ください。

如要到中国 www.honeywellaidc.com（简体）。

한글 www.honeywellaidc.com 로이동합니다 .

Note: Refer to your user’s guide for information about cleaning your

device.

Getting Started

Turn off the computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

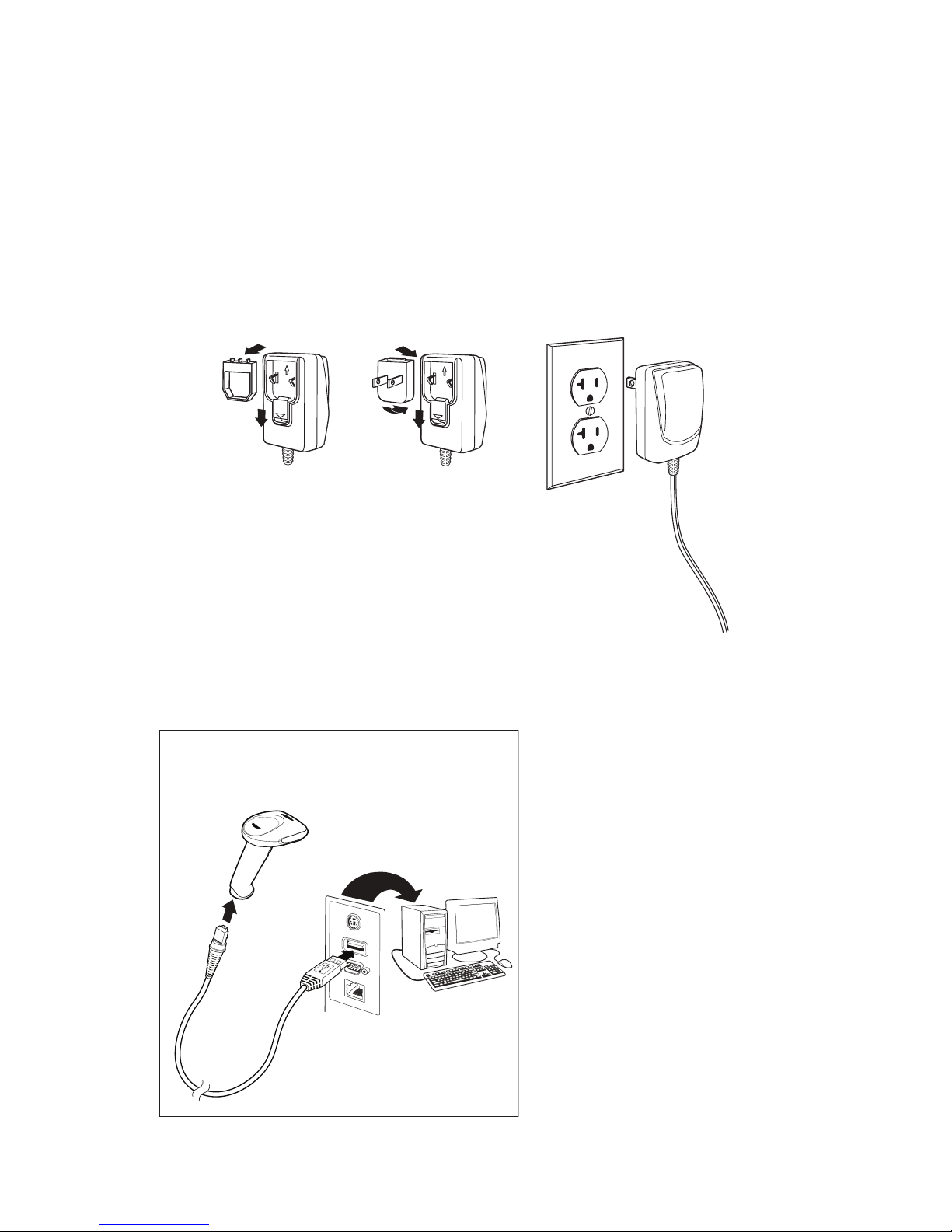

Power Supply Assembly (if included)

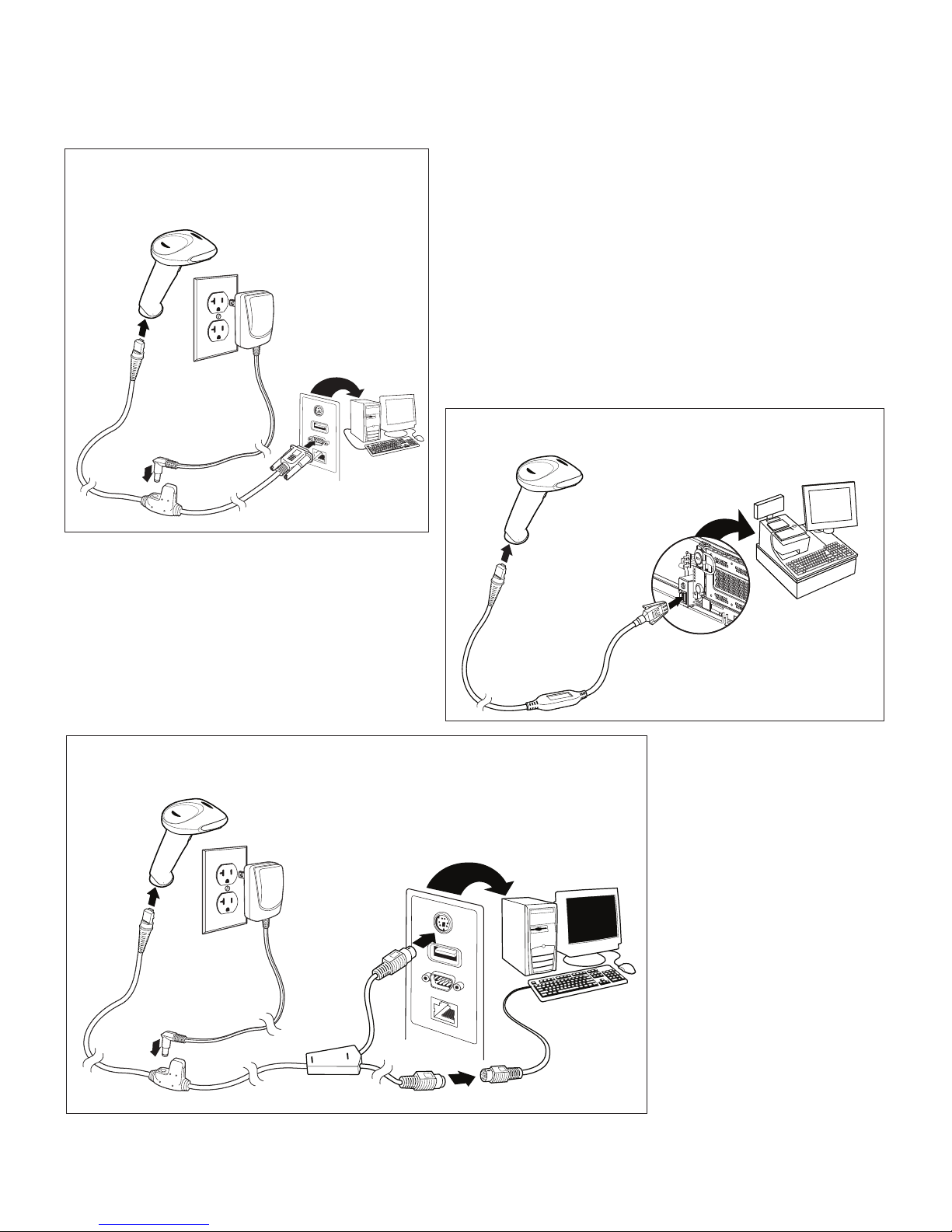

Connecting the Scanner

USB:

Serial (RS232):

RS485:

Keyboard Wedge:

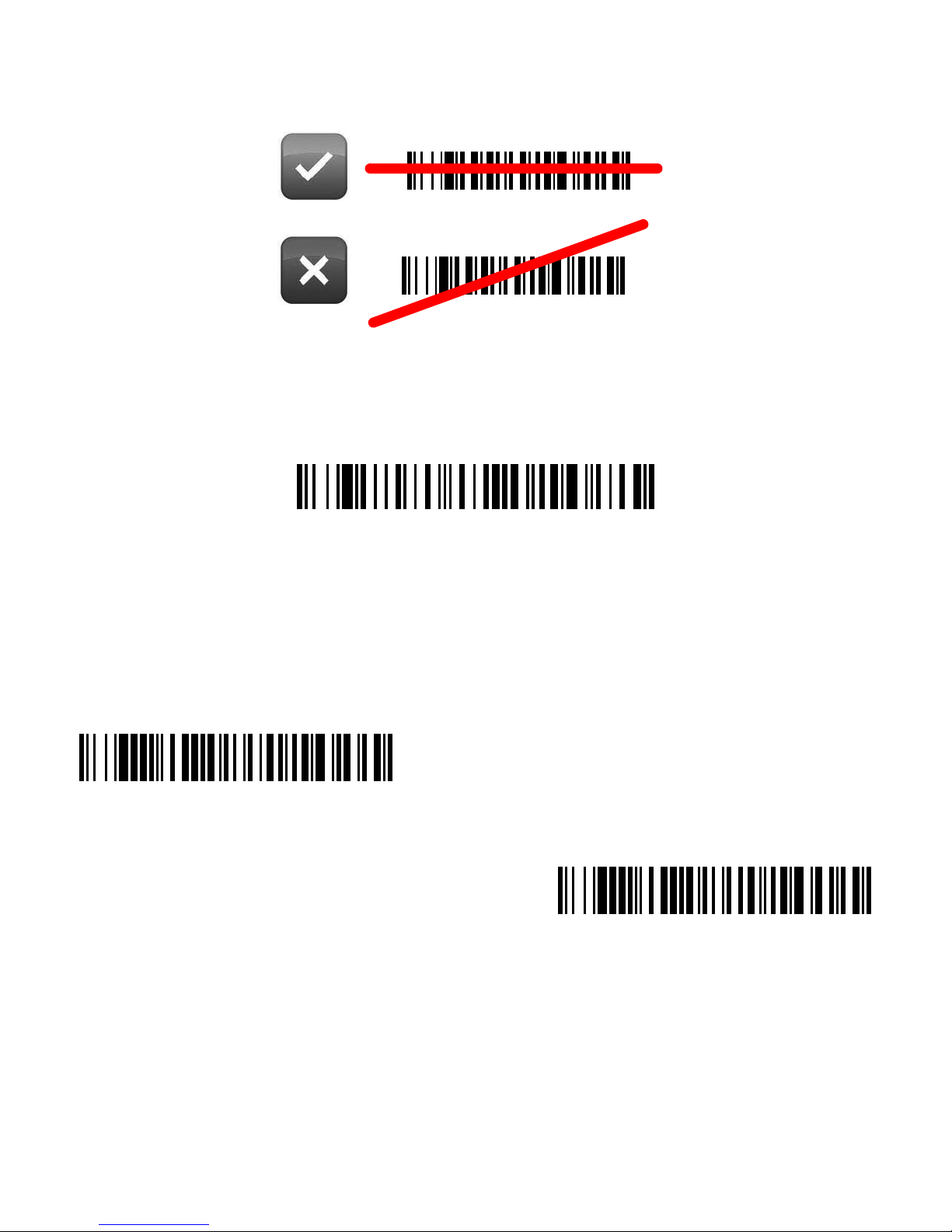

Reading Techniques

Standard Product Defaults

The following bar code resets all standard product default settings.

RS485 Interface

The RS485 interface defaults to port 5B. If you have an IBM POS

terminal using port 9B, scan the appropriate code below to program

the terminal, then power cycle the cash register.

Note: For additional RS485 interface selections, see the User’s

Guide for your product at our website,

www.honeywellaidc.com.

Standard Product Defaults

IBM Port 9B HHBCR-1

Interface

IBM Port 9B HHBCR-2

Interface

Keyboard Country

Scan the Program Keyboard Country bar code below, then scan

the numeric bar code(s) from the end of this document, then the Save

bar code to program the keyboard for your country. As a general

rule, the following characters are not supported by the scanner for

countries other than the United States:

@ | $ # { } [ ] = / ‘ \ < > ~.

Country Code Scan Country Code Scan

Belgium 1Italy 5

Denmark 8Norway 9

Finland 2Spain 10

France 3Switzerland 6

Germany/Austria 4USA (Default) 0

Great Britain 7

Program Keyboard Country

Save

Trigger

The following bar codes will allow you to use the reader in Manual

Trigger mode (need to press the trigger to read), Automatic Trigger

mode (the beam is always on), or Presentation mode (the reader is

activated when it “sees” a bar code).

Reread Delay

This sets the time period before the scanner can read the

same

bar

code a second time. Setting a reread delay protects against

accidental rereads of the same bar code.

Manual Trigger

(Default)

Automatic Trigger

Presentation Mode

Medium Reread Delay

Suffix

If you want a carriage return after the bar code, scan the Add CR

Suffix bar code. To add a tab after the bar code, scan the Add Tab

Suffix bar code. Otherwise, scan the Remove Suffix bar code to

remove the suffixes.

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a Code ID prefix to all

symbologies at once.

Note: For a complete list of Code IDs, see the User’s Guide for your

product at our website, www.honeywellaidc.com.

Add CR Suffix

Add Tab Suffix

Remove Suffix

Add Code ID Prefix To All Symbologies

(Temporary)

Data Format Editor Instructions

The following are abbreviated instructions for entering a data format.

For complete instructions refer to your User’s Guide, available at our

website, www.honeywellaidc.com.

1. Scan the Enter Data Format symbol.

2. Primary/Alternate Format: scan 0for Primary Format

3. Terminal Type: scan 099 for any terminal type

4. Code I.D.: scan 99 for any bar code type

5. Length: scan 9999 for any length bar code.

6. Editor commands: use the Programming Chart that follows.

7. Scan Save to save your entries.

Enter Data Format

Clear All Data Formats

Save

Programming Chart

Save
