Honeywell HH490 Manuel utilisateur

HH490

Corded Area-Imaging Scanner

Quick Start Guide

HH490-EN-QS-01 Rev A

1/21

Agency Model: HH490

Note: Refer to your User Guide for information about cleaning your

device.

Getting Started

Turn off computer’s power before connecting the scanner, then power

up the computer once the scanner is fully connected.

Power Supply Assembly (if included)

Connecting the Scanner

USB

RS232 Serial Port:

USB Interface

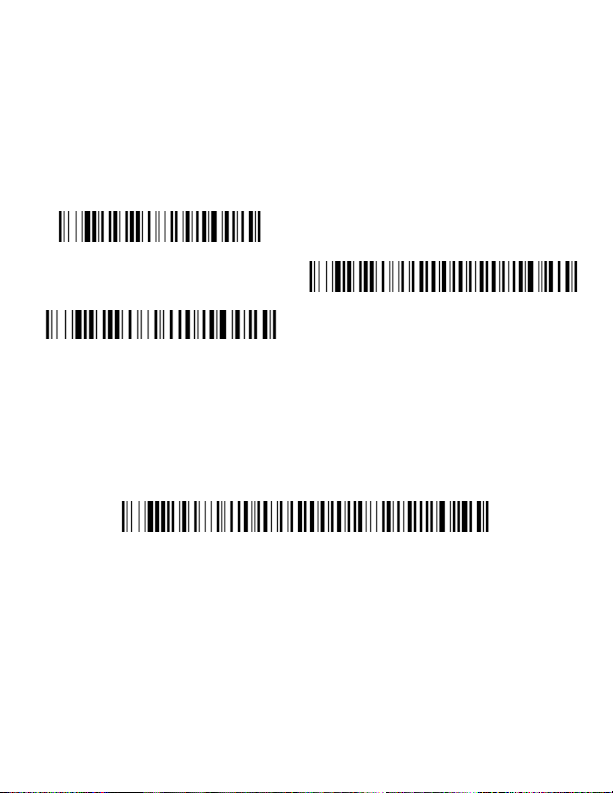

By scan config barcode below, you can change to different USB type

interface.

USB Keyboard

USB HID

USB Serial

RS232 Interface

By scan config barcode below, you can change to RS232 interface.

RS232

Reading Techniques

The view finder projects an aiming dot that

should be centered over the bar code, but it

can be positioned in any direction for a good

read.

Hold the scanner over the bar code, press the

button, and center the aiming dot on the bar

code.

The aiming dot is smaller when the scanner is

closer to the code and larger when it is farther

from the code. Hold the scanner close to

smaller bar codes, and farther away from

large bar codes to get a proper read.

If the bar code is highly reflective (e.g., laminated), you may need to tilt

the scanner at an angle so the bar code can be scanned.

Standard Product Defaults

The following bar code resets all standard product default set- tings.

Standard Product

Keyboard Country

Scan the appropriate country code that follows to program the keyboard

layout for your country or language. By default, national character

replacements are used for the following characters: # $ @ [ ] \ | ^ ‘ { } ~

Refer to the ISO 646 Character Replacements chart in your User

Guide to view the character replacements for each country.

USA (Default)

Belgium

Denmark

Finland

France

Germany/Austria

Great Britain

Italy

Norway

Spain

Switzerland

Note: For a complete list of country codes, see the User Guide for your

product.

Trigger

The following bar codes will allow you to use the scanner in Manual

Trigger - Normal Mode (need to press the button to read) or

Presentation mode (the scanner is activated when it “sees” a bar code).

Manual Trigger - Normal

(Default)

Presentation Mode

Streaming Presentation Mode

Suffix

If you want a carriage return after the bar code, scan the Add CR Suffix

bar code. To add a tab after the bar code, scan the Add Tab Suffix bar

code. Otherwise, scan the Remove Suffix bar code to remove the

suffixes.

Add CR Suffix

Add Tab Suffix

Remove Suffix

Add Code ID Prefix to all Symbologies

Scan the following bar code if you wish to add a Code ID prefix to all

symbologies at once.

Add Code ID Prefix To All Symbologies

(Temporary)

Note: For a complete list of Code IDs, see the User Guide for your

product.

Function Code Transmit

When this selection is enabled and function codes are contained within

the scanned data, the scanner transmits the function code to the

terminal. Charts of these function codes are provided in your User

Guide. When the scanner is in key- board wedge mode, the scan code is

converted to a key code before it is transmitted.

Enable

(Default)

Disable
