Honeywell MX7 Tecton Manuel utilisateur

MX7 TectonTM

Hand-Held Computer

Microsoft® Windows® Embedded CE 6 Operating System

Microsoft® Windows® Mobile 6.5 Operating System

Battery Charger User's Guide

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this

document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have

been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages

resulting from the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document

may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

Web Address: www.honeywellaidc.com

RFTerm is a trademark or registered trademark of EMS Technologies, Inc. in the United States and/or other countries.

Microsoft®Windows, ActiveSync®, MSN, Outlook®, Windows Mobile®, the Windows logo, and Windows Media are

registered trademarks or trademarks of Microsoft Corporation.

Marvell®is a registered trademark of Marvell Technology Group Ltd., or its subsidiaries in the United States and other

countries.

Summit Data Communications, the Laird Technologies Logo, the Summit logo, and "Connected. No Matter What" are

trademarks of Laird Technologies, Inc.

The Bluetooth®word mark and logos are owned by the Bluetooth SIG, Inc.

Symbol®is a registered trademark of Symbol Technologies. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the

Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license.

Hand Held is a trademark of Hand Held Products, Inc., a subsidiary of Honeywell International.

Wavelink®, the Wavelink logo and tagline, Wavelink Studio™, Avalanche Management Console™, Mobile Manager™, and

Mobile Manager Enterprise™ are trademarks of Wavelink Corporation, Kirkland.

RAM®and RAM Mount™ are both trademarks of National Products Inc., 1205 S. Orr Street, Seattle, WA 98108.

Other product names or marks mentioned in this document may be trademarks or registered trademarks of other companies

and are the property of their respective owners.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Limited Warranty

Refer to www.honeywellaidc.com/warranty_information for your product’s warranty information.

Table of Contents
Chapter 1: Introduction 1-1
About this Guide 1-1
Setup Overview 1-1
Cautions and Warnings 1-2
Battery Charger 1-2
Lithium-Ion Battery Pack 1-2
Components 1-3
Installation 1-4
Assemble the Power Supply 1-4
Setup 1-5
Mounting 1-6
Charging Batteries 1-7
Inserting a Battery into the Charging Pocket 1-8
Remove the Battery from the Charging Pocket 1-8
Interpreting the Charging Pocket LEDs 1-9
RED Continuous - on any charge pocket 1-9
RED FLASHING - on any charge pocket 1-9
RED FLASHING - on all charge pockets 1-9
GREEN - on any charge pocket 1-9
YELLOW - on any charge pocket 1-9
NO LIGHT - on any charge pocket 1-9
NO LIGHT - on all charge pockets 1-9
Battery Charger Help 1-10
Charger Cleaning, Storage and Service 1-12
Cleaning 1-12
Storage 1-12
Service 1-12
Battery Cleaning, Storage and Service 1-13
Cleaning 1-13
Storage 1-13
Service 1-13
Technical Specifications 1-14
Electrical 1-14
Temperature 1-14
Dimensions 1-14
Chapter 2: Set up a Battery Maintenance Routine 2-1
Introduction 2-1
i

Extending Battery Life 2-1

Self-Discharge 2-1

Maintenance Routine 2-2

Label the Batteries 2-2

A Simple Battery Usage Routine 2-3

Sample Log for Battery Maintenance 2-3

Chapter 3: Technical Assistance 3-1

Chapter 1: Introduction

The MX7 TectonBattery Charger is designed to simultaneously charge four rechargeable Lithium Ion (Li-Ion) battery packs.

The time required for charging is dependent upon the battery pack temperature and conditions.

The battery charger should be located in an area where it:

lIs well ventilated.

lIs not in high traffic areas.

lLocates or orients the AC cord so that it will not be stepped on, tripped over or subjected to damage or stress.

lHas enough clearance to allow easy access to the power port on the back of the device.

lIs protected from rain, dust, direct sunlight or inclement weather.

This device is intended for indoor use only and requires an indoor AC power source. The charger is not approved for use in

Hazardous Locations.

This device cannot charge/recharge coin cell batteries sealed inside the mobile device, if any.

About this Guide

This MX7 Tecton Battery Charger User's Guide is intended to familiarize the user with the safety and operating instructions

necessary to use theMX7 Tecton Battery Charger (Model MX7390CHARGER, MX7391CHARGER) to charge rechargeable

lithium-ion battery packs (MX7A380BATT, MX7A381BATT, MX7392BATT, MX7393BATT, MX7A396BATT) .

This guide should be readily available to all users and maintenance personnel using this battery charger.

Setup Overview

The following instructions are abbreviated and intended to give an overview of the process to be followed.

1. Assemble the power supply.

2. Connect the power supply to the charger.

3. Insert a battery into a charging bay.

4. When the battery is charging, the setup process is complete.

Note: Store the charger and batteries when not in use in a cool, dry, protected place.

Please refer to the MX7 Tecton User's Guide for instruction when inserting and removing batteries.

1-1

Cautions and Warnings

Battery Charger

lThere is a risk of explosion if the MX7 Tecton Li-Ion battery in the charging pocket is replaced by an incorrect type.

Other batteries or battery packs may burst causing injury or property damage.

lDo not insert any other type of Li-Ion battery in the MX7 Tecton battery charging pocket.

lDo not allow cleaning agents of any kind to contact the battery charging contacts; they may be damaged. If necessary,

clean them with a soft-bristle, dry brush or compressed air.

lDisconnect the charger from AC power by pulling the plug; not the cord.

lUse care when inserting battery. Do not "slam" or slide the battery into the pocket, this could damage the charger.

lKeep dirt and foreign objects out of the battery pocket. Do not short circuit any of the contacts in the battery pocket, this

could result in injury or property damage.

lDo not disassemble or perform modifications to the charger. There are no user serviceable components in the charger.

Lithium-Ion Battery Pack

lDispose of used Li-Ion batteries according to the instructions for the type of battery.

lWhen not in use, lay the battery pack contact-side up in a protected environment.

lDo not store the Li-Ion battery pack in direct sunlight or anywhere the battery pack cannot cool down.

lIf the Li-Ion battery pack is hot after removal from the MX7 Tecton, allow it to cool at room temperature or in a cool air

stream before placing it in the charger.

lDo not dispose of Li-Ion batteries into a fire. Burning will generate hazardous vapors and may cause the battery to

explode. Failure to observe this warning may result in injury from inhalation of vapors or burns from flying debris.

lDo not immerse Li-Ion batteries in water or any other liquid. If batteries are immersed, contact Honeywell.

lDo not disassemble or perform modifications to the battery. There are no user serviceable components in the battery.

lDo not place the Li-Ion battery into a pocket or toolbox with conductive objects (coins, keys, tools, etc.). A Li-Ion battery

placed on damp ground or grass could be electrically shorted.

lDo not store Li-Ion batteries above 140°F (60°C) for extended periods.

lFailure to observe these warnings could result in injury or damage to the battery from rapid discharge of energy or

battery overheating.

lElectrolyte Burns.Be careful when handling batteries. If a battery is broken or shows signs of leakage do not attempt to

charge it. Dispose of it! Lead and Nickel-based cells contain a chemical solution that burns skin, eyes, etc. Leakage

from cells is the only possible way for such exposure to occur. In this event, rinse the affected area thoroughly with

water. If the solution contacts the eyes, get immediate medical attention.

lElectrical Burns. Batteries are capable of delivering high currents when accidentally shorted. Accidental shorting can

occur when contact is made with jewelry, metal surfaces, conductive tools, etc., making the objects very hot. Never

place a charged battery in a pocket or case with keys, coins, or other metal objects.

1-2

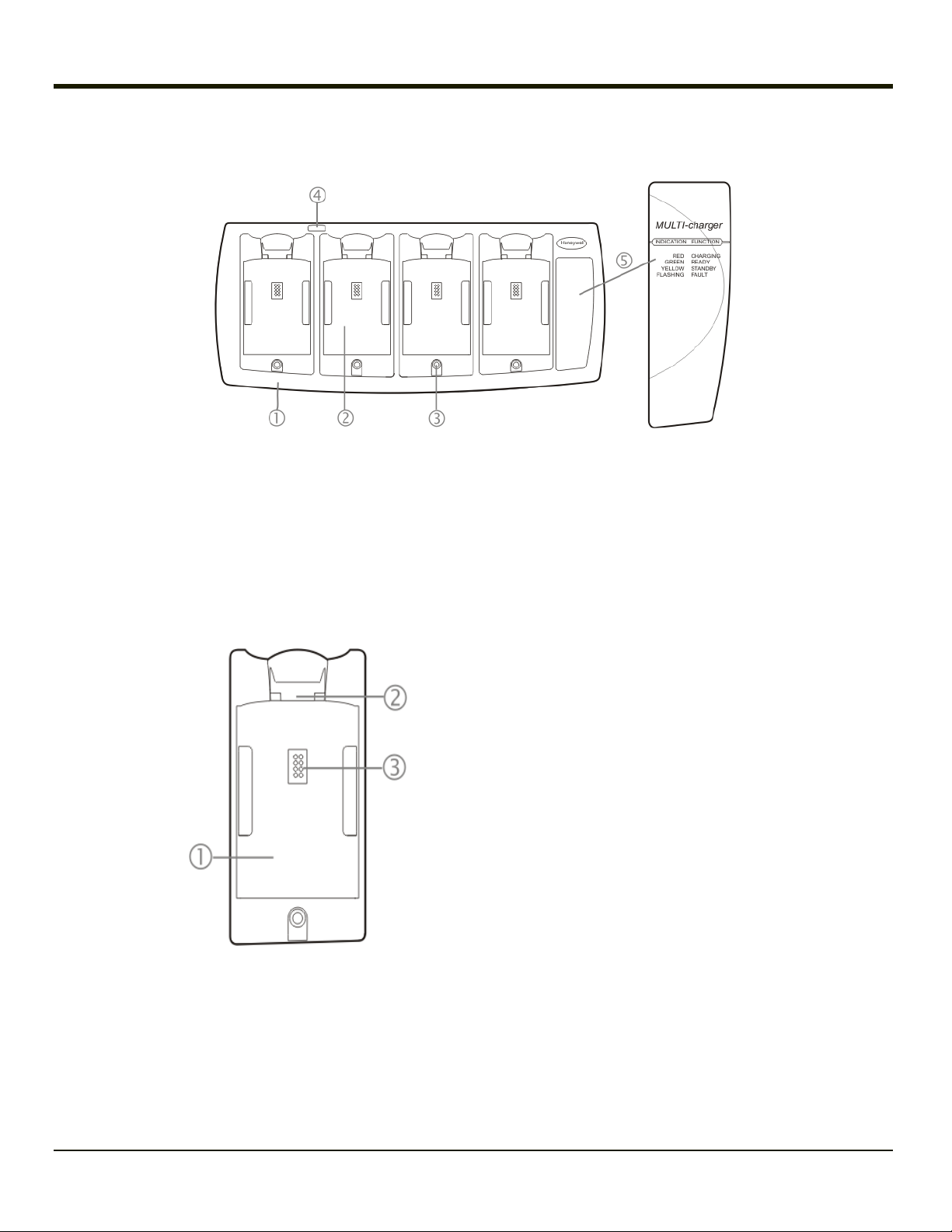

Components

1. Front

2. Battery Charging Pocket

3. LED Indicator

4. Power Connection Location

5. LED Function Legend

1. Battery Charging Pocket

2. Retaining Clip

3. Battery Charging Contacts

1-3

Installation

Assemble the Power Supply

Assemble the AC adapter for the MX7 Tecton Battery Charger before connecting it to the charger.

The AC power supply for the battery charger is shipped with the battery charger. Contact Technical Assistance if there is no

AC cable.

The battery charger power supply is intended for use with the MX7 Tecton battery charger only.

lPlug the 3-prong end of the cable into an AC wall outlet.

lFirmly press the female end of the power cable into the male connector on the AC power adapter. An LED on the power

adapter illuminates when AC power is available.

lAC power is now being applied to the power adapter.

1-4

Setup

Prerequisite: The AC Adapter is assembled and receiving AC power.

The battery charger should be located in an area where it:

lIs well ventilated.

lIs not in high traffic areas.

lLocates or orients the AC cord so that it will not be stepped on, tripped over or subjected to damage or stress.

lHas enough clearance to allow easy access to the power port on the back of the device.

lIs protected from rain, dust, direct sunlight or inclement weather.

This device is intended for indoor use only and requires an indoor AC power source. The charger is not approved for use in

Hazardous Locations.

Place the battery charger on a flat, horizontal, hard surface or fasten securely to a stable surface using the keyhole openings on

the bottom of the battery charger.

Do not insert battery packs until the battery charger has finished powering up:

lInsert the power connector into the power outlet at the back of the battery charger.

lAC power is now being applied to the battery charger and it begins to power up.

lCharge pocket LEDs flash while the battery charger enters and exits the startup check.

lWhen the charge pocket LEDs are not illuminated, the battery charger is ready for use.

1-5

Mounting

The battery charger should be located in an area where it:

lIs well ventilated.

lIs not in high traffic areas.

lLocates or orients the AC cord so that it will not be stepped on, tripped over or subjected to damage or stress.

lHas enough clearance to allow easy access to the power port on the back of the device.

lIs protected from rain, dust, direct sunlight or inclement weather.

This device is intended for indoor use only and requires an indoor AC power source. The charger is not approved for use in

Hazardous Locations.

Place the battery charger on a flat, horizontal, hard surface.

The battery charger can be mounted to a stable, vertical surface (e.g. wall) using the keyhole openings in the bottom panel of

the battery charger.

Note: Footprint is not to scale

1. Length of battery charger - 11.75 inches (in)/ 29.8 centimeters (cm)

2. Width of battery charger - 5.25 in / 13.3 cm

3. Left keyhole center to right keyhole center - 9.8 in / 25 cm

4. Distance down to keyhole center from back of battery charger - 0.75 in / 1.9 cm

5. Distance to keyhole center from side of battery charger - 1.1 in / 3.0 cm

6. Distance to keyhole center from front of battery charger - 4.25 in / 10.8 cm

Care should be taken, when inserting batteries in a vertical-mounted battery charger, that the battery is secured by the latch in

the battery charging pocket.

1-6
