Honeywell CL30XC Manuel utilisateur

OFF ON

COOL

OFF ON

SWEEP

OFF H

Portable Evaporative Air Cooler

INSTRUCTION MANUAL

Read and save these instructions before use

Model: CL30XC

With Remote

www.ushainternational.com

This page is intentionally left blank

SECTION PAGE

1. THANK YOU .........................................................................................................

2. USER TIPS ...........................................................................................................

3. SAFETY RULES ...................................................................................................

4. PARTS DESCRIPTION ........................................................................................

5. USE & OPERATION .............................................................................................

Fill Water ......................................................... .................... ...............

Function Knobs .................................................................................................

6. CLEANING & MAINTENANCE .............................................................................

7. TROUBLESHOOTING GUIDE .............................................................................

8. TECHNICAL SPECIFICATIONS ...........................................................................

9. ELECTRICAL WIRING DIAGRAM ........................................................................

.... ............

Assembly Instructions For Castor Wheels ............................................................ 8

INDEX

Read all instructions carefully before setting up and operating the unit, and please keep

this instruction manual for future reference. This manual is designed to provide you with

important information needed to setup, operate, maintain, and troubleshoot your cooler.

Failure to follow these instructions may damage and/or impair its operation and void the

warranty.

THANK YOU

Dear Customer,

Congratulations!

You are now the proud owner of an Usha Honeywell Evaporative Air Cooler.

Innovatively designed, using only the highest quality material and components, your

Usha Honeywell Air Cooler is designed for years of trouble free performance.

Please read this Instruction Manual carefully before using the product and keep it

carefully after reading for future reference.

For optimum cooling performance from your unit, please ll the tank with water & ice,

if available, to increase the cooling power.

Best Wishes

USER TIPS

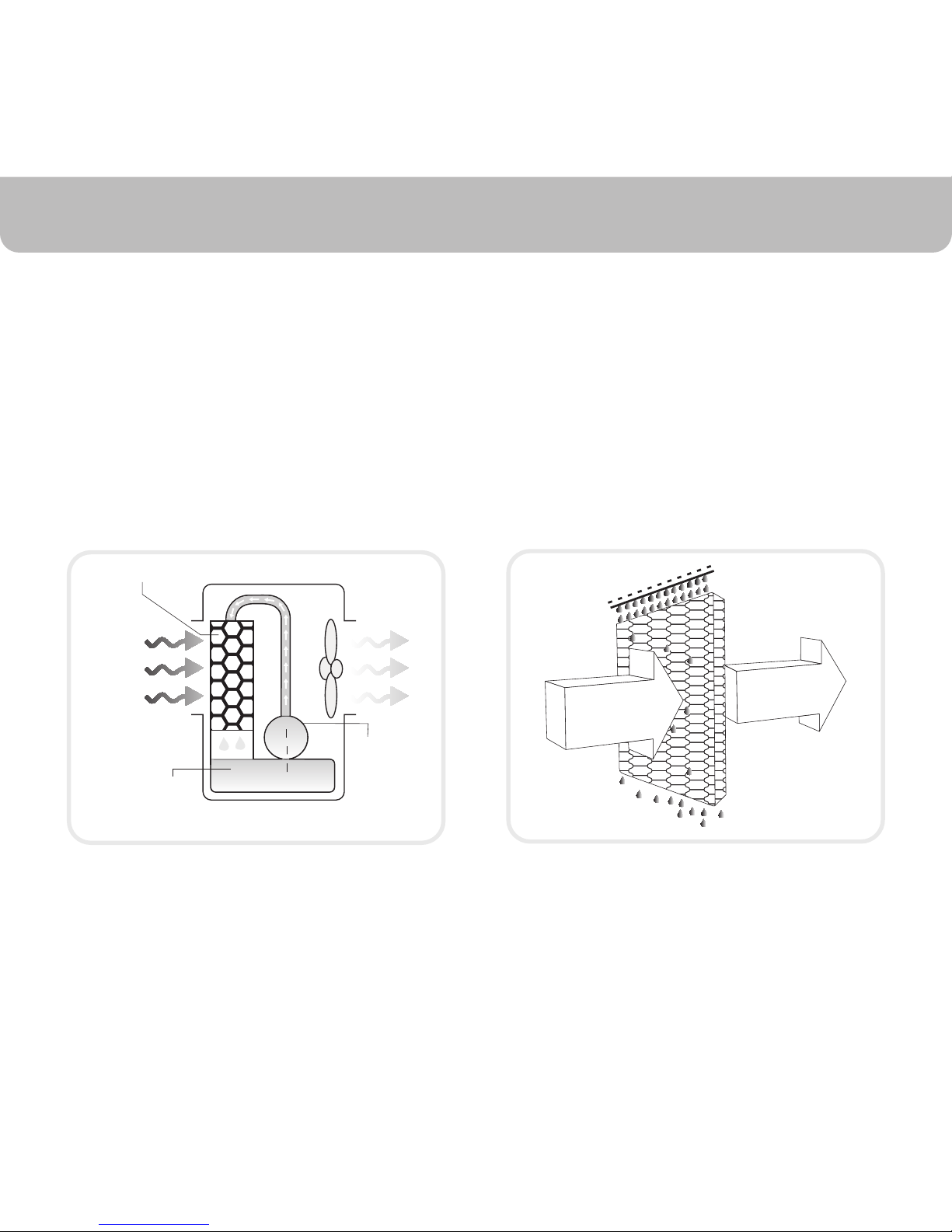

NATURAL ENERGY EFFICIENT COOLING

Pump

Water

Honeycomb Cooling Media

Evaporative Air Cooling Mechanism

Warm and

dry air

Cold and

humid air

Evaporative air cooling is the natural way of cooling, similar to a breeze blowing across a lake. This

breeze drops the temperature and has a relaxing cooling eect.

The evaporative air cooler cools the air by means of the evaporation of water. When water

evaporates into the air, the result is a mixture of air and water molecules. This chemical change

requires heat which is taken from the water molecules, resulting in cooler air propelled from the

unit.

NOTE

USER TIPS

The recommended maximum relative humidity level is 60% or

less, which allows a noticeable temperature decrease. The

temperature decrease will be greater in drier climates because

higher evaporation occurs when humidity is low.

The evaporative air cooler should not be used in enclosed

spaces. It must be kept level and there must be water in the

water tank. The room should have doors and windows opened to

allow free air ow. The evaporative air cooler works best when

placed near an open window, so that outside air is drawn into the

evaporative air cooler, the air circulates in the room, then exits via

the door. The maximum cooling eect is felt when a person is in

the ow of air coming out of the evaporative air cooler.

The evaporative air cooler can also be used to humidify dry air

during cool weather. To be used for humidication the windows

and doors should be closed to allow the humidied air to accumu-

late. The evaporative air cooler is not an air conditioner as it does

not use a compressor or refrigerant gas.

When the product is used for the rst time the Honeycomb

cooling media will have an odour which will dissipate within a week

of initial use.

OFFON

COOL

OFF ON

SWEEP

OFF H

OFFON

COOL

OFF ON

SWEEP

OFF H

OFF ON

COOL

OFF ON

SWEEP

OFF H

READ AND SAVE INSTRUCTIONS:

SAFE TY RU LES

230V AC 50Hz

SHOCK HAZARD

WATER LEVEL INDICATOR

When using electrical appliances, basic safety precautions should always be followed:

Always unplug the product before relling the water tank.

Always unplug the appliance from the power source before

cleaning, servicing or relocating the unit.

Remove the power cord from the electrical receptacle by

grasping and pulling on the power cord plug-end only, never

pull the cord.

DO NOT use the product in areas where gasoline, paint or

other ammable goods and objects are stored.

When using the ''COOL'' setting, please check the water tank

to ensure it is full. Operation of this unit on the ''COOL'' setting

with an empty tank may result in damage to the water pump.

•

DO NOT run power cord under carpeting, or cover it with

rugs or runners. Keep the cord away from areas where it

may be tripped over.

•

Your cooler runs on 230 V AC, 50 Hz current. Check the

household voltage to ensure it matches the appliance's rate

specication.

Before operating the product remove it from its packaging and

check it is in good condition.

DO NOT operate any product with a damaged cord or plug.

We recommend not to use an extension cord with this

appliance.

OFFON

COOL

OFF ON

SWEEP

OFF HM

OFFON

COOL

OFF ON

SWEEP

OFF HM

SAFETY RULES

FLOOR LEVEL

may cause motor damage.

This appliance is not intended for use by persons (including

children or elderly) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of

the appliance by a person responsible for their safety.

•When the unit is not in use always store in a dry area.

•

This product is not intended for use in wet or damp locations.

•

DO NOT let children play with this appliance, packaging or

plastic bags.

•

DO NOT leave the appliance operating unattended for any

extended period of time.

•

DO NOT operate with the Honeycomb media removed as this

will overload and damage the motor.

•

DO NOT insert or allow objects to enter any ventilation or

exhaust opening as this may damage the product and could

cause an electrical shock or fire.

•

DO NOT attempt to repair or adjust any electrical or mechanical

functions of the cooler, as this may void the warranty.

•

DO NOT cover the air inlet or outlet on the appliance as this

•

If the unit is damaged or it malfunctions, do not continue to

operate it. Refer to the troubleshooting section and /or please

seek professional advice.

•

Place the unit on a level floor.

•

Never locate the product where it may fall into a bathtub or

other water container. DO NOT use in bathrooms or outdoors.

•

Always grip the side handles to move the unit.

•

OFFON

COOL

OFF ON

SWEEP

OFF HM

1 Outlet Louvers

(Horizontal-Manual &

Vertical-Automatic Swing)

2 Control Panel

3 Front Panel

4 Front Castors / Wheels

5 Side Handle

6 Left Side Panel

7 Water Fill Door

8 Water Level Indicator

9 Top Panel

10 Rear Panel Grill

11 Right Side Panel

12 Air Inlet Louvers

13 Honeycomb Media

14 Water Tank (Cannot be Removed)

15 Rear Castors / Wheel

16 Water Drain Plug

17 Rear Grill Removal Screws

18 Remote

PART S DES CRIPT ION

OFF ON

COOL

OFF ON

SWEEP

OFF H

USE & OPERATION

FILLWATER

CAUTION

Note:

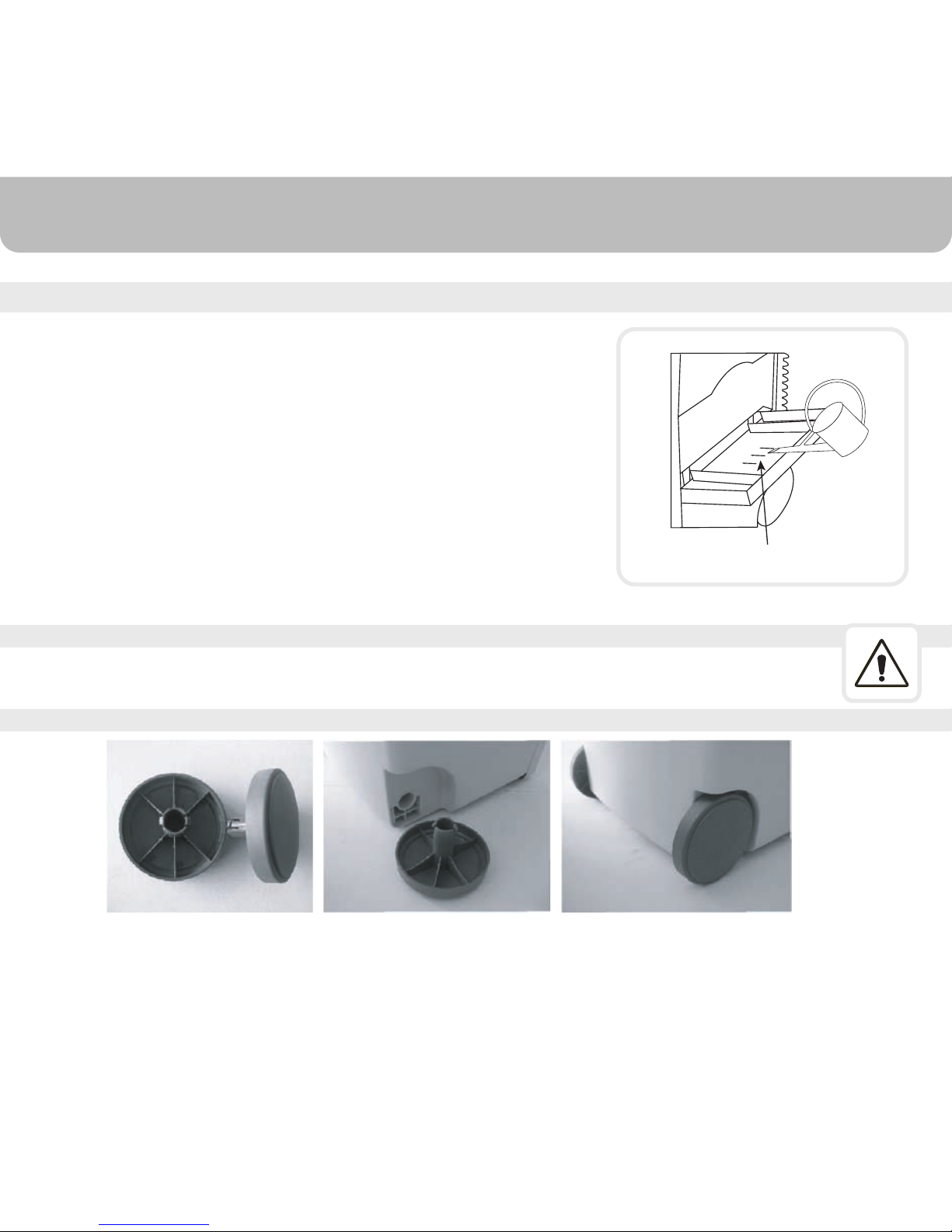

Back wheel castors do not come pre-installed in this unit.

Please follow instructions as shown in Fig 1, 2 & 3 for installing the castor wheels.

Pull out the Water Fill Door located below the left side panel

(refer page 7) and fill water till the Max. Level, as indicated on

the Water Level Indicator. The water tank of this unit holds up

to 15 Litres of water.

Water level display window is located on the front of the unit.

Refill the water tank when water level is low. Do not fill water

above the Max water level mark. Check water level in the tank

before running the ''COOL'' function. Please be sure water in

the tank is always above minimum water level mark. Running

the unit with inadequate water may cause pump failure. If ice is

available you may add ice in the top compartment to enhance

the cooling performance.

Water Fill Door

Fig. 1 Fig. 2 Fig. 3

Unplug from power when refilling.

ASSEMBLY INSTRUCTIONS FOR CASTOR WHEELS.
