HOMCOM 824-057V90 Manuel utilisateur

824-057V90

220-240V~50-60Hz 45W

INcjh029V01_ES_PT

Ventilador de torre

IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.

IMPORTANTE, CONSERVAR PARA FUTURAS CONSULTAS: LEER

DETENIDAMENTE.

IMPORTANTE, RETER PARA REFERÊNCIA FUTURA: LEIA

ATENTAMENTE.

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL,

OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT

YOURSELF AND.OTHER BY OBSERVING ALL SAFETY INFORMATION.

FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN

PERSONAL INJURY AND/OR PROPERTY DAMAGE !

IMPORTANT SAFETY INFORMATION

1. Read all instructions carefully before using the FAN.

2. Use this FAN only as described in this manual. Any other

use not recommended by the manufacturer may cause fire,

electrical shock, or injury to persons.

3. Remove the package and ensure that the FAN is

undamaged. In case of doubt do not use FAN and contact

with your supplier.

4. Don not let children play parts of package.

5. Before use the FAN, check if the voltage marked on the

rating label corresponds to the mains in your home.

6. Extreme caution is necessary when the FAN is used by or

near children or Invalids and whenever the FAN is left

operating unattended.

7. Avoid using extension cord as the extension cord may

overheat and cause a risk of fire.

8. Do not pull the power cord to disconnect with power source.

Always grasp the plug to pull out.

9. Do not insert any objects into the FAN as it may cause an

electric shock or injure or damage to the FAN. Do not block

or tamper with the FAN in any manner while it is in

operation.

10. Do not leave the FAN unattended. Always unplug FAN

when not in use.

11. This FAN is not intended for use in wet or damp locations.

Never locate a FAN where it may fall into a bathtub or other

water container.

12. Do not use FAN outdoors.

13. Disconnect the fan from the mains power when not in use,

and before servicing or performing any maintenance.

14. Keep the fan clean and maintain in good condition (use an

authorized service agent).

15. Use recommended parts only (non genuine parts may be

dangerous, and will invalidate your warranty).

16. When not in use store in a safe, dry, childproof location.

17. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

18. The back housing shall not dismantle, removal will be

dangerous .

19. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their

safety.

20. Children should be supervised to ensure that they do not

play with the appliance.

WARNING :

The Main Power Switch and the On/Off

switch should not be used as the sole

means of disconnecting power. Always

unplug the power cord before servicing or

moving the unit.

WARNING : To avoid danger of electric shock, unplug

from outlet when not in use and before

cleaning. If the supply cord is damaged, it

must be replaced by the manufactory or it’s

service agent or a similarity qualified

person in order to avoid a hazard.

PARTS NAME

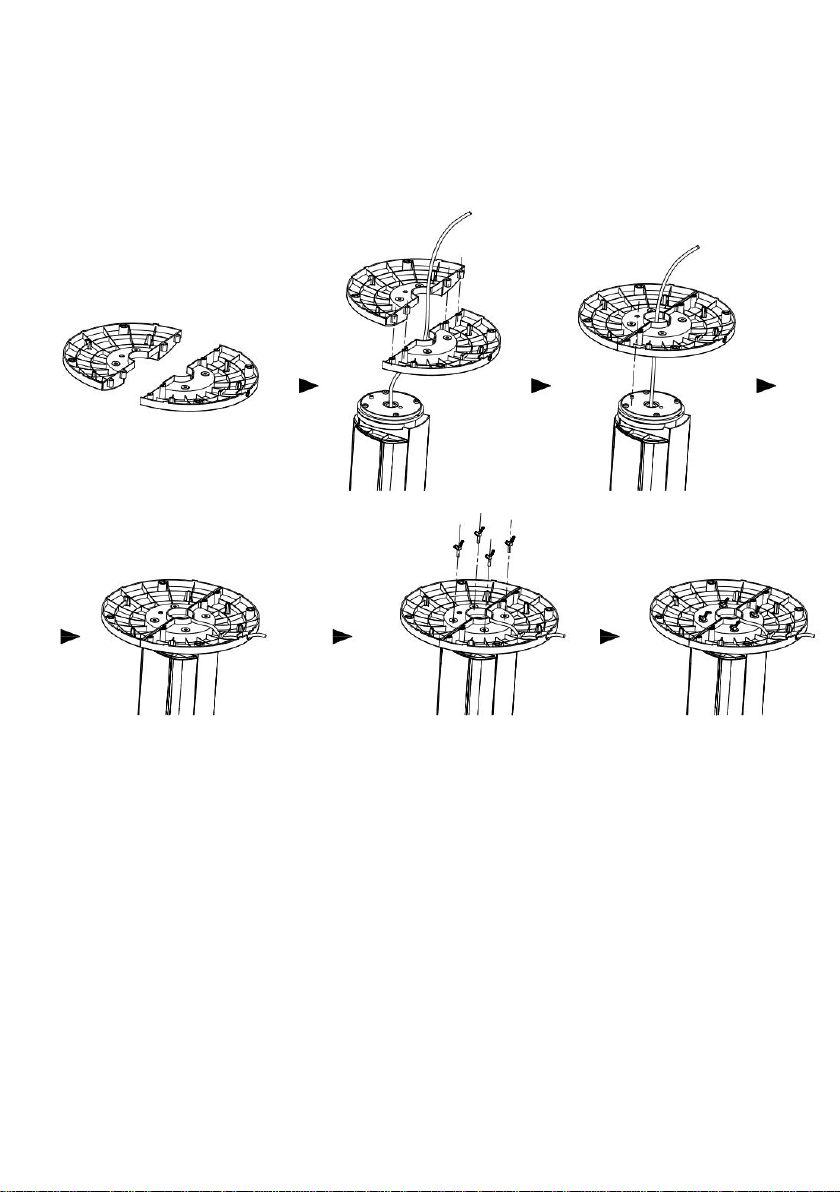

ASSEMBLY

The base of the tower fan comes in two parts, which fit around the oscillation

base. Both parts fit easily together. The back half is the one with cut-outs for

the power supply cord.

1.First attach the front half of the base, aligning the holes in base with the

screw holes in the oscillation base, and leading the power cord through the

centre hole.

Control Panel

LED Display Panel

Air Outlet

Base

2.Then snap the back half of the base to the front half and secure with the four

screws (supplied)

Thread the power supply cord through the two cut-outs at the bottom of the

base. (shown in Fig 1)

(Fig 1 )

REMOTE CONTROL

1. Included a button cell battery (the type of battery CR2025).

2. The Remote Control Power button is labeled as such. All the functions

performed with the Remote Control work identically to the Manual Controls.

( Fig 2).

(Fig 2) (Fig 3)

OPERATION

The FAN may be operated by the manual controls located on the FAN (as

shown in Fig 3) or by your remote control (shown in Fig 2) .

1. Place the FAN on a stable flat surface. Plug the cord set into a 220-240V~

electrical outlet. Plug on the FAN, existing room temperature will be

displayed at display panel.(shown in Fig. 4)

2. POWER : Turn the FAN on by pressing the ‘POWER’ button; Turn the

FAN off by pressing the ‘POWER’ button again.

3. SPEED :You can adjust the fan speed to the desired level: low,

medium, or high by pressing ‘SPEED’ . The speed setting is displayed on

the LED panel (shown in Fig 4) .

4. MODE :Pressing the ‘MODE’ button will set the FAN into NORMAL

mode, NATURAL mode , SLEEP mode and Child mode

- NORMAL Mode :Fan will start work at any speed you set up.

- NATURAL Mode :Fan will start work at low speed(5s)→medium

speed(5s)→high speed(5s)→low speed(5s), it works as per this recycle.

- SLEEP Mode : 1）If you set the mode at high speed, fan will work at

high speed at 30 mins, then transfer to medium speed at 30 mins and

transfer to low speed until fan stop working. 2）If you set the mode at

medium speed, fan will work at medium speed at 30 mins, then transfer to

low speed until fan stop working. 3）If you set the mode at low speed, fan

will work at low speed until fan stop working. The LED Display will turn off if

you don’t control the fan in 30 seconds, touch any button to turn on the

display.

- Child Mode : Fan will auto. Set up timer at 3 hours, oscillation function

will start. And it will work at high speed at 15 minutes, transfer to medium

speed at 15 minutes, then transfer to low speed until it take off. You can

take off oscillation function by manual. The LED Display will turn off if you

don’t control the fan in 30 seconds, touch any button to turn on the display.

5. TIMER : The fan is equipped with a timer that allows you to set its

length of operation from 1 hour to 12 hours.The LED Display will turn off if

you don’t control the fan in 30 seconds, touch any button to turn on the

display.

6. OSCILLATION : Pressing the ‘OSC’ button will start and stop the

oscillation function. The symbol is displayed on the LED panel.(shown in

Fig 4) .

（Fig 4）

7. DISPLAY :Can be switched off temporarily by press the LED

button on the remote or by pressing and holding the SPEED button on the

control panel for more than 3 seconds, the display will light up again once

any control button is activated.

8. Rotate Fan to backward: Rotating the fan to backward just to take the fan

and pull it to backward. Rotating the fan at vertical angel, just to push it

back.( Fig 5)

(Fig 5)

MAINTENANCE

1.This can only be done by an authorized service agent such as your local

Sealer dealer or any agent qualified to undertake electrical repairs.

2.If the unit requires external cleaning make sure it is switched off and

unplugged from the mains supply. Use a soft tissue or cloth for general

cleaning. To remove more persistent dirt or grime wipe down with a cloth that

has been dampened with warm soapy water. Do not use any solvents ( such

as thinners ) as these maydamage the plastic casing.

LEA

DETENIDAMENTE

ESTAS

INSTRUCCIONES

ANTES

INTENTAR

MONTAR,

INSTALAR

REALIZAR

CUALQUIER

OTRA

ACCIÓN

CONEL

VENTILADOR

DESCRITO.

ESTE

MANUAL

INCLUYE

INFORMACIÓNDE

SEGURIDAD.

INCUMPLIR

LAS

INSTRUCCIONES

PODRÍAPROVOCAR

LESIONES

PERSONALES

DAÑOS

PROPIEDAD!

INFORMACIÓN

SEGURIDAD

IMPORTANTE

1.Lea detenidamente estas instrucciones antes de utilizar el

VENTILADOR.

2.Utilice el VENTILADOR únicamente para las finalidades descritas

en este manual. Cualquier otro uso no recomendado por el

fabricante podría causar riesgo de incendios, descargas eléctricas o

lesiones personales.

3.Retire el embalaje y asegúrese de que el VENTILADOR no esté

dañado. En caso de duda, no lo utilice y póngase en contacto con

su proveedor.

4.No permita que los niños jueguen con las piezas incluidas en el

paquete.

5.Antes de utilizar el VENTILADOR, compruebe si el voltaje

marcado en la etiqueta de clasificación corresponde con el voltaje

de su red eléctrica.

6.Tenga especial cuidado cuando use el VENTILADOR cerca de los

niños o personas con alguna incapacidad, evite su funcionamiento

sin supervisión.

7.Evite utilizar un alargo porque el cable puede sobrecalentarse y

causar riesgo de incendio.

8.Nunca tire del cable de alimentación directamente para

desconectarlo de la fuente de alimentación. Siempre agarre el

enchufe para sacarlo.

9.No inserte ningún objeto en el VENTILADOR, de lo contrario,

podría causar descarga eléctrica o lesiones o daños al

VENTILADOR. No bloquee el VENTILADOR de ninguna manera

cuando esté funcionando.
