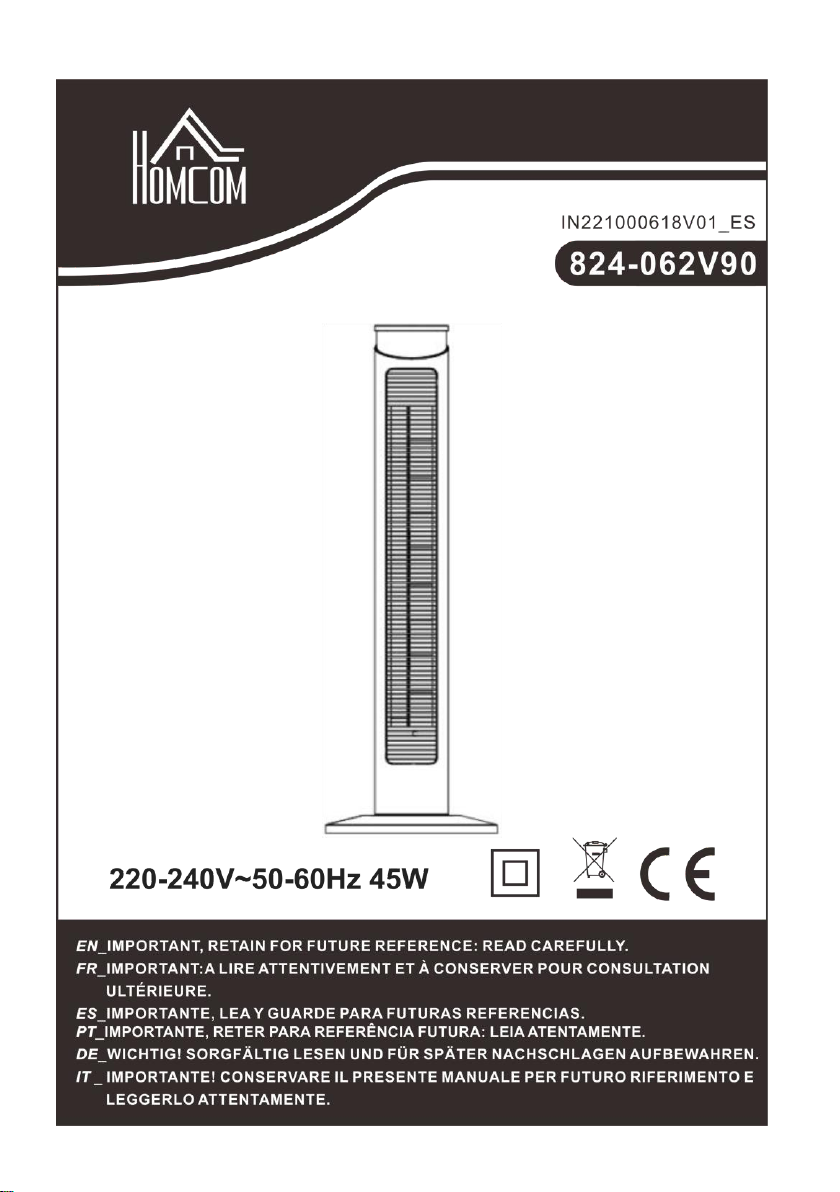

HOMCOM 824-062V90 Manuel utilisateur

EN READ CAREFULLY BEFOREATTEMPTING TOASSEMBLE, INSTALL,

OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT

YOURSELF AND.OTHER BY OBSERVING ALL SAFETY INFORMATION.

FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN

PERSONAL INJURYAND/OR PROPERTY DAMAGE !

IMPORTANT SAFETY INFORMATION

1. Read all instructions carefully before using the FAN.

2. Use this FAN only as described in this manual. Any other

use not recommended by the manufacturer may cause fire,

electrical shock, or injury to persons.

3. Remove the package and ensure that the FAN is

undamaged. In case of doubt do not use FAN and contact

with your supplier.

4. Don not let children play parts of package.

5. Before use the FAN, check if the voltage marked on the

rating label corresponds to the mains in your home.

6. Extreme caution is necessary when the FAN is used by or

near children or Invalids and whenever the FAN is left

operating unattended.

7. Avoid using extension cord as the extension cord may

overheat and cause a risk of fire.

8. Do not pull the power cord to disconnect with power source.

Always grasp the plug to pull out.

9. Do not insert any objects into the FAN as it may cause an

electric shock or injure or damage to the FAN. Do not block

or tamper with the FAN in any manner while it is in

operation.

10. Do not leave the FAN unattended.

11. This FAN is not intended for use in wet or damp locations.

Never locate a FAN where it may fall into a bathtub or other

water container.

12. Do not use FAN outdoors.

13. Disconnect the fan from the mains power when not in use,

and before servicing or performing any maintenance.

14. Keep the fan clean and maintain in good condition (use an

authorized service agent).

15. Use recommended parts only (non genuine parts may be

dangerous, and will invalidate your warranty).

16. When not in use store in a safe, dry, childproof location.

17. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

18. The back housing shall not dismantle, removal will be

dangerous .

19. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their

safety.

20. Children should be supervised to ensure that they do not

play with the appliance.

WARNING :

The Main Power Switch and the On/Off

switch should not be used as the sole

means of disconnecting power. Always

unplug the power cord before servicing or

moving the unit.

WARNING :

To avoid danger of electric shock, unplug

from outlet when not in use and before

cleaning. If the supply cord is damaged, it

must be replaced by the manufactory or it’s

service agent or a similarity qualified

person in order to avoid a hazard.

PARTS NAME

ASSEMBLY

1. Take out the two parts of the base from packing box. Then, align the

centers of the two parts of the base and place them in a crossed form.

Rotate one of the two bases to align its hole site and make it stuck

correctly (Fig 1).

(Fig 1)

2. Put the wire in the recess, then fix the base on the fan body with four

screws (included), and turn the screws clockwise (Fig 2).

(Fig 2 )

REMOTE CONTROL

1. Included a button cell battery (the type of battery CR2025).

2. The remote control power button is labeled as such.All the functions

performed with the remote control work identically to the manual controls.

( Fig 3).

( Fig 3) ( Fig 4)

OPERATION

The FAN may be operated by the manual controls located on the FAN (as

shown in Fig 4 ) or by your remote control (shown in Fig 3) .

1. Place the FAN on a stable flat surface. Plug the cord set into a 220-240V~

electrical outlet. Plug on the FAN, existing room temperature will be

displayed at display panel.

2. POWER : Turn the FAN on by pressing the ‘POWER’ button; Turn

the FAN off by pressing the ‘POWER’ button again.

3. SPEED :You can adjust the fan speed to the desired level: low,

medium, or high by pressing ‘SPEED’ . The speed setting is displayed on

the LED panel (shown in Fig. 5) .

4. MODE : Pressing the ‘MODE’ button will set the FAN into NORMAL

mode, NATURAL mode,SLEEP mode and Child mode

- NORMAL Mode : Fan will start work at any speed you set up.

- NATURAL Mode : Fan will start work at low speed(5s)→medium

speed(5s)→high speed(5s)→medium speed(5s), it works as per this

recycle.

- SLEEP Mode : 1）If you set the mode at high speed, fan will work

at high speed at 30 mins, then transfer to medium speed at 30 mins and

transfer to low speed until fan stop working. 2）If you set the mode at

medium speed, fan will work at medium speed at 30 mins, then transfer to

low speed until fan stop working. 3）If you set the mode at low speed, fan

will work at low speed until fan stop working. The LED Display will turn off

if you don’t control the fan in 30 seconds, touch any button to turn on the

display.

- Child Mode : Fan will auto. Set up timer at 3 hours, oscillation

function will start.And it will work at high speed at 15 minutes, transfer

to medium speed at 15 minutes, then transfer to low speed until it take

off. You can take off oscillation function by manual. The LED Display

will turn off if you don’t control the fan in 30 seconds, touch any button to

turn on the display.

5. TIMER : The fan is equipped with a timer that allows you to set its

length of operation from 1 hour to 12 hours.The LED Display will turn off if

you don’t control the fan in 30 seconds, touch any button to turn on the

display.

6. OSCILLATION : Pressing the ‘OSC’ button will start and stop the

oscillation function. The symbol is displayed on the LED panel.(shown in

Fig 5)

( Fig 5)

7. DISPLAY :Can be switched off temporarily by press the LED

button on the remote or by pressing and holding the SPEED button on the

control panel for more than 3 seconds, the display will light up again once

any control button is activated.

8. Cable hook: The cable hook is packed in the user manual, take it out

and install on the back side of the fan. The power cord can be hanged at

the cable hook when the fan is not in used.(Fig 6) .

(Fig 6)

MAINTENANCE

1. This can only be done by an authorized service agent such as your local

Sealer dealer or any agent qualified to undertake electrical repairs.

2. If the unit requires external cleaning make sure it is switched off and

unplugged from the mains supply. Use a soft tissue or cloth for general

cleaning. To remove more persistent dirt or grime wipe down with a cloth that

has been dampened with warm soapy water. Do not use any solvents ( such

as thinners ) as these may damage the plastic casing.

Correct Disposal of this product

This marking indicates that this product should not be

disposed with other household wastes throughout the

EU. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, recycle

it responsibly to promote the sustainable reuse of

material resources. To return your used device, please

use the return and collection systems or contact the

retailer where the product was purchased. They can

take this product for environmental safe recycling.
