Contents 1

Introduction..................................... 2

In brief.............................................4

Keys, doors, and windows............ 16

Seats, restraints............................ 28

Storage.........................................46

Instruments and controls.............. 51

Lighting.........................................75

Infotainment system ..................... 81

Climate control............................ 130

Driving and operating ................. 135

Vehicle care................................ 162

Service and maintenance........... 206

Technical data............................. 208

Customer information................. 213

Index...........................................215

BOOK_MY14_TRAX.indb 1 14/06/2013 12:56:01 PM

2 Introduction

Introduction

We thank you for choosing Holden and want to

assure you of our continuing interest in your

driving pleasure and satisfaction.

This handbook applies to the current Trax model.

Therefore, due to different models and options, you may

nd reference in this Handbook to some equipment

not tted to your own vehicle.

Please note that all information, illustrations and

specications in this Handbook are based on the latest

production information available at the time of printing.

Holden reserves the right to make changes at any time

without notice and without incurring any obligation.

BOOK_MY14_TRAX.indb 2 14/06/2013 12:56:01 PM

Introduction 3

Introduction

Your vehicle is a designed

combination of advanced technology,

safety, environmental friendliness and

economy.

This Owner’s Handbook provides

you with all the necessary

information to enable you to drive

your vehicle safely and efciently.

Make sure your passengers are

aware of the possible risk of accident

and injury which may result from

improper use of the vehicle.

Using this manual

• The In brief section will give you

an initial overview.

• The table of contents at the

beginning of this manual and

within each chapter shows where

the information is located.

• The index will enable you to

search for specic information.

• Directional data, e.g. left or right,

or front or back, always relate to

the direction of travel.

• Depending on the model variant,

integrated special equipment

and accessories, the scope of

equipment of your vehicle can

differ from the descriptions in this

Owner’s Handbook.

• The Bluetooth®word mark and

logo are registered trademarks

and are owned by the Bluetooth

SIG, Inc.

• iPod®and iPhone®are registered

trademarks of Apple Inc.

• Pandora®is a registered

trademark of Pandora

Media, Inc.

• Stitcher SmartRadio™ is

a registered trademark of

Stitcher, Inc.

• DivX®, DivX Certied®and

associated logos are registered

trademarks of Rovi Corporation

or its subsidiaries and are used

under licence.

Danger, warnings

and cautions

Danger

Text marked Danger provides

information on risk of fatal injury.

Disregarding this information may

endanger life.

Warning

Text marked Warning

provides information on risk of

accident or injury. Disregarding

this information may lead to injury.

Caution

Text marked Caution provides

information on possible damage

to the vehicle. Disregarding this

information may lead to vehicle

damage.

BOOK_MY14_TRAX.indb 3 14/06/2013 12:56:01 PM

4 In brief

In brief

Initial drive

information

Locking/unlocking

the vehicle

Remote keyless entry

The key operates all doors and the

ignition.

• Press cto unlock the doors.

The hazard lamps ash twice.

• Press eto lock the doors.

The hazard lamps ash once.

Central locking system, see

page 18.

Tailgate, see page 22.

Seat adjustment

Seat positioning

1. Move the seat forwards or

backwards by lifting the handle at

the front and sliding the seat.

2. Release the handle to engage

the latch.

Seat adjustment, see page 30.

Seat position, see page 29.

BOOK_MY14_TRAX.indb 4 14/06/2013 12:56:02 PM

In brief 5

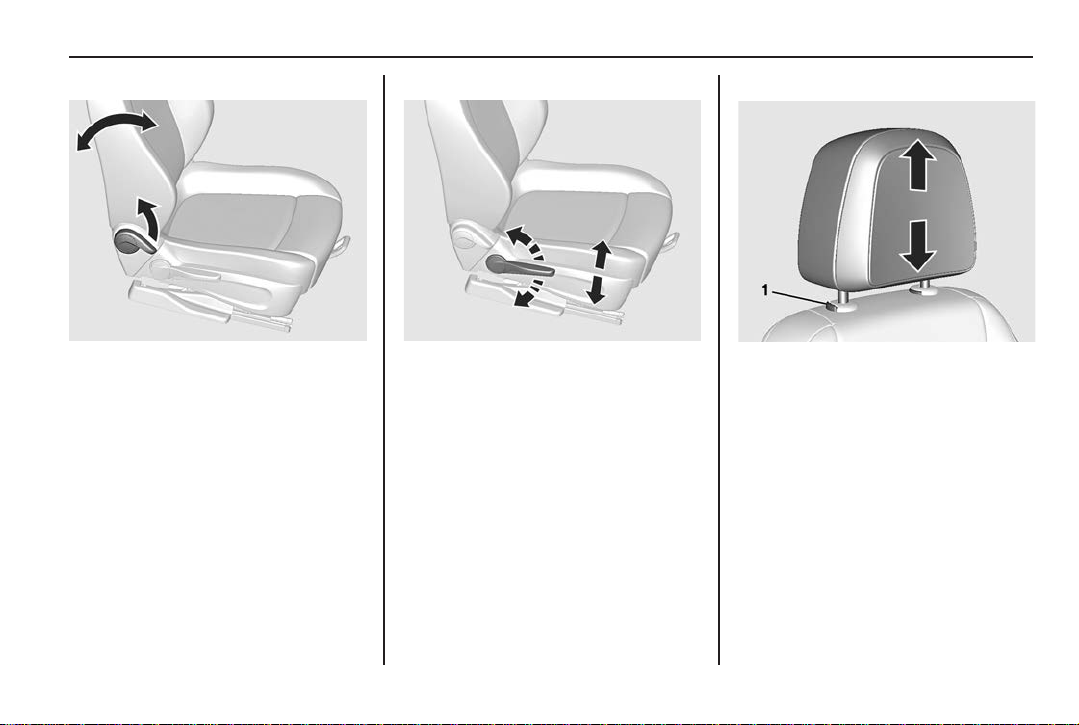

Seat backrests

1. Recline the seatback by lifting

the lever.

2. Adjust the angle and release

the lever.

3. Allow the seat to engage.

Note

Do not lean on the seat when

adjusting.

Seat adjustment, see page 30.

Seat height

• To lower the seat cushion, push

the lever down several times.

• To raise the seat cushion, pull

the lever up several times.

Seats and restraints, see page 28.

Head restraint adjustment

• To raise the head restraint, pull

the head restraint upwards.

• To lower the head restraint, press

(1) and push the head restraint

downwards.

Head restraints, see page 28.

BOOK_MY14_TRAX.indb 5 14/06/2013 12:56:02 PM

6 In brief

Seat belts

1. Withdraw the belt from the reel.

2. Pull the metal tongue across

your body into the buckle, until it

clicks into place.

3. Tension the lap belt regularly

while driving by tugging the

shoulder belt.

Seat belts, see page 35.

Mirror adjustment

Interior mirrors

To reduce headlamp glare from

following vehicles, push the lever

towards the front of the vehicle.

Rear view mirror, see page 25.

Exterior mirrors

L: Left side mirror selected

R: Right side mirror selected

O: No mirrors selected

To adjust an exterior rear view

mirror:

1. Rotate the switch to Lor R.

2. Swivel the switch to adjust the

mirror.

Exterior mirrors, see page 24.

BOOK_MY14_TRAX.indb 6 14/06/2013 12:56:03 PM

In brief 7

Steering wheel

adjustment

1. To unlock, move the lever down.

2. Adjust the steering wheel.

3. To lock, move the lever up.

4. Ensure the steering wheel is

locked in position before driving.

Steering wheel adjustment, see

page 51.

BOOK_MY14_TRAX.indb 7 14/06/2013 12:56:03 PM

8 In brief

Instrument panel overview 1. Side air vents

2. Exterior lamp switch

3. Wiper and washer lever

4. Cruise control

5. Instrument cluster

6. Horn, driver’s airbag

7. Steering wheel remote controls

8. Turn signals

9. Central air vents

10. Infotainment system

11. Storage (AUX, USB port)

12. Glove box

13. ESC switch

14. Hazard warning asher

15. Power outlet

16. Shift lever

17. DCS switch

18. Climate control system

19. Passenger seat belt reminder light

20. Accelerator pedal

21. Brake pedal

22. Ignition switch/lock

23. Steering wheel adjustment

24. Bonnet release lever

25. Clutch pedal

BOOK_MY14_TRAX.indb 8 19/09/2013 10:27:43 AM
