Names and Functions of Remote Controller

This controls the operation function and timer setting of the room air conditioner.The range of control

is about 7 meters. lf indoor lighting is controlled electronically, the range of control may be shorter.

Backlight function

• Backlight is to see the LCD readings in the dark.

• On Pressing any key, the LCD panel lights up for a period of approx. 10 seconds. After approx. 10

seconds the light automatically switches off.

• The function is independent of all other functions of the air conditioner.

• The backlight color is white.

Precautions for Use

• Do not put the remote controller under direct sunlight and high temperature.

• Do not drop it on the ﬂoor, and protect it from water.

• If you press the any function button during operation, the air conditioner may stop for about 3

minutes for protection before you can start it again.

Signal Transmission

Off Mode Sign

Mode Selector Button

Use this button to select the

operation mode. Every time

you press this button the

mode will change from (Cool)

(Dry)　(Fan) cyclically.

(

Page 5)

(

Page 10)

On Timer Button

Select the turn ON time.

Page 19)

Off Timer Button

Select the turn OFF time .

( Page 19)

My Mode Button

(

Page 21)

Invalid Operation Sign

Shown at invalid setting or

operation

Transmission Sign

The transmission sign blinks

when a signal has been sent.

Fan Speed Button

Select the fan speed.

( Page 6)

On/Off Button

Press this button to start

operation.

Press it again to stop

operation.

( Page 5)

Powerful Button

( Page 4)

Silent Button

( Page 16)

Temperature Button

Room temperature setting.

Value will change quicker

when keep pressing.

( Page 5)

Reset Button

( Page 24)

Up/Down Button

Control the angle of the

horizontal air deflector.

( Page 17)

Left/Right Button

Control the angle of the

Vertical air deflector.

( Page 18)

SleepSense Button

( Page 14)

FrostWash Button

( Page 7)

Filter Sign Reset Button

( Page 24)

Smart Eco Button

Use this button to set the

Eco mode.

- 2 -

Press Timer ON button once. or Timer OFF button

Clock symbol stop blinking and Clock time will be display on LCD

screen.

●When Timer ON , Timer OFF or both set then it is not possible to change/set clock time. First Timer ON ,

Timer OFF or both need to cancel.

●If Correct clock time is not set then Timer ON and Timer OFF will not operate correctly.

●At time of Battery replacement / Reset , Clock time need to set. If it is not set and press any key then default

12:00 will be set.

●At time of Battery replacement / Reset , Need to follow process from step2 onwards.

● symbol is blinking , if no key press then it will come out of Clock During Clock time change/set when

setting with previous set time.

or Timer OFF button for Press and Hold Timer ON button

5 seconds.

segment start blinking on LCD approx. 5 seconds then

symbol start blinking.

Clock

When Clock symbol is in blinking , Press Temperature Up / Down

button to change/set desire time value.

How to set clock

How to Install the Batteries in the Remote Controller

Remove the cover as shown in the ﬁgure and take out the old batteries.

Install the new batteries.

The direction of the batteries should match the marks in the case.

1. Do not use new and old batteries, or different kinds of batteries together.

2. Take out the batteries when you do not use the remote controller for 2 or 3 months.

CAUTION

Push and pull to the

dirction of arrow

Batteries

Cover

NOTE

●Change the batteries when remote controller LCD display restarts on pressing of any key and there is

no response from air conditioner.

- 3 -

ENGLISH

Various Functions

■Auto Restart Control

●If there is a power failure, operation will be automatically restarted when the power is resumed with previous

operation mode and airﬂow direction.

(As the operation is not stopped by remote controller.)

●If you intend not to continue the operation when the power is resumed, switch off the power supply.

When you switch on the circuit breaker, the operation will be automatically restarted with previous operation

mode and airﬂow direction.

Note: 1. If you do not require Auto Restart Control, please consult your sales agent.

2. Auto Restart Control is not available when Timer set.

Powerful Operation

• During Powerful operation, cooler air will be blown out from indoor unit for Cooling operation

respectively.

NOTE

•

Press the (Powerful) button during operation.

• " " is displayed on the LCD.

Powerful operation ends in 20 minutes. Then the system

automatically operates with the previous settings used before

Powerful operation.

START

•Press the

Press the

• " " disappears from the LCD.

CANCEL

(On/Off) button. or

(Powerful) button again.

By pressing Powerful (Powerful) button during Dry, Cool, or Fan operation, the air conditioner performs

at maximum power.

Powerful

•When SleepSense Smart Eco operation, Silent Mode or My Mode is selected , Powerful

Operation will be cancelled.

• During Powerful operation, capacity of the air conditioner will not increase

– if the air conditioner is already running at maximum capacity.

- 4 -

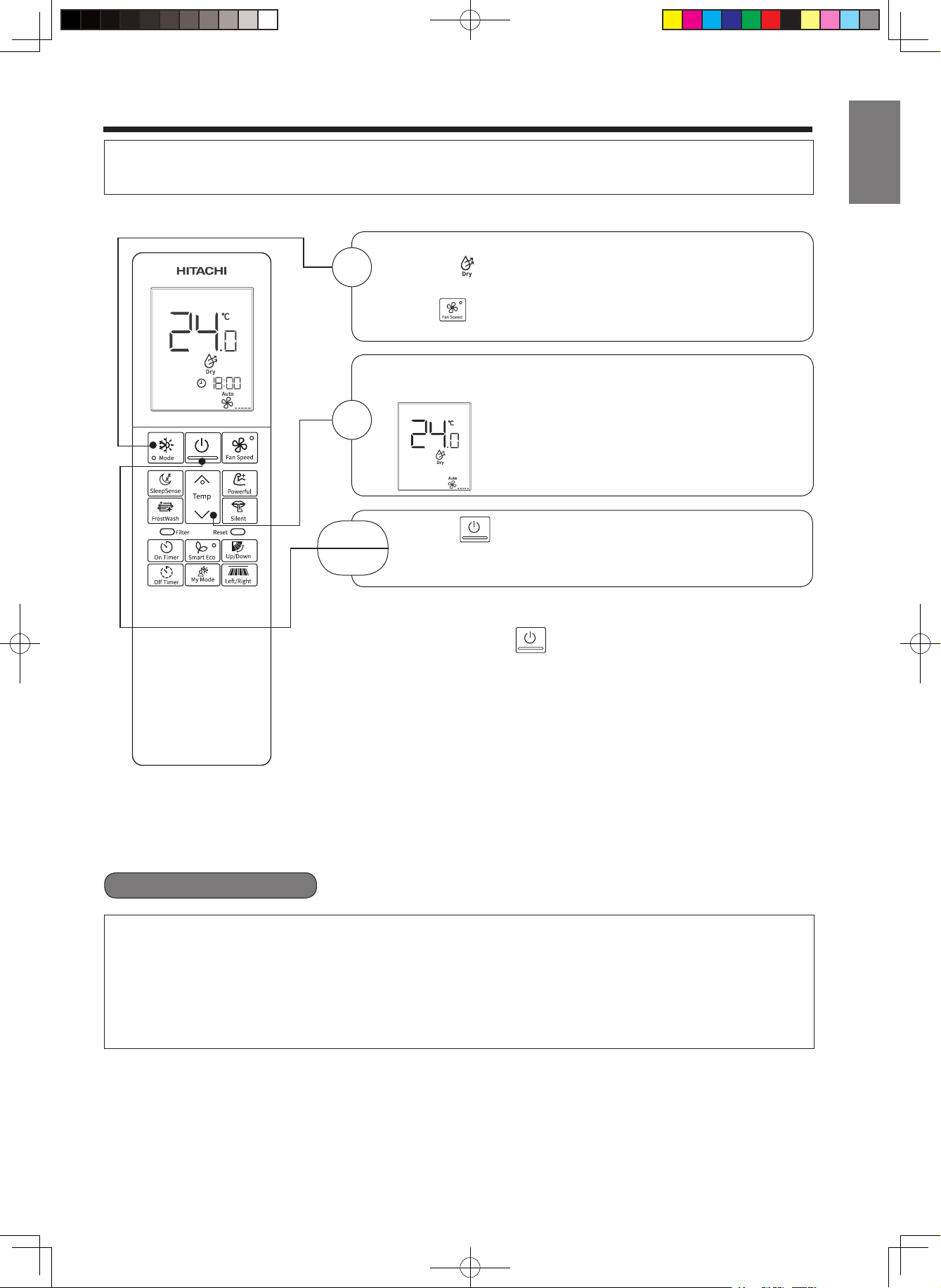

Dry Mode

■Dehumidifying Function

Use the device for dehumidifying when the room temperature is over 16°C.

When it is under 15°C, the dehumidifying function will not work.

●When the room temperature is higher than the temperature setting: The device will dehumidify the room,

reducing the room temperature to the preset level.

When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the

temperature setting slightly lower than the current room temperature, regardless of the temperature setting.

●The preset room temperature may not be reached depending on the number of people present in the room

or other room conditions.

Set the desired room temperature with the Temperature Buttons

(the display indicates the setting).

The range of 20.0˚C to 26.0˚C is recommended as

the room temperature for dehumidifying.

Temperature range can be set between 16.0°C and

32.0°C.

Press the (On/Off) button. Dehumidifying operation

starts with a beep. Press the button again to stop operation.

■As the settings are stored in the memory of the remote controller, you

only have to press the (On/Off) button next time.

START

STOP

Press the Mode Selector Button so that the display

indicates (Dry).

The fan speed is set at Auto.

Press (Fan Speed) button to select Silent, Low or Auto fan

speed.

- 5 -

ENGLISH

Cool Mode

Use the device for cooling when the outdoor temperature is -10 to 46°C.

If humidity is very high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit.

Press the Mode Selector Button so that the display indicates

(Cool).

Set the desired Fan Speed with the (Fan Speed) button (the

display indicates the setting).

Set the desired room temperature with the Temperature Buttons

(the display indicates the setting).

The temperature setting and the actual room temperature may vary

depending on conditions.

Press the (On/Off) button. Cooling operation starts with a

beep. Press the button again to stop operation. The cooling function

does not start if the temperature setting is higher than the current

room temperature (even though the (Operation) lamp lights).

The cooling function will start as soon as you set the temperature

below the current room temperature.

START

STOP

■As the settings are stored in memory in the remote controller, you only

have to press the (On/Off) button next time.

■During Auto fan, the fan speed automatically changes as below:

● When the difference between room temperature and setting tem-

perature is large, fan starts to run at Super High speed.

● After room temperature reaches the preset temperature, fan speed

will be changed to lower speed to obtain optimum room temperature

condition for natural healthy cooling.

Temperature range can be set between 16.0°C and 32.0°C.

(Auto) (Silent) (Low)

(High) (Medium)(Super High)

- 6 -

●

The process of FrostWash

●lamp on the indoor unit lights up during FrostWash operation.

●

●In order to protect the product, FrostWash function cannot be carried out again for about 60 minutes after

FrostWash operation is completed.

" "

The dust and dirt adhering to indoor heat exchanger which is the cause of the smell. They are washed away

by freezing and thawing of the heat exchanger.

FrostWash function can work when the outdoor temperature is 1℃ to 43℃and indoor humidity is 30% to 70%.

■ FrostWash(Manual Mode)

When the unit is off, press (FrostWash) button, manual FrostWash will start.

■ How to start and cancel FrostWash (Manual mode).

display on LCD screen.

" lamp light up on the

●After one hour, "

indoor unit will stop

" disappears from the LCD. After about two hours, the

operation.

●In order to protect the product, FrostWash function cannot be carried out

again for about 60 minutes after the FrostWash operation is completed.

●Press the FrostWash button , FrostWash

FrostWash operation start with beep sound and "

indoor unit.

●Press the (On/Off) button, the operation will stop.

" " lamp on the indoor unit turns off.

Precautions for Use

●Do not open windows or doors during operation. Water will condense on the air deflector and

drips down occasionally. This will wet your furniture.

●Do not open or remove the front panel during operation. It may cause injury or malfunction.

●FrostWash operation does not wash away all dust and dirt.

●

Hissing, fizzy or squeaking noise may generate during FrostWash operation.

●If the air conditioner is continuously running, FrostWash function is not effective.

●During FrostWash operation, if power is turned off and then power is restored, FrostWash function will not

restart.

●After turning on the power, please wait a moment if you want to start FrostWash.

●If On Timer or Off Timer is set, there is a need to cancel those timer before operating FrostWash.

Operation is started

FrostWash operation Unit remain in standby mode

120min (max)

Operation is

stopped FrostWash ends

is pressed

Normal operation

- 7 -

ENGLISH

●

When the outdoor temperature or indoor humidity are not suitable for FrostWash operation, only fan operation

is carried out, FrostWash operation will be done again when room air conditioner is in standby mode.

Sometimes the heat exchanger may not freeze depending on the conditions of the room.

When the ON timer reaches the set time during FrostWash operation, it will stop the FrostWash operation

and start the operation of setting mode.

If the interval of the OFF to ON timer is less than 2 Hours , FrostWash operation may not be complete. In that

case, it will restart FrostWash operation when room air conditioner is in standby mode.

To return to normal FrostWash (Auto mode) interval (42 hours), please stop operation of air conditioner and

operate FrostWash (Auto mode) or FrostWash (Manual mode).

When FrostWash operation has not been operated in last 84 hours , FrostWash kicks in automatically after

halting the operation even if a human sensor detects a person in the room.

When FrostWash is stopped during FrostWash operation, the unit automatically restart FrostWash operation

at the next operation stop.

Accumulated operating hours of the air conditioner have exceeded 42 hours

Air conditioner is operated for more than 30 minutes and stops, such as cooling operation

Human sensor detects somebody is in room for 15 minutes and over 4 times; or not in room for 15 minutes

FrostWash start FrostWash end

120min (max)

not in room

not in roomAbout 8 min

About 30 minutes or more

Operation such as

cooling operation

Operation such as

cooling operation Fan operation

Last FrostWash

Running Stop Running Stop

Auto Stop

FrostWash

120min (max)

Auto Stop

FrostWash

in roomin room

15 min

in room

Accumulated operating hours of the air conditioner

have exceeded 42 hours

FrostWash end

not in room

About 15 min

detect human

in room or not in room

detect human

in room or not in room

15 min

detect human

in room or not in room

in room

15 min

detect human

in room or not in room

in room

●

- 8 -

FrostWash (Auto) and Fan Reverse (Auto) enable.

When FrostWash (Auto) and Fan Reverse (Auto) is enabled,

If FrostWash (Auto

)

and Fan Reverse (Auto

)

is displayed on the LCD.

is disappeared on the LCD.

When FrostWash (Auto) and Fan Reverse (Auto) is disable,

FrostWash (Auto) and Fan Reverse (Auto) disable.

FrostWash (Auto Mode) and Fan Reverse (Auto Mode)

■

How to enable indoor FrostWash (Auto) and Fan Reverse (Auto)

■How to disable indoor FrostWash (Auto) and Fan Reverse (Auto)

Note : Frostwash (Auto Mode) and Fan Reverse (Auto Mode) all set and cancel by Temperature Up button

or Down button and Frostwash button combination as above.

FrostWash auto start conditions

- 9 -

ENGLISH

Fan Reverse (Auto Mode)

By rotating the fan of the outdoor in the reverse direction when the unit is stopped, dust on the

outdoor heat exchanger is blown away.

about 5 mins

Operation is stopped

Unit normal operation

(Outdoor fan normal

operation)

Waiting for the outdoor

fan to stop Fan Reverse Waiting for the Fan

Reverse to stop

Fan Reverse auto start conditions

●

lamp on the indoor unit lights up during Fan Reverse operation.

When pressing the button such as ON/OFF during Fan Reverse operation, Fan Reverse operation is

discontinued and start the operation.

When Fan Reverse is stopped during Fan Reverse operation, the unit automatically restart Fan Reverse

operation at the next operation stop.

Do not bring hair or tiny rope close to the outdoor unit when the fan of outdoor unit is rotating in reverse

direction.

●

Smart Eco operation

The sensor detects the presence of people in the room. When nobody is detected, the unit

automatically starts energy saving operation by shifting the set temperature in two steps.

Smart Eco button is scrolling button , First Press of button , it will start Eco operation , on second

Press of button it will start Eco with Auto-Off operation and on Third press of button , it will cancel

Eco and Eco with Auto-Off function.

•

NOTE

In case the power consumption is already low, Smart Eco operation will not reduce the power consumption.

● By pressing (POWERFUL) button, Eco or Eco with Auto-Off operation is cancelled.

● After auto restart, Eco or Eco with Auto-Off operation is cancelled and previous operation mode shall start.

● By Pressing Mode button , SleepSense button , My mode button , Eco or Eco with Auto-Off operation is

cancelled.

Key Press 1 2 3

Function Selected Eco Eco+Auto-Off Cancel

To Start Smart Eco operation

● Press the Smart Eco button during Cool

or Dry operation , the Air conditioner performs the "Eco"

operation.

is display on LCD screen.

A beep sound is emitted from Indoor Unit.

The sensor starts to detect the presence of people in the room.

Energy saving operation will start by changing the set temperature

higher or lower automatically and reducing operation power

consumption.

● ●

To Start Eco operation and Auto-Off operation

Press the Smart Eco button again, it will start Auto-Off

operation along with Eco operation.

Sensor detect activity / movement level in room and turn off the

unit automatically , thus achieving the purpose of energy saving

during day time.

and will be appear on LCD.

A beep sound is emitted from indoor unit .

●

To Cancel Eco operation and Auto-Off operation

● Press the start/stop button OR

● Press the Smart Eco button again.

●

- 10 -

Table des matières

Autres manuels Hitachi Télécommande

Hitachi

Hitachi RAR-6N2 Manuel utilisateur

Hitachi

Hitachi PC-ARFG-E Manuel utilisateur

Hitachi

Hitachi SPX-RCKA1 Manuel utilisateur

Hitachi

Hitachi PC-ARFHE-02 Manuel utilisateur

Hitachi

Hitachi PC-ARFH1E-02 Manuel utilisateur

Hitachi

Hitachi RAR-3R5 Manuel utilisateur

Hitachi

Hitachi RAR-7PE1 Manuel utilisateur

Hitachi

Hitachi PC-ARH1E Manuel utilisateur

Hitachi

Hitachi air Home RC-AGU1EA0S Manuel utilisateur

Hitachi

Hitachi RC-AGU1EA0G Manuel utilisateur

Hitachi

Hitachi PC-AWR Manuel utilisateur

Hitachi

Hitachi RC-AGS1EA0E Manuel utilisateur

Hitachi

Hitachi PC-ARFP1E Manuel utilisateur

Hitachi

Hitachi SPX-WKT3 Manuel utilisateur

Hitachi

Hitachi PC-AWR Manuel utilisateur

Hitachi

Hitachi PC-ARFG2-Z Mode d’emploi

Hitachi

Hitachi RAR-5F Manuel utilisateur

Hitachi

Hitachi RC-R008 Manuel utilisateur

Hitachi

Hitachi PC-LH3A Manuel utilisateur

Hitachi

Hitachi PC-ARFG-E Manuel utilisateur

Hitachi

Hitachi RAR-M0A5 Manuel utilisateur

Hitachi

Hitachi PC-LH3A Manuel utilisateur

Hitachi

Hitachi PC-ARFH1E Manuel utilisateur

Hitachi

Hitachi PC-ARFH2E Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
