Hitachi SPX-RCDA Manuel utilisateur

Remote Controller Manual

Remote Controller manual Page 1~11

To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.

MODEL

SPX-RCDA

(RAR-5G1)

PRECAUTIONS FOR USE

● In case of power failure happen, Wired Remote Controller may not show current operating mode when power

comes back. However unit will continue to operate at previous setting mode.

● It is not recommended to use both Wireless Remote Controller and Wired Remote Controller at the same

time.

● Some features of Wireless Remote Controller are not available when use Wired Remote Controller as mentioned

below:

● Powerfull

● Information

● One touch clean

● Leave home

● Powerfull

● Information

● One touch clean

● Leave home

● Powerfull

● Information

● One touch clean

● Leave home

● Powerfull

● Information

● One touch clean

● Leave home

● Powerfull

● Information

● One touch clean

● Leave home

Standard Wireless Remote Controller Features not available on Wired Remote Controller

RAR-5E1

RAR-5E2

RAR-5E3

RAR-5E4

RAR-5E5

● Silent

● Weekly timer

● Auto swing (vertical)

● Auto swing (horizontal)

● Silent

● Weekly timer

● Auto swing (vertical)

● Silent

● Weekly timer

● Auto swing (vertical)

● Air purify

● Silent

● Weekly timer

● Auto swing (vertical)

● Extended

● Silent

● Weekly timer

ENGLISH

NAMES AND FUNCTIONS OF REMOTE CONTROLLER

■ This controls the operation function and timer setting of the room air conditioner.

Precautions for Use

O Do not put the remote controller in the following places.

O Under direct sunlight.

O In the vicinity of a heater.

O Handle the remote controller carefully. Do not drop it on the ß oor, and protect it from water.

O Once the outdoor unit stops, it will not restart for about 3 minutes (unless you turn the power switch

off and on or unplug the power cord and plug it in again).

This is to protect the device and does not indicate a failure.

O If you press the MODE SELECTOR button during operation, the device may stop for about 3 minutes

for protection.

OPERATION LAMP

START/STOP Button

Press this button to start operation.

Press it again to stop operation.

Transmission Sign

The transmission sign blinks

when a signal has been

send.

RESET SWITCH

ROOM TEMPERATURE

Setting Button

Room temperature setting.

Value will change quicker

when keep pressing.

CANCEL Button

Cancel timer reservation.

FAN SPEED Button

This determines the fan

speed. Every time you press

this button, the intensity of

circulation will change from

(AUTO) to (HIGH)

to (MED) to (LOW)

to (SILENT)(This button

allows selecting the optimal

or preferred fan speed for

each operation mode).

MODE SELECTOR Button

Use this button to select the

operating mode. Every time you

press it, the mode will change

from (AUTO) to (HEAT)

to (DEHUMIDIFY) and to

(COOL) cyclically.

SLEEP Button

Use this button to set the sleep

timer. ( Page 10)

SET Button

Timer setting reservation.

OFF TIMER Button

Select the turn OFF timer.

ON TIMER Button

Select the turn ON timer.

AUTOMATIC OPERATION

The device will automatically determine the mode of operation, HEAT or COOL depending on the current

room temperature. The selected mode of operation will change when the room temperature varies.

■ As the settings are stored in the memory in the remote controller,

you only have to press the (START/STOP) button next time.

Press the MODE selector button so that the display indicates

the (AUTO) mode of operation.

OWhen AUTO has been selected, the device will automatically

determine the mode of operation, HEAT or COOL depending

on the current room temperature. However the mode of

operation will not change when indoor unit is connected

to multi type outdoor unit.

O If the mode automatically selected by the unit is not

satisfactory, manually change the mode setting (HEAT,

DEHUMIDIFY or COOL).

START

STOP

VARIOUS FUNCTIONS

■Auto Restart Control

● If there is a power failure, operation will be automatically restarted when the power is resumed with

previous operation mode.

(As the operation is not stopped by remote controller.)

● If you intend not to continue the operation when the power is resumed, switch off the power supply.

When you switch on the circuit breaker, the operation will be automatically restarted with previous operation

mode.

Note: 1. If you do not require Auto Restart Control, please consult your sales agent.

2. Auto Restart Control is not available when Timer or Sleep Timer mode is set.

Press the (FAN SPEED) button to select AUTO, HIGH, MED,

LOW or SILENT.

Press the (START/STOP) button.

Operation starts.

Press the button again to stop operation.

Set the desired FAN SPEED with the (FAN SPEED) button (the

display indicates the setting).

    (AUTO) (HIGH) (MED)

(SILENT) (LOW)

ENGLISH

HEATING OPERATION

● Use the device for heating when the outdoor temperature is under 21°C.

When it is too warm (over 21°C), the heating function may not work in order to protect the device.

● In order to maintain reliability of the device, please use this device when outdoor temperature is above

15°C

Press the MODE SELECTOR button so that the display indicates

(HEAT).

Set the desired FAN SPEED with the (FAN SPEED) button

(the display indicates the setting).

Set the desired room temperature with the ROOM TEMPERATURE

setting button (the display indicates the setting).

The temperature setting and the actual room temperature may

vary depending on conditions.

Press the (START/STOP) button. Heating operation starts.

Press the button again to stop operation.

START

STOP

 (AUTO)   (HIGH) (MED)

(SILENT) (LOW)

Q As the settings are stored in the memory of the remote controller, you

only have to press the (START/STOP) button next time.

Q During AUTO fan, the fan speed automatically changes as below:

O When the difference between room temperature and setting temperature

is large, fan starts to run at HI speed.

O After room temperature reaches the preset temperature, fan speed

will be changed to lower speed to obtain optimum room temperature

condition for natural healthy heating.

Defrosting will be performed about once an hour when frost forms on the heat exchange of the outdoor unit,

for 5~10 minutes each time.

During defrosting operation, the operation lamp blinks in a cycle of 3 seconds on and 0.5 second off.

The maximum time for defrosting is 20 minutes.

However, if the indoor unit is connected to multi type outdoor unit, the maximum time for defrosting is 15

minutes.

(If the piping length used is longer than usual, frost is likely to form.)

Defrosting

DEHUMIDIFYING OPERATION

Use the device for dehumidifying when the room temperature is over 16°C.

When it is under 15°C, the dehumidifying function will not work.

Set the desired room temperature with the ROOM TEMPERATURE

setting button (the display indicates the setting).

The range of 20-26ûC is recommended as the

room temperature for dehumidifying.

Press the (START/STOP) button. Dehumidifying operation

starts. Press the button again to stop operation.

■ As the settings are stored in the memory in the remote controller, you

only have to press the (START/STOP) button next time.

START

STOP

Press the MODE SELECTOR button so that the display indicates

(DEHUMIDIFY).

Press (FAN SPEED) button to select SILENT or LOW fan

speed.

Q Dehumidifying Function

O When the room temperature is higher than the temperature setting: The device will dehumidify the room,

reducing the room temperature to the preset level.

When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the

temperature setting slightly lower than the current room temperature, regardless of the temperature setting.

O The preset room temperature may not be reached depending on the number of people present in the room

or other room conditions.

ENGLISH

COOLING OPERATION

Use the device for cooling when the outdoor temperature is

10 ~ 43°C.

If indoor humidity is very high (80%), some dew may form on the air outlet grille of the indoor unit.

Press the MODE SELECTOR button so that the display indicates

(COOL).

Set the desired FAN SPEED with the (FAN SPEED) button

(the display indicates the setting).

Set the desired room temperature with the ROOM TEMPERATURE

setting button (the display indicates the setting).

The temperature setting and the actual room temperature may

vary depending on conditions.

Press the (START/STOP) button. Cooling operation starts.

Press the button again to stop operation. The cooling function

does not start if the temperature setting is higher than the current

room temperature (even though the (OPERATION) lamp lights).

The cooling function will start as soon as you set the temperature

below the current room temperature.

START

STOP

 (AUTO)   (HIGH) (MED)

(SILENT) (LOW)

Q As the settings are stored in the memory of the remote controller, you

only have to press the (START/STOP) button next time.

Q During AUTO fan, the fan speed automatically changes as below:

O When the difference between room temperature and setting

temperature is large, fan starts to run at HI speed.

O After room temperature reaches the preset temperature, fan speed

will be changed to lower speed to obtain optimum room temperature

condition for natural healthy cooling.

LEAVE HOME(LH) AND CLEAN (ONE TOUCH CLEAN) OPERATIONS

OLeave Home (LH) and CLEAN(One Touch Clean) operations activation buttons are not available on this device.

The operations shall be activated by wireless remote controller.

O Please refer to wireless 'Remote Controller Manual' to activate the operations.

NOTE

O If or is displayed on the wired remote controller display, the unit will operate Leave Home

(LH) operation mode or CLEAN (One Touch Clean) which shall be activated by wireless remote controller.

OPush start/stop button to stop Leave Home (LH) or CLEAN (One Touch Clean) operation.

ENGLISH

TIMER RESERVATION

■ ON Timer and OFF Timer are available.

1OFF TIMER setting

● Select the OFF TIMER by pressing the (OFF)

Button.

● Setting timer will change according to the below

sequence when you press the button.

● The value change quicker if you keep pressing the

button.

OFF Timer Reservation

■ Operation stop at setting timer

2Press the (SET) button

● OFF TIMER is reserved.

● The (OFF) Mark starts lighting instead of blinking.

1ON TIMER setting

● Select the ON TIMER by pressing the (ON)

Button.

● At the beginning of setting, timer is set to 6 hours.

● Setting timer will change according to the below

sequence.

● The value change quicker if you keep pressing the

button.

ON Timer Reservation

1Press the (CANCEL) button

● As the timer settings are stored in remote controller

memory, you only have to press the (SET) button

in order to use the same setting next time.

CANCELLATION of Timer Reservation

2Press the (SET) button

● ON TIMER is reserved.

● The (ON) Mark starts lighting instead of blinking.

■ Oper at ion w ill s ta rt f o r set ting

temperature at setting timer (The

starting time may different depend

on the room temperature and set

temperature).

0.5 hour interval 1 hour interval

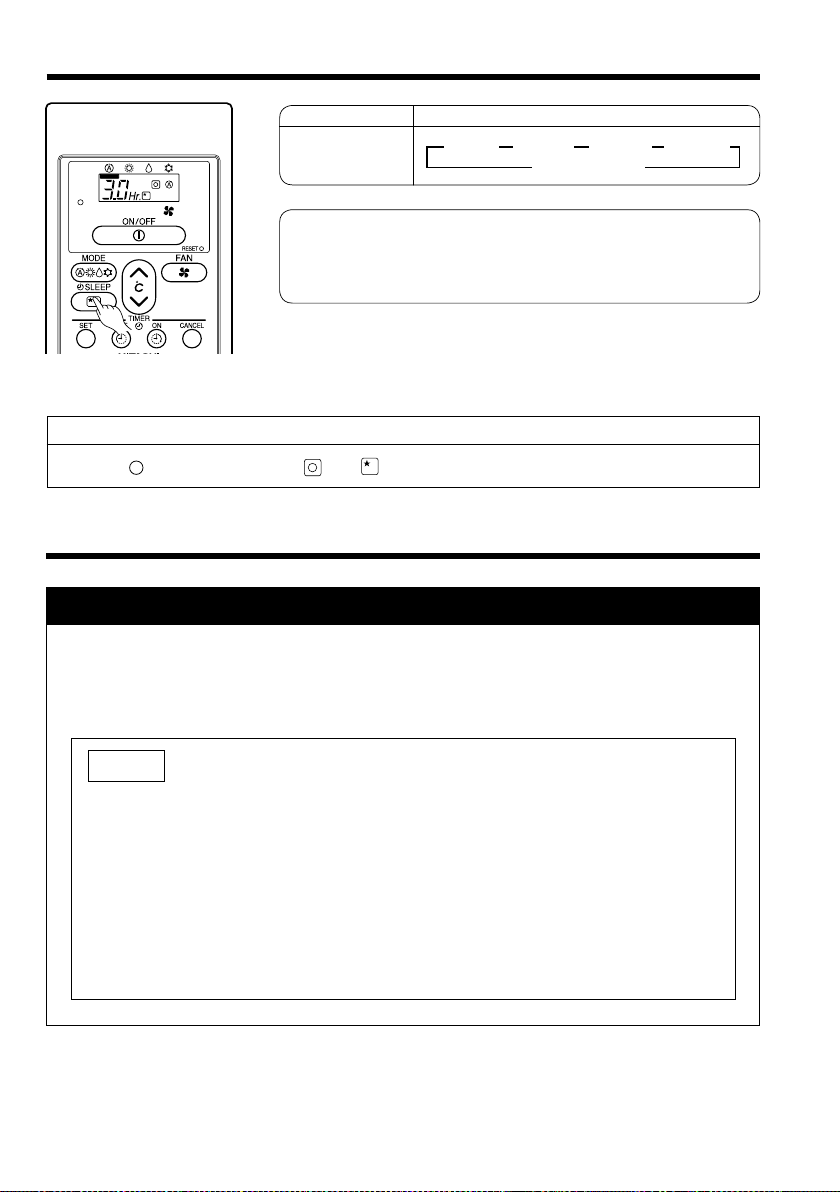

HOW TO SET THE SLEEP TIMER

Mode

Sleep timer

Indication

1 hour 2 hours 3 hours 7 hours

Sleep timer off

4 4 44

Sleep Timer: The device will continue working for the designated

number of hours and then turn off.

Press the SLEEP button.

The timer information will be displayed on the remote controller.

How to Cancel Reservation

Press the (CANCEL) button. The and (RESERVED) sign goes out.

Example: Setting 3 hours

sleep timer.

Explanation of the sleep timer

The device will control the FAN SPEED and room temperature

automatically so as to be quiet and good for people’s health.

● If you set the sleep timer after the off or on-timer has been

set, the sleep timer becomes effective instead of the off or

on-timer set earlier.

● You can not set other timer during sleep timer operation.

● After sleep timer time is up and when press sleep button

again, the sleep timer will be set as last setting.

● Sleep timer effective only once.

NOTE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Télécommande

Hitachi

Hitachi RC-AGS1EA0E Manuel utilisateur

Hitachi

Hitachi RAR-5J1 Manuel utilisateur

Hitachi

Hitachi PC-ARFH2E Manuel utilisateur

Hitachi

Hitachi SPX-RCDB Manuel utilisateur

Hitachi

Hitachi SPX-RCKA Manuel utilisateur

Hitachi

Hitachi PC-AWR Manuel utilisateur

Hitachi

Hitachi RU-1500JY Manuel d'installation

Hitachi

Hitachi RC-AGU1EA0G Manuel utilisateur

Hitachi

Hitachi PC-LH3A Manuel utilisateur

Hitachi

Hitachi SPX-WKT2 Manuel utilisateur

Hitachi

Hitachi RC-BGH1FA0G Manuel utilisateur

Hitachi

Hitachi PC-ARH Manuel utilisateur

Hitachi

Hitachi ECO COMPACT PC-ARC-E Manuel utilisateur

Hitachi

Hitachi RAR-5F1 Manuel utilisateur

Hitachi

Hitachi PC-ARFHE-02 Manuel utilisateur

Hitachi

Hitachi RAR-7PE1 Manuel utilisateur

Hitachi

Hitachi PC-ARH Manuel utilisateur

Hitachi

Hitachi SPX-RCKA2 Manuel utilisateur

Hitachi

Hitachi airPoint Room 700 Manuel utilisateur

Hitachi

Hitachi SPX-WKT2 Manuel utilisateur

Hitachi

Hitachi PC-LH3A Manuel utilisateur

Hitachi

Hitachi RAR-6NE2 Manuel utilisateur

Hitachi

Hitachi airPoint Room700 Manuel utilisateur

Hitachi

Hitachi air Home RC-AGU1EA0S Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
