HighPoint SSD7120 Manuel utilisateur

SSD7120

NVMe U.2 RAID Controller

Quick Installation Guide

V1.02

System Requirements

•System with an empty PCIe 3.0 x16 slot

•SSF-8643 to U.2 Cable or SFF-8643 cable with NVMe backplane

•Windows 10

•Windows Server 2012 R2 and 2016

•Linux Kernel 3.3 or later

SSD7120 Hardware Overview

Front View

Hardware Installation:

1. Remove the system cover.

2. Insert the SSD7120 card into an open PCI-E 3.0 x16 slot on the

motherboard.

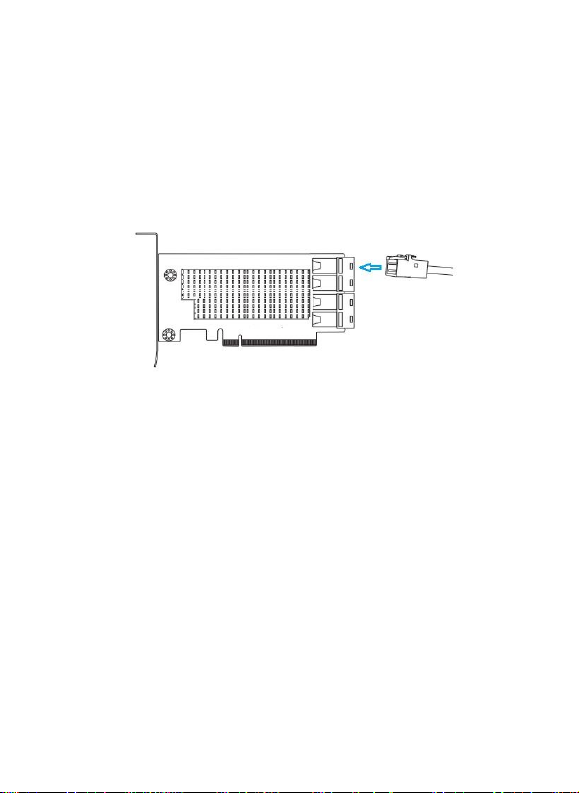

3. After you have inserted the SSD7120 card, you can connect the

SFF-8643 cables.

4. Connect the SSD7120 to the NVMe SSD’s using the appropriate

SFF-8643 cables.

5. Replace the system cover and power up the system.

Note: Please be sure to connect NVMe before using the product to

reduce the occurrence of unnecessary errors!

Note: Install the driver in the system first and then install the board

4

Setting up the SSD7120 for a Windows operating system
1. Verifying Installation
After booting Windows, open Device Manager, and expand Disk drives.
The installed NVMe Drive should be displayed:

2. Driver Installation
1) Download the Windows driver package from the HighPoint website:
http://www.highpoint-tech.com/USA_new/series-ssd7120-
download.h tm
2) Once downloaded, locate the folder you downloaded the driver to.
Extract the driver package and double click the setup.exe file to start
the driver installation procedure.
3) Follow the wizard and reboot the system to complete driver
installation.
4) After rebooting, a HighPoint NVME RAID Controller entry
should be displayed under Storage Controllers.:




3. Installing the HighPoint RAID Manager

The HighPoint RAID Manager is used to configure and monitor the

SSD7120 RAID controller and hosted NVMe SSD’s. Download the

HighPoint RAID Manager software package from the HighPoint website:

http://www.highpoint-tech.com/USA_new/series-ssd7120-download.htm

1) Extract the package and double-click the setup.exe program to install

the software.

2) The software can be used to configure NVMe SSD’s into one or

more RAID configurations. Please consult the full user manual for

more details.

3) After the RAID is configured, open the OS Disk Management utility

and check to make sure the SSD RAID drive is detected:

4) Create and format the partition using the Disk Management utility

and start using the SSD RAID drive.

6

Setting up the SSD7120 for a Linux Distribution
Please download the Linux Software Package from the HighPoint
Website: http://www.highpoint-tech.com/USA_new/series-ssd7120-
download.htm
Please follow the Linux Installation guide included with the software
package to install and setup the SSD7120 RAID controller.


Customer Support
If you encounter any problems while utilizing the SSD7120 RAID
controller, or have any questions about this or any other HighPoint
Technologies, Inc. product, feel free to contact our Customer Support
Department.

Web Support:
https://www.highpoint-tech.com/websupport/

HighPoint Technologies, Inc. websites:
https://www.highpoint-tech.com


© Copyright 2018 HighPoint Technologies, Inc. All rights reserved.
