HEPER Rhino Flood Instructions d'installation et d'utilisation

2xM8 Allen HeadBolts

1.1 lb ft

Rhino Flood (Side Mount)

Installation&Maintenance Instructions

REV 1/07.27.2021

2xM4 Phillips Head Bolts

2xM4 Lock Washers

4.5 lb ft

M10 Allen Head Bolts

30 lb ft

4.5 lb ft

2xM8Allen Head Bolts

15 lb ft

4xM6 Countersunk Head Bolts

±80°

±45°

HEPER USALLC

W227 N546 Westmound Drive

WaukeshaWI 53186 – USA

Tel: +1 262 888 0262

infoUS@hepergroup.com

www.heperlighting.com

ØA

(Inch)

WEIGHT

(lb)

PRODUCT

CODE

10 15/16

1 17/32

15 5/32

3 15/16

7 3/32

5 1/8

16.5

LL2028.694

4xM5 Allen Head Bolts

3.5 lb ft

3 lb ft

2xM5 Nuts

2xM5 Washer

* EYE SAFETY WARNING

Lighting luminaire is classified under “EXEMPT GROUP”

according

to photobiological safety standard IEC/EN 62471. NO RISK for

the

operators and end-users.

English

ASSEMBLY INSTRUCTIONS

Mounting Luminaire to Pole;

1. To Install the Rhino Floodlight Luminaire on pole;

1.1. Make supply wire connection and pass cable through grommet on pole.

1.2. Align holes in luminaire base plate with threaded holes on pole.

1.3. Install (2) M8 bolts using size S6 Allen Head wrench. Tighten to 15 lb ft (20

Nm) of torque

2. Adjusting Tilt Angle;

2.1. Loosen (do not remove) M10 bolt and M10 nut using size S8 Allen Head wrench.

2.2. Adjust Luminaire head to desired tilt angle. Approximate range of tilt adjustment + 80

Degrees. Tighten bolt/nut to 30 lb ft (40 Nm) of torque.

3. Base/Orientation Adjustment;

3.1. Loosen (do not remove) (2) M8 bolt and washer assemblies using size S6 Allen

Head wrench.

3.2. 3.2 Select desired horizontal arm rotation adjustment. Approximate range of adjustment

± 45 Degrees. Tighten bolt to 15 lb ft (20 Nm) of torque.

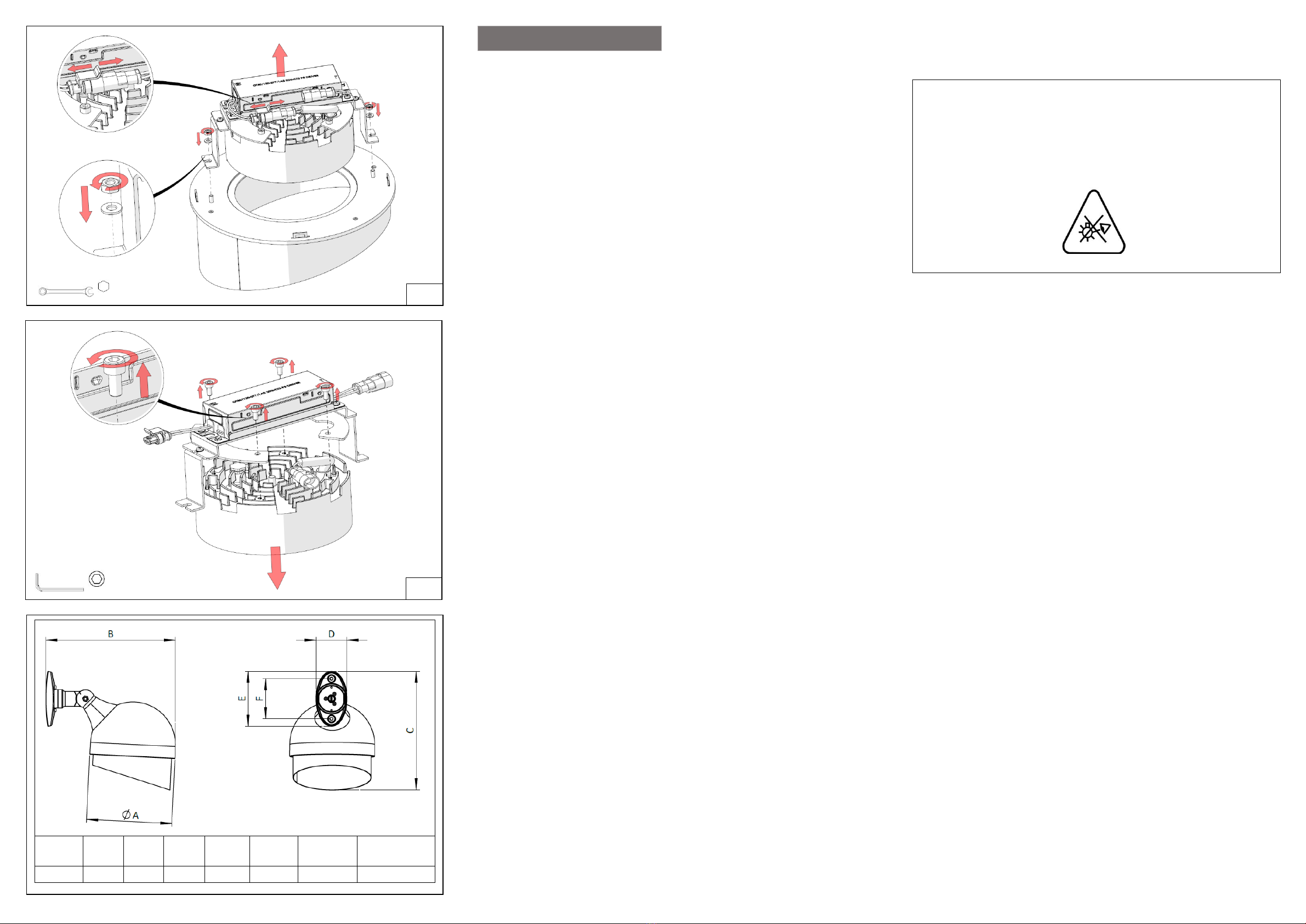

LED Driver Replacement;

Note 1: Ensure power is off/disconnected from the source

Note 2: For Personnel and Luminaire safety, remove luminaire from pole and carry out

maintenance at grade.

4. Accesing LED Driver;

4.1. Remove (4) M6 Countersunk Allen Head bolts holding front cover/visor assembly

in place using S4 Allen wrench. Replacement torque spec for bolts 4.5 lb ft (6 Nm).

4.2. Gently remove complete assembly containing cover/ visor, LED Module and driver.

5.5. Carefully disconnect supply power socket from cover/visor, LED Module and driver

assembly.

Note 1: Be careful not to damage the LED driver

Note 2: Be careful not to damage the wire connectors

6.6. To remove LED driver from module assembly;

6.1. Carefully disconnect wire connectors between LED Driver and LED light module.

Note: Be careful not to damage the LED driver and sockets.

6.2. Remove (2) Phillips Head bolts and lock washers. Replacement torque spec 1.1

lb ft (1.5 Nm).

6.3. LED Driver is now free and can be removed from assembly.

7. To remove complete LED Module and driver assembly from cover/visor assembly;

7.1. Remove (2) M5 nuts and flat washers. Replacement torque spec 3 lb ft (4 Nm).

7.2. LED Lighting module and LED driver assembly are now freed from cover/visor

assembly.

7.3. Carefully disconnect wire connectors between LED Driver and LED light module.

Note: Be careful not to damage wire connectors.

Replacing LED Light module;

Note: Remove Driver and LED light module assembly by following all notes and steps

from LED driver replacement through step 7.3 above. Be careful not to damage any

wire connector assemblies.

8. Dismantling the LED Light engine;

8.1. Remove (4) M5 Allen Head bolts attaching driver bracket to LED light engine heat

sink using S4 Allen wrench. Replacement torque spec 3.5 lb ft (5 Nm)

8.2. LED Light module and heat sink are now free to be removed from LED Driver bracket.

Note: Be careful not to damage LED driver or Light Engine during replacement process.
