HEPER LF8017.693-US Instructions d'installation et d'utilisation

1/5 2023-1 / 29/05/2023

Installation & Maintenance

Instructions

HEPER USA LLC

W227 N546 Westmound Drive Waukesha, 53186

Wisconsin, United States

+1 312 910 9740

[email protected]

PUNTO S (LF8017.693-US)

3.3 lbs

https://heperlighting.com/us/lf8017.693-us/

2/5

3/5

4/5

5/5

English ( USA )

Safety

- The product must be installed in accordance with applicable

NEC standards by a qualified electrician familiar with the

installation of exterior lighting fixtures.

- The product must be operated under specified voltage at all

times.

- Do not install if parts are damaged.

- Power must be disconnected while installing or servicing to

avoid electrical shock.

- Failing to comply with warnings and installation steps in this

document might void warranty.

- Do not touch the light source.

- Make sure that temperature of the product is at a safe level before

touching.

- Do not allow cables to touch sharp edges of metal parts or other sharp

objects to avoid damage or abrasion.

- Check all of the cable connections including grounding before

powering the product.

- Check the proper grounding of the metal housing before powering the

product.

- Only use the product for its intended purposes.

- Do not use accessories not approved or recommended by

HEPER.

- Replace any broken/cracked protective surface with a new

one

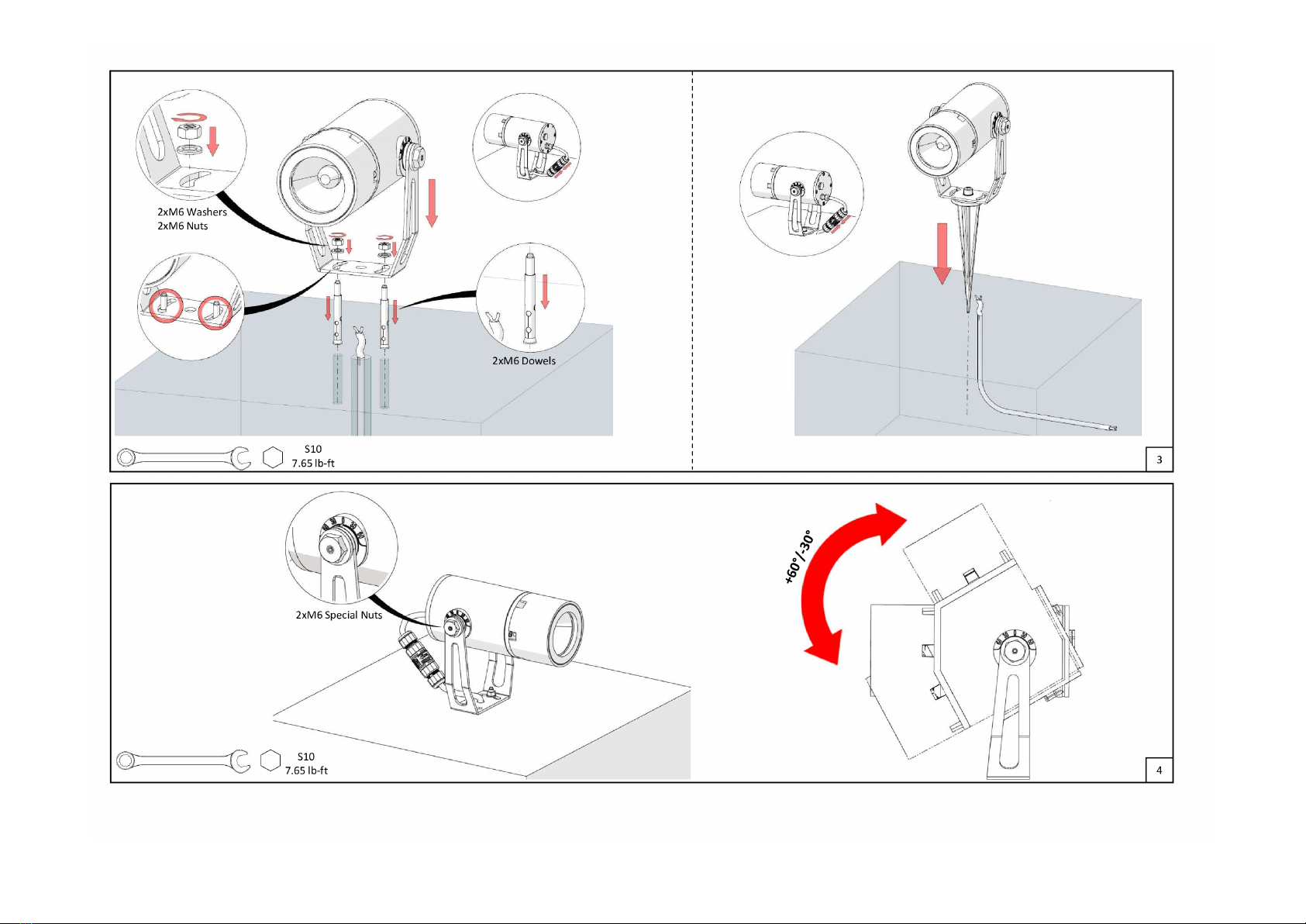

Installation

- The surface on which the product will be mounted must be flat and

level

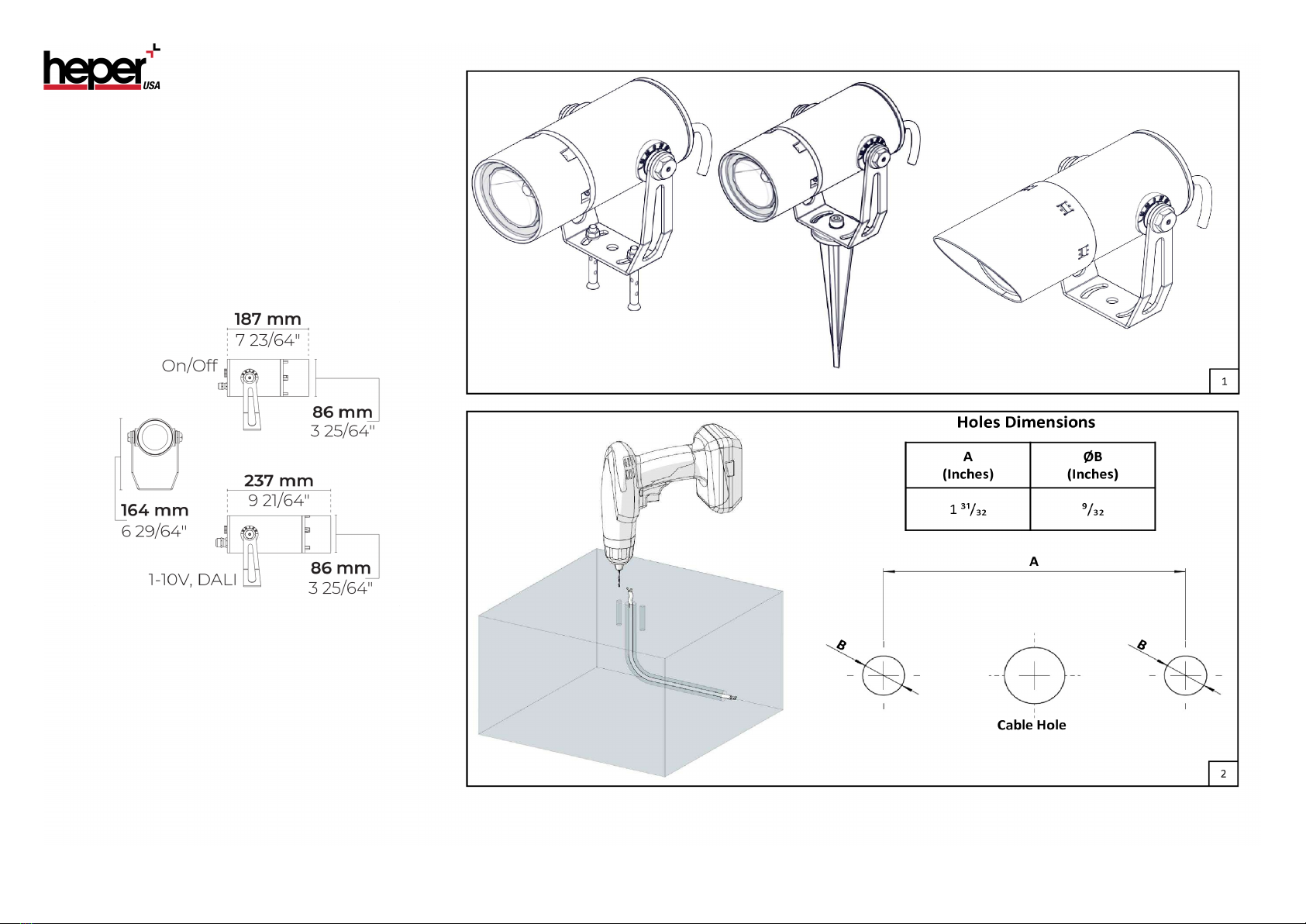

- Open the holes on the surface as shown in the visual.

- To assemble the product, use IP 68 rated connector.

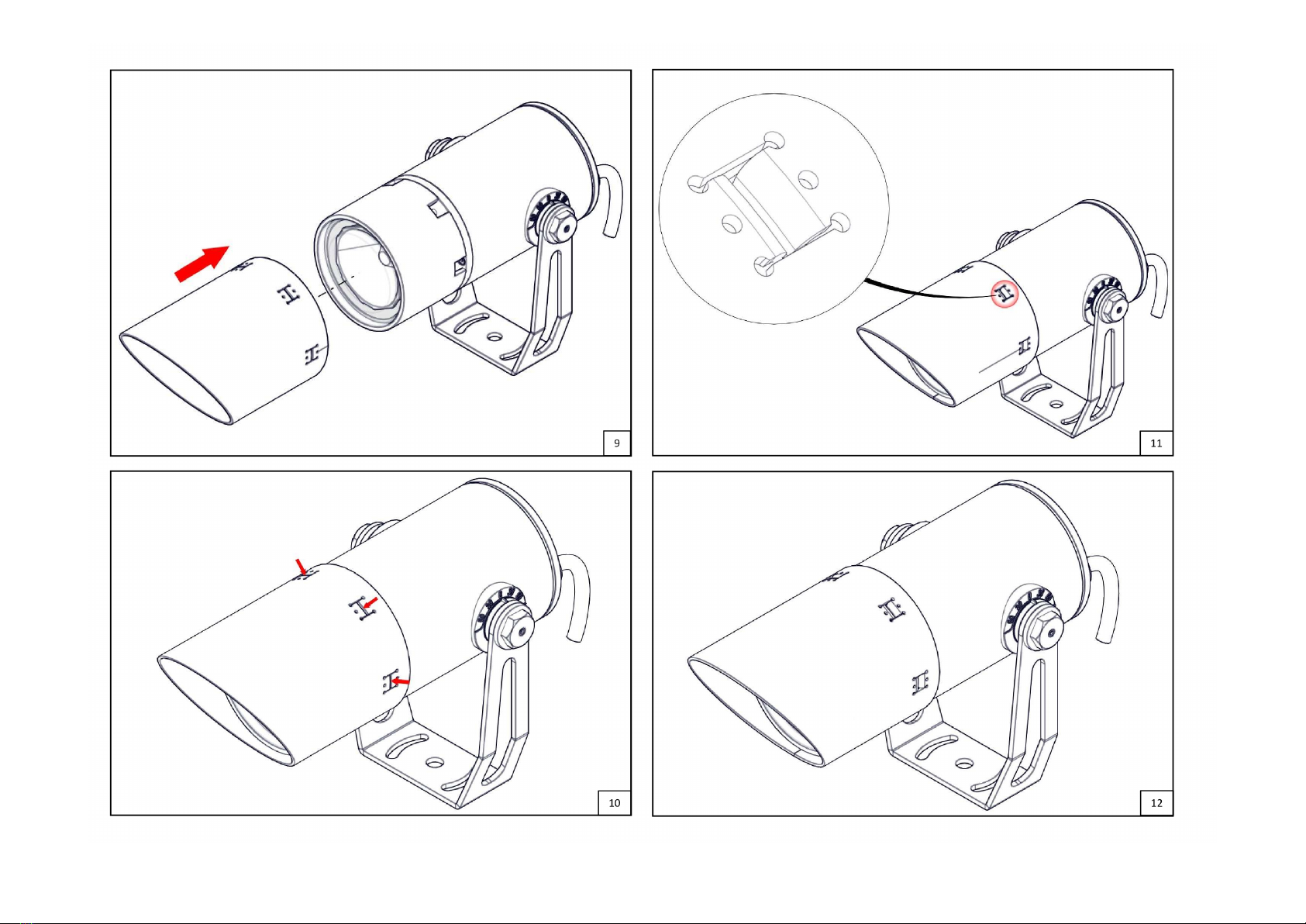

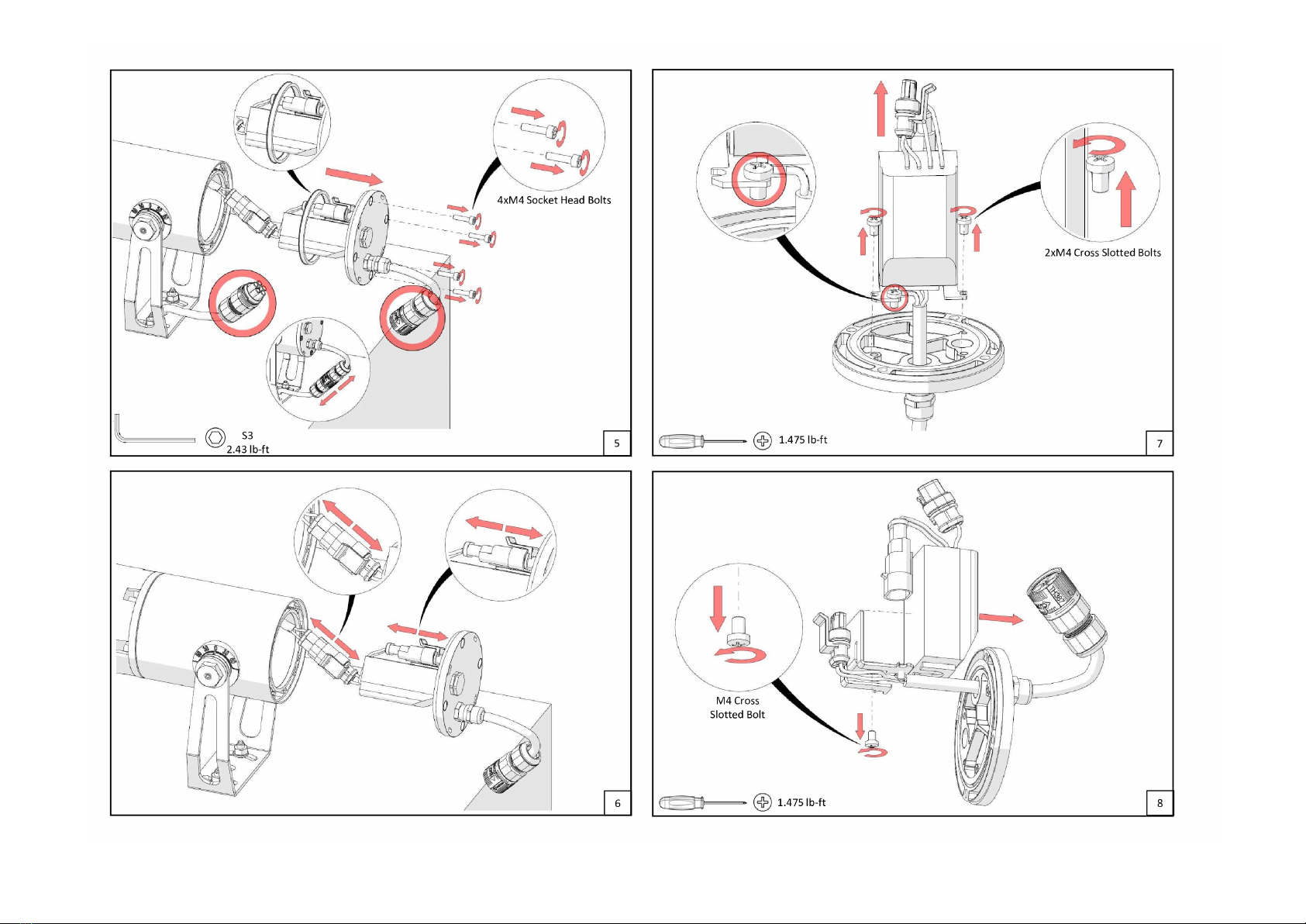

Replacement of the control gear

- Disconnect the power coming into the product.

- Disassemble the product head.

- Unscrew the plate to gain access to the driver location as shown on the

visual.

- Remove the driver holder.

- Detach the driver and place the new one.

- Reinstall the product following the same steps.

- The completed product installation should be as shown on the visual.

Cleaning - Maintenance

- The product was designed and manufactured to operate for a long

period of time. To ensure maximum lifespan of the product, regular (i.e.

every six months) visual inspection and cleaning with a solvent-free

cleaner using a soft cloth is recommended.

- Do not clean or service while the product is power connected.

Disposal

- In accordance with EU Directive WEEE (Waste Electrical and

Electronic Equipment), luminaires must not be disposed of with

other household waste. At the end of their life, luminaires must

be taken to the appropriate local facility available for the

disposal or recycling of electronic products.

Wiring Color Codes

- Ground - GREEN

- Line - BLACK

- Neutral - WHITE

- Dim(+) - RED/PURPLE

- Dim (-) - GRAY/ORANGE

Disclaimer

- HEPER reserve the right to make technical and design changes.
