Harman JBL QUANTUM Stream Manuel utilisateur

Stream

OWNER’S MANUAL

TABLE OF CONTENTS

INTRODUCTION ........................................................................................................... 1

WHAT’S IN THE BOX..................................................................................................... 2

PRODUCT OVERVIEW ................................................................................................. 3

Controls................................................................................................................................................................3

GETTING STARTED....................................................................................................... 4

System compatibility ...................................................................................................................................4

Connecting USB power cable................................................................................................................4

Connecting a monitoring headphone .............................................................................................5

First-time setup (for PC only)...................................................................................................................5

USING YOUR MICROPHONE ...................................................................................... 7

Selecting a polar pattern...........................................................................................................................7

Positioning ........................................................................................................................................................8

MOUNTING OPTIONS ............................................................................................... 10

Mic mount with 5/8" male screw......................................................................................................10

Mic mount with 1/4" male screw......................................................................................................11

Shock mount for 2.2" diameter microphones ..........................................................................12

PRODUCT SPECIFICATIONS..................................................................................... 13

TROUBLESHOOTING ................................................................................................. 14

- 1 -

Introduction

Congratulations on your purchase! This manual includes information on the JBL

Quantum Stream microphone. We encourage you to take a few minutes to read this

manual, which describes the product and includes step-by-step instructions to help

you to set up and get started. Read and understand all the safety instructions before

using your product.

If you have any questions about this product or its operation, please contact your

retailer or customer service, or visit us at www.JBLQuantum.com

- 2 -

What’s in the box

01 03

01 JBL Quantum Stream microphone

02 USB power cable (USB-A to USB-C)

03 QSG, warranty card and safety sheet

- 3 -

PRODUCT OVERVIEW

Controls

• Mutes or unmutes the microphone.

02 Volume knob

• Adjusts headphone volume.

• Lights up white when the polar pattern is cardioid (default).

• Lights up green when the polar pattern is omnidirectional.

05 USB-C port

06 Rotary joint

07 Microphone stand

08 Ring LED (RGB lighting + mute/unmute indicator)

09 3.5 mm headphone port

- 4 -

Getting started

System compatibility

• PC and Mac (desktop or laptop) with USB-A or USB-C ports

• Mobile devices with USB-C ports

• PlayStation™: PS4/PS5 console with USB-A port

• Nintendo Switch™ with USB-C port and Nintendo Switch™ console with USB-A

port

Connecting USB power cable

1. Connect the black connector (USB-C) to your microphone.

2. Connect the orange connector (USB-A) to your PC, Mac, PS4/PS5 console or

Nintendo Switch™ console.

• You can also use a USB-C to USB-C cable to connect the microphone to compatible

devices.

The microphone powers on.

- 5 -

NOTE:

• USB-C to USB-C cable is not included by-pack. Connectivity with USB-C may

not work with all models of said devices.

Connecting a monitoring headphone

3.5 mm

2.5 mm

1. Connect a 3.5mm to 3.5mm cable or a 3.5mm to 2.5mm cable to the headphone

port on the microphone.

2. Connect the other end to a monitoring headphone.

You can hear sounds from the microphone.

First-time setup (for PC only)

Download from www.jblquantum.com/engine to gain full

access to features on your JBL Quantum Stream, such as EQ settings, polar pattern

selection and lighting customization.

- 6 -

Software requirements

Platform: Windows 10 (64 bit only) / Windows 11

500MB of free hard drive space for installation

1. Connect the microphone to your PC via USB connection. (See “Positioning”).

2. Go to “Sound Settings” -> “Sound Control Panel”.

3. Under “Playback” highlight “JBL Quantum Stream” and select “Set Default” ->

“Default Device”.

4. Under “Recording” highlight “JBL Quantum Stream” and select “Set Default” ->

“Default Device”.

5. Follow the onscreen instructions to personalize your sound settings.

JBL Quantum Stream JBL Quantum Stream

NOTE:

• By default, all sounds will be played through the JBL Quantum Stream

microphone and heard through a headphone connected to it. To hear sound

from the PC directly, select the PC sound card as the default device.

- 7 -

Using your microphone

Selecting a polar pattern

>2S

The polar pattern deﬁnes a microphone’s sound pickup sensitivity related to its angle

and directions. Select an appropriate polar pattern according to your recording

needs.

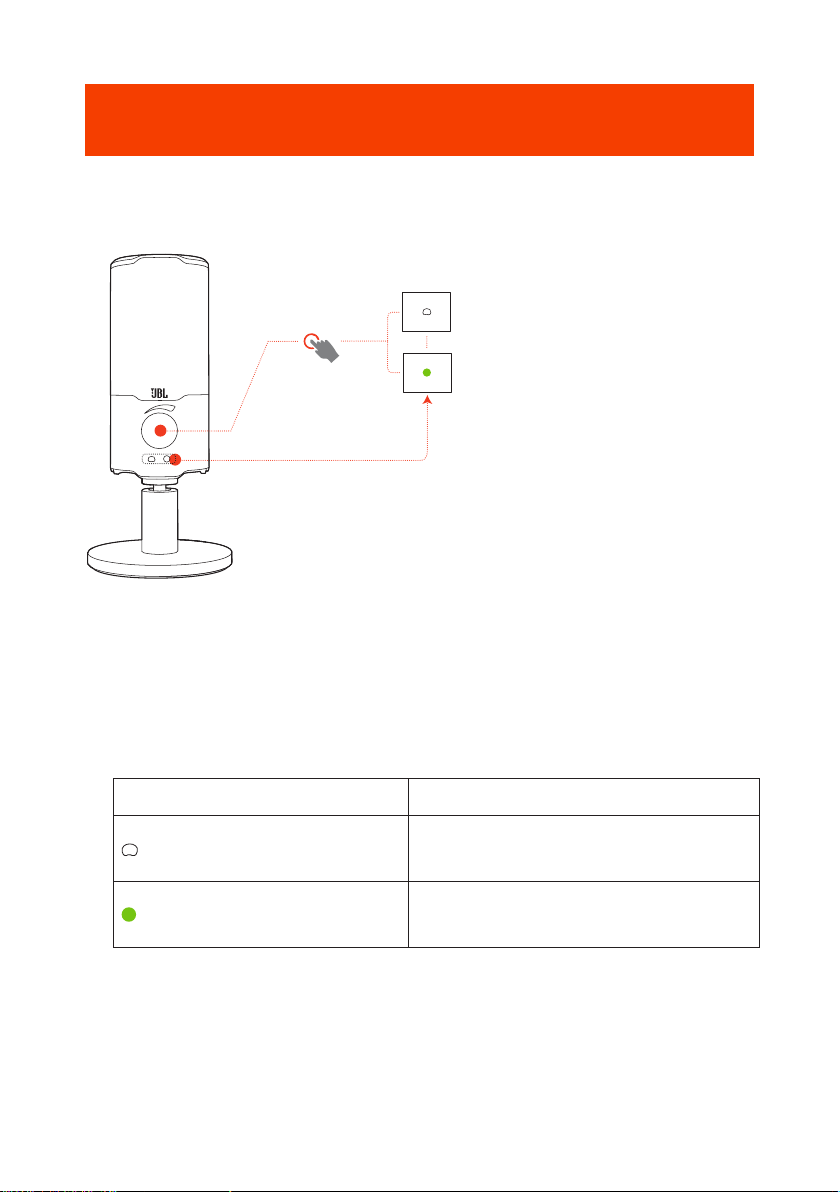

• Hold the volume knob for 2 seconds to switch between cardioid (default) and

omnidirectional.

Polar pattern Applicable scenarios

Cardioid Individual podcasts, gaming, streaming,

voiceovers, instruments etc.

Omnidirectional Multi-person podcasts, conference calls,

streaming, voiceovers etc.

- 8 -

Positioning

For optimal performance, speak towards the side instead of the top of the microphone.

Recommended Not recommended

Mute/unmute

>5S

× 1

• Press on the top to mute or unmute the microphone.

Ring LED color Meaning Microphone status

RGB lighting on, mute/unmute

indicator in red

Muted

RGB lighting on, mute/unmute

indicator in green

Unmuted
