Instruction Manual

HI 955501 • HI 955502

Portable

Pt100 Thermometers

www.hannainst.com

PRELIMINARY EXAMINATION

Remove the instrument from the packing ma-

terial and examine it carefully to make

sure that no damage has occurred during

shipment. If noticeable damage is evident,

immediately notify your dealer.

HI 955501 is supplied complete with battery

and instructions.

HI 955502 is supplied complete with fixed

temperature probe (general purpose), battery

and instructions.

Note: Save all packing material until you are

sure that the instrument functions cor-

rectly. All defective items must be re-

turned in their original packing.

GENERAL DESCRIPTION

Dear Customer,

Thank you for choosing a HANNA instruments®

product.

Please read this instruction manual carefully

before using the instrument.

This manual will provide you with all the neces-

sary information for a correct use.

If you need additional technical support, do

not hesitate to e-mail us at

[email protected]

Thes instruments are in compliance with the

directives.

Preliminary Examination............................ 3

General Description ................................... 3

Functional Description &

Specifications............................................ 4

Operational Guide..................................... 5

Display Code Guide.................................. 6

Calibration................................................. 6

Battery Replacement ................................. 7

Accessories............................................... 8

Warranty .................................................... 9

CE Declaration of Conformity .................. 10

TABLE OF CONTENTS

HI 955501 and HI 955502 are accurate ther-

mometers that perform highly stable,

repeteable and linear temperature measure-

ments using 4-wire Pt100 probes.

HI 955501 works with HI 768 series of Pt100

temperature probes, while the HI 955502 model

is supplied with fixed general-purpose probe.

Bothmodelsmeasuretemperatureswith0.1°C

resolution in the -199.9 to 199.9°C range and

then automatically switch to 1°C from 200 to

850°C. Press RANGE and the resolution

switches to 1°C at any time.

Acompact,ergonomicdesignandawrist-strap

makeiteasytocarrythemanywhereinthelab

orplant.

Theshockproofrubberbootisrecommendedto

protectthemeterduringfieldmeasurements.

OPERATIONAL GUIDE

9 VOLT BATTERY

SLIDE OFF

Battery

Compartment

OFF

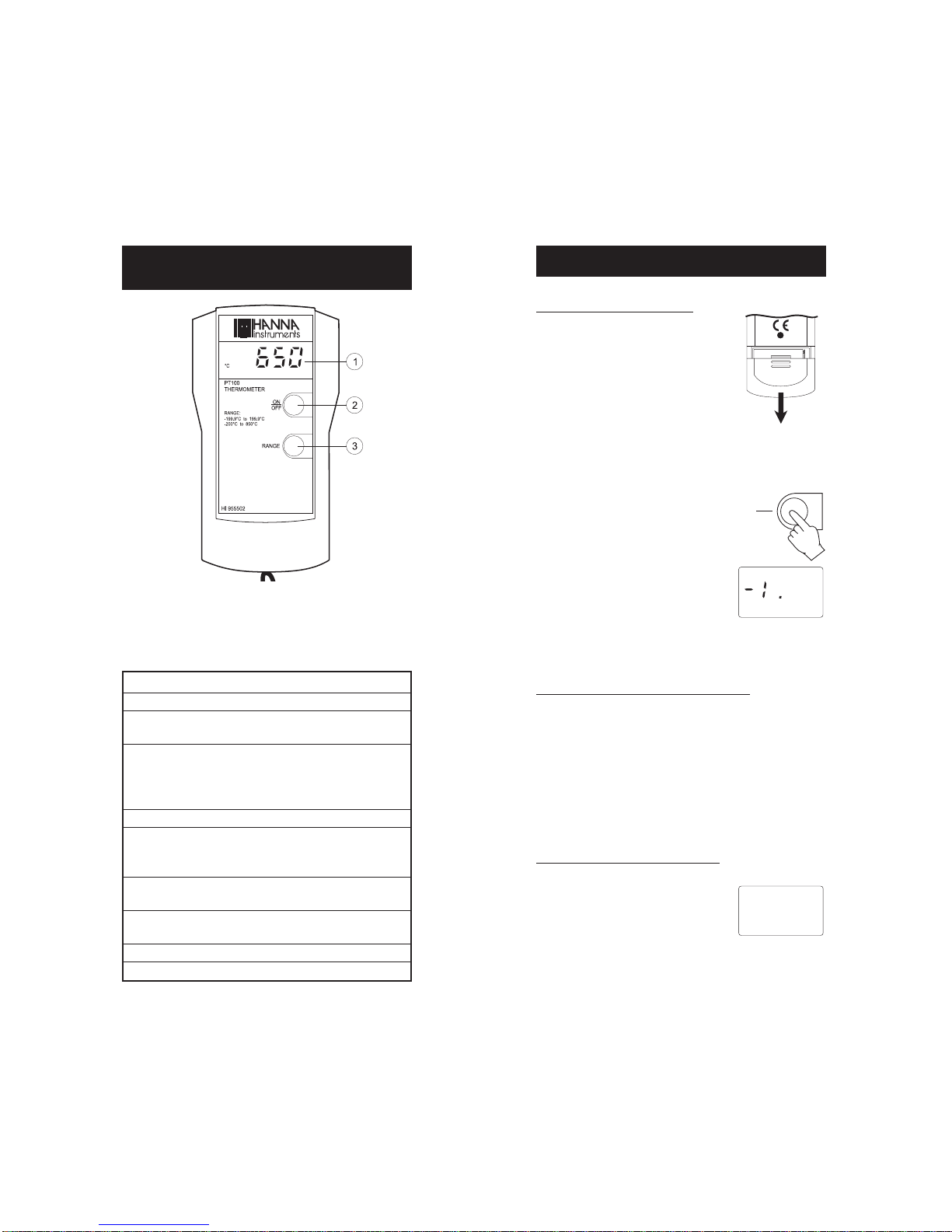

FUNCTIONAL DESCRIPTION

AND SPECIFICATIONS

HI 955501 HI 955502

Range -199.9 to 199.9°C / -200 to 850°C

Resolution 0.1°C (±199.9°C)

1°C (-200 to 850°C)

Accuracy ±0.2°C & ±1 digit (-120 to 199°C)

±1°C & ±1 digit (-170 to 450°C)

±1% F.S. & ±1 digit (outside)

for one year, excluding probe error

TypicalEMCDeviation ±0.5°C

Probe Pt100, stainless steel, 1 m cable

HI 768 series fixed

(not included)

Battery Type / Life

1 x 9V / approx. 150 hours of use

Environment

0 to 50°C (32 to 122°F); RH max 95%

Dimensions 143x80x38 mm (5.6x3.2x1.5")

Weight 320 g (11.3 oz.)

1. Liquid Crystal Display

2. ON/OFF Key

3. Range Key

INITIAL PREPARATION

Each meter is supplied com-

plete with a 9V battery. Slide

off the battery cover on the

rear of the thermometer, in-

stall the battery and reattach

the cover.

With HI 955501, connect a Pt100 tempera-

ture probe (HI 768 series) to the instrument.

Switch the thermometer on

by pressing the ON/OFF key.

The temperature value will be

displayed on the LCD.

If no temperature probe is

plugged in (HI 955501 only),

the display will show "- 1 .".

To switch the meter off, press the ON/OFF

key again.

MEASUREMENT RESOLUTION

When switched on, the instrument defaults to

the last selected resolution.

To change the resolution, press RANGE.

The instrument automatically changes its reso-

lution to 1 degree when it passes the limit of

the lower range (±200°C).

LOW BATTERY DETECTION

When the battery becomes

weak, the display shows the

"V" symbol to advise the user.

It is recommended to replace

the battery soon.

°C

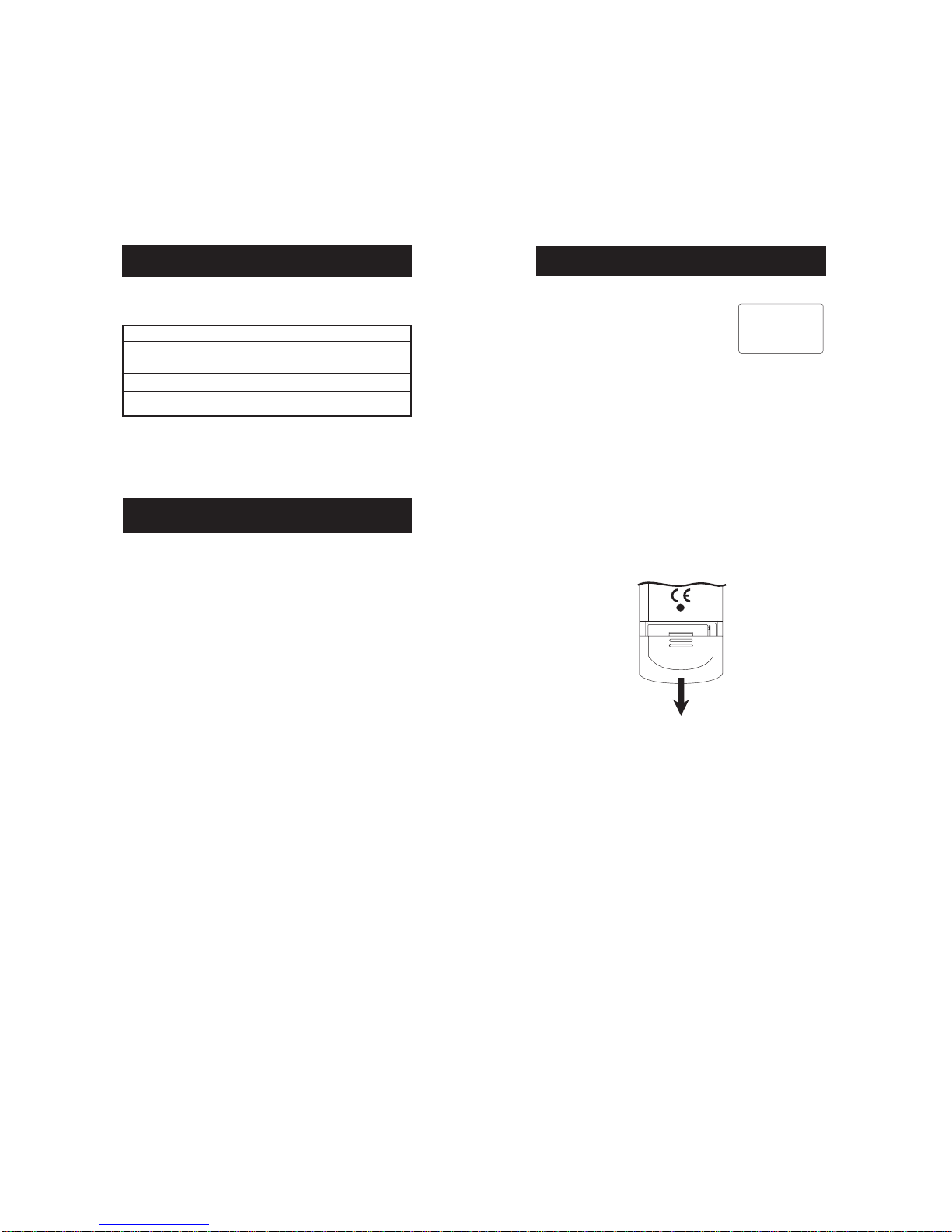

BATTERY REPLACEMENT

When the battery becomes

weak, the "V" symbol is

displayed to warn the user

that the battery needs to

be replaced soon.

Battery replacement must only take place in

a safe area and using a 9V alkaline battery.

Remove the battery compartment cover on

the rear of the meter and replace the battery

with a new one. Make sure the battery con-

tacts are tight before reattaching the cover.

9 VOLT BATTERY

SLIDE OFF

Battery

Compartment

DISPLAY CODE GUIDE

CALIBRATION

All HANNA instruments®thermometers have

been accurately pre-calibrated at the factory.

It is generally recommended to have all ther-

mometers recalibrated at least once a year.

For an accurate annual recalibration, contact

the nearest HANNA Service Center.

Display Description

-1. Reading out of range or temperature

probe not connected (HI 955501)

V Weak battery, needs to be replaced

°C Measure unit (Centigrade scale)

All Hanna Instruments meters are warranted

for two years against defects in workman-

ship and materials when used for their in-

tended purpose and maintained according to

instructions.

The probes are warranted for six months.

This warranty is limited to repair or replace-

ment free of charge.

Damages due to accident, misuse, tamper-

ing or lack of prescribed maintenance are not

covered.

If service is required, contact the dealer from

whom you purchased the instrument. If under

warranty, report the model number, date of

purchase, serial number and the nature of the

failure. If the repair is not covered by the

warranty, you will be notified of the charges

incurred. If the instrument is to be returned to

Hanna Instruments, first obtain a Returned

Goods Authorization Number from the Cus-

tomer Service department and then send it

with shipment costs prepaid. When shipping

any instrument, make sure it is properly pack-

aged for complete protection.

All rights are reserved. Reproduction in whole

or in part is prohibited without the written

consent of the copyright owner.

WARRANTY

HI710004 Soft carrying case

HI710007 Shockproofrubberboot,blue

HI710008 Shockproofrubberboot,orange

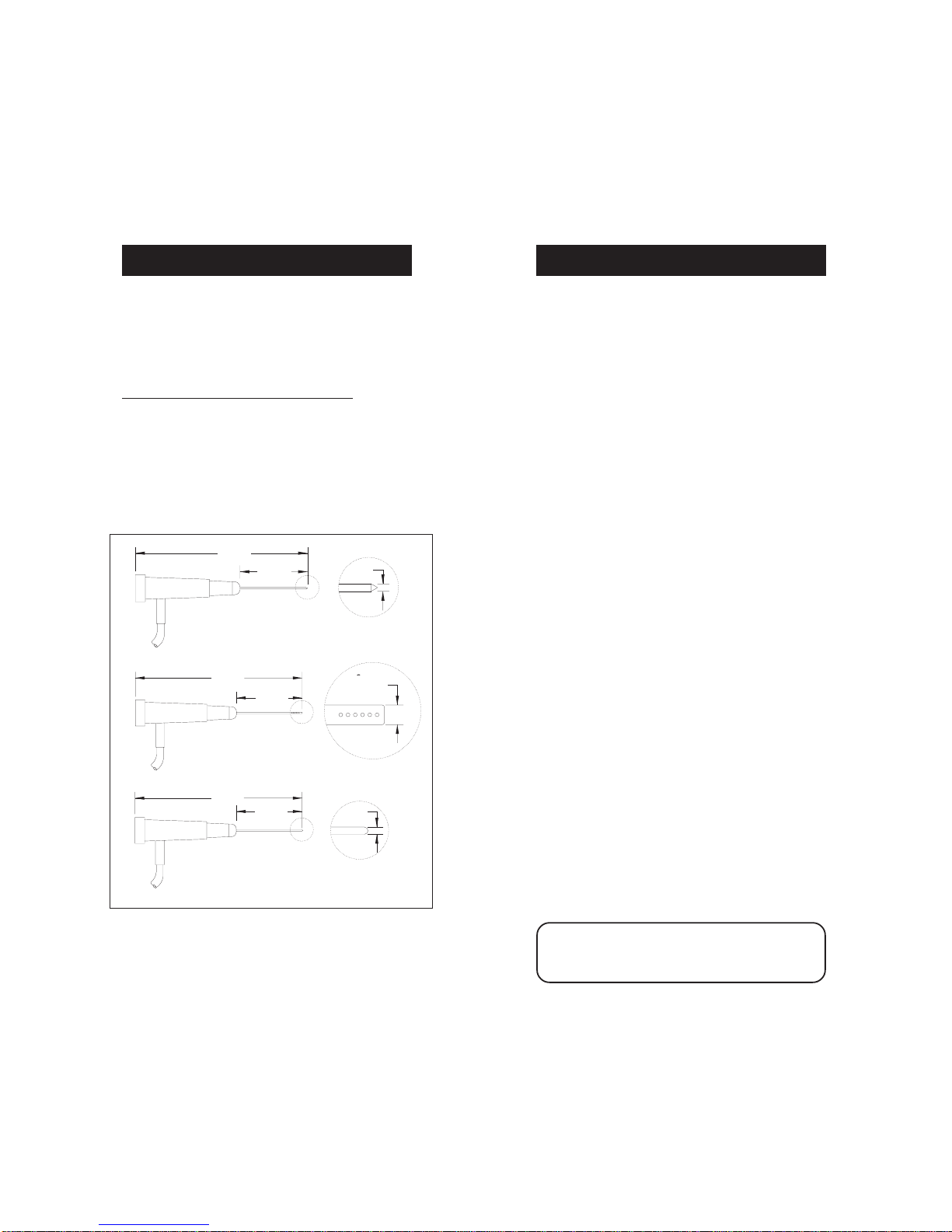

4-wirePt100Probes(forHI955501)

HI768A Air/gas probe, with 1 m (3.3')

cable

HI768L General purpose/liquid probe,

with 1 m (3.3') cable

HI768P Penetrationprobewith1m(3.3')

cable

ACCESSORIES

205mm

8.1" 100mm

3.9"

3mm

0.12"

HI 768P

205mm

8.1" 100mm

3.9"

6mm

0.24"

205mm

8.1" 100mm

3.9"

3mm

0.12"

HI 768L

HI768A

3mm

0.12"

Hanna Instruments reserves the right to modify

the design, construction and appearance of its

products without advance notice.

1110

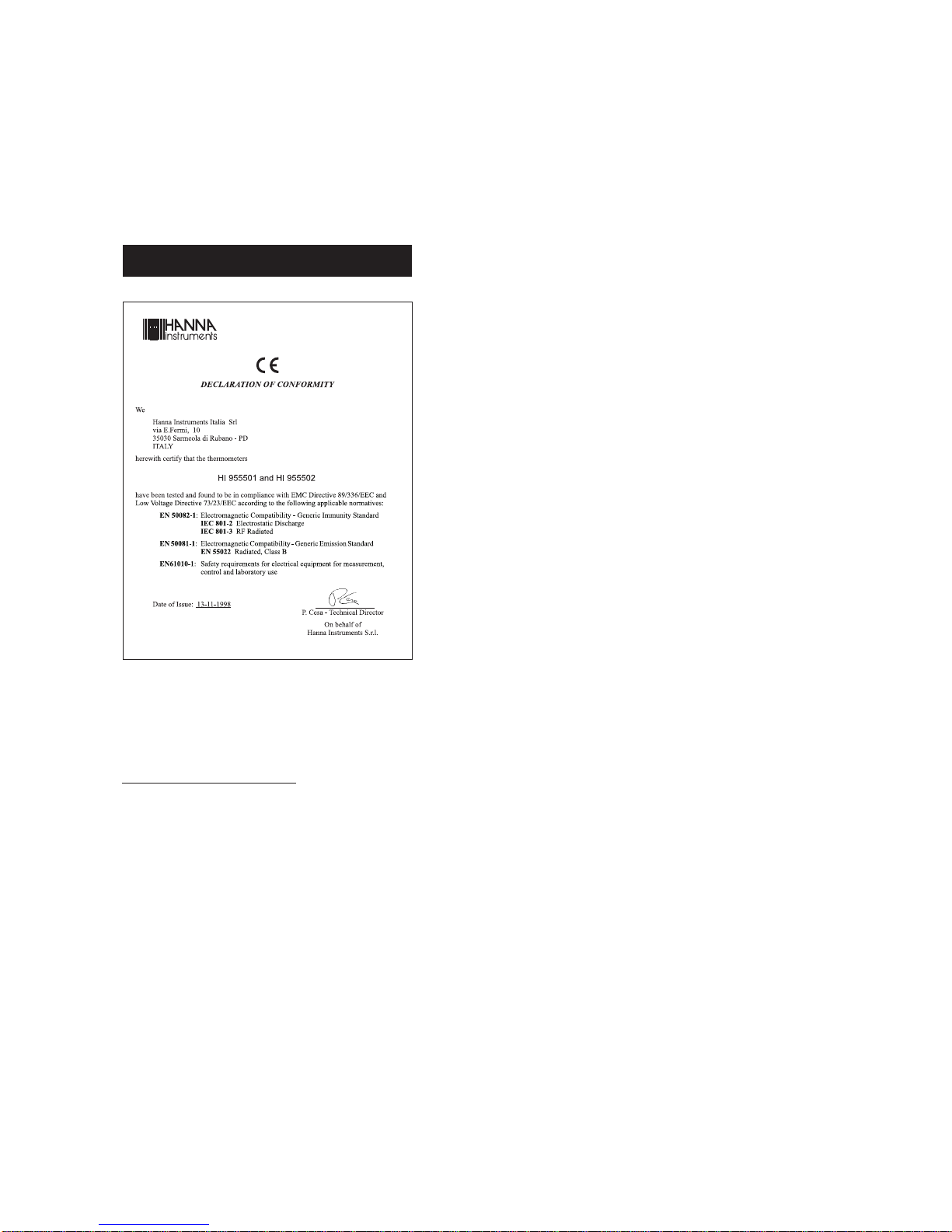

CE DECLARATION OF CONFORMITY

Recommendations for Users

Before using these products, make sure that they are

entirely suitable for the environment in which they are

used. Operation of these instruments in residential area

could cause unacceptable interferences to radio and TV

equipments, requiring the operator to take all necessary

steps to correct interferences.

Any variation introduced by the user to the supplied

equipment may degrade the instrument's EMC perfor-

mance.

To avoid electrical shock, do not use these instruments

when voltages at the measurement surface exceed 24

Vac or 60 Vdc .

Toavoiddamagesorburns, donotperformanymeasure-

ment in microwave ovens.

MANPT100 r2 09/05

Australia:

Tel. (03) 9769.0666 • Fax (03) 9769.0699

China:

Tel. (10) 88570068 • Fax (10) 88570060

Egypt:

Tel. & Fax (02) 2758.683

Germany:

Tel. (07851) 9129-0 • Fax (07851) 9129-99

Greece:

Tel. (210) 823.5192 • Fax (210) 884.0210

Indonesia:

Tel. (21) 4584.2941 • Fax (21) 4584.2942

Japan:

Tel. (03) 3258.9565 • Fax (03) 3258.9567

Korea:

Tel. (02) 2278.5147 • Fax (02) 2264.1729

Malaysia:

Tel. (603) 5638.9940 • Fax (603) 5638.9829

Singapore:

Tel. 6296.7118 • Fax 6291.6906

South Africa:

Tel. (011) 615.6076 • Fax (011) 615.8582

Taiwan:

Tel. 886.2.2739.3014 • Fax 886.2.2739.2983

Thailand:

Tel. 66.2619.0708 • Fax 66.2619.0061

United Kingdom:

Tel. (01525) 850.855 • Fax (01525) 853.668

USA:

Tel. (401) 765.7500 • Fax (401) 765.7575

For e-mail contacts and complete list of Sales and

Technical offices, please see www.hannainst.com

SALES & TECHNICAL SERVICE
