INSTRUCTION MANUAL

1LT Exterior Mini-Pendant or Flushmount

The Home Depot Model DYX1701A(UPC 6940500313795)

Page 2

Thank you for purchasing this Hampton Bay exterior mini-pendant or

flushmount. This product has been manufactured with the highest standards of

safety and quality. The finish of this fixture is weather resistant but over time

will naturally weather and fade.

FEATURES:

1. One-light exterior mini-pendant or flushmount in Oil Rubbed Bronze

finish with Clear Seedy glass.

2. This fixture comes with 2 rods, each 12 inches in length. The height of

the fixture can be adjusted by using fewer rods. This way, the fixture can

be assembled as a mini-pendant or a flushmount.

3. This fixture has been engineered to safely use one 60 watt medium base

incandescent light bulb (do not exceed 60 watts) (not included).

4. For energy savings, this fixture has been engineered to safely use one

standard base compact fluorescent light bulb (for equivalent light output,

do not exceed 15 watts) (not included).

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local The Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your Model DYX1701A or UPC 6940500313795.

Page 3

CAUTION:

1. Before starting installation of this fixture or removal of a previous fixture,

disconnect the power by turning off the circuit breaker or by removing

the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS.

3. If you have any non-electrical questions about this fixture, please contact

our Customer Service Team at 1-877-527-0313 or visit

www.homedepot.com. Please reference your Model DYX1701A or UPC

6940500313795.

4. Keep your receipt and these Instructions for Proof of Purchase.

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION

(not included):

Light Bulb Safety Goggles Ladder Gloves Wire Strippers

(60 watt maximum)

(or CFL equivalent)

Flathead Screwdriver Phillips Screwdriver Electrical Tape Wire Cutters Silicon Rubber Sealant

for exterior use

Page 4

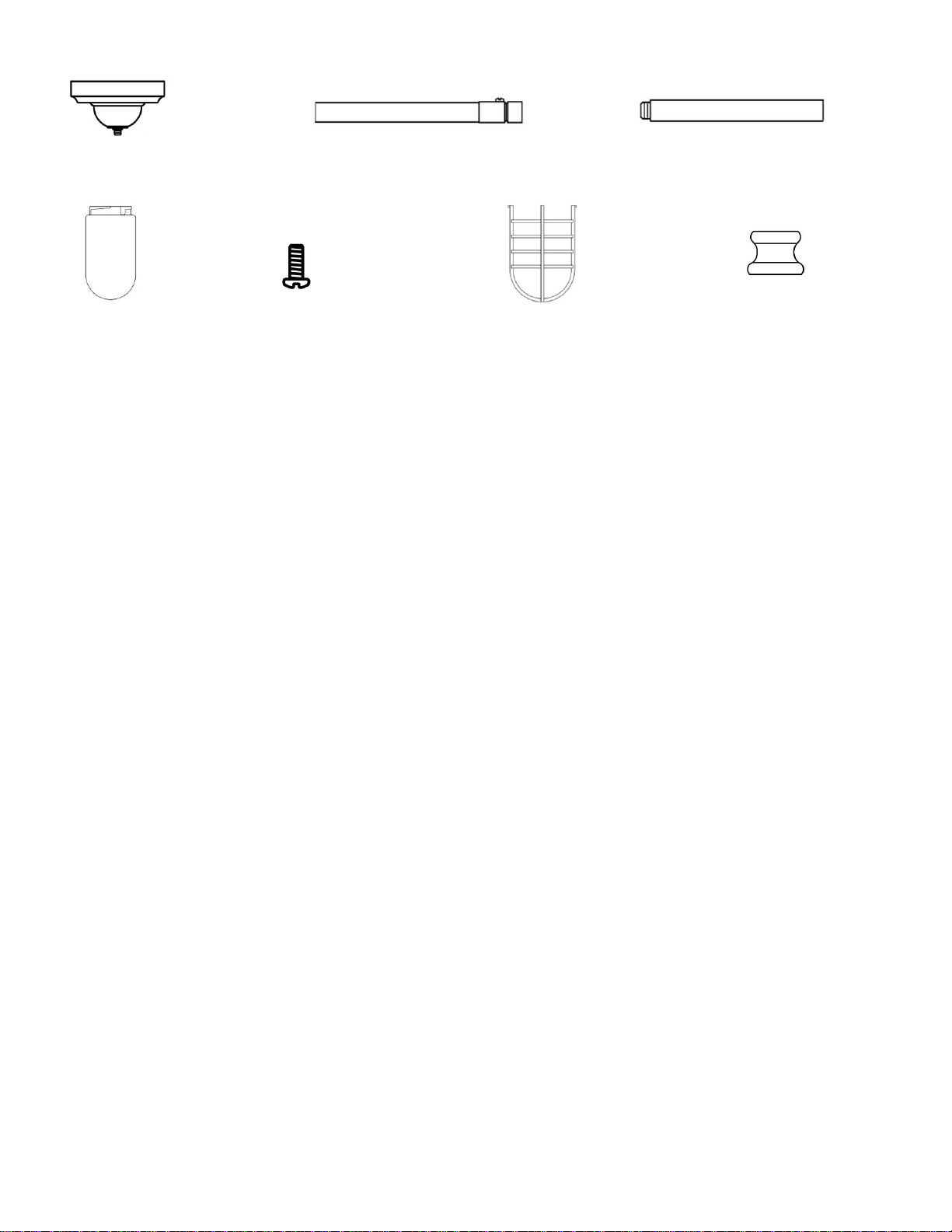

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

1ea Canopy (#1) 1ea Bushing (#5) 1ea Nipple A (#7)

1ea Nipple (#4) 1ea Rod B (#6) 1ea Rod A(#8)

1ea Shade (#12) 2ea Screws (#13) 1ea Decorative Frame (#14) 1ea Bushing A (#23)

ASSEMBLY INSTRUCTIONS:

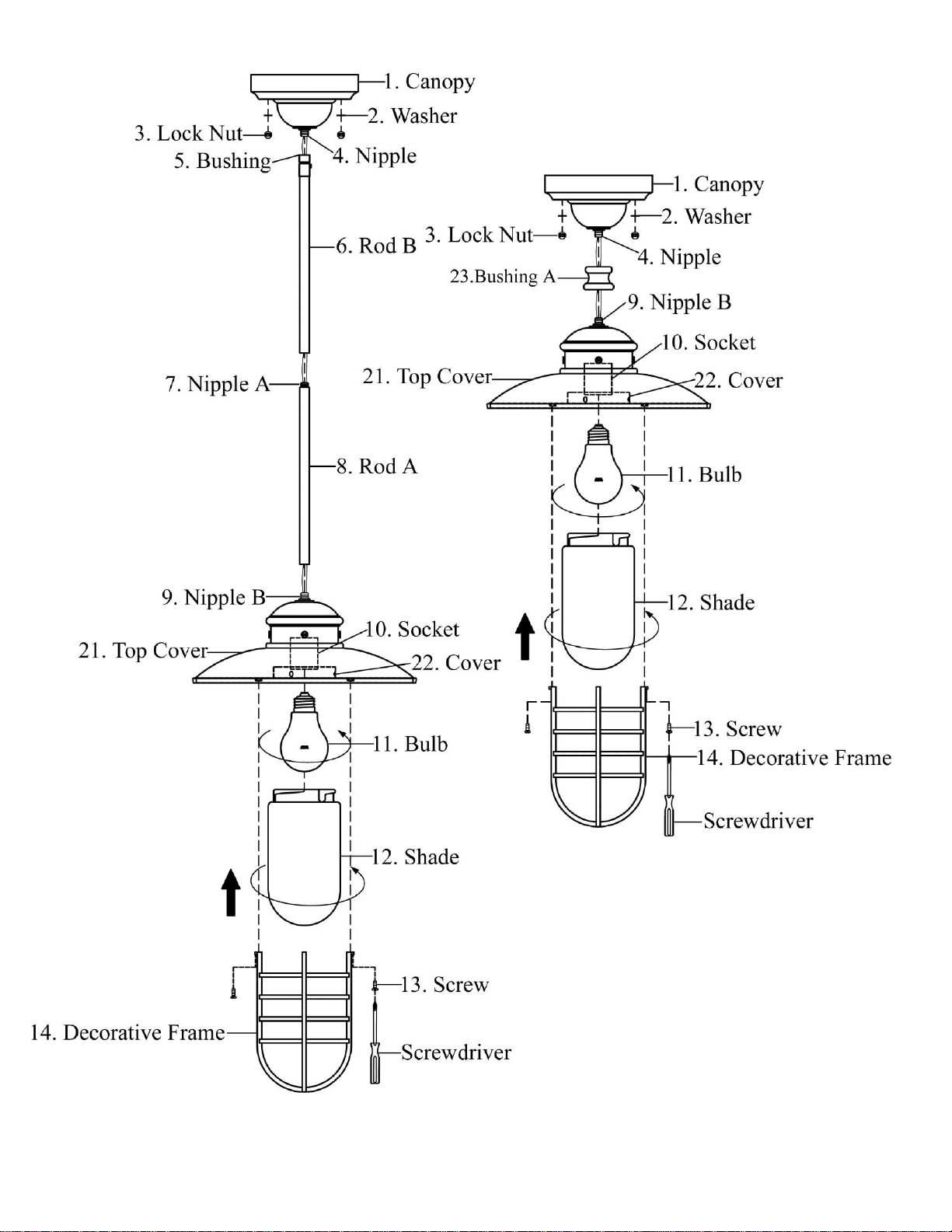

1. Carefully unpack the fixture. Lay out all parts on a clean surface. This fixture

can be installed as a mini-pendant, or as a flushmount.

2. For a mini-pendant, weave the fixture wires up through Rod A (#8), through

Rod B (#6), and through the Nipple (#4) on the Canopy (#1). The height of the

fixture can be adjusted by using fewer rods (each rod is 12 inches long). For a

flushmount, weave the fixture wires through Bushing A (#23) and then through

the Nipple (#4) on the Canopy (#1).

3. For a mini-pendant, screw Rod A (#8) onto Nipple B (#9). Screw Rod B (#6)

onto Nipple A (#7). Screw the Nipple (#4) into the Bushing (#5). For a

flushmount, screw Bushing A (#23) onto Nipple B (#9). Screw Bushing A (#23)

onto the Nipple (#4).

4. For either fixture, install a 60 watt medium base incandescent light Bulb (#11)

(not included) or an equivalent standard base compact fluorescent light bulb

(not included) in the Socket (#10).

5. For either fixture, screw the Shade (#12) into the Cover (#22). Place the

Decorative Frame (#14) over the Shade (#12), and align the two holes on the top

of the Decorative Frame (#14) to line up with the two holes underneath the Top

Cover (#21). Use a screwdriver to screw the two Screws (#13) through the two

holes on the Decorative Frame (#14) to secure it to the Top Cover (#21).

Page 5

ASSEMBLY:

Page 6

PARTS INCLUDED FOR INSTALLATION (parts are not to scale):

2ea Washers (#2) 2ea Lock Nuts (#3) 3ea Wire Connectors (#16) 1ea Cross Bar (#17)

2ea Outlet Box Screws (#18) 1ea Ground Screw (#19) 2ea Mounting Screws (#20)

INSTALLATION INSTRUCTIONS:

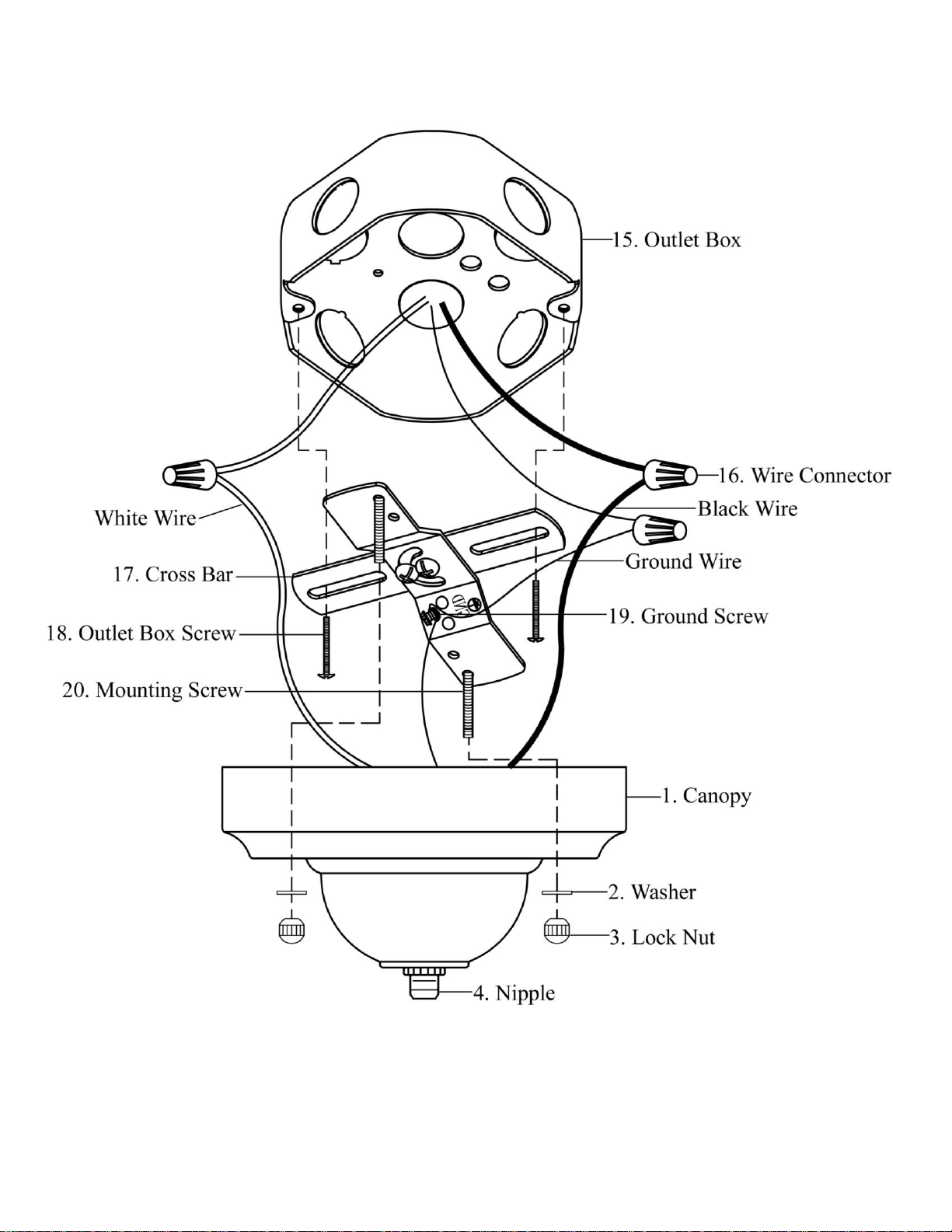

1. Screw the two Mounting Screws (#20) into the Cross Bar (#17). Mount the Cross

Bar (#17) to the Outlet Box (#15) using the two Outlet Box Screws (#18). [Make

sure the threads of the Mounting Screws (#20) are facing outside when the Cross

Bar (#17) is attached to the Outlet Box (#15).]

2. Wrap the ground wire from the fixture around the Ground Screw (#19) on the Cross

Bar (#17), and then connect the ground wire from the fixture to the ground wire

from the Outlet Box (#15). Connect the white wire from the fixture to the white

wire (neutral wire) from the Outlet Box (#15). Connect the black wire from the

fixture to the black wire (live wire) from the Outlet Box (#15). Cover the three

connections using the three Wire Connectors (#16). Wrap the three wire

connections with electrical tape for a more secure connection. Position the wires

back inside the Outlet Box (#15). Note: If you have electrical questions, consult

your local electrical code for approved grounding methods.

3. Place the Canopy (#1) over the Outlet Box (#15). Allow the threads of the

Mounting Screws (#20) to come out through the appropriate holes on the Canopy

(#1). Place the two Washers (#2) over the two Mounting Screws (#20). Screw the

two Lock Nuts (#3) onto the two Mounting Screws (#20) to tighten the Canopy (#1).

4. Once the fixture is mounted on the ceiling, caulk the space between the ceiling and

the whole area around the Canopy (#1) to prevent water seeping into the Outlet Box

(#15).

5. Installation is complete. Turn on the power at the circuit breaker or fuse box. Turn

the light switch on to activate the fixture.

Page 7

INSTALLATION:

Page 8

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the glass and surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and

interior surface of the fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period

of three (3) years from date of purchase. This warranty applies only to the original consumer purchaser and only

to products used in normal use and service. If this product is found to be defective, the manufacturer’s only

obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s

discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications,

alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been

improperly installed, set-up, or used in any way not in accordance with the instructions supplied with the product.

This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,

alteration, or faulty installation, or any other failure not relating to faulty material or workmanship. This

warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is

considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty,

whether express or implied, of fitness for a particular purpose, other than the warranty contained herein.

The manufacturer specifically disclaims any liability and shall not be liable for any consequential or

incidental loss or damage, including but not limited to any labor / expense costs involved in the

replacement or repair of said product.

Problem

Possible Cause

CorrectiveAction

Light bulb will not

illuminate.

1. Light bulb is burned out.

1. Replace light bulb.

2. Power is off.

2. Make sure power supply is on.

3. Faulty wire connection.

3. Check wiring.

4. Faulty switch.

4. Test or replace switch.

Fuse blows or circuit

breaker trips when

light bulb is

illuminated.

Crossed wires or power wire

is grounding out.

Check wire connections.

Page 9
