Haier HLF11PC Manuel utilisateur

E_ectric D_er

User Manua_

Mode_ # HLF11 PC

Guide de _'UtiHsateur

Mod6_e # HLF11 PC

IMPORTANT SAFEGUARDS

Warning = To reduce the risk of fire, electric shock, or injury to per=

sons when using your appliance, follow basic precautions, including

the following:

Read all instructions before using the appliance.

Do not dry articles that have been previously cleaned in, washed in,

soaked in, or spotted with gasoline, dry-cleaning solvents, or other

flammable or explosive substances, as they give off vapors that

could ignite or explode.

Do not allow children to play on or in the appliance. Close supervision

of children is necessary when the appliance is used near children.

Before the appliance is removed from service or discarded, remove the

door to the drying compartment.

Do not reach into the appliance if the drum is moving.

Do not install or store this appliance where it will be exposed to water

and/or to the weather.

Do not tamper with controls.

Do not repair or replace any part of the appliance or attempt any

servicing unless specifically recommended in the user-maintenance

instructions or in published user-repair instructions that you understand

and have skills to carry out.

Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturer of the fabric softener or product.

10. Do not use heat to dry articles containing foam rubber or similarly

textured rubber-like materials.

11. Clean lint screen before or after each load.

12. Keep area around the exhaust opening and adjacent surrounding

areas free from the accumulation of lint, dust and dirt.

13. The interior of the appliance and the exhaust duct should be cleaned

periodically by qualified service personnel.

14. Do not place items exposed to cooking oils in your dryer. Items

contaminated with cooking oils may contribute to a chemical

reaction that could cause a load to catch fire.

15. If material has been used with any flammable liquids or solids it should

not be used in the dryer until all traces of the flammable liquids and its

fumes have been removed.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii iii ! ! i i i i i !ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i !ii!!i

16. This dryer must be properly installed in accordance with the

installation instructions before it is used. See grounding instructions

in the installation section.

17. Proper grounding must be ensured to reduce the risk of electric shock

and fire. Check with a qualified electrician or service personnel if you

are in doubt as to whether the dryer is properly grounded.

18. Use the dryer only for its intended purpose, drying clothes.

19. Always disconnect dryer from electrical supply before attempting any

service. Disconnect power cord by grasping the plug, not the cord.

20. Replace worn power cords and/or loose plugs.

21. To reduce the risk of electric shock or fire, do not use extension cords

or adapters to connect dryer to electrical power source.

SAVE THESE INSTRUCTIONS

Risk of child entrapment, Before you throw away your oW appliance,

take off the doors, Leave the she_ves in p_ace so that children

may not easily climb inside°

Table Of Contents PAGE

iMPORTANT SAFEGUARDS

OPERATING INSTRUCTIONS

Understanding the Control Panel

Preparations before Drying

Load Clothes into Dryer

Auto Dry Cycle

Timed Dry Cycle

Rack Dry Cycle

Other Features

Normal Operating Sounds

Tips

CARE AND CLEANING GUIDE

TROUBLESHOOTING

iNSTALLATiON iNSTRUCTiONS

Unpacking your Dryer

Tools and Materials Required

EXHAUST SYSTEM CONNECTIONS

Requirements and Instructions

Materials

Location of your Dryer

Installation in Mobile Home

WARRANTY

4-12

9-10

Thank you for using our Haler prod-

uct. This easy-to-use manual will

guide you in getting the best use of

your

dryer.

Model number

Serial number

Remember to record the model and

serial number. They are on a label in Date of purchase

back of the dryer.

Staple your receipt to your manual.

You will need it to obtain warranty service.

.-. /

t.......... !__, i_'_

t,o ,y _softe,

_ Til,_ed Dry _ Off /

Rackdry

Timed

Power On/Off Button: (1)

Press the button once to operate the dryer. Press the button once again to

turn the dryer "OFF".

Start/Pause Button: (2)

Press this button once to start the dry process. Press this button once again

to pause during the dry cycle.

Wrinkle Care Button: (3)

Used to select wrinkle-proof function. Automatically sets as off after powering

on. This function is used together with delay start function.

Cycle Signal Button: (4)

Used to select buzzing volume or to turn off the buzzer.

Timed/Cycles Button: (5)

"Timed/Cycles" button will let you select your desired dry mode. Auto Dry:

automatically set "Dryness Level," "Temp," "Cycle Signal," "Wrinkle Care"

buttons status according to clothes loaded. Timed Dry: You can set status of

"Temp," "Cycle Signal" and "Wrinkle Care" buttons and dry time with "More

Time" and "Less Time" buttons by yourself. Rack Dry: the program used to

dry articles like sports shoes. 4

MoreTime&LessTimeButton:(6)

• Settimefrom0to180minutewhenTimedDryorRackDryselected.

CycleButtons:(7)

"Cycle"buttonwillletyouselectyourdesireddrycycles.Foryourconve-

nience,therearesevenfabriccaredrycyclesprogrammedinthismode:

Customized,Normal,Heavy,Cotton,Delicate,CasualandBulkyItems.

Customized The drying program is defined by the user and stored.

Normal Normal drying

Heavy Heavy clothes drying like jeans

Cotton Special drying for cotton clothes

Delicate Drying small quantity clothes and delicates

Casual Drying casual everyday clothes

Bulky Items Drying bulky clothing

Delay Start Button: (8)

This convenient feature lets you delay the start of the dry cycle between 3 to

24 hours. Press the "Delay Start" to choose the number of hours you want to

delay the start of the cycle.

If "Delay Start" is not selected, the digital display indicates remaining time of

selected program.

If setting "Delay Start" is in standby status, the digital display indicates 3 hr,

which will increase by 1 hr with each pressing (until 24 and return to 3) of the

button. If it is pressed for 1.5 seconds, the display indicated value will

increase continuously.

Temp Button: (9)

Used to set drying temperature, There are 4 available drying temperatures:

High, Medium, Low, and Air only (no heat).

Dryness Level Button: (10)

Used to set drying time of auto-programs.

Status lights: (11)

Status lights give notification of which part of the cycle the machine is in.

Digital Display: (12)

Indicates remaining time (min) during cycle operation. Indicates remaining

delay time (hr) during delay.

Note: If door opened during cycle running, indicator displays a code

"E2" and an alarm will sound.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ii i ! ! i i i i i !ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii ii i !ii!!i

Function Light Indicator:

• The function "display light" indicates selected feature is "ON" or the cycle is

about to begin.

During the dry cycle, "flashing light" indicates current running program.

Rapidly flashing light indicates that the dryer is not operating properly.

Preparations Before Drying

Group the clothes of the same kind (cotton, synthetics, woolen) to dry.

Dark and light colored clothes should be separately dried. Fabrics prone to

falling lint should be turned inside out before putting into the dryer.

Make sure buttons and ornaments on the clothes are high temperature resis-

tant and won't damage drum surface. Before loading, the clothes should

have their zippers zipped up, buttons and hooks done up and belts tied so

as to avoid entanglement or other obstacles.

If possible, turn out the clothes pockets for uniform drying.

Check if clothes remain soiled. If yes, wash it again, otherwise the soils after

drying may stain permanently.

Small articles should be collected in a mesh bag before loading and drying,

so as to avoid entanglement and ensure easy removal.

Make sure power socket is reliably grounded. The grounding terminal should

not be connected to gas or tap water pipelines.

Make sure exhaust duct has been connected with extension pipe.

Make sure lint filter is clean and then assemble it properly. If lint filter is not in

place, tumbling items could enter the exhaust system and cause damage to

the dryer.

Note: It applies to Auto Dry cycle and Timed Dry cycle. For Rack Dry

cycle, remove the lint filter and assemble the drying rack. Raise

the front end and lock it into the lint filter slot. The assemble is

as shown in the following figure:

Load Clothes into Dryer

Auto Dry Cycle and Timed Dry Cycle

• The appropriate load is 1/3 to 1/2 of the drum volume. Avoid to overload the

dryer, as space is needed to allow clothes to tumble for uniform and wrinkle

proof drying.

When drying big articles, only 2-3 pieces should be loaded at a time and

supplemented with medium and small articles.

Avoid excessive drying of clothes to prevent wrinkles, shrinkage, roughness,

electrostatic charge accumulation and lint.

Avoid high temperature drying on delicate and synthetic clothes.

Rack Dry cycle:

WARNING: In Rack Drying mode, remember the drum is still rotating. If drying

rack is not in place, rotating inner tub could collide with drying rack and causes

damage to the dryer and drying rack.

This program is designed specially for articles like sports shoes. During dry-

ing please make sure the items stay on the rack with no risk of entanglement

while the drum is rotating.

Auto Dry Cycle

i_ _,_ ¸

llil ©........

@Rack d,y

1. Press "Power On/Off" button to power on

• Turn on the power, the computer board beeps once and the dryer transfers

from off status to the stand by status (Normal program).

• If no "Start/Pause" button is pressed in 5 min after powering on, it automati-

cally cuts off power and returns to off status.

• It returns to off status immediately upon end of a cycle; Whatever status the

computer board is (start, pause, alarm, etc.), pressing "Power On/Off" button

will stop all operations and it enters off status.

• Variousbuttoninitialstatusfor"Normalprogram."

CycleSignal Softer

WrinkleCare Off

Cycles Normal

DigitalDisplayIndicatecurrentprogramremainingtime

Temp High

DrynessLevelMoreDry

Timed/CyclesAutoProgram

2.Press"Cycles"buttontoselectasuitablefullautomaticcycle

TheNormalprogramwillbeautomaticallyselectedafterpoweringtheunit

"ON".Ifotherfullautomaticprogramisdesired,press"Cycle"buttonuntil

correspondingindicatorturnson.

Customized

Normal Bulky Items

l Cas a'l

Cotton Delicate

•To select your desired settings the "Customized" function should be chosen.

It can memorize programs defined by user and display the previous program

upon next application of this function.

Use details are as follows:

After powering on, press "Cycles" until "Customized" status, then set

"Timed/Cycles" to Timed Dry or Rack Dry, and set status of other buttons.

Press "Start/Pause" button or after half a minute, the program defined by user

will be stored and will be directly displayed upon next use.

Note: Pressing "Dryness Level" button will be inactive during use of

"Customized" function.

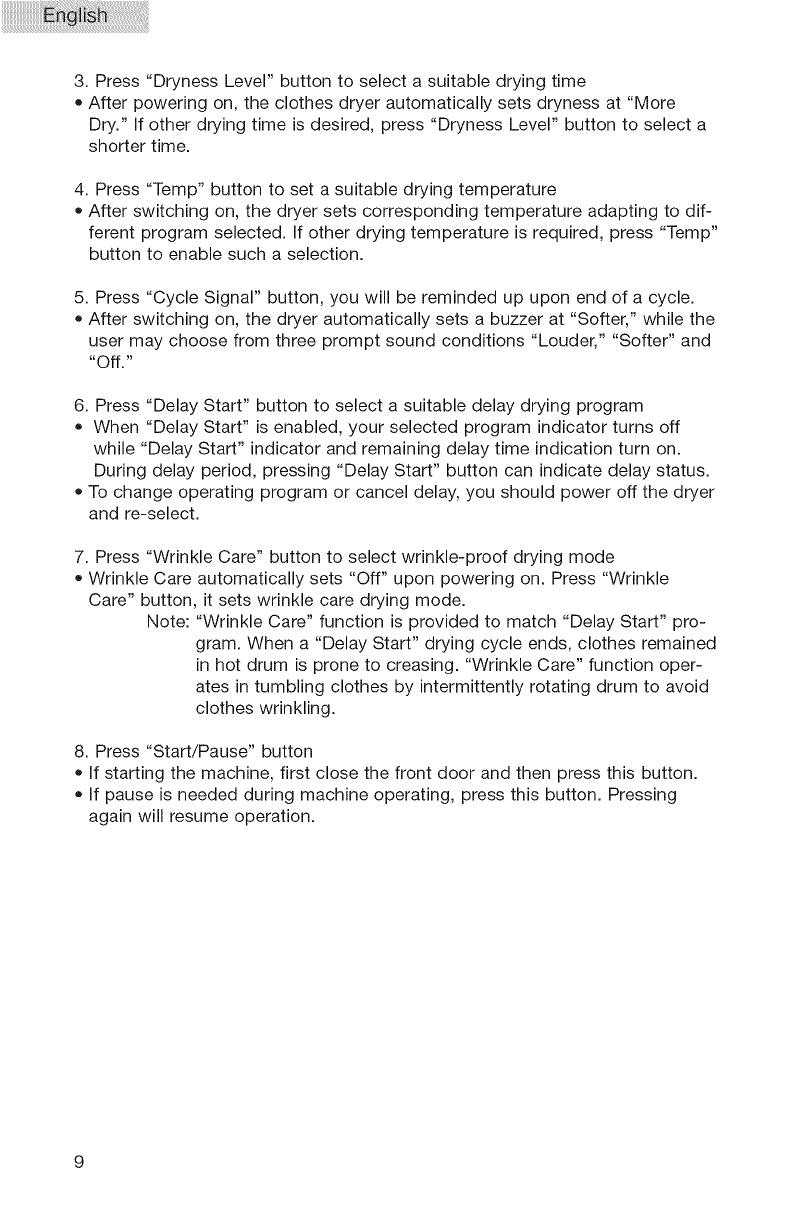

3.Press"DrynessLevel"buttontoselectasuitabledryingtime

• Afterpoweringon,theclothesdryerautomaticallysetsdrynessat"More

Dry."Ifotherdryingtimeisdesired,press"DrynessLevel"buttontoselecta

shortertime.

4.Press"Temp"buttontosetasuitabledryingtemperature

Afterswitchingon,thedryersetscorrespondingtemperatureadaptingtodif-

ferentprogramselected.Ifotherdryingtemperatureisrequired,press"Temp"

buttontoenablesuchaselection.

5.Press"CycleSignal"button,youwillberemindedupuponendofacycle.

Afterswitchingon,thedryerautomaticallysetsabuzzerat"Softer,"whilethe

usermaychoosefromthreepromptsoundconditions"Louder,""Softer"and

"Off."

6.Press"DelayStart"buttontoselectasuitabledelaydryingprogram

When"DelayStart"isenabled,yourselectedprogramindicatorturnsoff

while"DelayStart"indicatorandremainingdelaytimeindicationturnon.

Duringdelayperiod,pressing"DelayStart"buttoncanindicatedelaystatus.

Tochangeoperatingprogramorcanceldelay,youshouldpoweroffthedryer

andre-select.

7.Press"WrinkleCare"buttontoselectwrinkle-proofdryingmode

WrinkleCareautomaticallysets"Off"uponpoweringon.Press"Wrinkle

Care"button,itsetswrinklecaredryingmode.

Note:"WrinkleCare"functionisprovidedtomatch"DelayStart"pro-

gram.Whena"DelayStart"dryingcycleends,clothesremained

inhotdrumispronetocreasing."WrinkleCare"functionoper-

atesintumblingclothesbyintermittentlyrotatingdrumtoavoid

clotheswrinkling.

8.Press"Start/Pause"button

Ifstartingthemachine,firstclosethefrontdoorandthenpressthisbutton.

Ifpauseisneededduringmachineoperating,pressthisbutton.Pressing

againwillresumeoperation.

Autres manuels pour HLF11PC

Table des matières

Langues :

Autres manuels Haier Séchoir

Haier

Haier HDE5000AW Manuel utilisateur

Haier

Haier HD70-79 Manuel utilisateur

Haier

Haier GDZ3.5-1 Manuel utilisateur

Haier

Haier HLF13E Manuel utilisateur

Haier

Haier GE UltraFresh GFD55ESSN Comment utiliser

Haier

Haier GDZ13-0677 Manuel utilisateur

Haier

Haier GDE750AW Manuel utilisateur

Haier

Haier HDY-D70-F Manuel utilisateur

Haier

Haier GDE700AW - Genesis 6 cu. Ft. Electric Dryer Manuel utilisateur

Haier

Haier HDY-C70 HA AA Manuel utilisateur

Haier

Haier HLF11E Manuel utilisateur

Haier

Haier QFD15 Series Instructions originales

Haier

Haier HD70-01 ME Manuel utilisateur

Haier

Haier ProSoft Manuel utilisateur

Haier

Haier HDY-D60 Manuel utilisateur

Haier

Haier HDHP80A1 Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Haier

Haier HD80-B636-F Manuel utilisateur

Haier

Haier HDY-M60 Manuel utilisateur

Haier

Haier RDE350AW - 6.5 Cu. Ft. Electric Dryer Manuel utilisateur

Haier

Haier HDY60 Manuel utilisateur

Haier

Haier HDY60M Manuel utilisateur

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Manuel utilisateur

Haier

Haier HD90-A3Q979SU1 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
