Exhaust Type Tumble Dryer

User's Manual

Contents

Names of the parts.........................................1

Important Safety Instructions........................2

Operation Cautions........................................5

Installation Instructions.................................6

Using Method.................................................7

Dry Capacity, Dry Time Reference ...............10

Care and Cleaning..........................................11

Trouble shooting.............................................12

Packing And Electrical Safety Tips...............13

Specification..............................the back cover

Names of the parts

Drum

Exhaust Shroud

Air Intake Shroud

Timer Selector Knob

Heat Selector Knob

Door

Power Cord Exhaust Vent

Back Cover

Levelling Leg

Casing

Accessories

4 pieces

Please check if the power receptacle has good earthing

Condition before using to guarantee your safety.

The manufacturer will not take responsibility for those

Risks occurred from not obeying this manual.

Door Gasket

9.Do not dry articles that have been previously cleaned in, washed in, socked

in, or spotted with gasoline, dry-cleaning solvents, or other flammable or

explosive substances, as they give off vapors that could ignite or explode.

Important Safety Instructions

Warning-To reduce the risk of fire ,electric shock, or injury to

persons when using your appliance, follow basic precautions,

including the following:

1.Read all instructions before using the appliance.

2.The tumble dryer is not to be used if chemicals have been used for cleaning.

3.The tumble dryer is intended only for drying textile material washed in water.

7.For appliances with ventilation openings in the base, that a carpet must not

obstruct the openings.

4.There has to be adequate ventilation to avoid the back flow of gases into the

room from appliances burning other fuels including open fires, when operating

the tumble dryer.

5.The lint trap is to be cleaned frequently.

6.Lint is not to be allowed to accumulate around the tumble dryer.

8.Exhaust air must not be discharged into a flue which is used for exhausting

fumes from appliances burning gas or other fuels.

11. Fabric softeners or similar products should not be used in a tumble dryer to

eliminate the effects of static electricity unless this practice is specifically

recommended by the manufacturer of the fabric softener or product.

12.Do not use heat to dry articles containing foam rubber or similarly textured

rubber-like materials.

10.Do not place items exposed to cooking oils in your dryer. Items contaminated

with cooking oils may contribute to a chemical reaction that could cause a

load to catch fire.

Important Safety Instructions

16.Do not use or place stove, gas device, water heater, tinder or similarities close to

your dryer. Do not install or store this appliance where it will be exposed to water

and/or to the weather.

18.Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in the user-maintenance instructions or in published

user-repair instructions that you understand and have skills to carry out.

17.Do not tamper with controls.

15.Keep your dryer away from combustible materials (such as gasoline) during

operation to prevent the risk of fire.

13.Do not allow children to play on, climb on or in the appliance. Close supervision

of children is necessary when the appliance is used near children.

14.Before the appliance is removed from service or discarded, remove the door to

the drying compartment.

20.If material has been used with any flammable liquids or solids it should not be

used in the dryer until all traces of the flammable liquids and its fumes have

been removed.

19.Keep area around the exhaust opening and adjacent surrounding areas free from

the accumulation of lint, dust and dirt.

22.Do not share a receptacle with other appliances. Do not use it when a plug

loosely inserted into a receptacle.

21.This dryer shall be connected to a three-wire, single phase, 220-240V AC

power receptacle more than 10A, which must be reliably grounded. A leakage

protector shall be used, if possible.

23.Do not excessively bend, stretch, twist, bind power cord or put heavy stuff on

it. Keep the terminator of power cord clean. Carefully clean it with dry cloth if

dusts accumulated. If damaged, power cord or plug must be replaced by our

service agent or qualified after-sale service person to avoid the risk of danger.

Important Safety Instructions

24.When normally using, the power cord of dryer shall be easily plugged or

unplugged by hand. It must be unplugged during power blackout, moving, not

in use or cleaning. Do not plug or unplug the power cord with wet hands.

25.Always disconnect dryer from electrical supply before attempting any service.

Disconnect power cord by grasping the plug, not the cord.

26.Do not block the exhaust vent when dryer operating to prevent it from

overheating or other dangers.

27.Do not let your dryer operate on packing foam. Otherwise it maybe cause fire

since heat accumulation or other external factors.

29.Do not place washed wet clothes in your dryer for a long time not drying them

(which may result in water leakage).

28.Only place sufficiently dehydrated clothes into your dryer for drying to prevent

leakage and longer drying time.

30.Don't touch the intake for the high temperature during the drying cycle.

31.Do not exceed dryer rated Max. Capacity.

Clothes with zipper

Dry this kindof clothes withzipper

zipped or fastener

buckled and inside

out (to reducethe

impact noise between

metal and thedrum)

Clothes with ribbon or lace

should be dried in a nylon net

Put chemical fiberand/or clothes

with ribbon orlace

into a nylonnet

before drying.

Do not load your dryer when

it is running.

Loading the dryer when it is running

shall be avoided to prevent the clothes

overdried or

incompletely

dried.

Please flip clothes over manually

from time to time, if necessary,

when drying large ones.

It is noteasy to flipover large clothes

(such as overcoat)in the drum,uneven

drying therefore happenssometimes.

If necessary, flip themover manually

from time totime to makethem dried

completely.

Flip over clothes

Operation Cautions

Put rumpled clothes in order

Put all clothesin order after

dehydrated

before drying

them.

Remove the clothes out of your dryer

as early as possible

to reduce rumples.

Please hang the easily crumpled clothes

up with a hanger after dried

Anti-wrinkle method for clothes

crumpled easily

Decrease capacity toget good anti-

wrinkle result (thecapacity shall be

4/5 of thatof normal clothes).

Capacity reducedCapacity reduced

Avoid todry starched clothes in

your dryer to prevent link filter

from clogging, which may lead

to bad exhaust performance.

Leg

Installation Instructions

For your safety and correct using your dryer, please observe all the instructions

in this manual toinstall and adjust your dryer.

Location of your dryer

Dryer should be located in a dry and well-vented place, not filled with moisture and

vapors and where rain cannot reach (like bathroom,open balcony and water faucet).

Do not locate your dryer in a place where sunlight directly shines.

Locate your dryer on horizontal solid ground, floor or a

special bracket to prevent vibration and noise. Keep a dista

nce of 10cm-15cm away from the rear wall when installing.

Do not use stove, gas ans etc near your dryer to avoid dangers.

The dryer has air intake and exhaust cycles,which

needs good air-exhaust vent in the rear and well-vented

room. If used in a small space, air exchange fan or

exhaust duct can be installed at the vent to exhaust

hot wet air outdoors.

The length of exhaust duct shall not exceed 2m.

10-15cm10-15cm

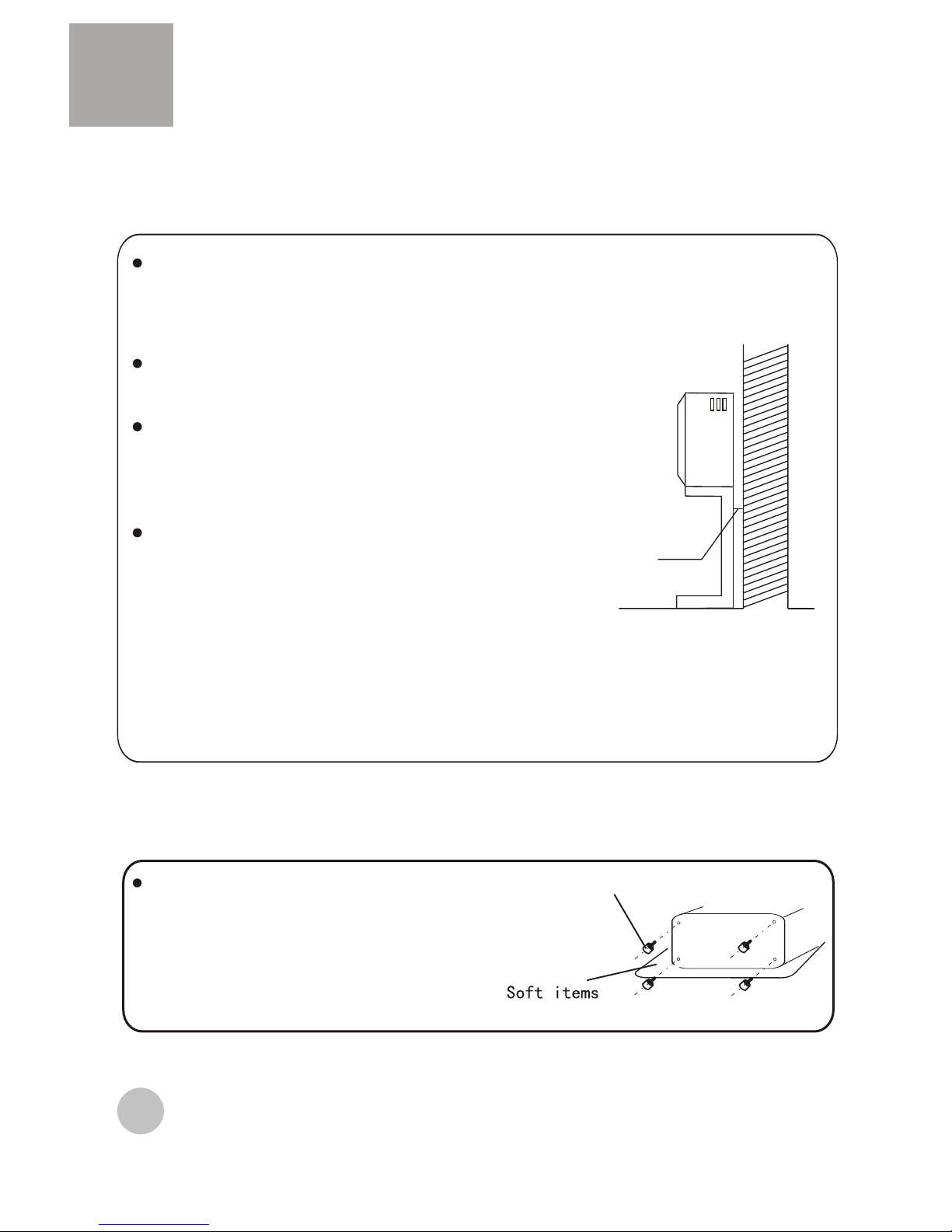

If the dryer is not used with bracket, take fixed

legs out of the accessory bag and screw them

into the assembly hole of the dryer to ensure

it be placed stable.

Install and use the fixed legs of your dryer

Using Method

1. Plug the power cord

The appliance shallbe supplied with220-240V,50Hz,

connected to aspecial receptacle morethan

10A (reliablygrounded).

2. Place the dehydrated clothes in your dryer

Check the followingitems before puttingclothes in.

They shall beloaded in sucha way that2-3 pieces

each time andnot in agroup to avoidtangling, which

is not easyto turn itover resulting inuneven drying

since the clotheswere wrapped.

Before drying your clothes

Make sure if clothes have any special requirements and suitable for drying.

Do not dry your clothes in your dryer if the materials of which cannot be dried

in a dryer or they bear the following labels:

Carefully check the clothes to be dried and remove combustible

material such as lighter and match as well as sharp metal items

like coin, hair clip and safety pin maybe mixed with the clothes

and in pockets.

Clothes with zipper or fastener shall be put into your dryer inside

out with zipper zipped and fastener buckled.

Do not tumble dryDo not tumble dry

Hang to dryHang to dry Drip dryDrip dry Dry flatDry flat Dry in the shadeDry in the shade

Please put clothesinto the drum.Avoid clothesbeing

pressed by thedoor due toexposure out ofthe port,

which will causeclothes entangle anddoor gasket

release and consequentlypoor drying effect.

Separate dark and light colored items, like you do for washing.

Check for stains that may not have been removed in washing.

Dryer heat may permanently set some stains. Properly dried clothes

will need minimum of care when removed from dryer.

For optimum results,use dryer load of similar fabric, weight and construction. Place

small items in a mesh bag prevent from tangling.Do not overload the dryer. An

average load will fill up half the drum.

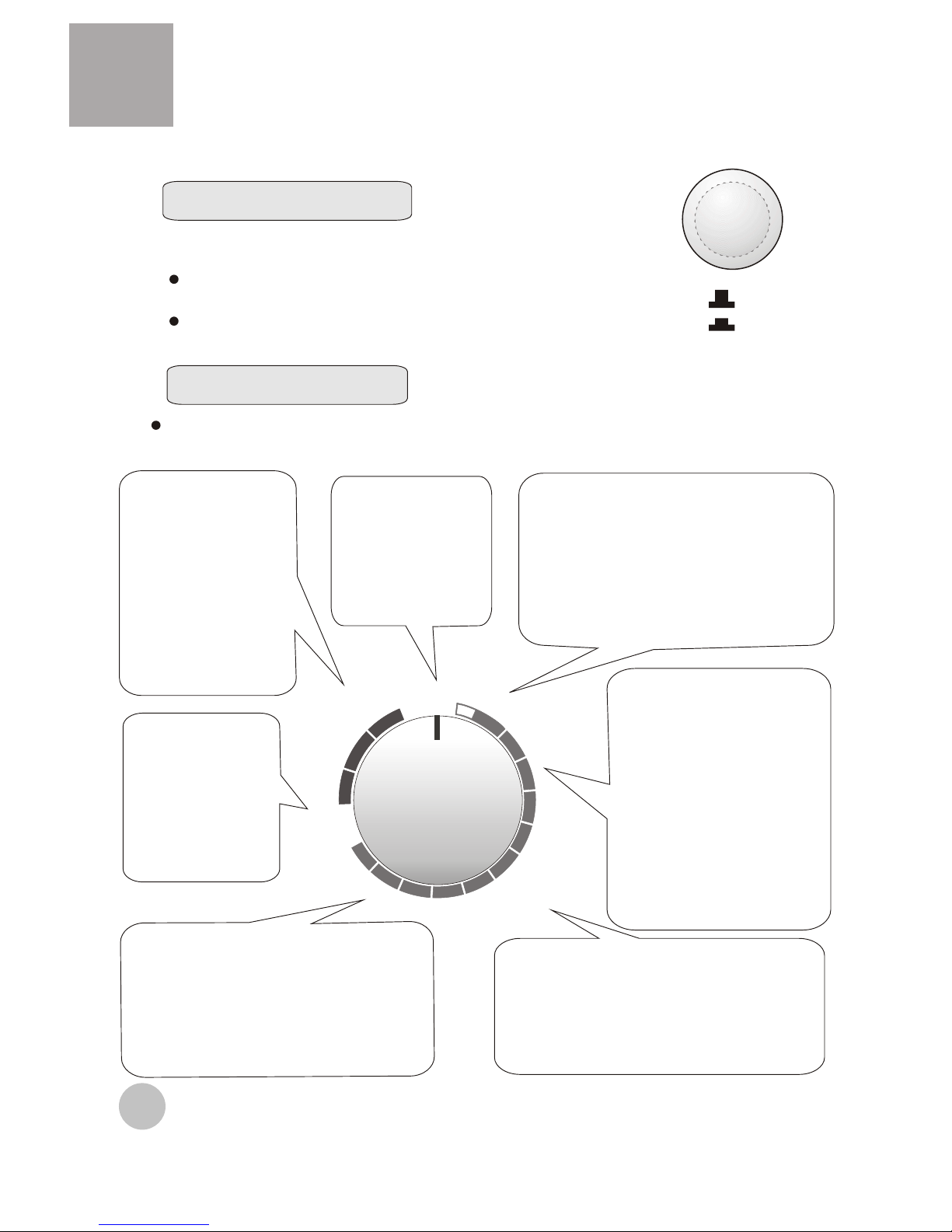

According to theselected dry timeand heater workingor not, fivedry

combinations are available:cooling, ironing, regulardry, extradry and airfluff

Using Method

OFF

For drying laundry in largequantity in

one time (morethan 1/2 ofthe capacity

of drum) orparticularly thicker clothes.

Timer set more than 150minutes with

"Heat selector knob" in "Strongdry"

position to drythe clothes throughly.

For down, sweater,

mohair, cottonsweater

and cotton-padded

clothes needing

freshening, tumbles

without heat.Also can

be individually usedfor

clothes long timein

closet with the

same results.

For normal laundry, timer setbetween 60 to

150 minutes andset "heat selectorknob" in "

Strong" or "Soft"position as required.After

the dryer stopsrunning, clothes normally

can be dried,cooled and anti-wrinkle.

Set "Dry Timer"between 30

to 60 minutesbased on

laundry quantity andset

"Heat selector knob"in "

Soft" position.After the

timer stops (including

Cooling program),the

laundry will stillcontain

some moisture whichcan

be ironed withan

electrical iron. This

program is mainlyused for

laundry needs tobe ironed.

Motor keeps runningafter dryer time

heating finished whileheater stops

working and coldair into thedrum to

cool laundry.The whole coolingwill be

finished once thetimer knob getsto

"OFF " position.Its mainly usedfor

cooling the driedlaundry to prevent

rumples.

Power off whenthe

timer knob in

"OFF" position.

The dryer starts

when turn theknob

clockwise.

3. Control panel and its functions

Heat Selector Knob

Select "Strong Dry"for clothes particularlythick and inlarge

quantities or inlower room temperature.

Select "Soft Dry"for clothes notresistant to heat(like nylon,

chemical fibre andsilk.

Strong

Soft

Select drying levelaccording to thematerial, quantity anddrying

requirements of theclothes to bedried as shownin the figure

Heat Selector Knob

Drying Timer Knob

Strong DryStrong Dry

Regular DryRegular Dry

Anti-wrinkleAnti-wrinkle

Air dryingAir drying CoolingCooling

OFFOFF

Air dryingAir drying CoolingCooling

220

200

180

160 140

120

100

Power off whenthe

timer knob in

"OFF" position.

The dryer starts

when turn theknob

clockwise.

OFFOFF

Strong DryStrong Dry Regular DryRegular Dry

Drying time(min)

Autres manuels pour GDZ3.5-1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Séchoir

Haier

Haier HLF11P Manuel utilisateur

Haier

Haier HD80-A82 Manuel utilisateur

Haier

Haier GDZ10-0677 Manuel utilisateur

Haier

Haier HD90-A2979 Manuel utilisateur

Haier

Haier GDZ3.5-61 Manuel utilisateur

Haier

Haier CHDE5300AW Manuel utilisateur

Haier

Haier HDV60E1 Manuel d'utilisation

Haier

Haier HDHP80AW1 Manuel utilisateur

Haier

Haier HDC80E1 Manuel utilisateur

Haier

Haier GE CleanSpeak WE04X20528 Guide de configuration

Haier

Haier GDZ5-1 Manuel utilisateur

Haier

Haier HLF11PC Manuel utilisateur

Haier

Haier GDZ22-1 Manuel utilisateur

Haier

Haier HD70-79 Manuel utilisateur

Haier

Haier HDY6-1 Manuel utilisateur

Haier

Haier HD90-A636 Manuel utilisateur

Haier

Haier QFD15 Series Instructions originales

Haier

Haier GDZ5.0-1 Manuel utilisateur

Haier

Haier HDY-D70-E Manuel utilisateur

Haier

Haier LDS7HC Manuel utilisateur

Haier

Haier HDHP80A1 Manuel utilisateur

Haier

Haier HD100-A2979 Manuel utilisateur

Haier

Haier HLTD500AEW Manuel utilisateur

Haier

Haier GDZ13-0677 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
