USER MANUAL

Condenser

Tumble Dryer

HDY-D70

For service, call 0845 025 3025.

page no.

Overview .................................................................................................... 1

Safety instructions ..................................................................................2 - 4

Installation .............................................................................................5 - 7

Preparation ................................................................................................ 8

Control panel ............................................................................................ 9

Functions ............................................................................................ 9 - 10

Programming guide ................................................................................. 11

Programme times .................................................................................... 11

Using your appliance ............................................................................... 12

Cleaning and maintenance ............................................................... 13 - 14

Trouble shooting .............................................................................. 15 - 16

Speciﬁcations ........................................................................................... 17

Table of contents

NOTICE

Please read these instructions carefully before using this appliance. The

instructions contain important information which will help you get the

best out of the appliance and ensure safe and proper installation, use and

maintenance.

KEEP THIS MANUAL

Keep this manual in a convenient location so you can refer to it to check safe

and proper use of the appliance.

If you sell or give the appliance to someone else, or leave it behind when

you move house, make sure you also pass on this manual so that the new

owner can become familiar with the appliance and safety warnings. 1

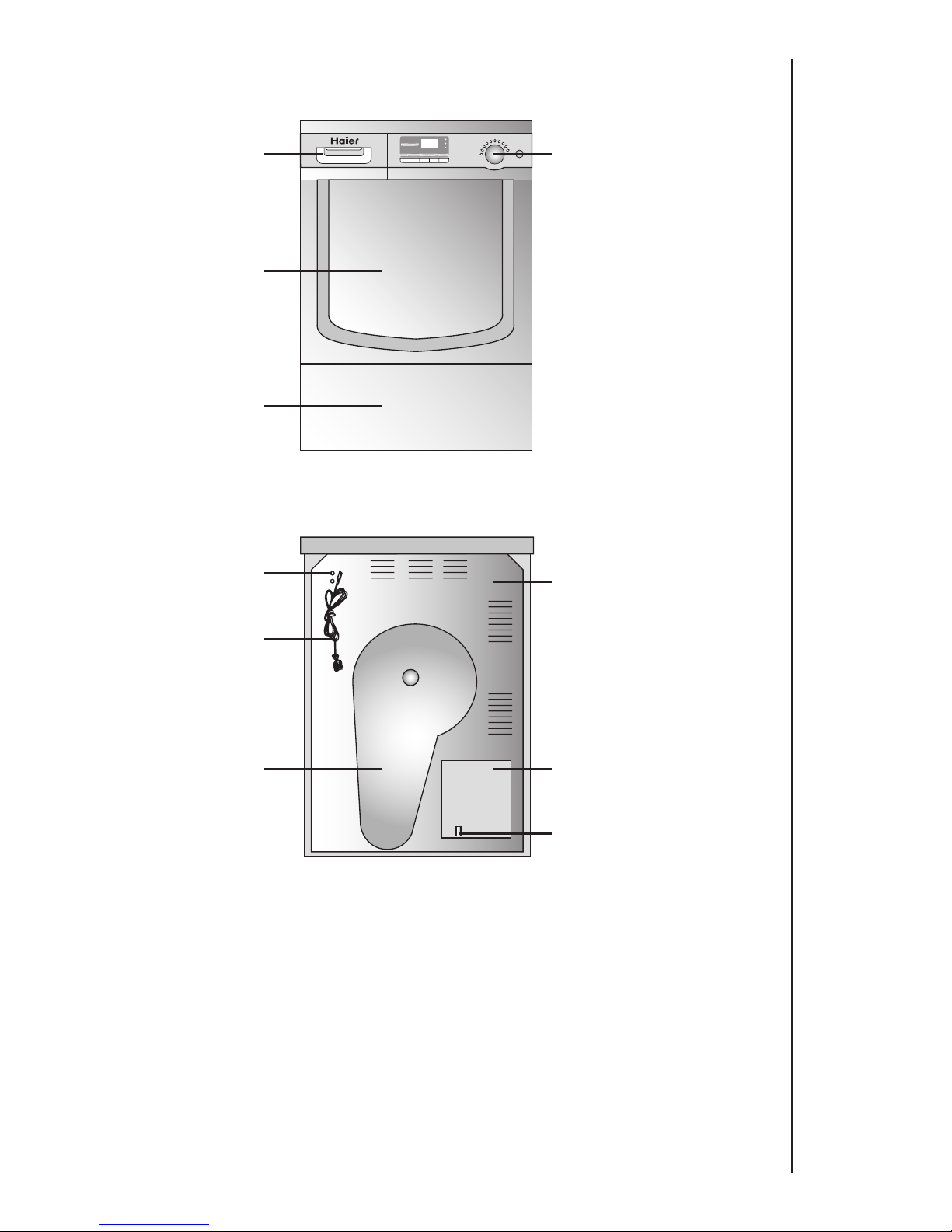

Overview

Programme selector

Container handle

Door

Plinth

Earth terminal

Power supply

cable

Rear footplate

Back plate

Back cover board

Drainage outlet

Using your appliance will be simple, but please make sure read the following

to get the best out of it and to ensure your own safety.

BEFORE SWITCHING THE APPLIANCE ON FOR THE FIRST TIME:

✓Install the appliance in accordance with the installation instructions.

✓Comply with the local electrical requirements and make sure the

appliance is properly earthed.

✓Replace the power cable if it is damaged. It must be replaced by the

manufacturer, its service agent or similarly qualiﬁed persons in order to

avoid a hazard.

✓Remove the packing bolts before ﬁrst use.

DO NOT

✗Install or store this appliance where it will be exposed to water and/or

adverse weather, outdoors in a damp place, or in an area which may be

prone to water leaks such as under or near a sink unit.

✗Operate the appliance if any parts are missing or broken.

✗Store or use petrol or other ﬂammable vapours and liquids in the

vicinity of the appliance.

✗Use an adaptor plug or extension cord.

✗This appliance is for domestic/household use only and is not suitable for

commercial use.

Safety instructions

DURING DAILY USE OF THE APPLIANCE

✓Remove the door before the appliance is removed from service or

discarded.

✓Clean the ﬂuff from the lint screen before or after each load.

✓Unplug the appliance before attempting any service.

✓Use the appliance ONLY for its intended purpose.

✓Keep surrounding areas free from the accumulation of lint, dust and

dirt.

✓Wash items that have been soiled with ﬂammable substances (e.g.

cooking oil, acetone, alcohol, petrol, kerosene, spot removers,

turpentine, waxes and wax removers) before drying them in the tumble

dryer.

✓Use fabric softeners or similar products in accordance with the

instructions from the fabric softener manufacturer.

✓Finish every programme with the cool tumble cycle provided.

DO NOT

✗Dry items that have been contaminated by petrol, cleaning solvents,

kerosene, waxes, etc. Do not store these items on or near the

appliance. These substances give off vapours that could ignite or

explode.

✗Allow children to play with, on, or in the dryer. Close supervision of

children is necessary near the dryer.

✗Reach into the appliance if the drum is moving.

✗Tamper with the controls.

✗Repair or replace any part of the appliance or attempt any servicing if

you do not have the understanding and skills required.

✗Use heat to dry items containing plastic, foam, rubber or similarly

textured rubber-like materials, or items containing feathers or down.

✗Place items exposed to cooking oils in your appliance. Items

contaminated with cooking oils may contribute to a chemical reaction

that could cause a load to catch ﬁre.

✗Do not place heavy objects or sources of heat and damp on to the

appliance.

✗Dry unwashed items in the appliance.

✗Cover the appliance during use, as this may block the ventilation holes.

Electrical connection (UK ONLY)

For your safety please read the following information

Warning: This appliance must be earthed.

The appliance must be connected to a 220 volt 240 cycle AC supply by

means of a three pin socket, suitably earthed and should be protected by a

13 amp fuse.

The appliance is supplied with a standard 3 pin mains plug ﬁtted with a 13

amp fuse. Should the fuse require replacement, it must be replaced with a

13 amp fuse approved to BS1362.

The plug contains a removable fuse cover that must be reﬁtted when the

fuse is replaced. In the event of the fuse cover being lost or damaged, the

plug must not be used until a replacement cover has been obtained.

When disposing of the appliance the plug should be cut off as close to

the plug body as possible and the fuse should be removed to prevent an

electrical hazard. Dispose of the plug safely.

The use of adapters, multiple connectors and/or extension cables is not

recommended.

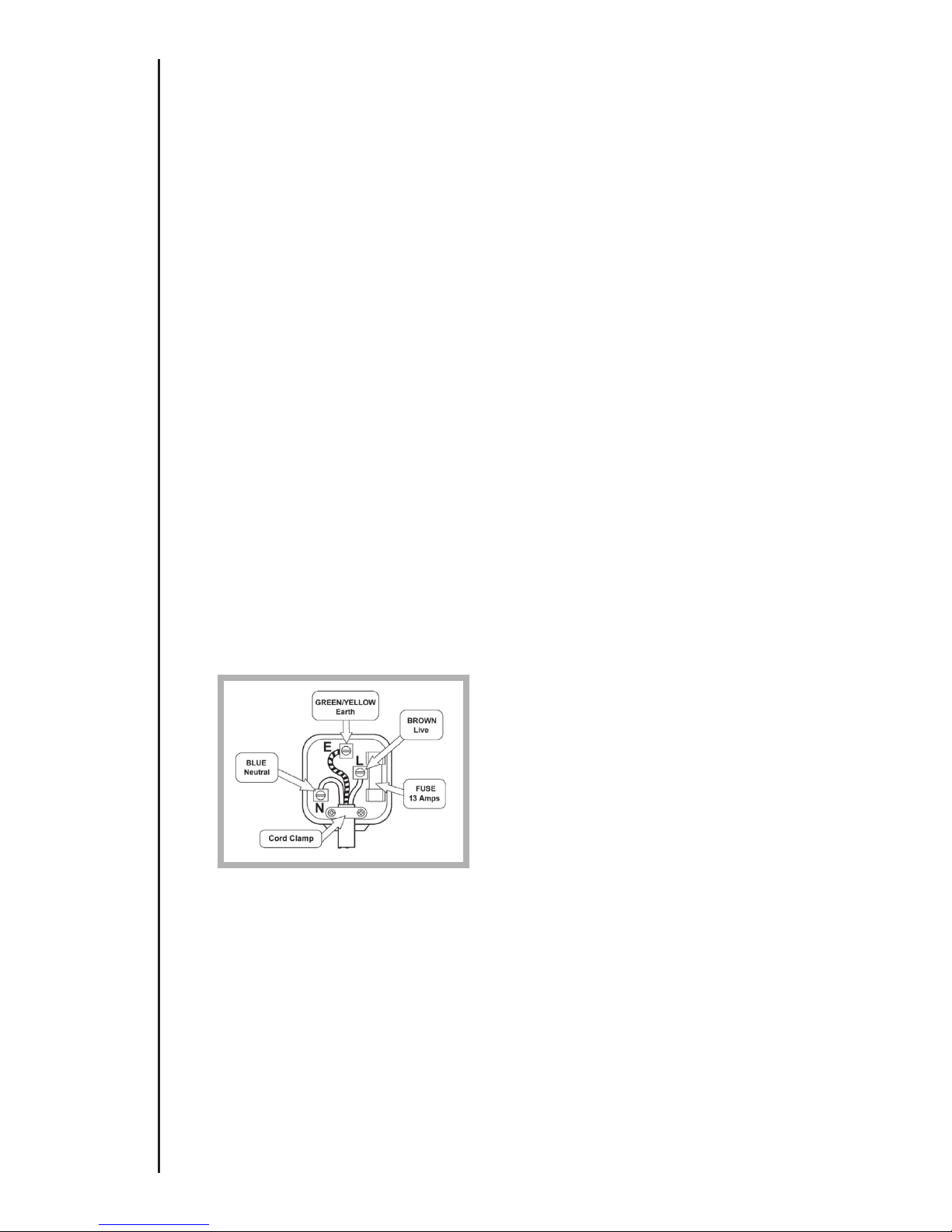

How to wire a 13 amp plug.

Important

The wires in the mains lead on this

appliance are coloured in accordance with

the following code:

Green and Yellow – Earth

Blue - Neutral

Brown - Live

As this may not correspond with your installation, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug

which is marked with the letter E or with the earth symbol ~ or coloured

green and yellow,

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

Safety instructions

This appliance is for domestic/household use only and is not suitable for

commercial use.

Caution: protective gloves should be warn

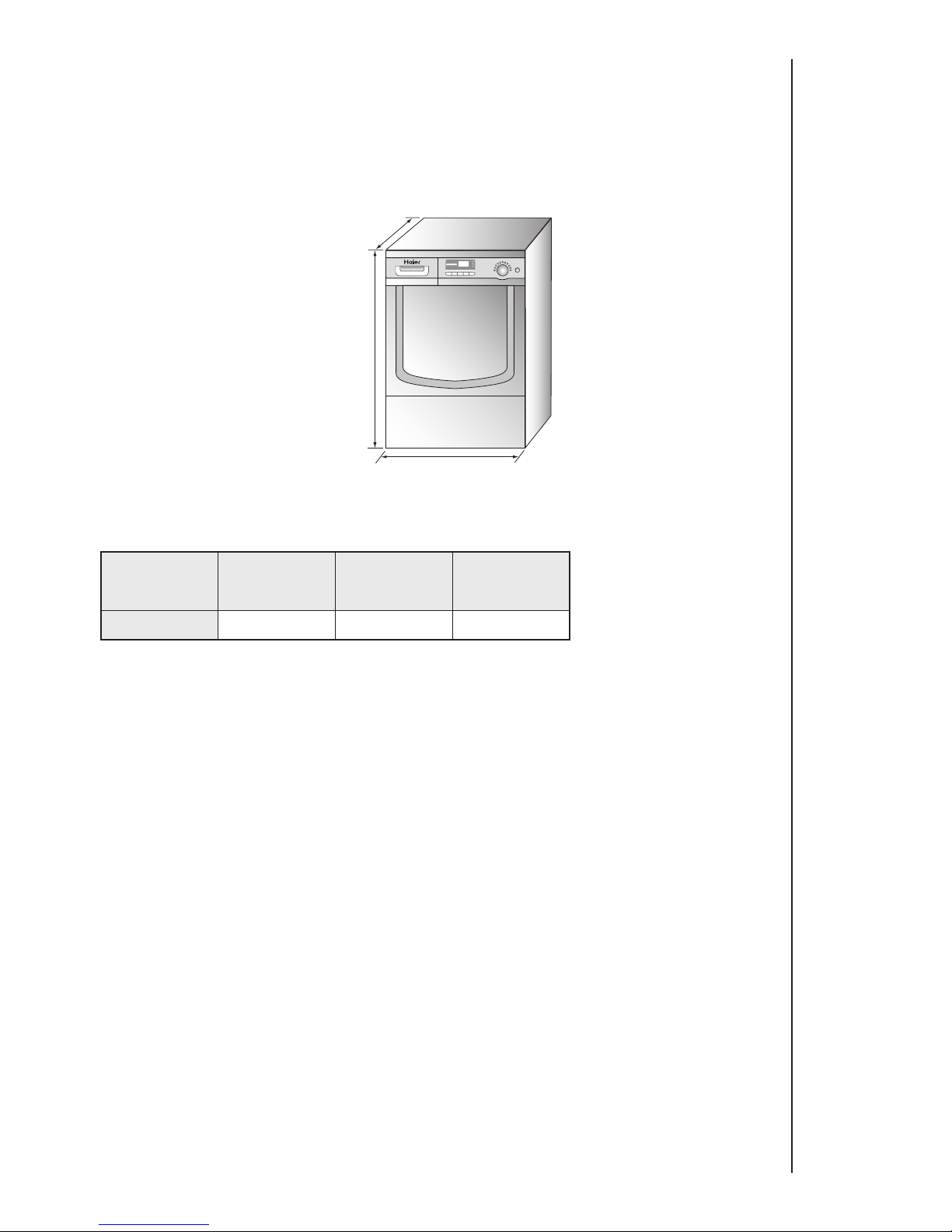

Dimensions

a = 855 mm

b = 620 mm

c = 595 mm

Weight = 43 kg

Packing accessories

Checklist of the accessories and materials provided with the machine:

To ensure the dryer operates normally, attention must be paid to the

following instructions:

• The dryer must be level when installed. The appliance is equipped with

adjustable feet. Adjust these feet to level the unit before operation.

• Check whether there is any damage to the dryer during transportation.

A damaged dryer must not be used. If the unit is damaged, contact your

retailer.

• The dryer must be kept away from ﬂammable substances.

• The surrounding environment must be dry and well ventilated.

• To allow optimum performance, the ambient temperature should not be

lower than 10˚C or higher than 35˚C.

Installation

Name Owner’s

Manual

Certiﬁcate of

Conformity Drain hose

Quantity 1 1 1

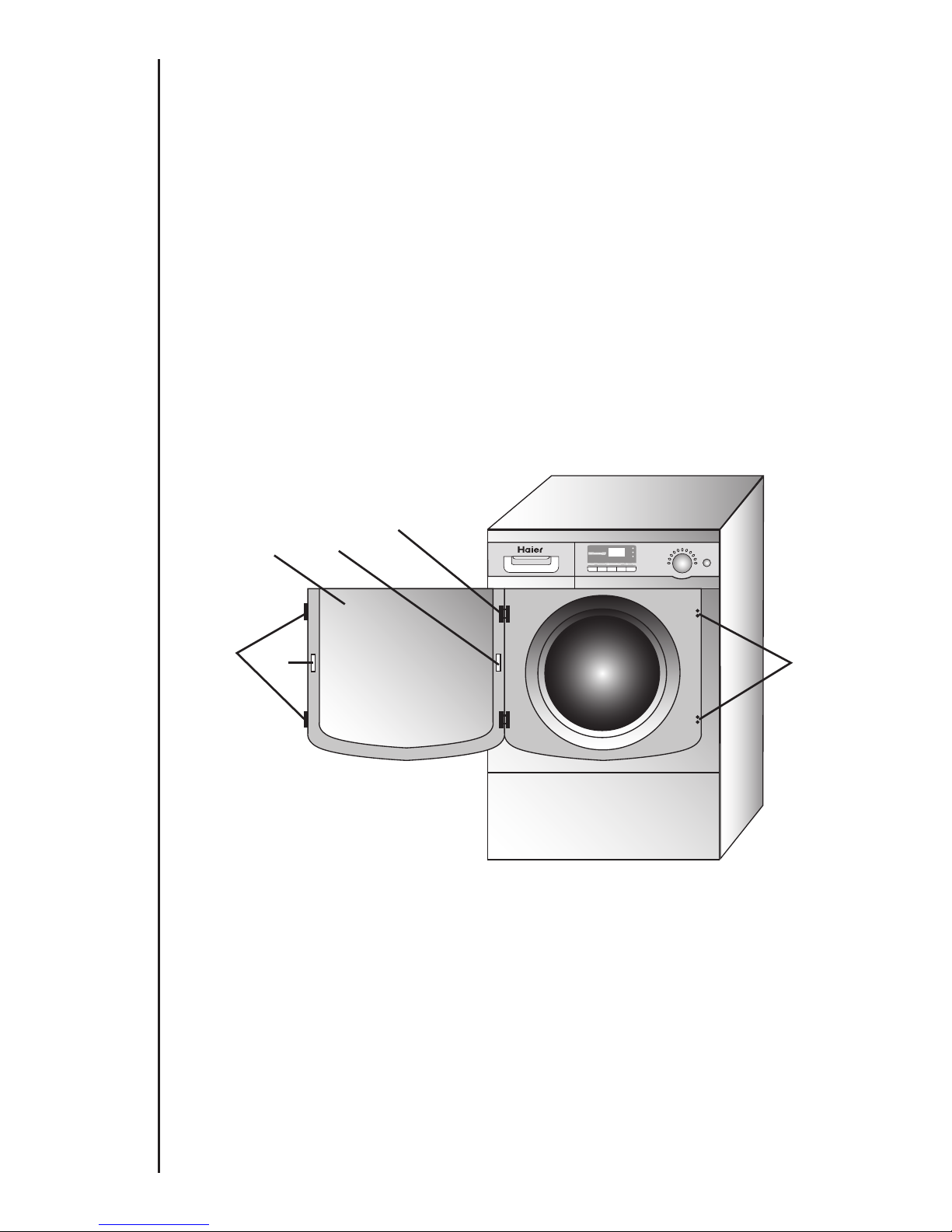

If the direction of the dryer’s door is not suitable for the location, its opening

direction may be changed. The procedure is as follows:

1. Unscrew the 4 hinge screws holding the door onto the machine and

remove the door.

2. Unscrew the door catch and prise out the catch cover on the opposite

side of the door and transpose them.

3. Unscrew the door hinges and prise out the hinge covers on the opposite

side of the door and transpose them.

4. Remove the 4 blanking plugs from the screw holes on the machine and

insert them in the holes on the other side.

5. Reﬁt the door on the opposite side of the machine.

a = door hinge

b = catch cover

c = door

d = hinge cover

e = door catch

f = blanking plug

Installation

Draining

During the drying of the laundry, water is automatically collected in the

water collection box inside the machine. The water needs to be removed

after every drying cycle. If your appliance is near a drain, you may allow

water to discharge directly into the drain through the drain hose provided to

avoid emptying the box every time.

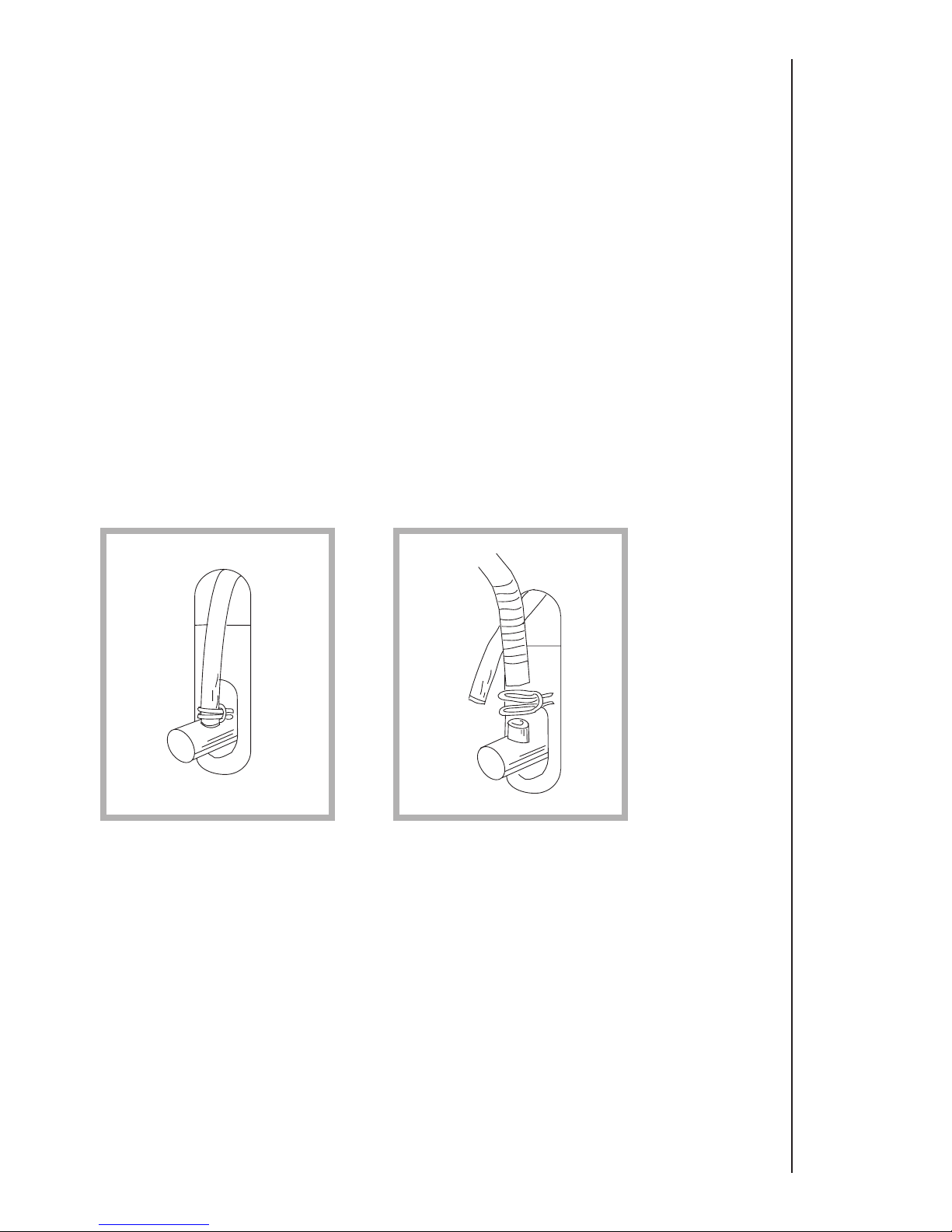

The method to connect the drain hose is as follows:

1. Loosen the hose clip at the joint. See Fig 1.

2. Pull the hose off the joint.

3. Replace the hose with the drain hose accessory.

4. Fix the drain hose in place with the clip. See Fig 2.

Note: The outlet of the drain hose must not be higher than 1.0 m above the

ﬂoor.

Installation

1 2

Attention

• Before use, clean any deposits from inside the drum with a wet towel.

• Clean debris from the lint screen to increase drying efﬁciency.

Warning: Do not dry wool, silk, down and other delicate fabrics.

Turning the appliance on

Before turning on the power for the appliance, check:

• Whether the supply voltage is in accordance with the value indicated on

the rating plate.

• That the plug is connected to the mains supply via a suitable switched

socket which is accessible after installing your dryer.

• That the dryer is properly earthed.

Laundry

• Check whether the laundry to be dried is suitable for the appliance.

• The appliance can only dry laundry that has been spun dry. Do not put

very wet laundry into the machine.

• Empty all pockets and remove any accessories not suitable for tumble

drying.

• Pull up zips and ﬁx loose threads to prevent the items from being

entangled. If necessary, put small items into a net bag.

• To achieve better drying performance, shake out large items of laundry

before loading.

Make sure that the laundry you are going to dry is suitable for drying in a

dryer. You will ﬁnd information about this on the laundry labels.

Dry at normal temperature

Dry at reduced temperature

Drying in the tumble dryer not possible

Preparation
