Haier HD80-A2939S Manuel utilisateur

HD80-A2939

HD80-A2939S

HD90-A2939

HD90-A2939S

HD100-A2939

User manual

Heat-Pump-Dryer

HD100-A2939S

HD90-A3939

HD90-A3939S

Thank you EN

Disposal

This marking on the product, accessories or literature indicates

that the product and its electronic accessories ( e.g. charger,

( e.g. charger, headset, USB cable) should not be disposed of

with other household waste at the end of their working life.

To prevent possible harm to the environment or human health

from uncontrolled waste disposal, please separate these items

from other types of waste and recycle them responsibly to

WARNING!

The appliance must not be powered through an external switching device, such as a

timer, or connected to a circuit that is regularly switched on and oﬀ by a utility.

Safety notice

Warning! – Important safety information

General information and tips

Environmental information

Thank you for purchasing a Haier Product.

Please read this instruction carefully before using the appliance. The instruction contains

important information which will guide you in order to have a safe and proper installation

as well as daily use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper

use of the appliance.

promote the sustainable reuse of material resources.

Household users should contact either the retailer where they

purchased this product, or their local government office, for details

of where and how they can take these items for environmentally

safe recycling.Business users should contact their supplier and

check theterms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed

with other commercial wastes for disposal.

Risk of injury or suﬀ ocation!

Disconnect the appliance from the power supply. To ensure safety when disposing of an

old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and

destroy this together with the plug. To prevent children shutting themselves in the machine

break the door hinges or the door lock.

EN Content

Safety information.................................................................................................................................4

Intended use............................................................................................................................................8

Product description...............................................................................................................................9

Control panel........................................................................................................................................ 10

Programs................................................................................................................................................13

Consumption ........................................................................................................................................14

Suggestions and tips...........................................................................................................................15

Daily use..................................................................................................................................................17

Care and cleaning.................................................................................................................................21

Troubleshooting ...................................................................................................................................24

Installation..............................................................................................................................................25

Customer Service................................................................................................................................30

Technical data ...................................................................................................................................... 28

Installation pictures ...........................................................................................................................7

1-Safety information

WARNING!

Before ﬁ rst use

▶Make sure there is no transportation damage.

▶Remove all package and keep it out of children's reach.

▶A lways move the appliance with two people at least because it

is heavy.

Daily use

▶This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

▶Keep away children under 3 years of age from the appliance un-

less they are constantly supervised.

▶Children shall not play with the appliance.

▶Do make sure the room is dry and well ventilated. The ambient

temperature should be between 5 °C and 35 °C.

▶Do not cover any ventilation openings in the base by a carpet or

similar object.

▶Keep the area around the tumble dryer free of dust and lint.

▶Do make sure that there is only laundry inside the appliance and

no pets or children before you use it.

▶Only touch the mains plug with dry hands and do not touch or

use the appliance if you are barefoot or with wet hands or feet

▶Do not dry unwashed items in the tumble dryer.

▶Do make sure not to load more than nominal load.

▶Remove all items such as lighters and matches from pockets.

▶Fabric softeners, or similar products, should be used as specified

by the fabric softener instructions.

▶Do not use ore store any ﬂammable sprays or ﬂ ammable gas in

close vicinity to the appliance.

▶Do not place heavy objects or sources of heat or damp on top of

the appliance.

▶Hold the plug, not the cable, when unplugging the appliance.

▶Do not touch the rear and the drum during operation, they

are hot.

EN 1-Safety information

WARNING!

Daily use

▶Do not use the appliance to dry following items

▶Items which are not washed.

▶Items which have been contaminated with inﬂammable sub-

stances such as cooking oil, acetone, alcohol, benzine, petrol,

kerosene, spot removers, turpentine, waxes, wax removers

or other chemicals. The fumes can cause a ﬁ re or explosion.

Items that have been soiled with substances such as cooking

oil,acetone, alcohol, petrol,kerosene, spot removers,

turpentine,waxes and wax removers should be washed

▶Items which contain padding or ﬁllings (e.g. pillows, jackets), as

the ﬁlling can get out with the risk of causing ignition.

▶Items such as foam rubber ( latex foam), shower caps, water-

proof textiles, rubber backed articles and clothes or pillows

▶Do not drink the condensed water.

▶Do not use the appliance without the lint ﬁlter or condenser ﬁ lter

in place or with damaged ﬁlter.

▶Notice that the last part of the drying cycle occurs without heat

(cool down cycle) to ensure remaining garments are under a

temperature which does not damage them.

▶Do not leave the appliance unattended during run time for a long

time. If a long absence is needed, the drying cycle have to be

interrupted by switching oﬀ and unplugging the mains.

▶Do not switch oﬀ the appliance until drying cycle is ﬁnished,

Never stop a tumble dryer before the end of the drying cycle

unless all items are quickly removed and spread out so that

▶Switch oﬀ the appliance after each drying programme to save

electricity and for safety.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

in hot water with an extra amount of detergent before

being dried in the tumble dryer.

pillows fitted with foam rubber pads should not be dried in

the tumble dryer.

the heat is dissipated.

1-Safety information

WARNING!

Maintenance / cleaning

▶Clean the lint ﬁlter and the condenser ﬁ lter after each pro-

gramme (see CARE AND CLEANING).

▶Do not use water spray or steam to clean the appliance.

▶Do not use industrial chemicals to clean the appliance.

▶If the supply cord is damaged, it must be replaced by the manufa-

cturer, its service agent or similarly qualified persons in order to

▶Do not try to repair the appliance by yourself.If a repair is

needed, please contact our customer service.

Installation

▶Ensure put the machine in a place which allows opening the door

fully. Do not install the tumble dryer behind a lockable door, a

sliding door or a door with hinges on the opposite side of the

tumble dryer door as this limits the full opening of the door.

▶Install the appliance in a well-ventilated, dry place.

▶Never install the appliance in a damp outdoor, or in an area

which has the risk of water leakage such as under or near a sink

unit. Once a water leakage happened, cut power supply and allow

the machine to dry naturally.

▶Install or use the appliance only in a place where the temperature

is above 5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not expose the appliance to any frost, heat or direct sunlight

or around any heat sources(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

aligns with the power supply. If it does not, contact an electri-

cian.

▶Do not use multi-plug adapters and extension cables.

▶Make sure not to damage the electric cable and the plug. if it is

damaged, have it replaced by an electrician.

▶Useaseparateearthed socket for the powersupply which is easy

access to after installation. The appliance must be earthed.

▶Only for UK: The appliance’s power cable is ﬁ tted with 3-cord

(grounding) plug that ﬁ ts a standard 3-cord (grounded) socket.

Never cut oﬀ or dismount the third pin (grounding). After the ap-

pliance is installed, the plug should be accessible.

avoid a hazard.

EN 2-Installation pictures

12-1

12-2

12-3

two screws

12-7

12-8



12-9

12-10

12-11

12-12

12-13

3-Intended use

Notice

The appliance contains the ﬂ uorinated greenhouse gas R134a (GWP:1430). This

gas is hermetically sealed.

Intended use

This appliance is intended for drying items which have been washed in a water solution and

are marked on the manufacturer‘s care label as being suitable for tumble drying.

It is designed exclusively for domestic use inside the house. It is not intended for commer-

cial or industrial use. Changes or modiﬁ cations to the device are not allowed. Unintended

use may cause hazards and loss of of all warranty and liability claims.

Standards and directives

This product meets the requirements of all applicable EC directives with the correspond-

ing harmonised standards, which provide for CE marking.

Environmentally responsible use

▶Completely spin: Spin the laundry with the maximum spin speed.

▶Maximum load: Use the maximum ﬁ lling amount according to the programme table,

but do not overload the dryer. To take advantage of the maximum load, the laundry

which should be dried “READY to wear“, can be ﬁ rst dried easily with “Ironing“.

When program ends, remove the laundry which should be ironed and dry the

remaining laundry then to end.

▶Loosen up the laundry: Shake out the laundry before putting them into the dryer.

▶Avoid excess drying: An excessive drying should be avoided. Select the right pro-

gramme and the appropriate dry level.

▶Softener unnecessary: Do not use softener when washing, because the laundry will

become ﬂ uﬀ y and soft in the dryer .

▶Cleaning of the lint ﬁ lters: Clean the lint ﬁ lters after each cycle.

▶Ventilation: Make sure the appliance is properly ventilated (see INSTALLATION).

▶Condensed water reuse: The collected condensed water can be used for the steam

iron. Before that, it should be poured through a ﬁ ne sieve or coﬀ ee ﬁ lter paper,

Smallest parts will be retained by the ﬁ lter.

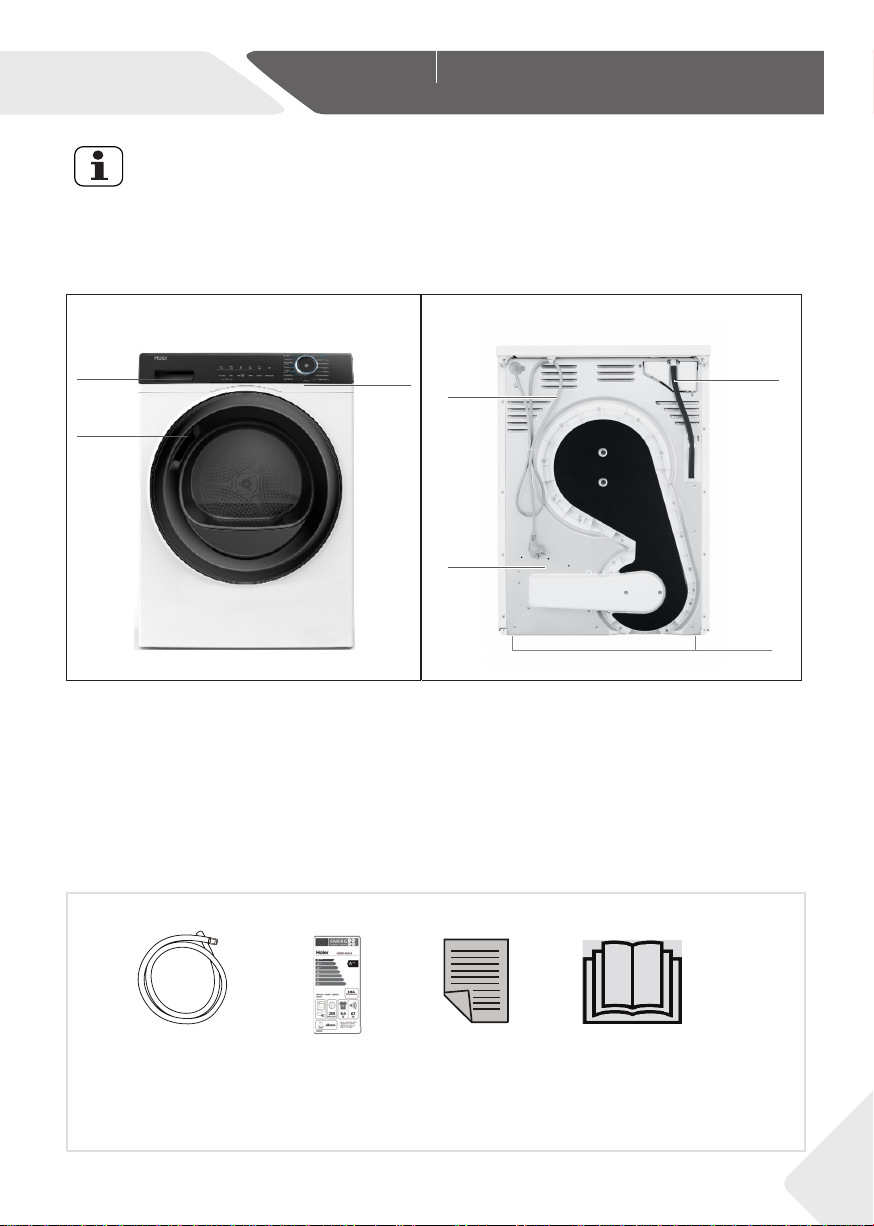

EN 4-Product description

+++

i-REFRESH

11English |

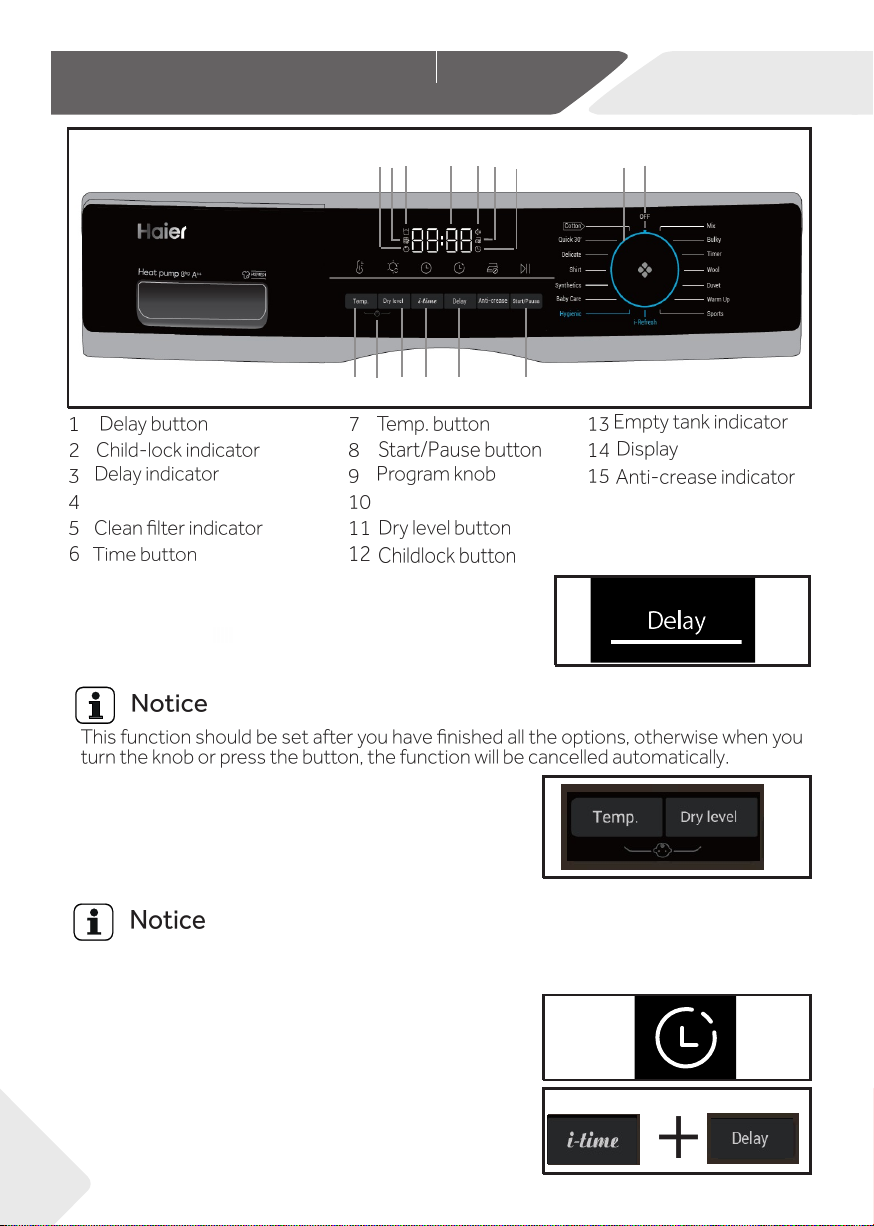

CONTROL PANEL

5Filters must be cleaned regularly.

See Lint Filter Cleaning or Condenser

Filter Cleaning section of the manual.

Clean filter

indicator

2Childlock indicator To activate the Child-lock function after a cycle

has been started, press the Childlock button

for 3 sec. until the indicator icon lights up.

To deactivate press the button for 3 sec. again.

Note: When the cycle ends or the power

supply is interrupted, the function will not be

cancelled automatically.

Note: After each cycle, indicator will flash to

remind cleaning the filters.

i-REFRESH

Delay function for delay start, press the button to

set time (in 1 intervals up to 12 hours).

The appliance shoule be finished in, afterwards

press to start the delayed operation.

1 Delay button

3Timer indicator When choose the timer program, It will lights up.

Signal indicator You can choose signal as you need. To active

the signal function after switching on the dryer,

press and Temp. for about 3 seconds

until the beep sounds.To deactivate press both

buttons for 3 seconds again until the beep sounds.

Note: This function should be set after you

have finished all the options, otherwise when

you turn the knob or press the button, the

function will be delected automatically.

4.1 Picture of appliance

Front (Fig. 4-1): Rear side (Fig. 4-2):

Note:

Due to technical changes and diﬀ erent models, the illustrations in the following chap-

ters may diﬀ er from your model.

1 Water tank

2 Tumble dryer door

3 Control panel

4 Power supply cord

5 Back plate

6 Drainage outlet

7 Adjustable feet

User manual

Warranty card

Drain hose Energy label

4.2 Accessories

Check the accessories and literature in accordance with this list (Fig.4-3):

4-1 4-2

4-3

Cotton Mix Synthetics Quick Dry Timer Delicate

Hygienic DryLevel

Anti-crease Temp. Delay

Remote Wool Sports

DuvetTowel i-Refresh

5-Control pannel

5910

14 15

11 18

Temp.

The buzzer is design to alert users with a sound like

cycle. Press the button(Fig.5-2) to set the desired starting

Buzzer indicator

Delay function allows users to delay the start time of the

time (From 0 up to 12 hours). When activating,the indic-

ator icon (Fig.5-4) will light up.

Child lock is designed to prevent children from ad

the program setting. To activate this function, after a

cycle has been started, press the Dry level and Temp.

button (Fig.5-3) at the same time for 3 seconds until

the indicator icon lights up. To deactivate it, press these 2 buttons for 3 seconds again.

usting

beep. It is deactivated by default. To activate the buzzer

function, Press Delay and i-time buttons at the same

time for 3 seconds or until you hear a beep sound.

seconds again.

Power

5-1

5-2

5-3

5-4

5-5

When choosing the delay function (Fig.5-4),the icon will

5.4 Buzzer indicator

5.3 Delay indicator

5.2 Child lock indicator

5.1 Delay button

To deactivate it, press the same 2 buttons for 3

light up.

When the power supply is interrupted or turn the knob to off position,the function will

not be cancelled automatically.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Haier Séchoir

Haier

Haier HD80-01 WH HA AA Manuel utilisateur

Haier

Haier HLTD600AEW Manuel utilisateur

Haier

Haier HDV70E1 Schéma de câblage

Haier

Haier HDC80E1 Manuel utilisateur

Haier

Haier QFT15 Series Instructions originales

Haier

Haier GDZ5-1 Manuel utilisateur

Haier

Haier GDE560BW Manuel utilisateur

Haier

Haier HDY60M Manuel utilisateur

Haier

Haier HLF11PC Manuel utilisateur

Haier

Haier GDZ607VA Manuel utilisateur

Haier

Haier GDZ5.0-1 Manuel utilisateur

Haier

Haier GDZ22-2 Manuel utilisateur

Haier

Haier HMS6-1 Manuel utilisateur

Haier

Haier HDY-D60 Manuel utilisateur

Haier

Haier HD90-A636-F Manuel utilisateur

Haier

Haier GDG900AW Manuel utilisateur

Haier

Haier HDV40A1 Manuel utilisateur

Haier

Haier HD80-256A Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Haier

Haier HD80-A2939 Manuel utilisateur

Haier

Haier HDHP80AN1 Manuel utilisateur

Haier

Haier HDY-D70-E Manuel utilisateur

Haier

Haier HDY6.1 HA AA Manuel utilisateur

Haier

Haier HDY-D70-E Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
