Electric Dryer

Model No.CGDE480BW

Order No.TL1309S001V1.2

Edition：2014.04.22

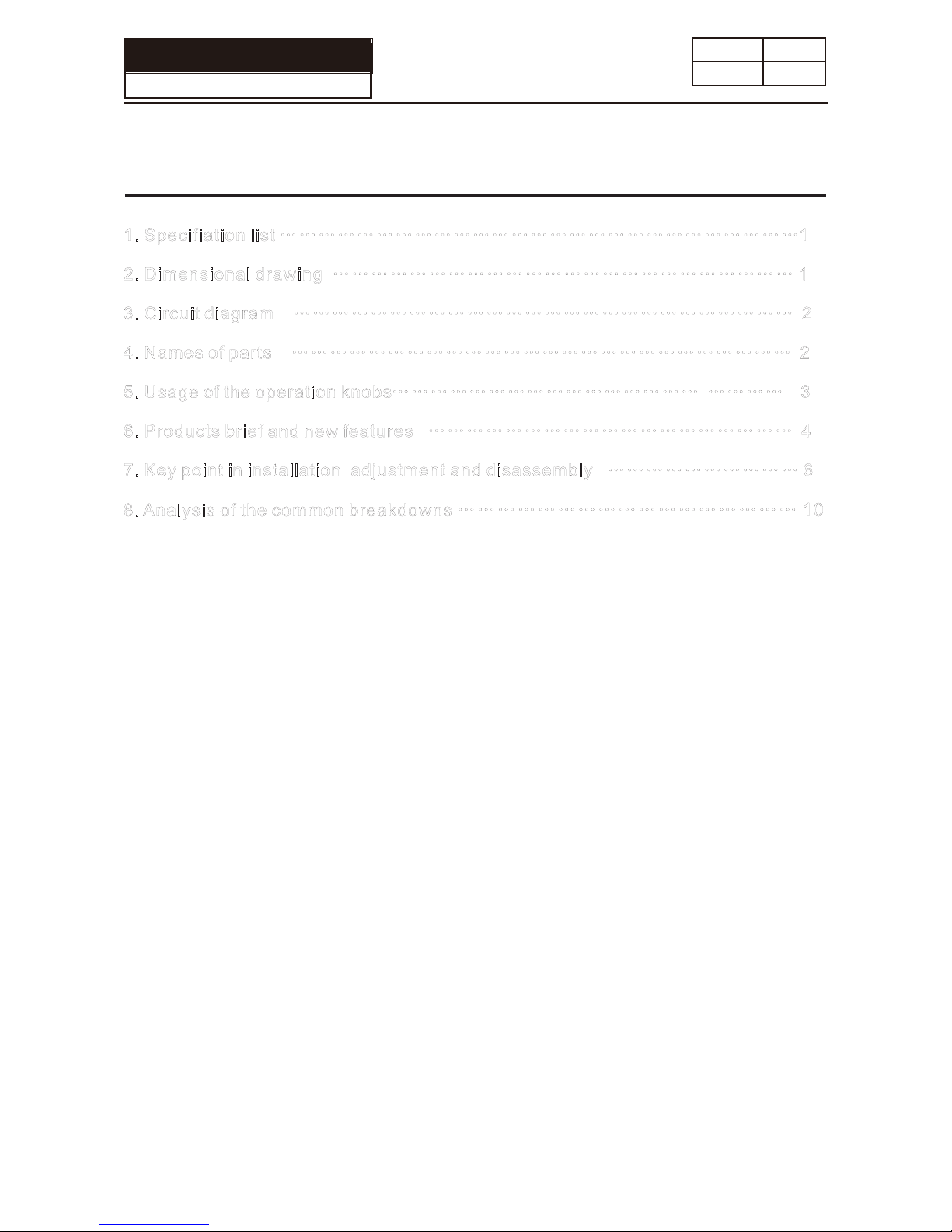

CONTENTS

1tsilnoitaificepS.1

1gniwardlanoisnemiD.2

2margaidtiucriC.3

2strapfosemaN.4

3sbonknoitarepoehtfoegasU.5

4serutaefwendnafeirbstcudorP.6

6ylbmessasiddnatnemtsujdanoitallatsninitniopyeK.7

8. Analysis of the common breakdowns

………………………………………………………………………

………………………………………………………………

……………………………………………………………………

… … … … … … … … … … … … … … … … … … … … … … … … … …

………………………………………… …………

…………………………………………………

…………………………

…………………………………………… 10

Service Manual

Model No. CGDE480BW

Issue

Rev.

Model

About 57kg

L 686mm W 718mm H 1097mm

Programs

CGDE480BW

120V/240V 60Hz

6.5 Cu.ft（Drum Size）

Setting drying program according to the laundries automatically

the time for setting : 10 min, 30 min, 60 min, 90 min

User's manual ,

product registration card

Rated voltage rated frequency

Rated dry capacity

Rated power consumption in drying

Rated input consumption of motor

Manual setting

Automatic

Accessories

Dimension

Net eight(kg)

4800W

379W

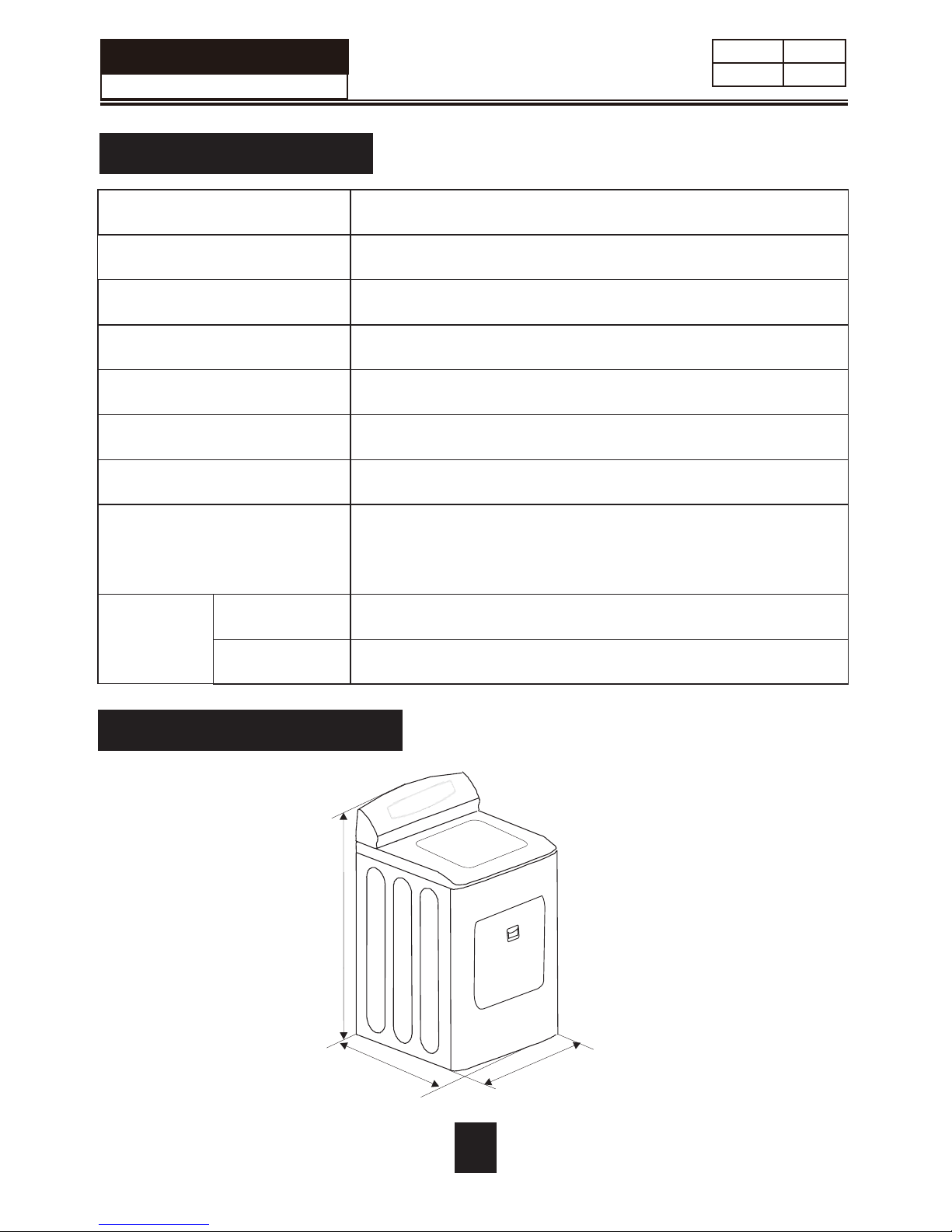

1 Specification List

2 Dimensional Drawing

686

718

7901

Unit mm：

Service Manual

Model No. CGDE480BW

Issue

Rev.

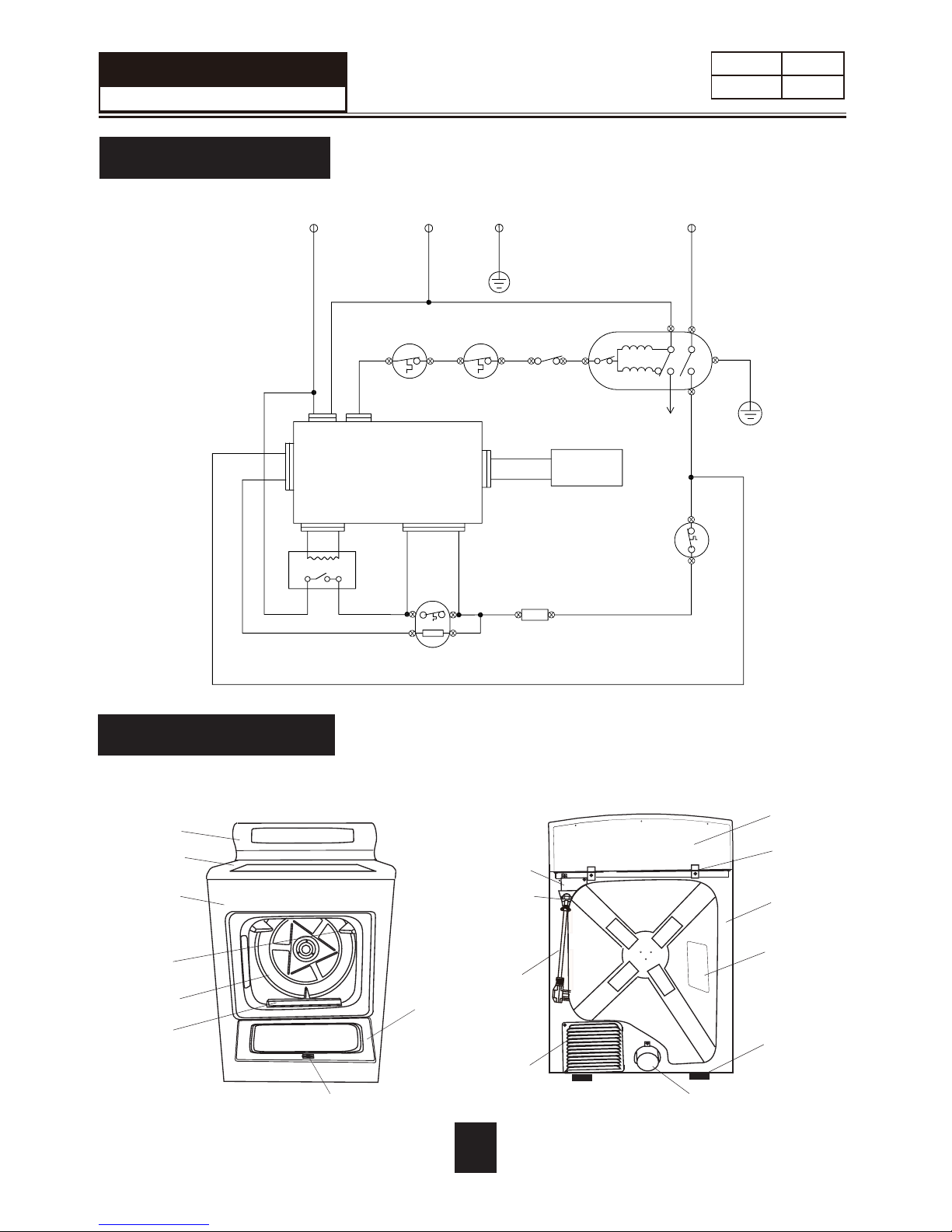

3 Circuit Diagram

circuit diagram

control plate

front plate

front door

control panel

shutter

exhaust duct

back baffle

nameplate

cabinet

adjustable foot

thread-protected board I

thread-protected board II

fasten button

whisk leaf

barrel roll

lint filter

lock body

4 Names of parts

Service Manual

Model No. CGDE480BW

Issue

Rev.

Power line

Computer Program

Controller

Red

White

Gray

Yellow

Black

Motor

Thermal

Blue

Purple

Orange

Blue

Orange

Relay

Brown

Black

Door

Switch

High Limit

Thermostat

Heater

Control

Thermostat

Orange

L1 NL2

Red White

Limiter

Green

Gray Gray Gray

Thermostat

Back-up

White

BELT

SWITCH

Green

Service Manual

Model No. CGDE480BW

Issue

Rev.

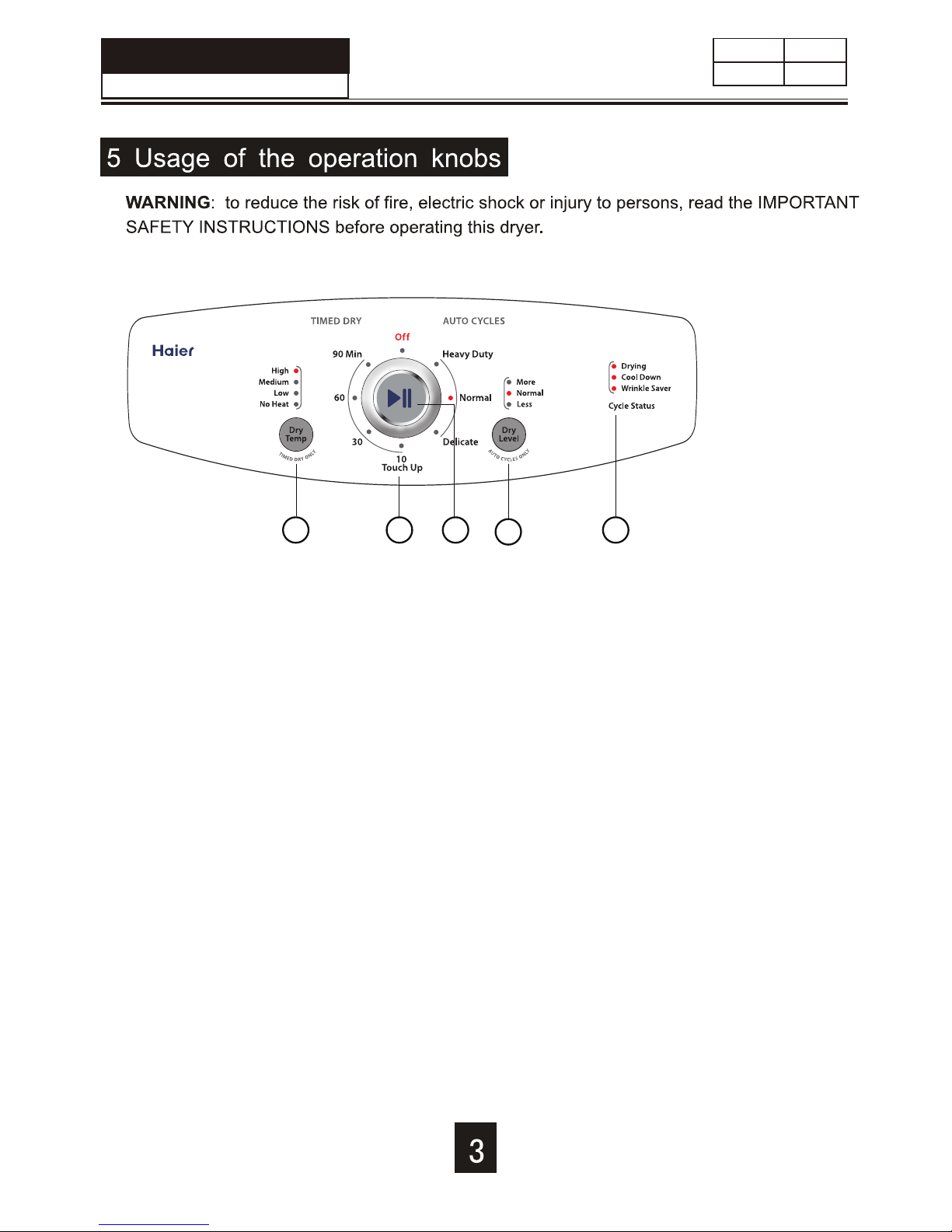

Understanding the control panel

Temp Button: (1)

Dry Level Button: (2)

● Used to set drying level.There are three available drying levels to choose from More,Normal and Less.

Cycle Select Dial:(3)

● Select from 3 Auto-Dry cycles (Heavy Duty , Normal and Delicates) or 4 Timed Dry Cycles

(10min,30min,60min,90min) or “Off” to shutdown the machine.

1 3 4 5

Start/Pause Button (4)

● Push to shart after selecting the dry cycle and seting the temperature . Push once to pause . Push again to start

after pushing

Cycle Progress:(5)

● This indicates the process the cycle is currently in . At the end of cycyle the dryer will automatically go in the wrinkle

saves mode . Here the dryer tub will tumble periodically for 1 hour after the dry cycle is completed . To stop simply

open the door and remove the clothes.

Note : Clean the lint filter before every use .

● Use to set drying temperatures.There are four available drying temperatures to choose from:High,Medium,Low

and No Heat.

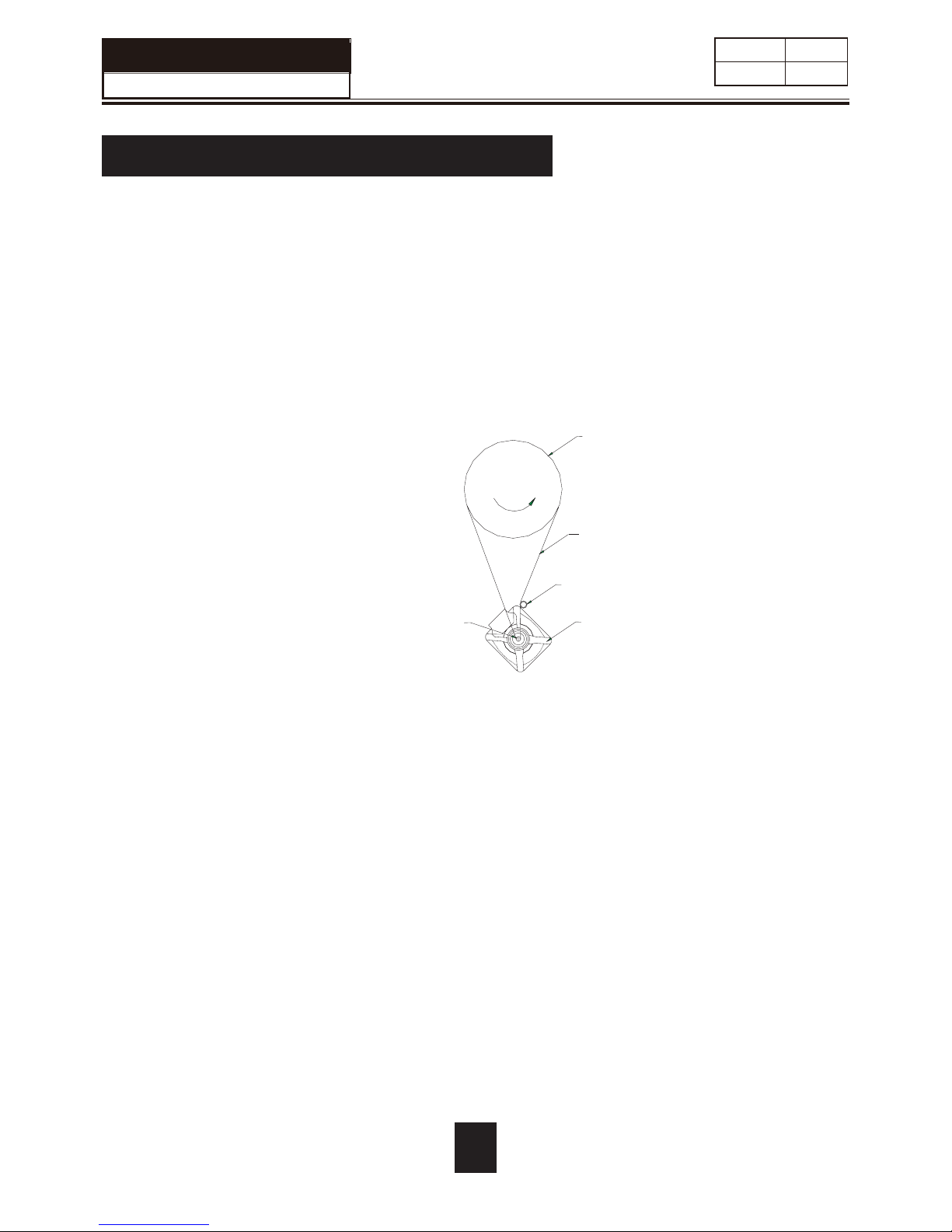

3) Power transmission system

During drying, Motor 1 transmits the driving power to Tumbler 5 through Belt 2 and

Multi-wedge belt 3. Then Tensioning wheel 4 tensions the belt under the action of

tensioning spring. At the same time, it also increases the transmission wrap angle of the

pulley, and improves the transmission efficiency of the belt. The motor rotates to one

single direction during drying. The tumbler will also rotate to one single direction. The

motor is centrifugal type, and has acquired the UL certification, with strong driving power

and long operation life.

4) Air intake and exhaust system

The appliance collects air through shutter, and heats the air with electric heating thread. The air

exhaust system composed of volute impellers generates negative atmosphere pressure under the suction

force, and thus attracts the hot air into the tumbler to dry the laundries. The air intake and exhaust system

has high degree of tightness, and improves the thermal efficiency.

5) Heating system

The electric heating thread installed on the heating plate at the rear of the cabinet, is the heating

source of the appliance. The exchanging of cold and hot air is realized by it. The heating power of the

electric heating thread is about 4700W. It can raise the air temperature rapidly, and offer hot air continuously.

Rotation direction

2) Temperature sensor

The temperature sensor of this appliance has also acquired the UL certification. It acts as nerve

center during usage of the appliance. It is used to detect the dry degree or temperature, and can effectively

prevent the defects like the crimple of laundries owing to overheating.

1) Program control

As the control center of the appliance, the program controller directs the appliance to meet the

demand of the user like the brain of human body. This part has acquired the UL certification, with long

operation life and reliable performance.

Product briefs

6 Product Brief and New Features

Service Manual

Model No. CGDE480BW

Issue

Rev.

Dry sensor : (feature only active in auto dry cycle)

En d of cycl e signal:

Lint filter:

Leveling legs:

Your dryer also has the following features for your convenience:

New features

Thi

Your dryer is equipped with an audible signal that alert you every time when the dryer load is

finished drying.

All dryers come with a lint filter that needs to be cleaned before or after every use.

s senses temperature in the drum.The dryer wil l automatically shut itself off.

Your dryer has four leveling legs which are located in the front and rear corners of your

dryer. After properly placing your dryer or by turning them counter clockwise to lower your drye r.

Leveling legs can be adjusted by turning them clockwise to raise your dryer or by turning

them counte r clockwise to lower your dryer.

6) Lint filter

It is a kind of wearing part, made of filter screen frame and screen cloth by one-time plastic injection.

When taking off the lint filter, please do not squeeze the screen cloth by force to avoid damaging the

cloth. At the same time, please clean it in time after each usage.

Service Manual

Model No. CGDE480BW

Issue

Rev.

Power supply:

Power supply cord kit:

3 wire , 120 volt , 30 amp, 60Hz, 1 phase

(Not supplied when sold in the United States) the dryer MUST employ a 3-conductor power supply cord NEMA

10-30 type SRDT rated at 120 Volt AC minimum, 30 Amp, with 3 open end spade lug connectors with upturned

ends or closed loop connectors and marked for use with clothes dryer.

Use only 4 inch (10.2.cm) diameter (minimum) rigid or flexible

metal duct and approved vent hood which has a swing-out damper

hat open when the dryer is in operation . When the dryer stops, the

dampers automatically close to prevent drafts and the entrance of

insects and rodents . To avoid restricting the outlet, maintain a

minium of 12 inches ( 30.5 cm) clearance between the vent hood

and the ground or any other obstruction . The vent flap should be able to remove freely.

Select a suitable location for the dryer on a hard even surface away from direct sunlight or heat

source e.g. Radiators, baseboard heaters, cooking appliances etc . Any floor unevenness

should be corrected with leveling legs located on the bottom of the dryer.

1) remove all packaging material . This includes the foam base and all adhensive tape holding the dryer

acessories inside and outside.

2) inspect and remove any remains of packing, tape or printed material before using the dryer.

7 Key points in installation, adjustment and disassembly

Tools and materials required

Electrical requirements

Unpacking your dryer

Materials

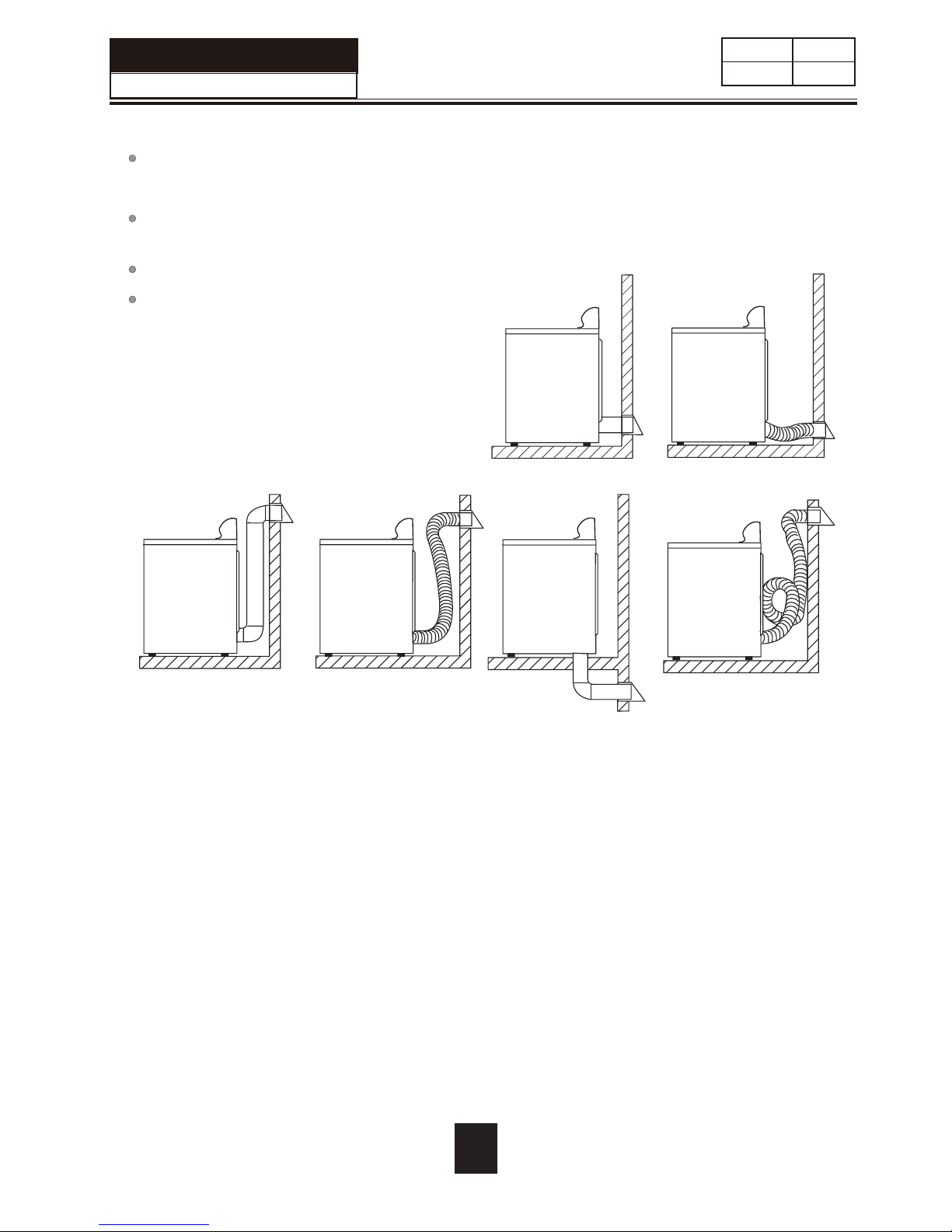

Exhaust system connections

Measuring tape ( 12ft.min.)

Duct tape

Rigid or flexible metal 4 inch ( 10.2 cm) duct

Vent hood

Phillips head and flathead screwdrivers

Channel-lock adjustable pliers

1 2 inch open end wrench

Carpenter s level

CORRECT

INSTALL MALE FITTINGS IN CORRECT DIRECTION

INCORRECT

MAXIMUM LENGTH

of 4''(10.2cm)Dia.Rigid Metal Duct

VENT HOOD TYPE

(Preferred)

Louvered

Number

turns

60ft. (18.28 m)

48ft.(14.63 m)

52ft. (15.84 m)

40ft.(12.19 m)

44ft. (13.41 m)

32ft.(9.75 m)

32ft. (9.75 m)

24ft.(7.31 m)

28ft. (8.53 m)

21/2''

4''

(6.35 cm)

(10.2 cm)

16ft.(4.87 m)

MAXIMUM LENGTH

of 4''(10.2cm)Dia.Flexible Metal Duct

VENT HOOD TYPE

Louvered

(Preferred)

Number

turns

30ft. (9.14 m)

18ft.(5.49 m)

22ft. (6.71 m)

14ft.(4.27 m)

14ft. (4.27 m)

10ft.(3.05 m)

21/2''

4''

(6.35 cm)

(10.2 cm)

Service Manual

Model No. CGDE480BW

Issue

Rev.

After installation is completed, the following method must be used to determine if the exhaust system is acceptable:

Although vertical orientation of the exhaust system is acceptable, certain extenuating circumstances could affect the

performance of the dryer:

The exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. The more

the dryer is used, the more often you should check the exhaust system and vent hood for proper operation.

1. Connect an inclined or digital manometer between the dryer and the point the exhaust connects to the dryer.

2. Set the dryer timer and temperature to air fluff (cool down) and start the dryer.

3. Read the measurement on the manometer.

4.The system back pressure MUST NOT be higher than 0.75 inches of water column. If the system back pressure is

less than 0.75 inches of water column, the system is acceptable. If the manometer reading is higher than 0.75 inches

of water column, the system is too restrictive and the installation is unacceptable.

1. Only the rigid metal duct work should be used.

2. Venting vertical through a roof may expose the exhaust system to down drafts causing an increase in vent

restriction.

3. Running the exhaust system through an uninsulated area may cause condensation and faster accumulation of lint.

4. Compression or crimping of the exhaust system will cause an increase in vent restriction.

Location of your dryer

Rough-in dimensions

Do not install your dryer:

Installation in recess or closet:

In an area exposed to dripping water or outside water conditions.

The dryer installation in a bedroom, bathroom, recess or closet, must be exhausted outdoors.

In an area where it will come in contact with curtains drapes, or anything that will obstruct of combustion

and ventilation air.

Your dryer needs the space around it for proper ventilation.

On carpet, floor must be solid with a maximum slope of inch (2.54 cm).

A minimum of 120 square inches(774.2 square cm) of opening, equally divided at the top and bottom of

the door, is required. Air openings are required to be unobstructed when a door is installed. The full length of

the door is acceptable.

REAR VIEW SIDE VIEW

DIMENSIONS

DOOR OPEN 90

(71.8 cm)

1/4''

50 3/5''

(128.5 cm)

Service Manual

Model No. CGDE480BW

Issue

Rev.

Installation in mobile home

Dryer must be exhausted outside (outdoors, not beneath the mobile home) using metal ducting that will not

support combustion. Metal ducting must be 4 inches (10.16 cm) in diameter with no obstructions. Rigid

metal duct is preferred.

If dryer is exhausted through the floor and area beneath the mobile home is enclosed, the exhaust system

must terminate outside the enclosure with the termination securely fastened to the mobile home structure.

Refer to previous pages for other important venting requirements.

Installation must conform to current Manufactured Home

Construction Safety Standard(which is a Federal

Regulation Title 24 CFR-Part 32-80) or when such

standard is not applicable, with American National

Standard for Mobile Homes.

＆

Warning: the dryer is designed under

ANSI z 21.5.1 for home use only.

Warning: the following are specific requirements for proper and safe electrical installation of

your dryer. Failure to following these instructions in this manual for proper grounding.

DO DON'T

Correct Incorrect

DO DON'T

Correct Incorrect

Correct

DO DON'T

Incorrect

Requirements and instructions

Electrical connections

1. This appliance be properly grounded. Electrical shock can result if the dryer is not properly grounded.

Follow the instructions in this manual for proper grounding.

MUST

3. A U.L. approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be

pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.

2. Do not use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts

of electrical current this dryer utilizes and can melt, creating electrical shock and/or fire hazard. Locate the

dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in

the cord. Refer to the pre-installation requirements in this manual for the proper power cord to be purchased.

4. Do not use an aluminum wire receptacle with a copper wired power cord and plug (or vice versa). A chemical

reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and

receptacle is a copper wired power cord with a copper wired receptacle.

Service Manual

Model No. CGDE480BW

Issue

Rev.

Table des matières

Autres manuels Haier Séchoir

Haier

Haier HDY6-1 Manuel utilisateur

Haier

Haier GDZ22-2 Manuel utilisateur

Haier

Haier GDZ5-1C Manuel utilisateur

Haier

Haier RDE350AW - 6.5 Cu. Ft. Electric Dryer Manuel utilisateur

Haier

Haier HDHP80E1 Manuel utilisateur

Haier

Haier HLTD600AEW Manuel utilisateur

Haier

Haier HLTD500ACW Manuel utilisateur

Haier

Haier HDM3.5-1 Manuel utilisateur

Haier

Haier TCD60E Manuel utilisateur

Haier

Haier HD80-01 WH HA AA Manuel utilisateur

Haier

Haier HD90-A3Q979SU1 Manuel utilisateur

Haier

Haier HDY60 Manuel utilisateur

Haier

Haier HDY6-1 Manuel utilisateur

Haier

Haier Ginesis HLF103Q Manuel utilisateur

Haier

Haier HD80-79 Manuel utilisateur

Haier

Haier HD80-26A Manuel utilisateur

Haier

Haier ProSoft Manuel utilisateur

Haier

Haier HD80-B829 Manuel utilisateur

Haier

Haier HDY60 Manuel utilisateur

Haier

Haier HDY5-1 Manuel utilisateur

Haier

Haier HLP141E Manuel utilisateur

Haier

Haier GDZ3.5-1-HK Manuel utilisateur

Haier

Haier HD90-A636 Manuel utilisateur

Haier

Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Electrolux

Electrolux EW2H328R2 Manuel utilisateur

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

Electrolux

Electrolux TP5080TW Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur
