Parts Manual

Dryer

Model:

HDY-C70 WH HA AA

Product Code:

61418-A

61418-A - JULY 2011

Fisher & Paykel Appliances Ltd

78 Springs Road, East Tamaki

Manukau 2013

PO Box 58-732, Botany

Manukau 2163

New Zealand

Telephone: 09 273 0600

Facsimile: 09 273 0656

PRODUCT

Brand Haier

Voltage 220-240V 50Hz

Model HDY-C70 WH HA AA

Product Code 61418-A

61418-A

GUIDE TO USING THIS MANUAL

The model covered by this manual is listed on the front cover.

The information detailed in this manual is subject to change without notice. The latest version is indicated by

the reprint date and replaces any earlier editions.

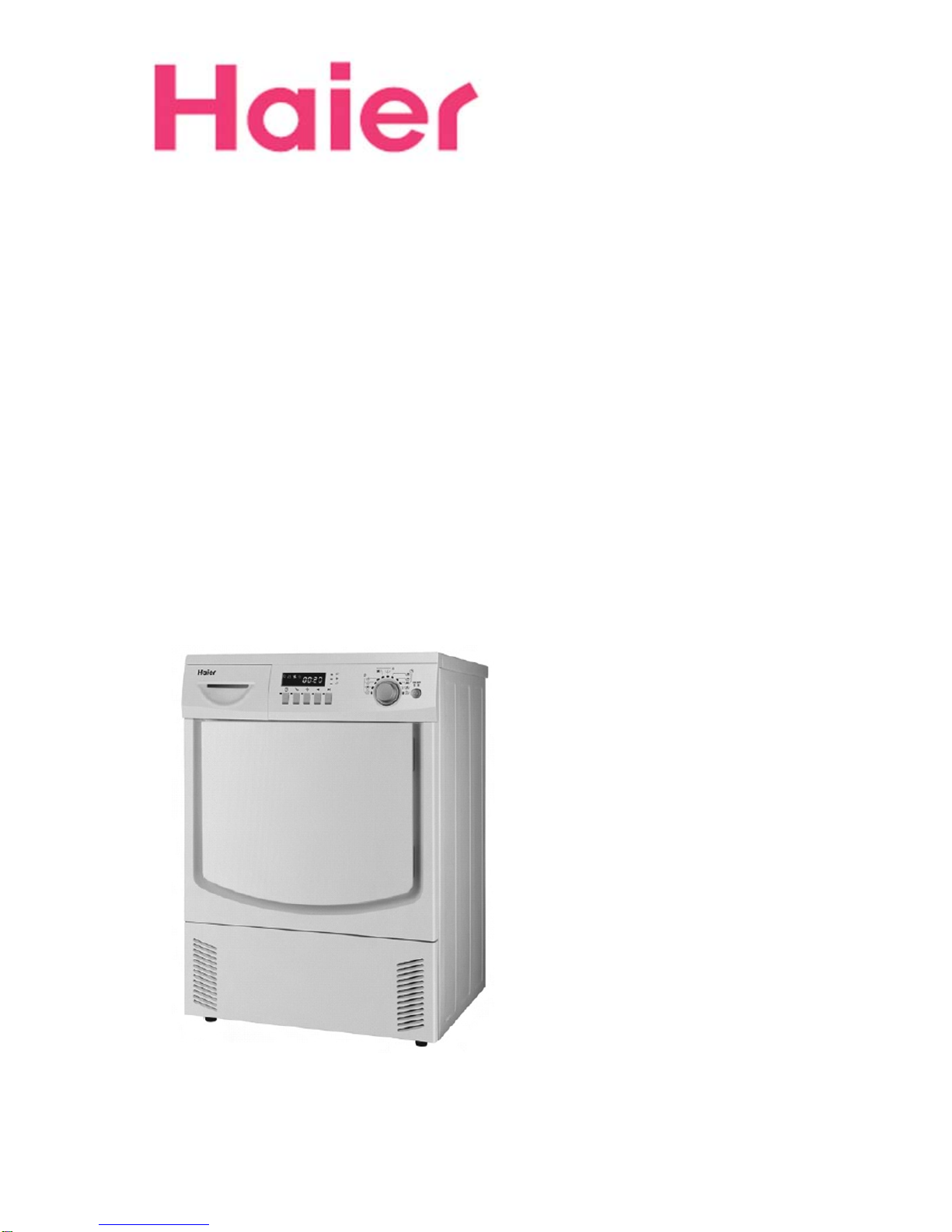

The front cover picture shows the type of product and may not necessarily be an exact image of the model

covered by the manual.

Kit Parts

Kit components are shown in italics. Where a part number is shown against the descriptions for these kit

components, they are also available as separate items. In addition, some parts may be supplied with these

kits that are not available as separate items, and are therefore either not listed, or a part number is not

shown against the part description in this manual.

Parts List Key

italics Kit components or parts included are shown in italics. Refer to above notes: Kit Parts.

NI As a part reference, indicates the part is not illustrated on the diagram.

NOT USED As a part number, indicates the diagram part reference is not used in this manual.

CONTENTS

CABINET ASSEMBLY ......................................................................................................................6

REAR CABINET ASSEMBLY ...........................................................................................................8

DOOR ASSEMBLY.........................................................................................................................10

DRUM ASSEMBLY.........................................................................................................................12

MOTOR & CONDENSER ASSEMBLY...........................................................................................14

CONTROL & ELECTRONICS ASSEMBLY ....................................................................................16

61418-A

CABINET ASSEMBLY

61418-A

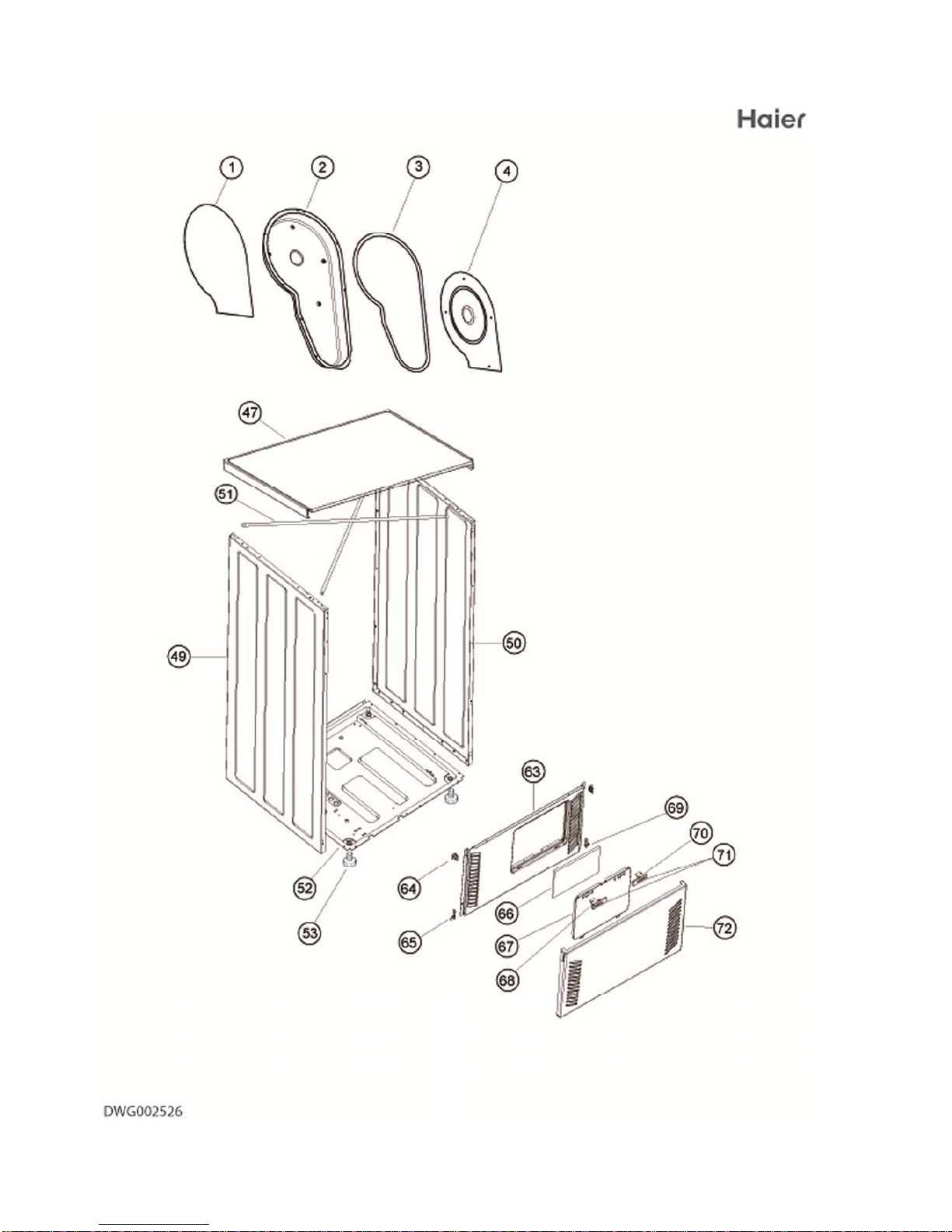

CABINET ASSEMBLY

REF PART DESCRIPTION

1 H0020300245 FELT PAD REAR COVER HEATER

2 H00213500008400 COVER HEATER ASSY

3 H00214500005500 SEAL COVER HEATER ASSY

4 H00213500008500 REFLECTOR

47 H0020806056 TOP PANEL HDY-C70

49 H00213500007600 PANEL SIDE LH

50 H00213500007700 PANEL SIDE RH

51 H00215600001300 BRACKET STRENGTHENER

52 H00213500007800 BOTTOM PANEL

53 H00214900014600 FOOT DRYER

63 H0020102811 PANEL FRONT VENTILATION

64 H0020202718 COVER CONDENSER LOCK

65 H0020202698 LATCH LH CONDENSER LOCK

66 H0020300502 RUBBER PAD HDY-70C

67 H0020102799 PANEL CONDENSER HOUSING

68 H0020202770 LH SLIDING BLOCK COVER BOARD

69 H0020202846 LATCH RH CONDENSER LOCK

70 H0020202699 RH SLIDING BLOCK COVER BOARD

71 H0020202719 FIXING HOLDER COVER BOARD

72 H0020202677 COVER KICK PLATE

61418-A

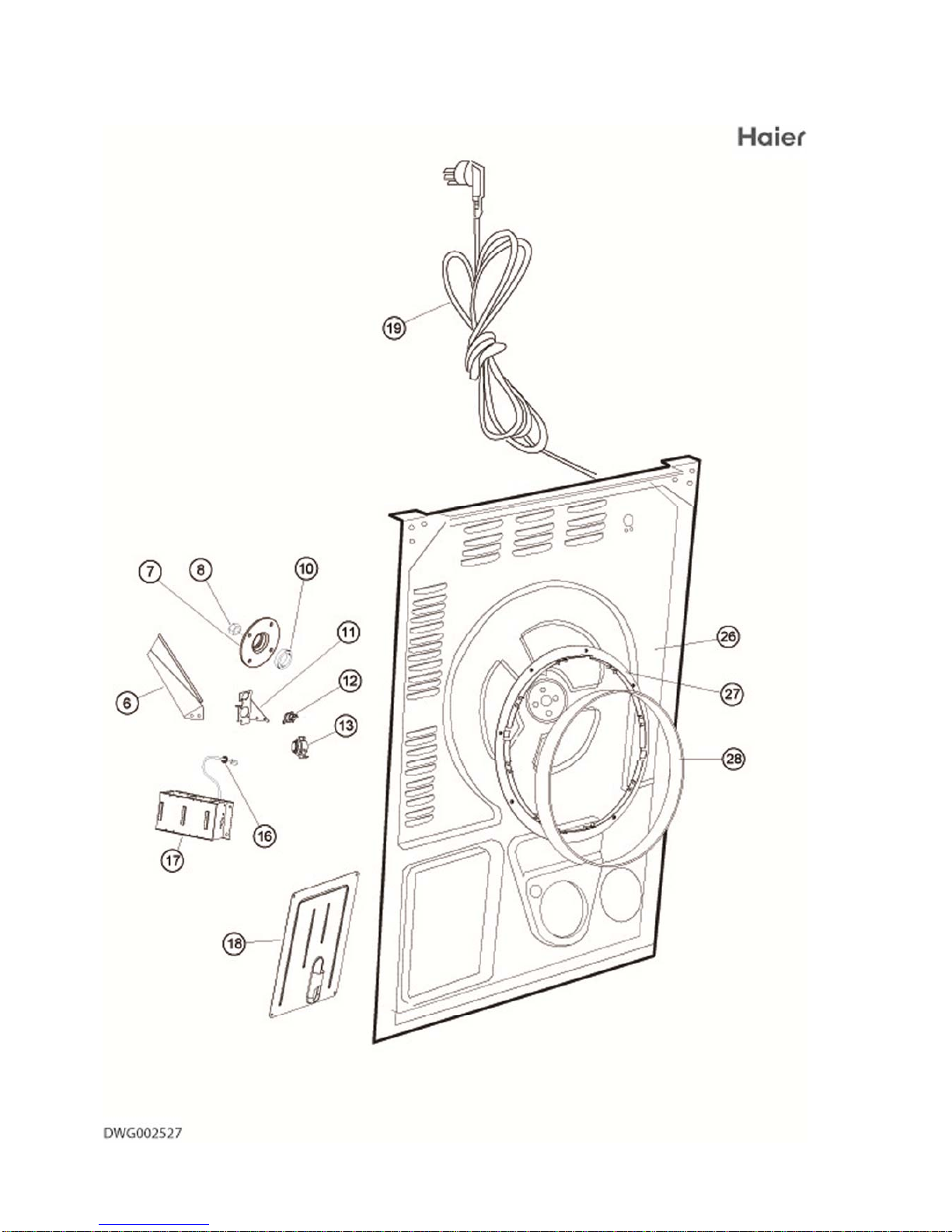

REAR CABINET ASSEMBLY

61418-A

REAR CABINET ASSEMBLY

REF PART DESCRIPTION

6 H0020103018 HEAT INSULATION SHEET

7 H00213500013400 BEARING SUPPORT

8 H00299240024000A NUT BEARING SUPPORT

10 H0020100313A BEARING HIGH TEMP

11 H00213500013300 HOLDER THERMOSTAT HDY DRYER

12 H0024000651 THERMOSTAT MANUAL RESET

13 H00216400000500B THERMOSTAT

16 H0020300156 GROMMET HEATER DHY-C70

17 H0024000214A ELEMENT HEATER

18 H0020102821 COVER REAR

19 H0020400174 MAINS CABLE

26 H0020102847B PANEL REAR

27 H00213500013700 SEALING FLANGE BRACKET

28 H0020300501 FELT

61418-A

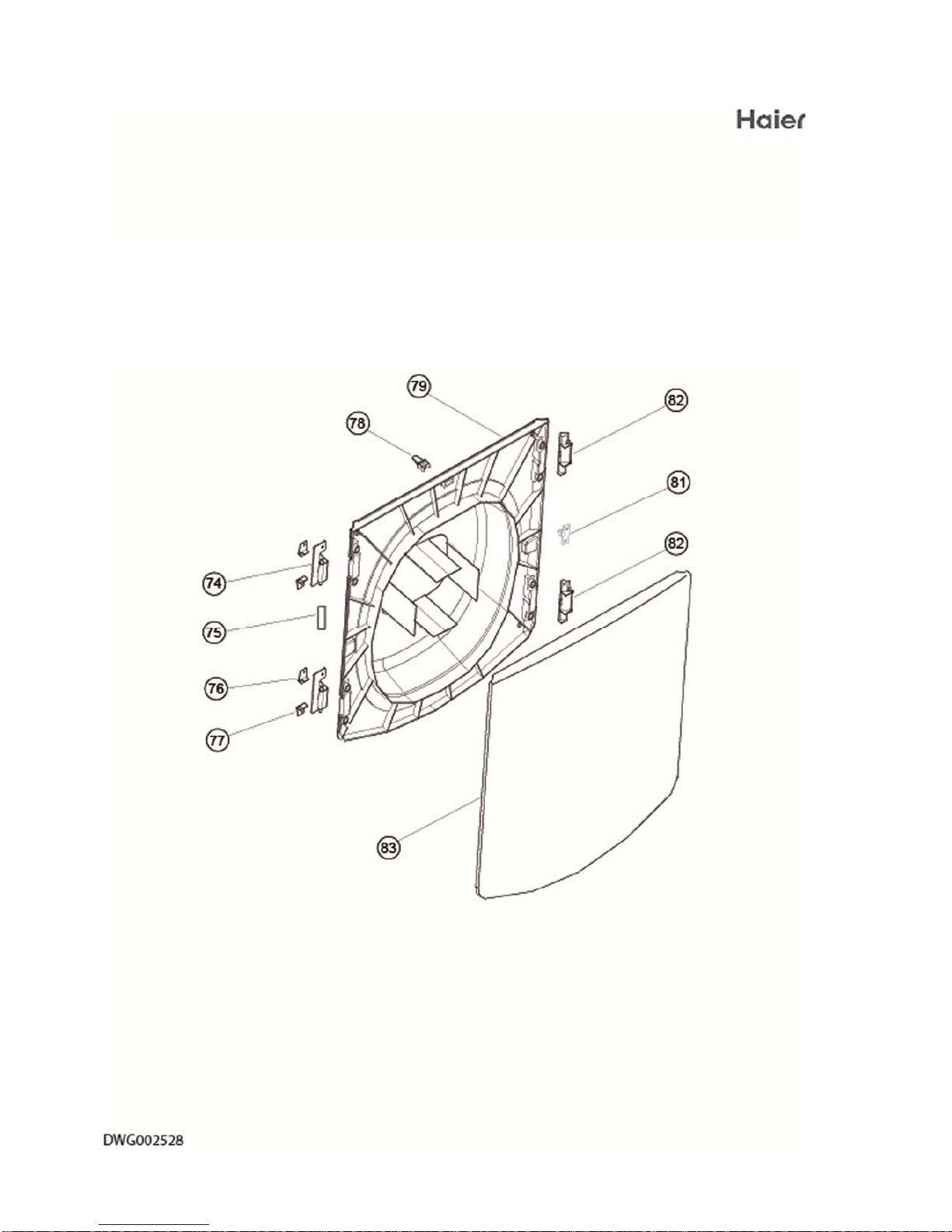

DOOR ASSEMBLY
