Hach FH950 Manuel rapide

DOC026.98.80210

FH950

09/2021, Edition 7

Basic User Manual

Basis-Benutzerhandbuch

Manuale di base per l'utente

Manuel d'utilisation de base

Manual básico del usuario

Basishandleiding voor gebruikers

Grundläggande bruksanvisning

Базовое руководство пользователя

Temel Kullanım Kılavuzu

Osnovni uporabniški priročnik

Osnovni korisnički priručnik

Table of Contents

English..............................................................................................................................3

Deutsch.......................................................................................................................... 23

Italiano............................................................................................................................ 46

Français......................................................................................................................... 68

Español.......................................................................................................................... 91

Nederlands................................................................................................................. 114

Svenska....................................................................................................................... 137

Русский........................................................................................................................157

Türkçe...........................................................................................................................180

Slovenski..................................................................................................................... 200

Hrvatski........................................................................................................................ 220

Table of Contents

1 Expanded manual version on page 3

2 Specifications on page 3

3 General information on page 5

4 Installation on page 10

5 User interface and navigation on page 14

6 Startup and self-test on page 19

7 Maintenance on page 20

8 Troubleshooting on page 21

Section 1 Expanded manual version

For additional information, refer to the expanded version of this manual, which is available on the

manufacturer's website.

Section 2 Specifications

Specifications are subject to change without notice.

2.1 Sensor specifications

Specification Details

Velocity measurement

Method Electromagnetic

Range 0 to 6.09 m/s (0 to 20 ft/s)

Minimum water depth 3.18 cm (1.25 in.)

Accuracy ±2% of reading ±0.015 m/s (±0.05 ft/s) 0 to 3.04 m/s (0 to 10 ft/s); ± 4% of

reading from 3.04 to 4.87 m/s (10 to 16 ft/s)

Resolution 0 ≤ value < 10: 3 decimal places; 10 ≤ value < 100: 2 decimal places;

100 ≤ value < 1000: 1 decimal place; value ≥ 1000: 0 decimal places

Zero stability ±0.015 m/s (±0.05 ft/s)

Material ABS, glass filled

Enclosure rating IP68

Dimensions (L x W x H) 11.9 x 4.3 x 6.3 cm (4.7 x 1.7 x 2.5 in.)

Cable material Polyurethane jacketed

Cable lengths 2, 6.1, 12.2 and 30.5 m (6.5, 20, 40 and 100 ft)

Depth measurement

Method Diaphragm type: absolute pressure with single point calibration

Accuracy (static) The larger of ± 2% of reading or ± 0.015 m (± 0.504 inches). Steady state

temperature and static non-flowing water.

Range 3.05 m (0-10 ft)

Resolution 0 ≤ value < 10: 3 decimal places; 10 ≤ value < 100: 2 decimal places;

100 ≤ value < 1000: 1 decimal place; value ≥ 1000: 0 decimal places

English 3

2.2 Portable meter specifications

Specification Details

Pollution degree 2

Protection class II

Charging temperature 0 to 40 ºC (32 to 104 ºF)

Operating temperature –20 to 55 ºC (-4 to 131 ºF)

Storage temperature –20 to 60 ºC (-4 to 140 ºF )

Enclosure rating IP67

Battery life gauge Five-segment bar graph

Battery type Rechargeable lithium ion, 3.6 V, 5.0 Ah, 18 Wh

Battery life 18 hours heavy typical day use1; 20 ºC (68 ºF)

Battery charger External power adapter, energy efficiency VI, 100–240 VAC, 50–60 Hz,

0.5 A input; 12 VDC, 1.25 A output

Dimensions (L x W x H) 21.8 x 9.3 x 5.3 cm (8.6 x 3.7 x 2.1 in.)

USB connector Type Mini-B, 5-pin, rated to IP67 when capped

Material Polycarbonate with a thermoplastic elastomer (TPE) overmold

2.3 User interface specifications

Specification Details

Graphics display Color, LCD 3.5" QVGA transflective (readable in direct sunlight)

Measurement resolution 0 ≤ value < 10: 3 decimal places; 10 ≤ value < 100: 2 decimal places;

100 ≤ value < 1000: 1 decimal place; value ≥ 1000: 0 decimal places

Keypad Alpha-numeric

Operating modes Real time, profiling

Profile types Stream, conduit

Conduit shapes Circular, rectangular, trapezoidal, 2/3 egg, inverted 2/3 egg

Stream entries Fixed, non-fixed stations

Noise rejection User-selectable, 50 Hz or 60 Hz

Units of measure Velocity: ft/s, m/s, cm/s, mm/s

Flow: ft3/sec, million gal/day, gal/day, gal/min, m3/s, m3/min, m3/hour,

m3/day, liters/s, liters/min

Depth: in., ft, m, cm, mm

Stream flow calculation Mean-section or mid-section method

Diagnostics Self test, keypad, display, event log

1Defined as 30 minutes of set up, six 1-hour periods of continuous use with an active sensor and

the display at maximum brightness and 30 minutes of sleep mode between use periods, data

download and power off.

4 English

Specification Details

Conduit profiling methods 0.9 x Vmax, 0.2/0.4/0.8, velocity and level integrator, 2D

Stream profiling methods 1, 2, 3, 4, 5 and 6 point (velocity method - USGS and ISO), 2 point

KREPS method, 1 point surface method, 1 and 2 point ice method

File types Real-time, profiling, event log

Languages English, French, Spanish, German, Italian, Dutch, Danish, Swedish,

Chinese, Polish, Japanese, Korean, Portuguese, Slovak, Russian,

Hungarian, Bulgarian, Romanian, Czech, Turkish, Finnish, Greek

2.4 General specifications

Specification Details

Maximum number of real-time files 50 each with up to 75 readings captured by the user.

Firmware The sensor and portable meter are field upgradeable via USB

Section 3 General information

In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential

damages resulting from any defect or omission in this manual. The manufacturer reserves the right to

make changes in this manual and the products it describes at any time, without notice or obligation.

Revised editions are found on the manufacturer’s website.

3.1 Safety information

The manufacturer is not responsible for any damages due to misapplication or misuse of this product

including, without limitation, direct, incidental and consequential damages, and disclaims such

damages to the full extent permitted under applicable law. The user is soley responsible to identify

critical application risks and install appropriate mechanisms to protect processes during a possible

equipment malfunction.

Please read this entire manual before unpacking, setting up or operating this equipment. Pay

attention to all danger and caution statements. Failure to do so could result in serious injury to the

operator or damage to the equipment.

Make sure that the protection provided by this equipment is not impaired. Do not use or install this

equipment in any manner other than that specified in this manual.

3.1.1 Use of hazard information

D A N G E R

Indicates a potentially or imminently hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING

Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death

or serious injury.

CAUTION

Indicates a potentially hazardous situation that may result in minor or moderate injury.

N O T I C E

Indicates a situation which, if not avoided, may cause damage to the instrument. Information that

requires special emphasis.

English 5

3.1.2 Precautionary labels

Read all labels and tags attached to the instrument. Personal injury or damage to the instrument

could occur if not observed. A symbol on the instrument is referenced in the manual with a

precautionary statement.

This is the safety alert symbol. Obey all safety messages that follow this symbol to avoid

potential injury. If on the instrument, refer to the instruction manual for operation or safety

information.

This symbol indicates the presence of devices sensitive to Electro-static Discharge (ESD)

and indicates that care must be taken to prevent damage with the equipment.

Electrical equipment marked with this symbol may not be disposed of in European

domestic or public disposal systems. Return old or end-of-life equipment to the

manufacturer for disposal at no charge to the user.

3.1.3 Certification

CAUTION

This equipment is not intended for use in residential environments and may not provide adequate

protection to radio reception in such environments.

Canadian Radio Interference-Causing Equipment Regulation, ICES-003, Class A:

Supporting test records reside with the manufacturer.

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de classe A répond à toutes les exigences de la réglementation canadienne

sur les équipements provoquant des interférences.

FCC Part 15, Class "A" Limits

Supporting test records reside with the manufacturer. The device complies with Part 15 of the FCC

Rules. Operation is subject to the following conditions:

1. The equipment may not cause harmful interference.

2. The equipment must accept any interference received, including interference that may cause

undesired operation.

Changes or modifications to this equipment not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment. This equipment has been tested

and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case the user will be required to

correct the interference at their expense. The following techniques can be used to reduce

interference problems:

1. Disconnect the equipment from its power source to verify that it is or is not the source of the

interference.

2. If the equipment is connected to the same outlet as the device experiencing interference, connect

the equipment to a different outlet.

3. Move the equipment away from the device receiving the interference.

4. Reposition the receiving antenna for the device receiving the interference.

5. Try combinations of the above.

6 English

3.2 Product overview

The portable velocity system is used in the field, laboratory and municipalities. Turbulent, noisy and

low flows can be measured with this system.

When the sensor is placed in flowing water, a magnetic field around the sensor creates a voltage

proportional to the flow velocity. This voltage amplitude, which represents the rate of water flow

around the sensor, is detected by electrodes in the sensor and processed by the sensor

microprocessor. The processed signal is digitally transmitted through the sensor cable to the portable

meter and the information is shown on the meter display. The system includes a portable meter,

sensor with cable and accessories.

The meter and sensor get velocity information in conduits and streams. These measurements are

important for calibration in municipal wastewater industries, as well as for environmental-impact

evaluations.

Two types of sensor are available: velocity-only and velocity plus depth. This manual covers both

types of sensors. If information applies to a specified type of sensor, this fact is noted in the text.

3.2.1 System overview

An overview of an assembled system is shown in Figure 1. Refer to the documentation supplied with

the individual components or accessories for more information.

Figure 1 Assembled components

1 Portable meter 5 Adjustable mount for portable meter

2 Sensor height lock/release device 6 Sensor assembly

3 Top setting wading rod (accessory) 7 Flow direction

4 Sensor cable

English 7

3.2.2 Sensor overview

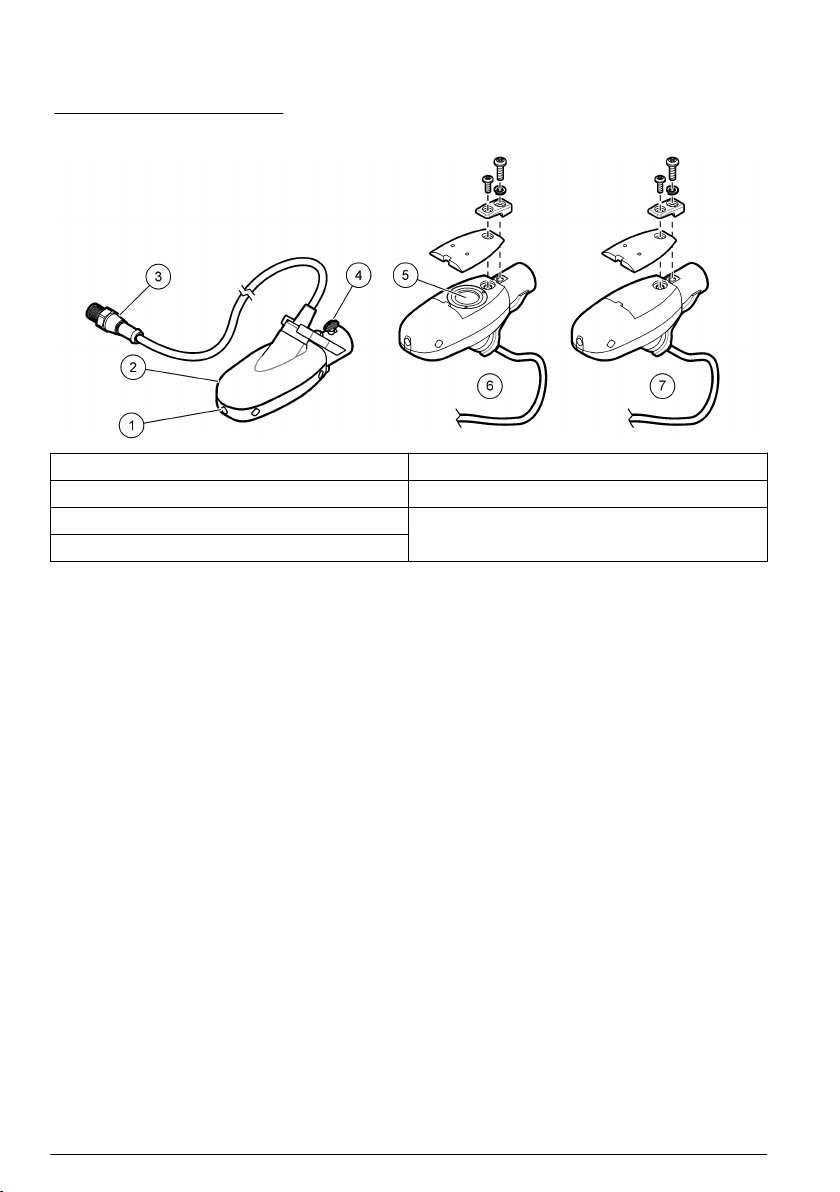

Figure 2 shows the main sensor components. Instructions for how to attach the sensor on a standard

or top-setting wading rod are supplied with the accessory.

Figure 2 Sensor components

1 Sensor electrodes 5 Pressure cell (sensors with depth option)

2 Sensor body 6 Sensor with depth option

3 Sensor connection plug 7 Sensor without depth option

4 Sensor attachment thumb screw

3.2.3 Meter overview

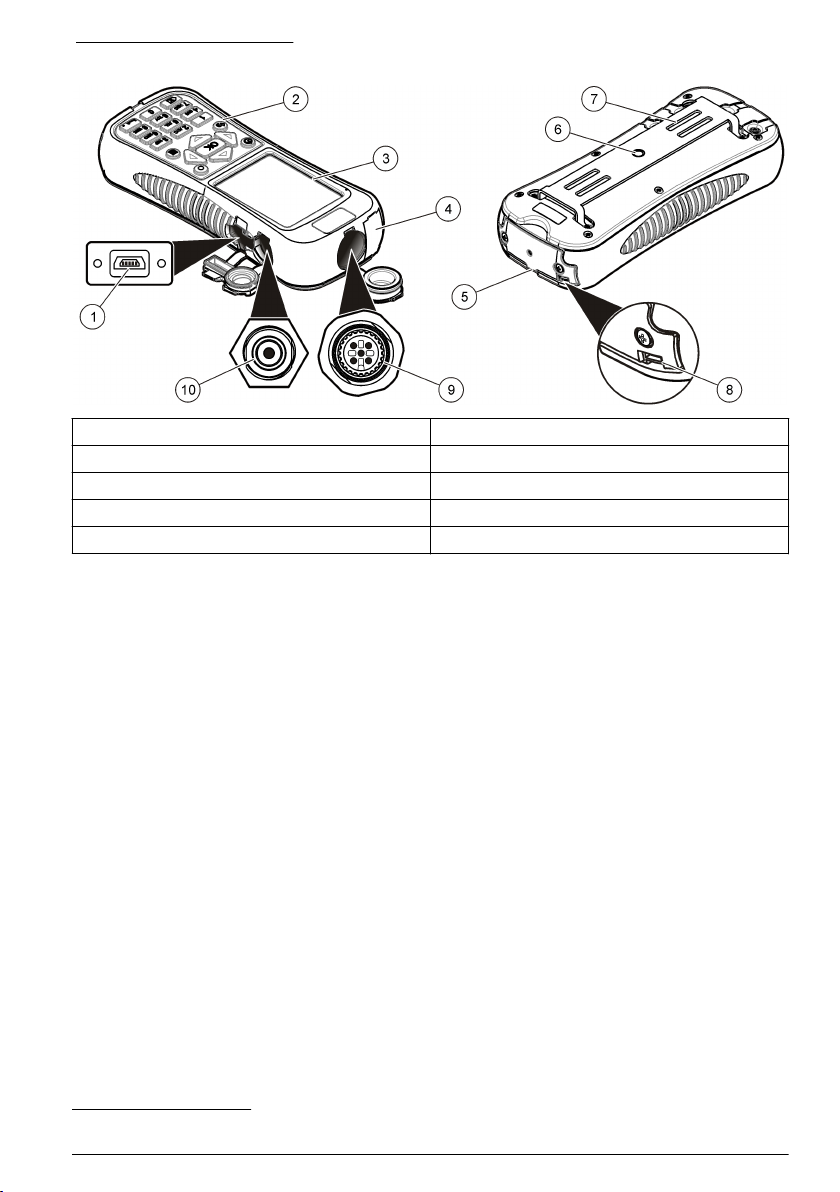

Figure 3 shows the features of the meter.

8 English

Figure 3 Meter components

1 USB connection port26 Threaded hole for adjustable meter mount

2 Keypad 7 Slots for velcro or strap attachment

3 Meter display 8 Slot for neck strap attachment threads (2x)

4 Expansion port (not used) 9 Sensor connection port

5 Battery compartment cover 10 Battery charger connector

3.3 Product components

When purchasing a complete system, refer to Figure 4 to make sure that all components have been

received. If any of these items are missing or damaged, contact the manufacturer or a sales

representative immediately.

2Do not use the USB connection to charge the battery.

English 9

Figure 4 System components

1 Carrying case (with slot for sensor cable) 8 Universal sensor mount

2 USB cable with mini-USB connector, 1 m

(3 ft)

9 Velcro strap

3 Adjustable portable meter mount 10 Lanyard

4 Battery charger, 100–240 VAC 11 Portable meter

5 Sensor 12 Lithium battery pack

6 Extra thumb screws (4x) 13 Sensor as connected to meter inside case

7 Cloth to dry the sensor

Section 4 Installation

4.1 Install the sensor on the universal sensor mount

Use the universal sensor mount to attach the sensor to poles 1 inch or less in diameter. For correct

operation and accurate readings, the front of the sensor must be pointed upstream with the

electrodes in full contact with the flow.

Note: Keep the sensor electrodes free from nonconductive substances such as oil and grease. To remove sensor

contamination, refer to Clean the sensor on page 20.

1. The front part of the sensor is round and contains three electrodes. The sensor has a mounting

hole in back and a thumbscrew on top. Put the mounting shaft of the universal mount in the

mounting hole at the back of the sensor. Make sure that the mounting shaft is completely

engaged with the mounting hole and the thumbscrew is engaged with the groove.

2. Hand tighten the thumbscrew.

3. Move a pole 1 inch or less in diameter through the clamp of the universal sensor mount. Tighten

the clamp.

Note: Instructions for how to mount the sensor on a standard or top setting wading rod are supplied with the

accessory.

10 English

Autres manuels pour FH950

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Hach Instrument de mesure

Hach

Hach Polymetron 9586 Manuel utilisateur

Hach

Hach Lange astroTOC Manuel rapide

Hach

Hach DR2400 Manuel utilisateur

Hach

Hach orbisphere C1100 Manuel utilisateur

Hach

Hach sensION3 Manuel utilisateur

Hach

Hach BioTector B3500C Manuel utilisateur

Hach

Hach POLYMETRON 8810 ORP Manuel rapide

Hach

Hach HQ430d Manuel rapide

Hach

Hach Lange CL17 Manuel utilisateur

Hach

Hach DR2400 Manuel utilisateur

Hach

Hach DR300 Manuel utilisateur

Hach

Hach NA5600 sc Na+ Manuel utilisateur

Hach

Hach 2100P Guide de référence

Hach

Hach TL2310 Manuel rapide

Hach

Hach Lange APA 6000 Manuel utilisateur

Hach

Hach AF7000 Manuel rapide

Hach

Hach PHC705A Manuel utilisateur

Hach

Hach ORBISPHERE G1100 Manuel utilisateur

Hach

Hach Orbisphere 51 Series Manuel utilisateur

Hach

Hach Pocket Pro Manuel utilisateur

Hach

Hach POLYMETRON 9135 Manuel utilisateur

Hach

Hach BioTector B7000 Manuel utilisateur

Hach

Hach ORBISPHERE K-M1100 Manuel rapide

Hach

Hach 51 Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
