Hach WDMP sc Manuel utilisateur
DOC026.97.80326
WDMP sc
08/2019, Edition 2
User Manual
Manual del usuario
Manuel de l’utilisateur
Table of Contents
English..............................................................................................................................3
Español.......................................................................................................................... 24
Français......................................................................................................................... 48
2
Table of Contents
1 Specifications on page 3
2 General information on page 4
3 Installation on page 9
4 Startup on page 18
5 Operation on page 19
6 Maintenance on page 19
7 Troubleshooting on page 22
8 Replacement parts and accessories on page 22
Section 1 Specifications
Specifications are subject to change without notice. The specifications that follow are for the junction
box (Table 1) and the WDMP sc panel (Table 2). Refer to the instrument user manuals for the
analyzer, controller, turbidimeter and probe sensor specifications.
Table 1 Junction box
Specification Details
Power requirements 100 to 115/230 VAC, 50/60 Hz
Power consumption 90 VA maximum for CL17 analyzer
24 W maximum for all other electronics
Protection class I
Installation category II
Pollution degree 2
Altitude 2000 m (6562 ft) maximum
Fuse 5 x 20 mm, T 1.0 A, 250 V (2x)
Storage temperature –20 to 60 °C (–4 to 140 °F)
Conduit hub ½ NPT
Communications RS485 Modbus
Humidity Maximum relative humidity 80% for temperatures to 31 °C (88 °F), decreasing linearly to
50% relative humidity at 40 °C (104 °F)
Table 2 WDMP sc panel
Specification Details
Dimensions (W x H x D) 81 x 122 x 30.8 cm (32 x 48 x 12.1 in.)
Weight 54.4 kg (120 lb)
Operating temperature 5 to 40 °C (41 to 104 °F)
Sample flow rate 0.4 to 0.6 L/min
Sample pressure 138 to 862 kPa (20 to 125 psi)
Sample temperature 5 to 40 °C (41 to 104 °F)
Sample inlet connection ½-in. OD tube
Sample waste drain connection ¾-in. ID hose barb
Sample waste drain pressure Ambient, free-flowing (atmospheric)
Pressure sensor Stainless steel (17-4 PH), Input: 7–35 VDC; Output: 4–20 mA, 0–1034 kPa
(0–150 psi)
English 3
Table 2 WDMP sc panel (continued)
Specification Details
Certifications ETL listed to UL and CSA standards
Warranty 1 year
Section 2 General information
In no event will the manufacturer be liable for direct, indirect, special, incidental or consequential
damages resulting from any defect or omission in this manual. The manufacturer reserves the right to
make changes in this manual and the products it describes at any time, without notice or obligation.
Revised editions are found on the manufacturer’s website.
2.1 Safety information
N O T I C E
The manufacturer is not responsible for any damages due to misapplication or misuse of this product including,
without limitation, direct, incidental and consequential damages, and disclaims such damages to the full extent
permitted under applicable law. The user is solely responsible to identify critical application risks and install
appropriate mechanisms to protect processes during a possible equipment malfunction.
Please read this entire manual before unpacking, setting up or operating this equipment. Pay
attention to all danger and caution statements. Failure to do so could result in serious injury to the
operator or damage to the equipment.
Make sure that the protection provided by this equipment is not impaired. Do not use or install this
equipment in any manner other than that specified in this manual.
2.1.1 Use of hazard information
D A N G E R
Indicates a potentially or imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation that may result in minor or moderate injury.
N O T I C E
Indicates a situation which, if not avoided, may cause damage to the instrument. Information that requires special
emphasis.
2.1.2 Precautionary labels
Read all labels and tags attached to the instrument. Personal injury or damage to the instrument
could occur if not observed. A symbol on the instrument is referenced in the manual with a
precautionary statement.
This is the safety alert symbol. Obey all safety messages that follow this symbol to avoid potential
injury. If on the instrument, refer to the instruction manual for operation or safety information.
This symbol indicates that a risk of electrical shock and/or electrocution exists.
4 English
This symbol indicates the need for protective eye wear.
This symbol indicates that the marked item requires a protective earth connection. If the instrument is
not supplied with a ground plug on a cord, make the protective earth connection to the protective
conductor terminal.
This symbol, when noted on the product, identifies the location of a fuse or current limiting device.
This symbol indicates a laser device is used in the equipment.
This symbol indicates elevated, potentially dangerous, levels of non-ionizing radiation.
This symbol indicates the presence of devices sensitive to Electro-static Discharge (ESD) and
indicates that care must be taken to prevent damage with the equipment.
Electrical equipment marked with this symbol may not be disposed of in European domestic or public
disposal systems. Return old or end-of-life equipment to the manufacturer for disposal at no charge to
the user.
2.1.3 Chemical and biological safety
D A N G E R
Chemical or biological hazards. If this instrument is used to monitor a treatment process and/or
chemical feed system for which there are regulatory limits and monitoring requirements related to
public health, public safety, food or beverage manufacture or processing, it is the responsibility of the
user of this instrument to know and abide by any applicable regulation and to have sufficient and
appropriate mechanisms in place for compliance with applicable regulations in the event of
malfunction of the instrument.
2.2 Certification
CAUTION
This equipment is not intended for use in residential environments and may not provide adequate protection to
radio reception in such environments.
Canadian Radio Interference-Causing Equipment Regulation, ICES-003, Class A:
Supporting test records reside with the manufacturer.
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de classe A répond à toutes les exigences de la réglementation canadienne
sur les équipements provoquant des interférences.
FCC Part 15, Class "A" Limits
Supporting test records reside with the manufacturer. The device complies with Part 15 of the FCC
Rules. Operation is subject to the following conditions:
English 5
1. The equipment may not cause harmful interference.
2. The equipment must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. This equipment has been tested
and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case the user will be required to
correct the interference at their expense. The following techniques can be used to reduce
interference problems:
1. Disconnect the equipment from its power source to verify that it is or is not the source of the
interference.
2. If the equipment is connected to the same outlet as the device experiencing interference, connect
the equipment to a different outlet.
3. Move the equipment away from the device receiving the interference.
4. Reposition the receiving antenna for the device receiving the interference.
5. Try combinations of the above.
2.3 Product overview
The Water Distribution Monitoring Panel sc (WDMP sc) is an assembly of instruments that monitor
the water quality in a distribution system. The instruments are mounted on a panel with the electrical
and plumbing connections installed. The instruments measure chlorine, conductivity, pH, ORP
(optional), turbidity, pressure and temperature. A controller sends the data to a communications
network for remote monitoring. Refer to Figure 1 for the WDMP sc with the CL17 chlorine analyzer or
Figure 2 for the WDMP sc with the CLF10 or CLT10 chlorine analyzer.
6 English

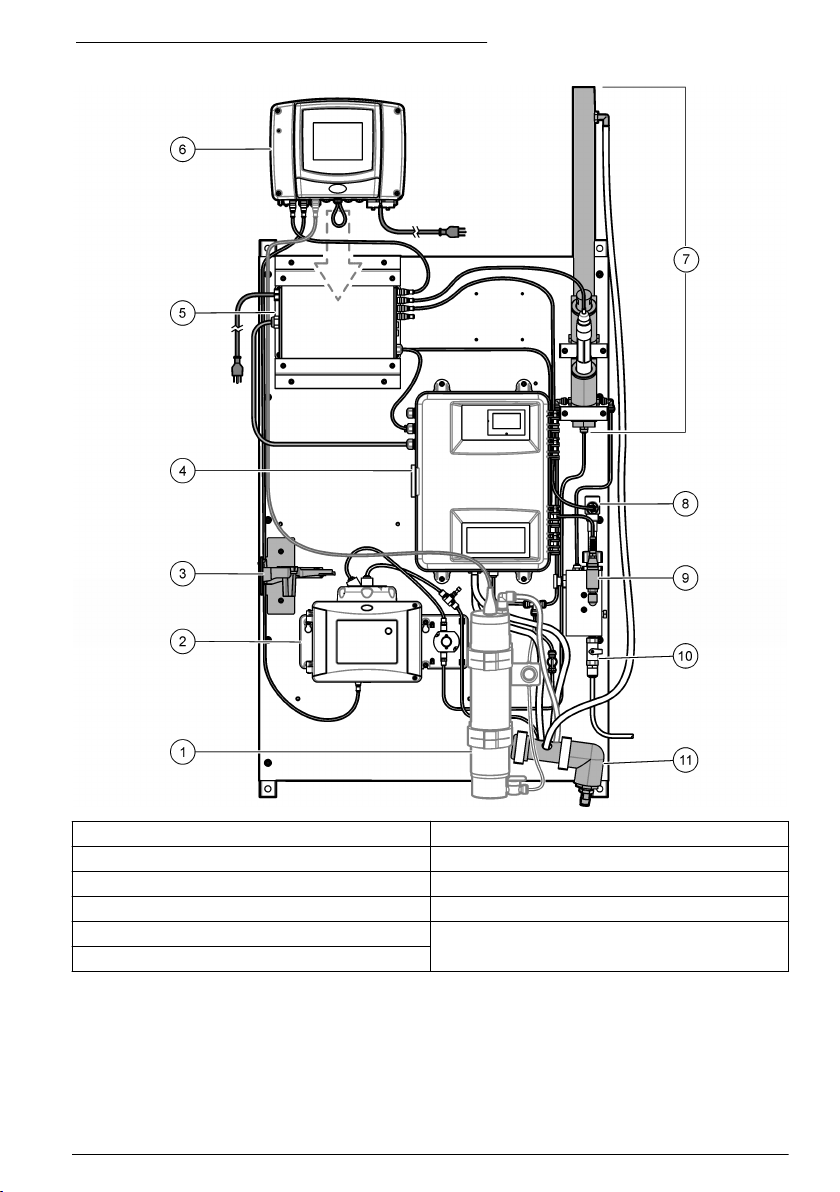

Figure 1 WDMP sc overview—CL17 chlorine analyzer
1 Inductive conductivity probe option 7 Standpipe and sample manifold
2 Turbidity sensor 8 Standard conductivity probe
3 Service bracket 9 Pressure sensor
4 CL17 chlorine analyzer 10 Sample flow valve
5 Junction box 11 Drain manifold
6 Controller
English 7
Figure 2 WDMP sc overview—CLF10 or CLT10 chlorine analyzer
1 Inductive conductivity probe option 7 CLF10 or CLT10 gateway
2 Turbidity sensor 8 Standpipe and sample manifold
3 Service bracket 9 Standard conductivity probe
4 CLF10 or CLT10 flow cell 10 Pressure sensor
5 Junction box 11 Sample flow valve
6 Controller 12 Drain manifold
2.4 Product components
Make sure that all components have been received. Refer to the list that follows. If any items are
missing or damaged, contact the manufacturer or a sales representative immediately.
•WDMP sc panel—Refer to Figure 1 on page 7 or Figure 2 on page 8.
•Startup kit for WDMP sc—Refer to Figure 3 and the list that follows.
8 English
• Tubing, ½-inch OD (10 ft)
• Tubing, 1-inch OD (10 ft)
• Cable assembly, 1-m probe extension
• Clamp, hose worm drive
•CL17 analyzer kit (if applicable)—Refer to CL17 analyzer kit on page 9.
Figure 3 Reagents for WDMP sc startup kit
1 CL17 analyzer reagents (if applicable) 4 Conductivity standard solution
2 pH buffer solutions—pH 4, 7 and 10 5 19.2 N H2SO4 for CL17 (if applicable)
3 20 NTU Stablcal standard solution 6 20 NTU Stablcal standard solution, sealed vial with
RFID tag
CL17 analyzer kit
Refer to the list that follows for the items in the CL17 analyzer kit.
• Pinch plate and thumb screws (2x)
• Stir bar, micro
• Filter, 40 mesh SST
• Funnel
• Tubing harness (3x)
• Tube, 11/16-inch OD x 1/2-inch ID, 1.025 ft
• Tubing, 0.193-inch OD, 2.333 ft
• Fitting, barb (5x)
• Fitting, elbow
• Hose clamp
• Seal, quad ring
Section 3 Installation
D A N G E R
Multiple hazards. Only qualified personnel must conduct the tasks described in this section of the
document.
3.1 Mechanical installation
WARNING
Personal injury hazard. Make sure that the wall mounting is able to hold 4 times the weight of the
equipment.
English 9
WARNING
Personal injury hazard. Instruments or components are heavy. Use assistance to install or move.
This instrument is rated for an altitude of 2000 m (6562 ft) maximum. Use of this instrument at an
altitude higher than 2000 m can slightly increase the potential for the electrical insulation to break
down, which can result in an electric shock hazard. The manufacturer recommends that users with
concerns contact technical support.
Attach the panel on a flat, vertical wall surface in an indoor location away from direct sunlight. Install
the instrument in a location and position where the user can easily disconnect the instrument from
the power source. Refer to Figure 4 for product dimensions. Refer to Figure 5 to attach the panel to a
wall. Mounting hardware is supplied by the user.
Figure 4 Product dimensions
1 Buffer area
10 English
Table des matières
Langues :
Autres manuels Hach Instrument de mesure
Hach
Hach PHOSPHAX sigma High Range Manuel rapide
Hach
Hach POCKET COLORIMETER II LCK 360 Zinc Guide de l'utilisateur
Hach
Hach Lange CL17 Manuel utilisateur
Hach
Hach QuikChem 8500 2 Series Mode d’emploi
Hach
Hach DR/2010 Manuel utilisateur
Hach
Hach IntelliCAL ISENH3181 Series Manuel utilisateur
Hach
Hach BioTector B7000i Manuel utilisateur
Hach
Hach ANATEL PAT700 Manuel utilisateur
Hach
Hach polymetron 9240 Manuel utilisateur
Hach
Hach NA5600 sc Na+ Mode d'emploi
Hach
Hach POCKET COLORIMETER II Manuel utilisateur
Hach
Hach Polymetron 9610sc Mode d'emploi
Hach
Hach DR/850 Guide de référence
Hach
Hach ORBISPHERE 3650 Atex Manuel utilisateur
Hach
Hach HQ1110 Manuel utilisateur
Hach
Hach DR300 Manuel utilisateur
Hach
Hach 2100Q Manuel rapide
Hach
Hach QbD1200 AutoSampler Manuel utilisateur
Hach
Hach Lange APA 6000 Manuel utilisateur
Hach
Hach sension 4 Manuel utilisateur
Manuels Instrument de mesure populaires d'autres marques
Endress+Hauser
Endress+Hauser Proline Promag 50 Caractéristiques techniques
Siemens
Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces
KLINGER
KLINGER CMF V Series Manuel utilisateur
EXFO
EXFO FTB-2 Manuel d'exploitation et d'entretien
Keysight
Keysight M8290A Manuel utilisateur
ADTEK
ADTEK MW-5 Manuel utilisateur
