Grundig GCA-B0002B Manuel utilisateur

GCA-B0002B.52.1.14.06.2012

Owner's Manual

Cameras & Domes

GCA-B0002B 1/3" CCD Colour Camera, 650L, 230VAC

GCA-B0302B 1/3" CCD Colour Camera, 650L, 12VDC/24VAC

Content:

1. Available Versions 2

2. Important Safety Instructions 2

3. Package Contents 2

4. Installation 2

1. Camera Overview 3

2. Lens Mounting 3

3. Back Focus Adjustment 4

4. Power Connection 5

5. OSD Control Keys 5

6. OSD Menu 5

1. LENS 6

2. SHUTTER/ AGC 7

3. WHITE BAL (White Balance) 8

4. BACKLIGHT 10

5. PICT ADJUST (Picture Adjustment) 10

6. ATR (Adaptive Tone-Curve Reproduction) 11

7. MOTION DET (Motion Detection) 12

8. PRIVACY 13

9. DAY/NIGHT 13

10. NR (Noise Reduction) 15

11. CAMERA ID 15

12. SYNC 16

13. LANGUAGE 16

14. CAMERA RESET 16

15. NEXT / BACK 16

16. EXIT 16

17. SAVE ALL 16

1. Available Versions

These instructions apply to the following products. For the different properties of the

products please refer to the table.

2. Important Safety Instructions

Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

Incorrectly connecting the power supply may cause explosion, fire, electric shock, or

damage to the product. Do not connect multiple products to one single adapter.

Exceeding the capacity may cause abnormal heat generation or fire.

Do not place conductive objects (e.g. screwdrivers, coins or any metal items) or

containers filled with water on top of the product. Doing so may cause personal injury

due to fire, electric shock, or falling objects.

If any unusual smells or smoke comes out of the unit, stop using the product. In this

case, immediately disconnect the power source and contact the service center.

Continued use in such a condition may cause fire or electric shock.

If this product fails to operate normally, contact the nearest service center. Never

disassemble or modify this product in any way. (GRUNDIG is not liable for problems

caused by unauthorised modifications or attempted repair.)

To prevent fire or electric shock, do not expose the inside of this device to rain or

moisture.

3. Package Contents

These parts are included:

Camera, Manual, Power Terminal Block, 230V Power cable (only for GCA-B0002B),

C/CS Mount Adapter, Back Focus Adjuster

4. Installation

Do not install this product in a location subject to high temperature (over 45°C), low

temperature (below 0°C), or high humidity. Doing so may cause fire or electric shock.

Keep out of direct sunlight and heat radiation sources. This may cause fire.

Do not install the unit in humid, dusty or sooty locations. Doing so may cause fire or

electric shock. Install it in a place with good ventilation.

When installing the unit, fasten it securely and firmly. A falling unit may cause personal

injury.

2English

If you want to relocate the already installed product, be sure to turn the power off and

then move or reinstall it.

4.1. Camera Overview

1. AUTO IRIS Connector: Auto iris lens connector

2. POWER LED: Red light indicates good power connection.

3. VIDEO OUT (BNC Connector): For video output

4. For GCA-B0002B: 230V AC Connector /

For GCA-B0302B: DC 12V/AC 24V Connector

5. OSD Control Keys

4.2. Lens Mounting

Lens Mounting for C/CS Mount Lens Model:

It is possible to attach all CS-Mount lenses with manual or DC controlled iris on the

camera. Please remove the camera’s plastic covering first and then attach the CS-Mount

lens onto the camera. If you would like to use a C-Mount lens, you need a 5 mm C/CS

Mount Adapter between the camera and the C-Mount lens, as shown in the illustration

below.

3English

4.3. Back Focus Adjustment

When to adjust the back focus:

Back Focus refers to the distance from the rear lens element to the camera focal plane.

It is only required to adjust the back focus only when the focus cannot be adjusted

throughout its zoom range.

Requirements:

Tools required when carrying out back focus adjustment include:

1. Back focus adjuster (in the package of the camera)

2. Test chart / contrasting object

How to adjust the back focus:

Step 1: Set the camera on a stable mount, with the test chart or object at least 75 feet

(23 meters) away (or as far as possible). Please loosen the focus ring's retaining screw

with the supplied back focus adjuster.

Step 2: Make sure the iris is wide open. Therefore, it is advised to keep the environment

in low light condition. To open the automatic lens completely, please use a neutral

density filter. With this filter it is possible to simulate a low light condition so that the lens

can open up completely.

Step 3: Adjust the focus to infinite far (∞).

Step 4: Turn the zoom to the wide angle (telephoto) position, and then focus with the

back focus on the subject.

Step 5: Set the zoom to the most extreme wide angle (telephoto) position.

Step 6: Focus on the object with the back focus ring. Check now whether it is possible to

adjust the focus with the back focus ring also in the wide angle range.

Step 7: Repeat steps 3 ~ 6 until the focus can be adjusted throughout the zoom range.

When using a zoom lens and changing the focal length, the focus does not need to be

adjusted again once the back focus adjustment has been completed. This does not

apply to vario lenses.

4English

Step 8: Tighten the back focus ring’s retaining screw to fix the ring.

4.4. Power Connection

For the camera with 230V power supply, please put the power cable into the camera.

For the camera with 12V DC/24V AC power supply, connect the power terminal block.

5. OSD Control Keys

- OK key (in the middle): Accesses the

menu mode or confirms the setting.

- UP / DOWN: Chooses the desired menu.

- LEFT / RIGHT: Sets up the value of the

selected menu and changes the settings.

6. OSD Menu

1. Press the OK key and hold it for a while to access the menu mode.

2. Select the desired feature by using the UP/DOWN keys.

3. If there is a setting for this feature on the the right side of the screen, use the

LEFT/RIGHT keys to switch between the settings and confirm your choice by pressing

the OK key. If an ENTER arrow (↵) is displayed, press OK to access the according

submenu.

4. When the settings are completed, go to SAVE ALL and press the OK key to save the

settings. If you have not done this and the power is turned off, the changes in the

settings will not be kept.

5. In the sub-menus, please press with the OK key on RETURN to return to the previous

menu.

6. Please press with the OK key on NEXT or BACK to switch between the SETUP

MENU pages.

7. To exit the menu, please press with the OK key on EXIT in the main menu.

LENS: Here you can configure the lens

setting.

SHUTTER/AGC: This function is used to

control the light exposure.

WHITE BAL: You can control the white

balance under different lighting conditions

here.

BACKLIGHT: You can control the backlight

compensation here.

English

PICT ADJUST: You can set different picture related settings like mirroring, brightness,

sharpness, contrast, hue and gain.

ATR: This function is used to improve the contrast of the image (similar to WDR).

MOTION DET: This function is used to detect moving objects in the monitoring area.

NEXT: Choose this option to view the second menu page.

PRIVACY: You can mask specific areas in

the monitoring area here.

DAY/NIGHT: This function is used to

improve the camera's sensitivity at night or

when the brigthness level of the ambient

environment is low.

NR: This noise reduction function is to

decrease the noise which can be generated

under low light conditions.

CAMERA ID: Here you can assign a unique

name or title to the camera.

SYNC: This function refers to the Internal Syncronisation.

LANGUAGE: Here you can choose your preferred language.

CAMERA RESET: This function is for resetting the camera to factory default.

BACK: Choose this option to view the first menu page again.

EXIT: Here you can exit the menu.

SAVE ALL: Choose this option to save all changes in the settings.

6.1. LENS

You can select MANUAL or AUTO mode for this function, depending on the lens type.

6English

AUTO:

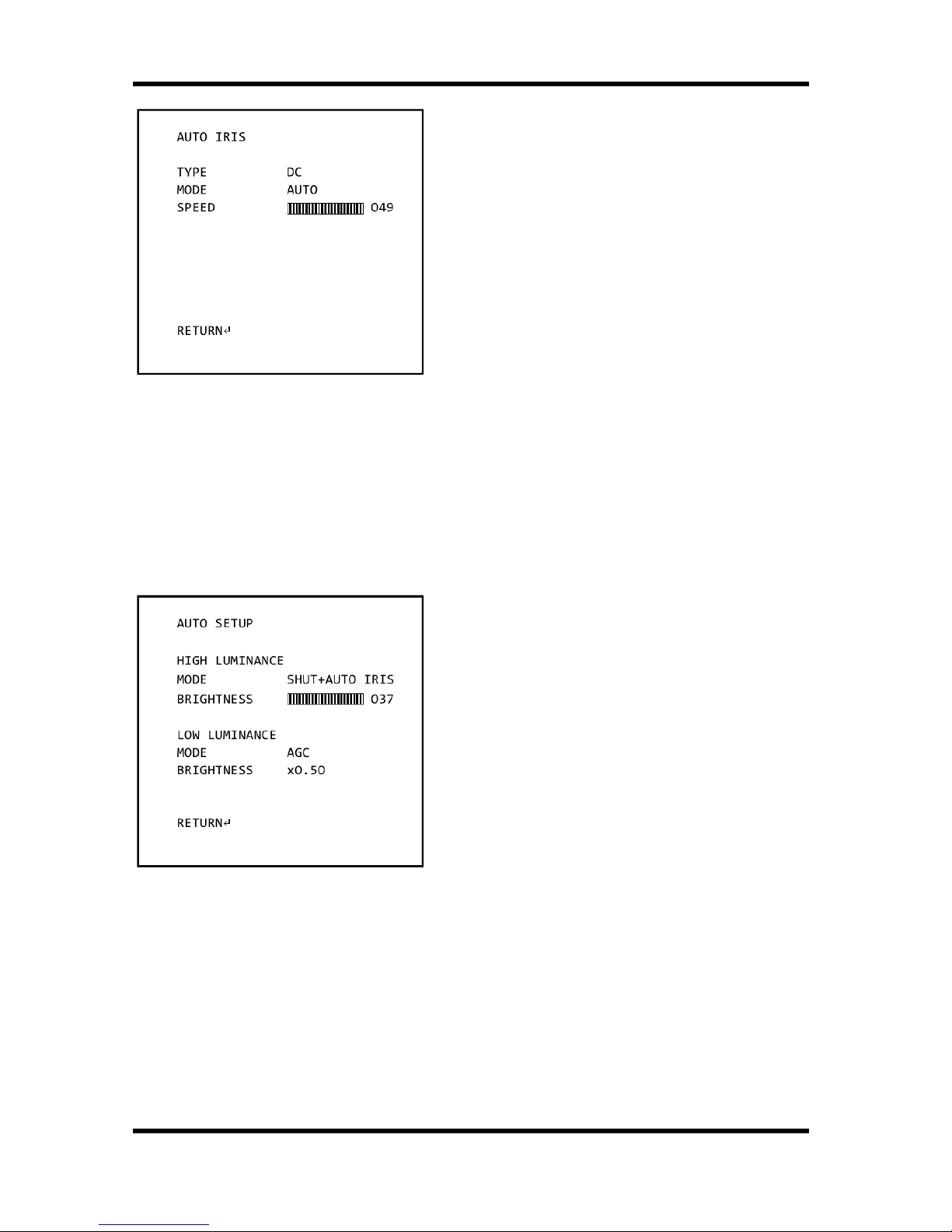

Here you can set the operation mode of the

lens and adjust the iris speed.

- TYPE [DC, VIDEO] : Please do not select

VIDEO mode. Please choose DC for this

camera model.

- MODE [AUTO, OPEN, CLOSE] : Choose

whether the lens iris should be controlled

automatically or be fixed to open or close.

- SPEED [000~255] : Sets the

convergence speed of the lens iris. If the

value is too high, the iris might operate

improperly.

MANUAL:

Select this item for the manual iris lens.

6.2. SHUTTER/ AGC

This function is used to control the light exposure. You can either select AUTO for the

auto iris lens (here you can set the shutter value and the brightness level depending on

the lighting conditions) or you can choose MANUAL for the manual iris lens (here you

can set up the electronic shutter speed and the AGC value manually).

AUTO:

Here you can set the auto exposure mode

in two different lighting conditions (HIGH

LUMINANCE for middle/high-bright lighting

conditions and LOW LUMINANCE for low-

bright lighting conditions).

HIGH LUMINANCE

- MODE [AUTO IRIS, SHUT+AUTO IRIS] :

When choosing AUTO IRIS, the electronic shutter is fixed, and the exposure is

controlled using the mechanical iris. When choosing SHUT+AUTO IRIS, the auto

exposure is controlled by using the electronic shutter in middle-bright light conditions,

and using the mechanical iris in high-bright light conditions.

- BRIGHTNESS [000~255] :

Sets the value of auto exposure operations. As the value increases, the screen gets

brighter.

English

LOW LUMINANCE

- MODE [AGC, OFF] :

When choosing AGC, the auto exposure is controlled by using AGC.

- BRIGHTNESS [x0.25, x0.50, x0.75, x1.00] :

Sets the value of auto exposure operations. As the value increases, the screen gets

brighter.

MANUAL:

Here you can set the SHUTTER value and

the AGC value.

- MODE [SHUT+AGC] : The mode is fixed

to SHUT+AGC.

- SHUTTER [PAL: 1/50, 1/100, 1/250,

1/500, 1/1000, 1/4000, 1/10000] : Choose

the desired value.

- AGC [6.00, 12.00, 18.00, 24.00, 30.00,

36.00, 42.00, 44.80] : As the AGC value

increases, the overall screen gets brighter

but the level of noise is also increasing.

6.3. WHITE BAL (White Balance)

This function is used to control the white balance under different lighting conditions.

Adjusting the setting calibrates the camera for correct and natural colour rendering.

Adjust the functions PUSH, ANTI CR, PUSH LOCK or select a submenu (MANUAL,

ATW, USER1, USER2).

ATW:

In this mode, the camera automatically

tracks changes in the colour temperature,

and adjusts the white balance according to

the ambient conditions.

8English

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Grundig Caméra de sécurité

Grundig

Grundig GD-CI-AP2747P Manuel utilisateur

Grundig

Grundig GCI-K0512W Manuel utilisateur

Grundig

Grundig GD-CI-AC4637P Manuel utilisateur

Grundig

Grundig GU-CI-AC5617T Manuel utilisateur

Grundig

Grundig GD-CI-AC1616V Manuel utilisateur

Grundig

Grundig GCA-B2357T Manuel utilisateur

Grundig

Grundig GD-TI-CT2510T Manuel utilisateur

Grundig

Grundig GD-CI-AT4634T Manuel utilisateur

Grundig

Grundig GD-CI-DT4637T Manuel utilisateur

Grundig

Grundig GCI-G1536F Manuel utilisateur

Grundig

Grundig GCA-C0245P Manuel utilisateur

Grundig

Grundig GCI-K1523D Manuel utilisateur

Grundig

Grundig GD-CI-BP8637V Manuel utilisateur

Grundig

Grundig GD-CI-AP4746P Manuel utilisateur

Grundig

Grundig GCH-K0323V Manuel utilisateur

Grundig

Grundig GU-CI-AC5637T Manuel utilisateur

Grundig

Grundig GD-CI-BC2615M Manuel utilisateur

Grundig

Grundig GD-CI-AT2637VH Manuel utilisateur

Grundig

Grundig GD-CI-BP4637E Manuel utilisateur

Grundig

Grundig GD-CI-AP4647P Manuel utilisateur

Grundig

Grundig GCI-K0589T Manuel utilisateur

Grundig

Grundig GD-CI-BC2626T Manuel utilisateur

Grundig

Grundig GD-CI-AP4617C Manuel utilisateur

Grundig

Grundig Reason GCI-K2795P-1 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur

Lumens

Lumens VC-A50PNW Manuel utilisateur
