Grundig GCA-B0326D Manuel utilisateur
GCA-B1322D.1.1.25.11.2011
Owner's Manual
EN
© ASP AG
Cameras & Domes
GCA-B1322D 1/3" Col/B&W Fixed Dome Camera, Vari-Focal
GCA-B0322D 1/3" Col/B&W Fixed Dome Camera, Vari-Focal
GCA-B0323D 1/3" CCD Col/B&W Fixed Dome Camera w/ IR LED
GCA-B0325D 1/3" Col/B&W Fixed Dome Camera, Vari-Focal, WDR
GCA-B0326D 1/3" CCD Col/B&W Fixed Dome Camera w/ IR LED WDR
Content:
1. Available Versions 1
2. Important Safety Instructions 2
3. Package Contents 2
4. Installation 3
1. Part Names 3
2. Base Installation 4
3. Connections 5
4. 3-Axis Gimbal Adjustment 6
5. Zoom & Focus Adjustment 6
5. OSD Menu 6
1. OSD Controls 6
2. Main menu 7
3. Camera Setup 8
4. Intelligence 15
5. Privacy Zone 17
6. Other Set 18
7. Communication 18
8. System Info 18
9. Language 19
1. Available Versions
These instructions apply to the following products. For the different properties of the
products please refer to the table.
1English
2. Important Safety Instructions
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product. Do not connect multiple products to one single
adapter. Exceeding the capacity may cause abnormal heat generation or fire.
Do not place conductive objects (e.g. screwdrivers, coins or any metal items) or
containers filled with water on top of the product. Doing so may cause personal injury
due to fire, electric shock, or falling objects.
If any unusual smells or smoke comes from the unit, stop using the product. In such
case, immediately disconnect the power source and contact the service center.
Continued use in such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest service center. Never
disassemble or modify this product in any way. (GRUNDIG is not liable for problems
caused by unauthorised modifications or attempted repair.)
To prevent fire or electric shock, do not expose the inside of this device to rain or
moisture.
3. Package Contents
These parts are included:
2English
4. Installation
Do not install the product in a location subject to high temperature (over 50°C), low
temperature (below -10°C), or high humidity. Doing so may cause fire or electric shock.
Keep out of direct sunlight and heat radiation sources. This may cause fire. Avoid aiming
the camera directly towards extremely bright objects such as the sun, as this may
damage the image sensor.
Do not install the unit in humid, dusty or sooty locations. Doing so may cause fire or
electric shock. Install it in a place with good ventilation.
When installing the unit, fasten it securely and firmly. A falling unit may cause personal
injury.
If you want to relocate the already installed product, be sure to turn off the power and
then move or reinstall it.
4.1. Part Names
1. Bubble
2. Dome Cover Ring
3. Mounting Screws
4. Camera Module Gimbal Bracket
5. Lens
6. Dome Base
7. Service Monitor Output Port
8. Video Out and Power Cable
3English
4.2. Base Installation
1. Open the dome cover ring at the marked position (e.g. with a flat screw driver).

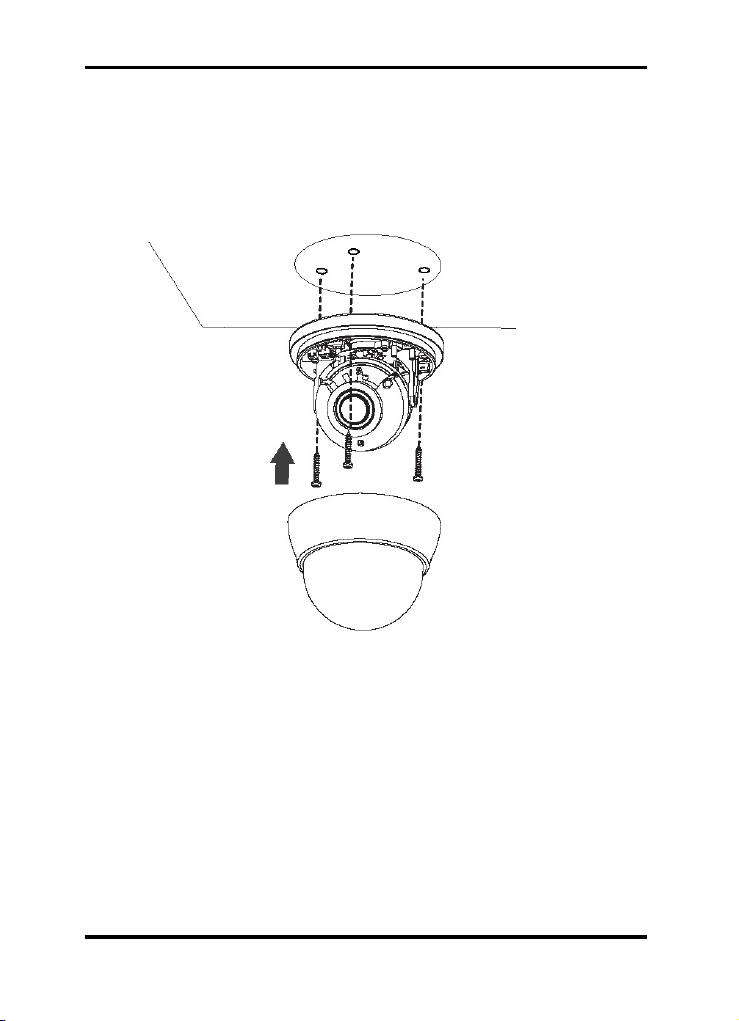

2. There are three mounting holes on the Dome Base for installation of the unit in any
place such as a ceiling, wall and etc. Use the three mounting screws to affix the Dome
Base to a sturdy surface. To access all three holes, rotate the camera module.
4English
4.3. Connections
- Power connection: Requires a DC 12V or AC 24V input depending on the camera
model.
- All camera models are supplied with a service monitor output on the camera module. A
service monitor and control cable is included in the package.
Note:
To set up the OSD menu externally, a service monitor and control cable is required.
5English
4.4. 3-Axis Gimbal Adjustment
1. Pan: Adjust the pan by turning it
manually to the right or left.
2. Tilt: Adjust the tilt by moving it manually
up or down.
3. Rotation: Adjust the rotation manually to
the desired angle.
4.5. Zoom & Focus Adjustment
1. If you need to make viewing angle/focus adjustments, move the levers as shown
below. First loosen the Zoom/Focus levers, and then adjust them as needed.
2. After the adjustments are completed, tighten the Zoom/Focus levers.
5. OSD Menu
5.1. OSD Controls
5.1.1. OSD Control Keys
- SETUP key: Accesses the menu mode or
confirms the setting.
- UP (/\) / DOWN (\/): Chooses the desired
menu.
- LEFT (<) / RIGHT (>): Sets up the value of
the selected menu.
6English
5.1.2. OSD Icons
Exits the menu setting. Before you exit,
make sure you SAVE your settings, or
select QUIT to cancel.
Returns to the previous menu.
Returns to the main menu.
Use this to SAVE your settings of MASK
AREA, PRIVACY ZONE and more. Once
you saved your settings, they will remain
even if you select QUIT in the menu.
Use this to delete your settings of MASK
AREA, PRIVACY ZONE and more. Once
you saved your settings, they will not be
restored even if you select QUIT in the
menu.
5.2. Main menu
1. Press the SETUP key and hold it for a while to access the menu mode.
2. Select the desired feature by using the UP/DOWN keys (/\ \/) on the control.
CAMERA SET: Here you can configure
camera related functions and data.
INTELLIGENCE: You can configure the
settings of motion detection, tracking and
more.
PRIVACY ZONE: You can configure the
privacy related settings.
OTHER SET: You can configure for factory
defaults, and more.
7
English
COMMUNICATION: Configures the settings regarding the RS-485 communication.
SYSTEM INFO: Displays the system information including the camera version and
communication settings.
LANGUAGE: Select a preferred language from those listed.
5.3. Camera Setup
CAMERA ID [OFF, ON] :
It is used to switch on/off the camera id. If
the camera id is switched ON, you can
access the CAMERA ID menu to programm
the camera text.
IRIS [ALC, ELC] :
The IRIS menu is used if you want to adjust
the intensity of light incoming into the
camera.
MOTION [S.SLOW, SLOW, NORM, FAST, F.FAST] :
This menu is used to adjust the strength of the AGC level for a control of the camera
motion. You can select from S.SLOW, SLOW, NORM, FAST and F.FAST for the AGC
level. If you monitor fast moving objects in a low contrast scene, select F.FAST while
selecting S.SLOW for hardly moving objects in the same lighting condition.
Note:
- This is only available if the SENS-UP menu is set to AUTO.
- If the DAY/NIGHT menu of CAMERA SET is set to AUTO, the MOTION menu will be
deactivated.
DNR [OFF, LOW, MID, HIGH, USER (1~16)] :
You can configure the DNR (Digital Noise Reduction) related settings. It reduces the
noise on the screen. This is especially useful for a severely distorted screen. You can
set the level if you set DNR to USER.
SHUTTER [OFF, AUTO 1/120~1/10K, 1/120~1/10K] :
You can select one of 7 options from 1/120 to 1/10K for the fixed high speed electronic
shutter, which is mostly used for imaging a fast moving object. The auto high speed
electronic shutter operates as the fixed high speed shutter in a high contrast scene but
automatically focuses the target if the iris opens fully in a low contrast scene like in ELC
mode. When it gets bright again, the mode will switch to the fixed high speed electronic
shutter mode. However, the auto high speed shutter operates properly only in a camera
featuring a DC or VIDEO lens.
8English
