Graco IM5 Fiche technique

308687L

Instructions - Parts List

IM5™Inline

Electronic Meter

For use with petroleum-based and synthetic oil, antifreeze, and windshield washer fluid

only.

Model: 239824

500 psi (3.4 MPa, 34 bar) Maximum Working Pressure

5 gpm (19 lpm) Maximum Flow Rate

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

Warnings

2308687L

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama-

tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When

these symbols appear in the body of this manual or on warning labels, refer back to these Warnings. Product-spe-

cific hazard symbols and warnings not covered in this section may appear throughout the body of this manual

where applicable.

+SKIN INJECTION HAZARD

High-pressure fluid from dispensing device, hose leaks, or ruptured components will pierce skin. This

may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgi-

cal treatment.

• Do not point dispensing device at anyone or at any part of the body.

• Do not put your hand over the fluid outlet.

• Do not stop or deflect leaks with your hand, body, glove, or rag.

• Follow the Pressure Relief Procedure when you stop dispensing and before cleaning, checking,

or servicing equipment.

• Tighten all fluid connections before operating the equipment.

• Check hoses and couplings daily. Replace worn or damaged parts immediately.

FIRE AND EXPLOSION HAZARD

When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be

aware that flammable fumes can ignite or explode. To help prevent fire and explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources, such as cigarettes and portable electric lamps.

• Ground all equipment in the work area.

• Keep work area free of debris, including rags and spilled or open containers of solvent and gaso-

line.

• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.

• Use only grounded hoses.

•Stop operation immediately if static sparking occurs or you feel a shock.Do not use equipment

until you identify and correct the problem.

• Keep a working fire extinguisher in the work area.

PRESSURIZED EQUIPMENT HAZARD

Over-pressurization can result in equipment rupture and serious injury.

• Do not exceed the maximum air input pressure.

• Fill slowly to avoid over pressurizing reservoir.

• Use tubing, hoses and other components with pressure ratings equal to or higher than the pump

rating.

Warnings

308687L 3

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the influence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated system

component. See Technical Data in all equipment manuals.

• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in

all equipment manuals. Read fluid and solvent manufacturer’s warnings. For complete information

about your material, request SDS from distributor or retailer.

• Turn off all equipment and follow the Pressure Relief Procedure when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine man-

ufacturer’s replacement parts only.

• Do not alter or modify equipment. Alterations or modifications may void agency approvals and cre-

ate safety hazards.

• Make sure all equipment is rated and approved for the environment in which you are using it.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury, includ-

ing eye injury, hearing loss, inhalation of toxic fumes, and burns. This protective equipment includes

but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the fluid and solvent manufac-

turer.

Installation

4308687L

Installation

The meters must be installed in-line as part of a dispense system as shown in Fig. 1. The typical installation shown

is only a guide for selecting and installing an in-line meter; it is not an actual system design. Contact your Graco dis-

tributor for assistance in designing a system to suit your needs.

Key:

A Shut-off valve

B Thermal relief valve (required; Part No. 235998) Install

downstream from the pump

C In-line filter

D In-line electronic meter

All electrical wiring must be done by a qualified elec-

trician and comply with all local codes and regula-

tions.

Do not use the IM5 In-line Electronic Meter in sys-

tems where the operating pressure exceeds the max-

imum pressure of the meter or any other component

in the system.

NOTICE

Do not use PTFE tape on threaded connections to

the meter. Such use could contribute to over-tight-

ening of the parts and cause the meter housing to

crack. Standard pipe thread compound is recom-

mended.

FIG. 1

Installation

308687L 5

Grounding

Pump: follow the manufacturer’s recommendations.

Air and fluid hoses: use only grounded hoses.

Air compressor: follow manufacturer’s recommenda-

tions.

Fluid supply container: follow local code.

To maintain grounding continuity when flushing or

relieving pressure: hold metal part of the dispense

valve firmly to the side of a grounded metal pail, then

trigger the valve.

Factory Settings

The meter is factory calibrated for 10W-30 oil, and the

default unit of measurement is quarts. For other fluids

and different units of measurement, see Changing the

Measurement Units and Calibration Factor on page 8.

The equipment must be grounded to reduce the risk

of static sparking. Static sparking can cause fumes

to ignite or explode. Grounding provides an escape

wire for the electric current.

Operation

6308687L

Operation

Sleep Mode

The meter automatically shuts down the display after

one minute of non-use.

Activation Mode

There are two ways to activate the display:

• Press any button on the keypad to wake up the dig-

ital display. The amount displayed is the value

stored when the meter went into sleep mode.

• Dispense fluid through the meter to wake up the

digital display. Dispensing fluid through the meter

causes the meter to count up from the last dis-

played value. See Fig. 2.

Function of TOTAL

Press and hold the TOTAL key to see the accumulated

total of fluid dispensed through the meter.

The accumulated total is shown in gallons when the unit

of measurement is set in gallons, quarts, or pints. The

accumulated total is shown in liters when the measure-

ment is set in liters. The meter accumulates a running

total of up to 99,999 gallons (or liters) dispensed before

returning to zero. See Fig. 3.

Function of RESET

Press and hold the RESET key to clear the digital dis-

play after each dispense cycle.

NOTE: Always press the RESET key to clear the digital

display before each new dispense cycle.

For Maximum Dispensing Accuracy

Set the meter to dispense in pints or quarts when dis-

pensing 1 gallon (3.8 liters) or less.

Measurement Units

Fig. 4 shows the various measurement units as they

appear on the display.

FIG. 2: Example of Total for Last Dispense Cycle

FIG. 3: Example of Accumulated Total

FIG. 4: Example of Measurement Units

Operation

308687L 7

Changing the Measurement Units and

Calibration Factor

NOTE: A one liter Weights and Measures approved

container is required for calibration.

This meter is factory calibrated to dispense 10W-30

motor oil at 70_ F (21_ C) at 2.0 gpm (7.6 lpm) and is

acceptably accurate for most common fluids over a

typical temperature range. If you will use the meter to

dispense antifreeze or other approved fluids, you may

have to recalibrate it for greater accuracy.

1. Press and hold both the TOTAL and RESET but-

tons for four seconds.

The numbers on the display turn off, and the L (for

liters) and CAL (for calibration) icons turn on.

2. Set the units of measurement by repeatedly press-

ing the RESET button until the correct unit of mea-

surement is displayed. See the list below:

GAL = gallons

QTS = quarts

PTS = pints

L = liters

3. Press the TOTAL button to go to the CALIBRA-

TION menu.

NOTE: If you do not want to change the calibration

factor, press the TOTAL button again to use the

existing calibration factor and to resume normal

operation. To change the calibration factor, do

steps 4 and 5.

4. Dispense exactly one liter of fluid into a calibrated

1-liter container. For proper calibration, you must

dispense exactly 1 liter according to the markings

on the container.

NOTE: If you dispense more than 1 liter, press the

TOTAL button to exit the CALIBRATION menu.

Pressing the TOTAL button at this point does not

save the new calibration factor. You must complete

steps 1 to 5 change the calibration factor.

5. Press the RESET button to store the new calibra-

tion factor and resume normal operation.

NOTE: The number on the display is the calibration

factor number. It must be in the range of 311 to

466. The following table lists approximate calibra-

tion factors for different fluids. Your calibration

number may vary slightly due to temperature or

flow rate.

Calibration factors at 70°F (21°C) at 2.0 gpm (7.6 lpm)

Fluid

Calibration

Number

oil (10W-30) 389

gear lube 389

automatic transmission fluid 389

antifreeze 367

windshield washer solvent 341

Service

8308687L

Service

Pressure Relief Procedure

Follow the Pressure Relief Procedure whenever

you see this symbol.

1. Turn off power supply to the pump.

2. Trigger the dispense valve into a waste container to

relieve pressure.

3. Open any bleed-type master air valves and fluid

drain valves in the system.

4. Leave the drain valve open until you are ready to

pressurize the system.

NOTE: Before you check or repair the meter, be sure all

other valves, controls and the pump are operating cor-

rectly.

NOTICE

To avoid damaging the electronic components of the

control:

• Do not remove the black cover over the electronic

area when you replace the battery. There are no

user-replaceable components under this cover.

• Do not lay anything on the electronics.

• Do not twist or force parts. Align parts properly as

instructed.

To avoid malfunction or high-pressure fluid spray, do

not remove the metal cover of the metering unit.

There are no user-serviceable part inside.

This equipment stays pressurized until pressure is

manually relieved. To help prevent serious injury from

pressurized fluid, such as skin injection, splashing

fluid and moving parts, follow the Pressure Relief

Procedure when you stop dispensing and before

cleaning, checking, or servicing the equipment.

Service

308687L 9

Battery Replacement Procedure

(FIG. 5)

1. Relieve Pressure, (see procedure in previous sec-

tion).

2. Remove the four screws (3) holding the electronic

control (1) and metering unit (4) together.

3. Remove the battery.

4. Install the new battery.

NOTE: See Technical Data, page 13 for recommended

batteries.

5. Install the electronic control to the metering unit (4),

aligning the longer screws boss on the meter hous-

ing with the counter bore in the plastic housing.

6. Install the four screws (3) holding the electronic

control (1) to the metering unit (4) together. Torque

the screws to 15-20 in-lb (1.7 to 2.3 N•m) or until

no gap exists between the electronic control and

the metering unit.

Electronic Control Replacement

Procedure (FIG. 6)

1. Relieve Pressure, (see procedure in previous sec-

tion).

2. Remove the four screws (3) holding the electronic

control (1) and metering unit (4) together.

3. Remove the battery. (See Battery Replacement

Procedure in the previous section).

FIG. 5

NOTICE

To avoid pinching the battery wires, install the bat-

tery as shown in FIG. 5. The battery wire should

extend to the far side of the battery compartment.

NOTICE

Closing the gap between the electronic control and

the metering unit is very important; it ensures that

no moisture can enter the electronics.

FIG. 6

Service

10 308687L

4. Remove all gasket material from the metering unit

(4).

5. Assemble adhesive side of new gasket (2) to meter-

ing unit (4).

6. Replace battery (see Battery Replacement Proce-

dure, page 9).

7. Install the electronic control to the metering unit (4),

aligning the longer screws boss on the meter hous-

ing with the counter bore in the plastic housing.

8. Install the four screws (3) holding the electronic

control (1) to the metering unit (4) together. Torque

the screws to 15-20 in-lb (1.7 to 2.3 N•m) or until

no gap exists between the electronic control and

the metering unit.

NOTICE

To avoid pinching the battery wires, install the bat-

tery as shown in FIG. 5. The battery wire should

extend to the far side of the battery compartment.

NOTICE

Closing the gap between the electronic control and

the metering unit is very important; it ensures that

no moisture can enter the electronics.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Graco Instrument de mesure

Graco

Graco XDI12 Manuel utilisateur

Graco

Graco PM8 Guide de configuration

Graco

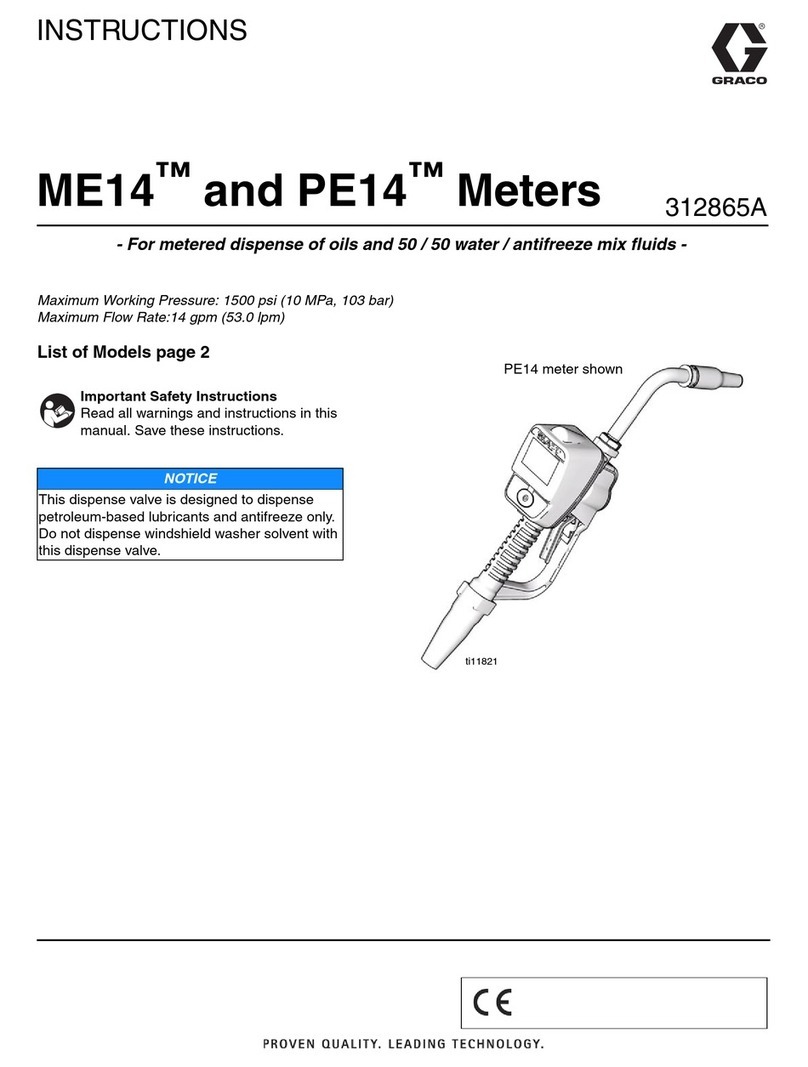

Graco PE14 Manuel utilisateur

Graco

Graco Series B Manuel utilisateur

Graco

Graco 121325 Manuel d'utilisation

Graco

Graco ProMix 2KE Manuel d'utilisation et d'entretien

Graco

Graco 260415 Manuel d'utilisation

Graco

Graco Accu-Shot 233807 Manuel utilisateur

Graco

Graco Pulse TLM Manuel utilisateur

Graco

Graco ProControl 1KE Manuel de la liste des pièces

Graco

Graco HORIZON Manuel d'utilisation

Graco

Graco G3000 Manuel d'utilisation

Graco

Graco 26C266 Manuel utilisateur

Graco

Graco PD44 Manuel utilisateur

Graco

Graco 234576 Manuel d'utilisation

Graco

Graco FX250 Manuel d'utilisation

Graco

Graco PM8 Manuel utilisateur

Graco

Graco PPM 3050H Manuel d'utilisation

Graco

Graco HG6000 Manuel de référence technique

Graco

Graco Dispensit 1052 Guide de dépannage

Graco

Graco Pulse TEK 811 Guide de configuration

Graco

Graco ProControl 1KE Plus Manuel d'utilisation

Graco

Graco EFC C Series Manuel d'utilisation

Graco

Graco EFR Manuel d'utilisation

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
