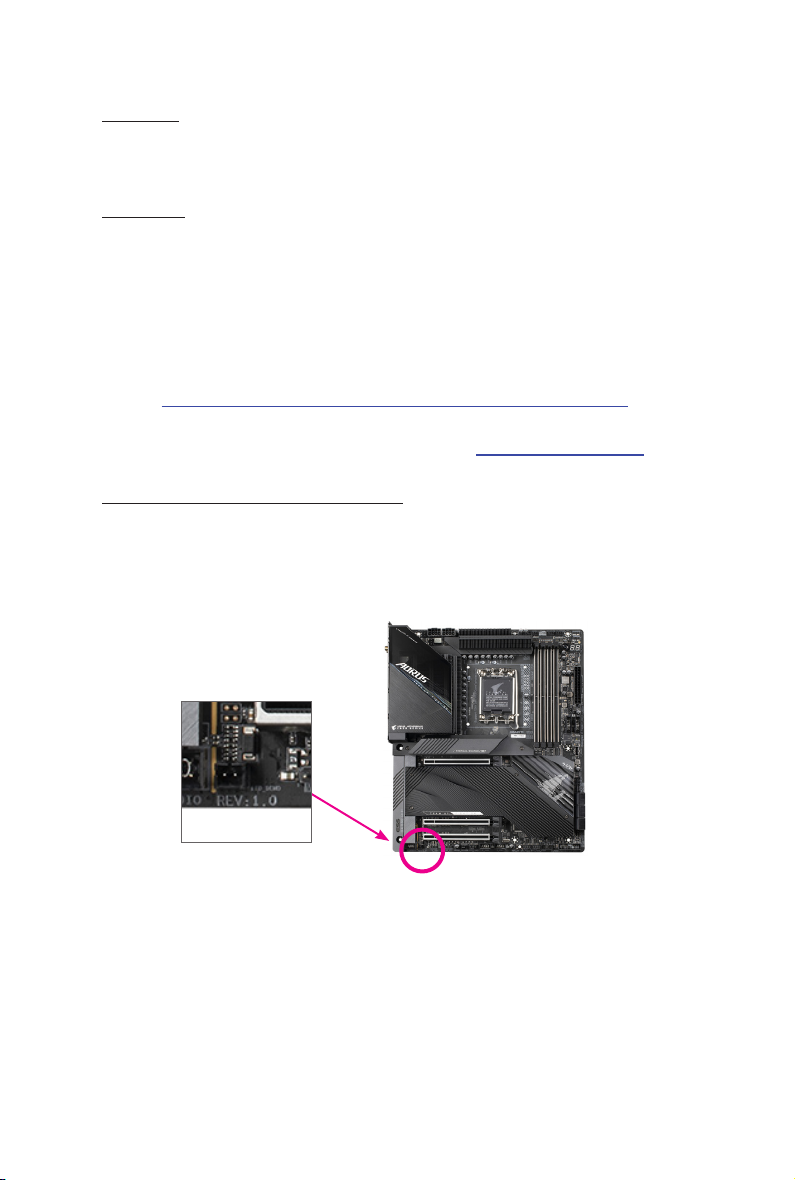

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 11

2-4 Installing the Memory..................................................................................... 14

2-5 Installing an Expansion Card ......................................................................... 15

2-6 Back Panel Connectors.................................................................................. 16

2-7 Internal Connectors........................................................................................ 18

Chapter 3 BIOS Setup ..................................................................................................29

Chapter 4 Installing the Operating System and Drivers................................................31

4-1 Operating System Installation ........................................................................ 31

4-2 Drivers Installation.......................................................................................... 32

Chapter 5 Appendix ......................................................................................................33

5-1 Conguring a RAID Set.................................................................................. 33

Regulatory Notices.................................................................................................... 34

Contact Us ................................................................................................................ 37

- 4 -

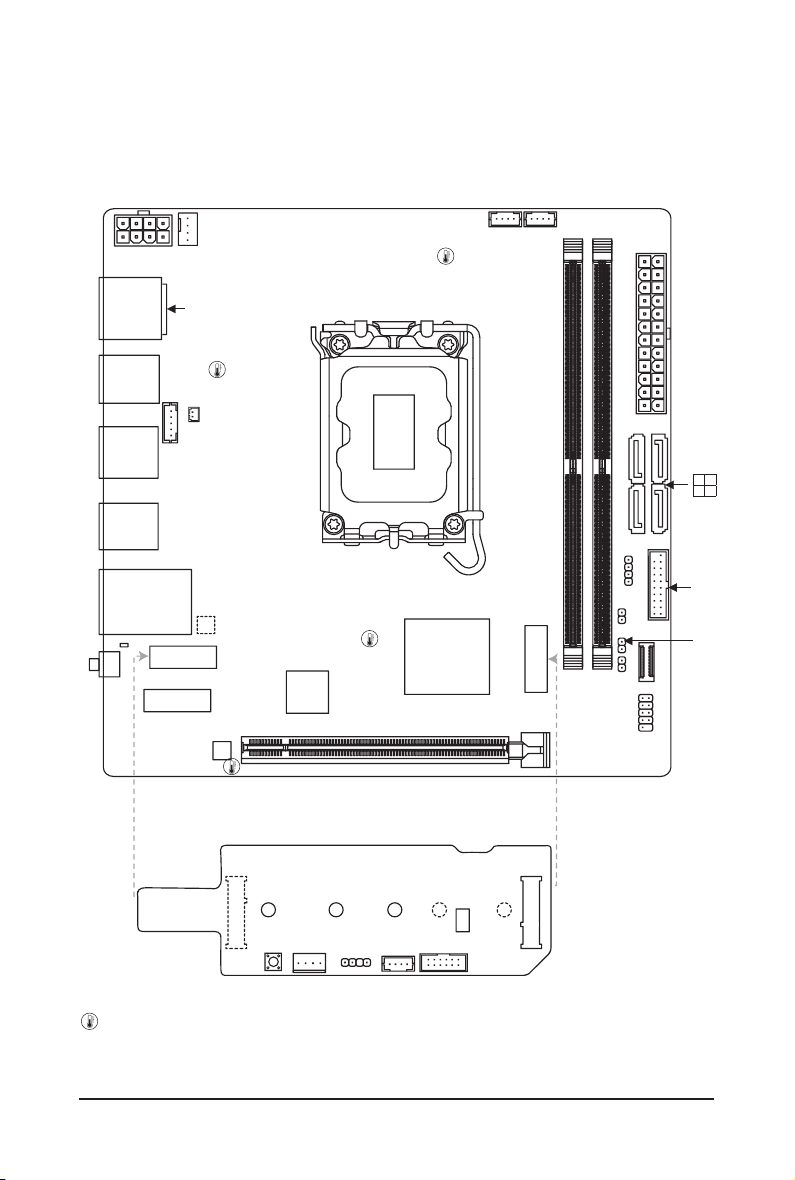

1-1 Motherboard Layout

Chapter 1 Product Introduction

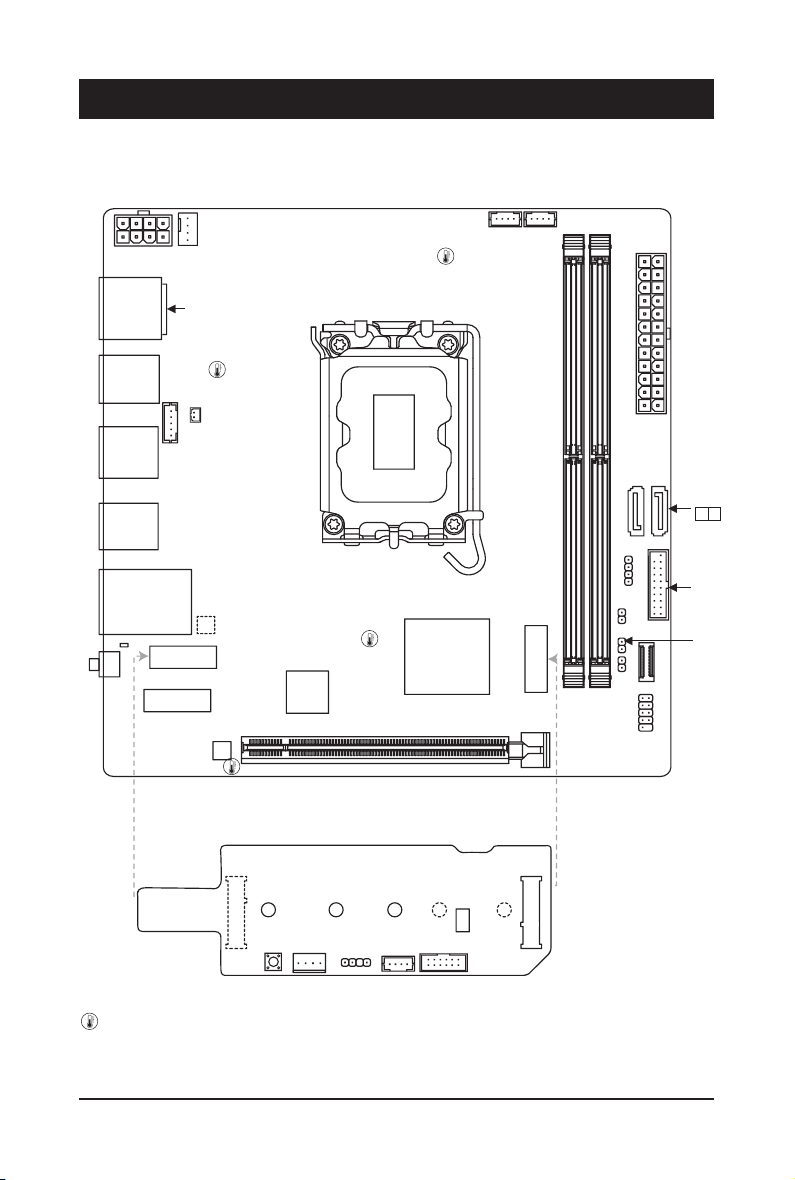

Temperature sensor

U32

U32G2_LAN

DP_HDMI20

ATX

M2_WIFI

DDR5_A1

DDR5_B1

ATX_12V_2X4

Intel®Z690

CLR_CMOS

M_BIOS PCIEX16

F_USB

M2P_SB

M2A_CPU (Note 2)

F_PANEL

SPEAKER

BAT

D_LED

SYS_FAN1

CPU_OPT

CPU_FAN

iTE®

Super I/O

80P

SATA3

Intel®2.5GbE

LAN (Note 1)

1 0

QFLASH_PLUS

QFLED

F_U32C

80A (Note2)

USB 2.0 Hub

LGA1700

U32G2

U320G

USB20

LED_C

60P 42P

SYS_FAN2

RST_SW

RST

60A (Note2)

BAT

GC-Z690I BTB PLUG

F_U32

E_AUDIO

(Note 1) The connector/chip is on the back of the motherboard.

(Note 2) The connector is on the back of GC-Z690I BTB PLUG.

EXT_PWR

BTB CONNECTOR

BTB CONNECTOR Z690I AORUS ULTRA PLUS

- 5 -

Temperature sensor

U32

U32G2_LAN

DP_HDMI20

ATX

M2_WIFI

DDR4_A1

DDR4_B1

ATX_12V_2X4

Intel®Z690

CLR_CMOS

M_BIOS PCIEX16

F_USB

M2P_SB

M2A_CPU (Note 2)

F_PANEL

SPEAKER

BAT

D_LED

SYS_FAN1

CPU_OPT

CPU_FAN

iTE®

Super I/O

80P

SATA3

Intel®2.5GbE

LAN (Note 1)

3 1

2 0

QFLASH_PLUS

QFLED

F_U32C

80A (Note2)

USB 2.0 Hub

LGA1700

U32G2

U320G

USB20

LED_C

60P 42P

SYS_FAN2

RST_SW

RST

60A (Note2)

BAT

GC-Z690I BTB PLUG

F_U32

E_AUDIO

(Note 1) The connector/chip is on the back of the motherboard.

(Note 2) The connector is on the back of GC-Z690I BTB PLUG.

EXT_PWR

BTB CONNECTOR

BTB CONNECTOR Z690I AORUS ULTRA PLUS DDR4

- 6 -

1-2 Motherboard Block Diagram

LGA1700 CPU

DMI 4.0

PCI Express 5.0 Bus

1 PCI Express x16

x16

LAN

RJ45

x1 SPI

Bus

PCI Express 3.0 Bus

4 USB 2.0/1.1

USB 2.0

Hub

Intel®Z690

BIOS

4 SATA 6Gb/sk

iTE®

Super I/O

1 USB Type-C®,

with USB 3.2 Gen 2 support

3 USB 3.2 Gen 2 Type-A

4 USB 3.2 Gen 1

Line Out

MIC

CODEC

Intel®

2.5GbE LAN

1 USB Type-C®,

with USB 3.2 Gen 2x2 support

1 M.2 Socket 3

(M2P_SB)

M.2 WIFI

eSPI

Bus

2 USB 2.0/1.1

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2A_CPU)

2 SATA 6Gb/sj

jOnly for Z690I AORUS ULTRA PLUS.

kOnly for Z690I AORUS ULTRA PLUS DDR4.

DDI

DisplayPort

DDI

HDMI

DDR5 5600 (Note)/5200 (Note)/4800/4400 MT/sj

DDR4 3200/3000/2933/2666/2400/2133 MT/sk

(Note) Actual support may vary by CPU.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for 13th Generation Intel®Core™Processors and

12th Generation Intel®Core™, Pentium®Gold and Celeron®Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®Z690 Express Chipset

Memory 13th Generation Intel®Core™i9/i7 Processors:

Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel®Core™i5/i3 and 12th Generation Intel®Core™, Pentium®

Gold and Celeron®Processors:

Support for DDR5 4800/4400 MT/s memory modules

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modulesk

2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity)

of system memoryj

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)

of system memoryk

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(The CPU and memory conguration may affect the supported memory types, data

rate (speed), and number of DRAM modules, please refer to "Memory Support

List" on GIGABYTE's website for more information.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

- 1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz

* Support for DisplayPort 1.4 version and HDCP 2.3

* The DisplayPort does not support HDMI connection by adapter.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®ALC4080 CODEC

Support for DTS:X®Ultra

High Denition Audio

2-channel

LAN Intel®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Module

Intel®Wi-Fi 6E AX411

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.2

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 5.0 standard.)

jOnly for Z690I AORUS ULTRA PLUS.

kOnly for Z690I AORUS ULTRA PLUS DDR4.

- 9 -

Storage Interface CPU:

- 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key,

type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key,

type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 2 x SATA 6Gb/s connectorsj

- 4 x SATA 6Gb/s connectorsk

Support for RAID 0, RAID 1, RAID 5k, and RAID 10k

Intel®Optane™Memory Ready

* System acceleration with Intel®Optane™Memory can only be enabled on the M.2

connector supported by the Chipset.

USB Chipset:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2x2 support

- 1 x USB Type-C®port with USB 3.2 Gen 2 support, available through the

internal USB header

- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through

the internal USB header)

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the USB headers on the front of

GC-Z690I BTB PLUG

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x external power connector (Note 1)

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers(SYS_FAN1/SYS_FAN2 (Note 1))

1 x addressable LED strip header (Note 1)

1 x RGB LED strip header

2 x M.2 Socket 3 connectors(M2A_CPU (Note 2)/M2P_SB (Note 1))

2 x SATA 6Gb/s connectorsj

4 x SATA 6Gb/s connectorsk

1 x front panel header

1 x front panel audio header(routed from the adapter card on the rear panel)

1 x speaker header

1 x USB Type-C®header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header (Note 1)

1 x reset button (Note 1)

1 x reset jumper

1 x Clear CMOS jumper

jOnly for Z690I AORUS ULTRA PLUS.

kOnly for Z690I AORUS ULTRA PLUS DDR4.

(Note 1) The connector is on the front of GC-Z690I BTB PLUG.

(Note 2) The connector is on the back of GC-Z690I BTB PLUG.

- 10 -

Back Panel

Connectors

2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x HDMI port

1 x USB Type-C®port, with USB 3.2 Gen 2x2 support

3 x USB 3.2 Gen 2 Type-A ports (red)

2 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

2 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/Z690I-AORUS-ULTRA-PLUS-rev-10?m=dl#support-dl

https://www.gigabyte.com/Motherboard/Z690I-AORUS-ULTRA-PLUS-DDR4-rev-10?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest

version of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-F2A58-DS3 Manuel utilisateur

Gigabyte

Gigabyte GA-F2A75M-DS2 Manuel utilisateur

Gigabyte

Gigabyte GA-Z270N-WIFI Manuel utilisateur

Gigabyte

Gigabyte GA-3CESL-RH Manuel utilisateur

Gigabyte

Gigabyte GA-Z77MX-D3H TH Manuel utilisateur

Gigabyte

Gigabyte GA-Z77-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-73PVM-S2 Manuel utilisateur

Gigabyte

Gigabyte B450 AORUS ELITE V2 Manuel utilisateur

Gigabyte

Gigabyte GA-MA770-ES3 Manuel utilisateur

Gigabyte

Gigabyte 6WXM Manuel utilisateur

Gigabyte

Gigabyte GA-8I865GVM-775 Manuel utilisateur

Gigabyte

Gigabyte GA-B85M-HD3 Manuel utilisateur

Gigabyte

Gigabyte GA-990FXA-UD5 Manuel utilisateur

Gigabyte

Gigabyte MD80-TM0 Manuel utilisateur

Gigabyte

Gigabyte GA-5EASV-RH Manuel utilisateur

Gigabyte

Gigabyte MSH61DK Manuel utilisateur

Gigabyte

Gigabyte B460M H Manuel utilisateur

Gigabyte

Gigabyte Z490 VISION G Manuel utilisateur

Gigabyte

Gigabyte B450M H Manuel utilisateur

Gigabyte

Gigabyte B360 HD3P Manuel utilisateur

Gigabyte

Gigabyte GA-MA74GM-S2H Manuel utilisateur

Gigabyte

Gigabyte P4 Titan GA-8S650GXM-P-C Manuel utilisateur

Gigabyte

Gigabyte GA-A55-S3P Manuel utilisateur

Gigabyte

Gigabyte GA-E350N Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
