GA-MA770-UD3/

GA-MA770-US3

AM2+/AM2 socket motherboard for

AMD PhenomTM FX processor/AMD PhenomTM X4 processor/

AMD PhenomTM X3 processor/AMD AthlonTM X2 processor/

AMD AthlonTM processor/AMD SempronTM X2 processor/

AMD SempronTM processor

User's Manual

Rev. 1001

12ME-MA77UDS3-1001R

Motherboard

GA-MA770-UD3/

GA-MA770-US3

Nov. 28, 2008

Motherboard

GA-MA770-UD3/GA-MA770-US3

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classifications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For instructions on how to use GIGABYTE's unique features, read or download the

information on/from the Support\Motherboard\Technology Guide page on our website.

For product-related information, check on our website at:

http://www.gigabyte.com.tw

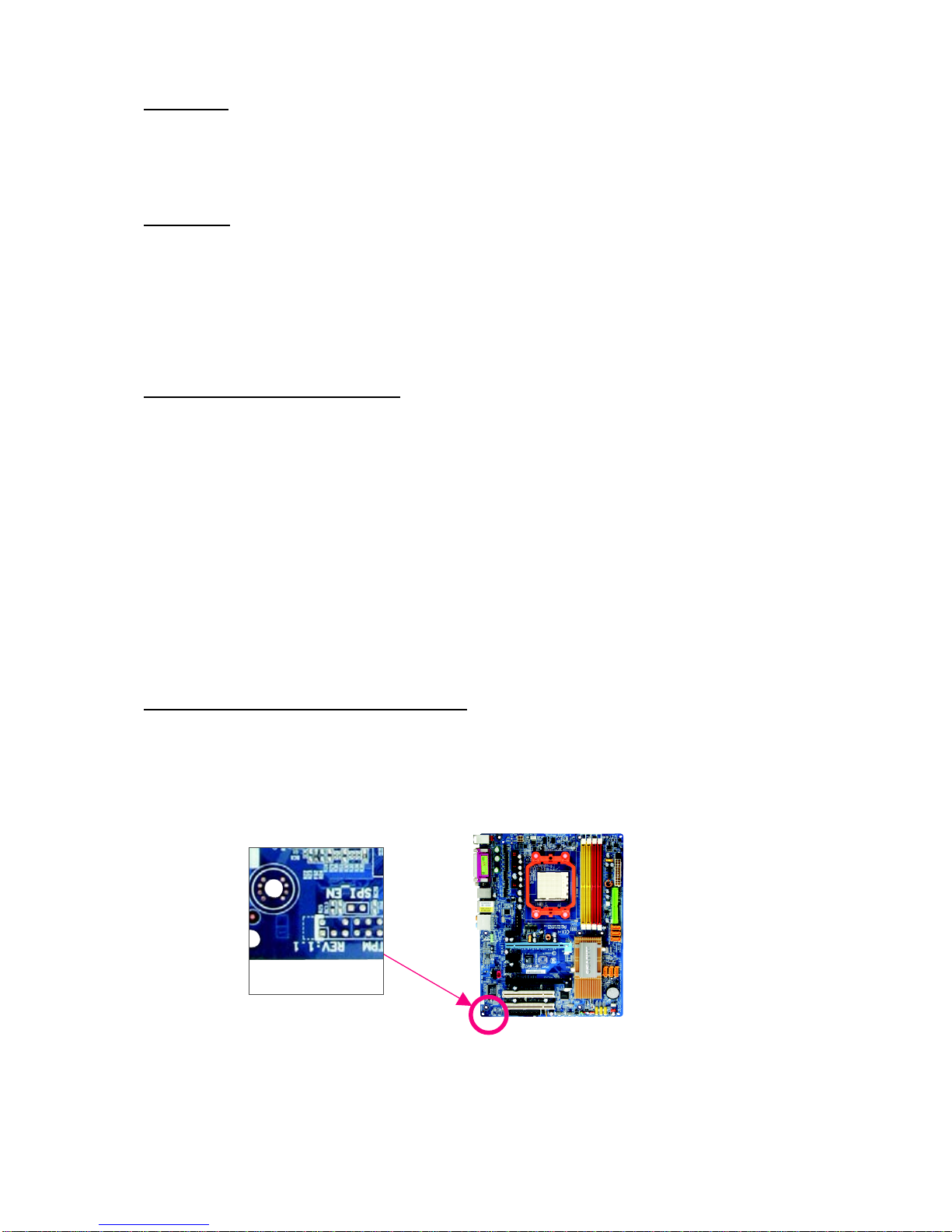

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents ................................................................................................................. 6

Optional Items................................................................................................................. 6

GA-MA770-UD3/US3 Motherboard Layout.................................................................... 7

Block Diagram................................................................................................................ 8

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Installation Precautions ..................................................................................... 9

1-2 Product Specifications .................................................................................... 10

1-3 Installing the CPU and CPU Cooler .............................................................. 13

1-3-1 Installing the CPU ................................................................................................ 13

1-3-2 Installing the CPU Cooler ................................................................................... 15

1-4 Installing the Memory ..................................................................................... 16

1-4-1 Dual Channel Memory Configuration ................................................................ 16

1-4-2 Installing a Memory ............................................................................................. 17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Back Panel Connectors ................................................................................. 19

1-7 Internal Connectors ........................................................................................ 21

Chapter 2 BIOS Setup................................................................................................. 33

2-1 Startup Screen................................................................................................ 34

2-2 The Main Menu .............................................................................................. 35

2-3 MB Intelligent Tweaker(M.I.T.) ....................................................................... 37

2-4 Standard CMOS Features ............................................................................. 41

2-5 Advanced BIOS Features.............................................................................. 43

2-6 Integrated Peripherals ..................................................................................... 45

2-7 Power Management Setup ............................................................................. 49

2-8 PnP/PCI Configurations................................................................................. 51

2-9 PC Health Status ........................................................................................... 52

2-10 Load Fail-Safe Defaults................................................................................... 54

2-11 Load Optimized Defaults................................................................................. 54

2-12 Set Supervisor/User Password ..................................................................... 55

2-13 Save & Exit Setup ......................................................................................... 56

2-14 Exit Without Saving ....................................................................................... 56

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 57

3-1 Installing Chipset Drivers ............................................................................... 57

3-2 Application Software....................................................................................... 58

3-3 Technical Manuals .......................................................................................... 58

3-4 Contact ........................................................................................................... 59

3-5 System ........................................................................................................... 59

3-6 Download Center............................................................................................ 60

Chapter 4 Unique Features ......................................................................................... 61

4-1 Xpress Recovery2 ......................................................................................... 61

4-2 BIOS Update Utilities ..................................................................................... 66

4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 66

4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 69

4-3 EasyTune 6.................................................................................................... 70

4-4 Easy Energy Saver ...................................................................................... 71

Chapter 5 Appendix .................................................................................................... 73

5-1 Configuring SATA Hard Drive(s) .................................................................... 73

5-1-1 Configuring the Onboard SATA Controller ......................................................... 73

5-1-2 Making a SATA RAID/AHCI Driver Diskette for W indows XP ........................ 79

5-1-3 Installing the SATA RAID/AHCI Driver and Operating System ...................... 80

5-2 Configuring Audio Input and Output ................................................................. 85

5-2-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 85

5-2-2 Installing the S/PDIF In Cable (Optional) ........................................................... 87

5-2-3 Configuring Microphone Recording ................................................................... 88

5-2-4 Using the Sound Recorder ................................................................................. 90

5-3 Troubleshooting ............................................................................................... 91

5-3-1 Frequently Asked Questions ............................................................................. 91

5-3-2 Troubleshooting Procedure ................................................................................ 92

5-4 Regulatory Statements ................................................................................... 94

- 6 -

Box Contents

GA-MA770-UD3 or GA-MA770-US3 motherboard

Motherboard driver disk

User's Manual

Quick Installation Guide

One IDE cable and one floppy disk drive cable

Two SATA 3Gb/s cables

I/O Shield

Optional Items

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-51R)

2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-01R)

2-port SATA power cable (Part No. 12CF1-2SERPW-01R)

COM port cable (Part No. 12CF1-1CM001-32R)

S/PDIF in cable (Part No. 12CR1-1SPDIN-01R)

LPT port cable (Part No. 12CF1-1LP001-01R)

•The box contents above are for reference only and the actual items shall depend on product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 7 -

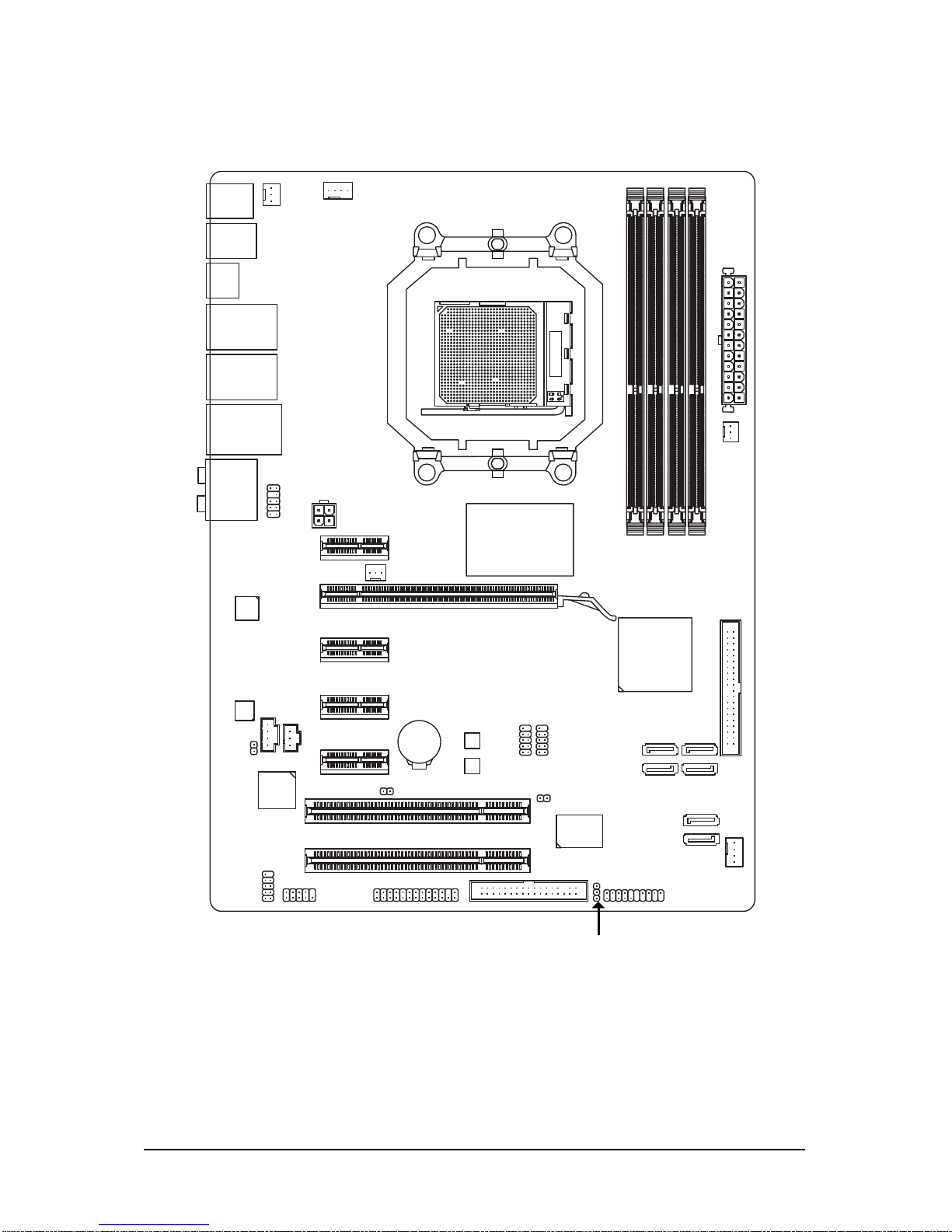

GA-MA770-UD3/US3 Motherboard Layout

"*" The GA-MA770-UD3 adopt All-Solid Capacitor design.

KB_MS CPU_FAN

ATX

CD_IN

F_AUDIO

AUDIO

Main

BIOS

PCIE_16

PCIE_1

F_USB2

IDE

PCIE_2

SPDIF_IN

DDRII_1

DDRII_2

DDRII_3

DDRII_4

BAT

F_PANEL

IT8720

SATAII3

ATX_12V

AMD 770

AMD SB700

PWR_LED

FDD

PCIE_4

SATAII2

PCI1

PCI2

CLR_CMOS

LPT

CODEC

RTL8111C

PWR_FAN

SYS_FAN1

F_USB1

SATAII1

SATAII0

SYS_FAN2

RCA_SPDIF

R_USB

SPDIF_OUT

USB_1394_1

USB_1394_2

USB_LAN

Socket AM2

NB_FAN

PCIE_3

F1_1394

TSB43AB23

Backup

BIOS

SATAII5

SATAII4

COMA

GA-MA770-UD3/US3

- 8 -

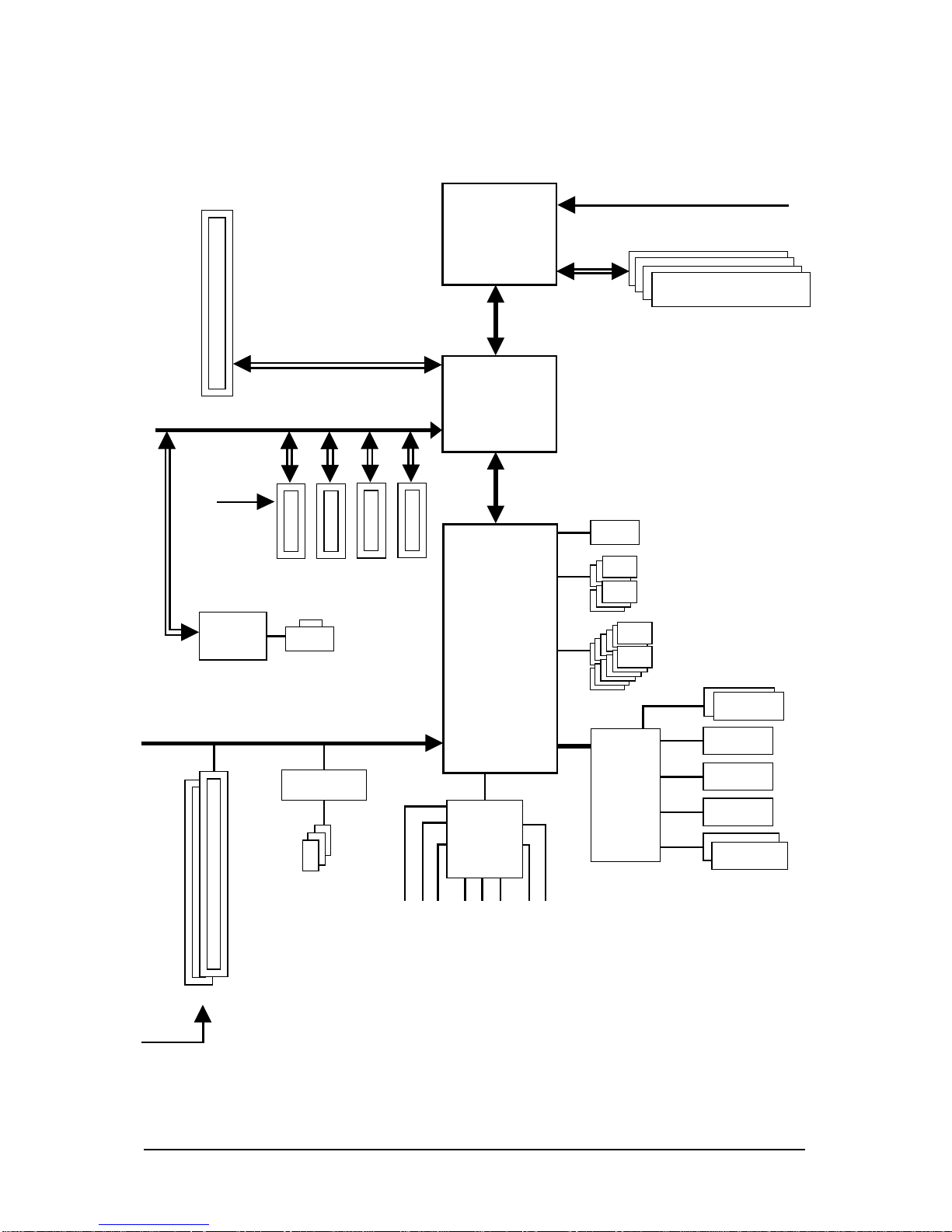

Block Diagram

DDR2 1200/1066/800/667 MHz

Dual Channel Memory

PCI CLK

(33 MHz)

AMD Socket

AM2+/AM2

CPU

Hyper Transport 3.0

AMD 770

2 PCI

PCI Bus

PCI Express Bus

6 SATA 3Gb/s

3 IEEE 1394a

12 USB Ports

LPT Port

COM Port

CPU CLK+/-(200 MHz)

TSB43AB23

Center/Subwoofer Speaker Out

Line-Out

MIC

Line-In

SPDIF In

SPDIF Out

Side Speaker Out

Surround Speaker Out

CODEC

LAN

RJ45

RTL8111C

ATA-133/100/66/33

IDE Channel

PCIe CLK

(100 MHz)

PCI Express x16

4 PCI Express x1

PCIe CLK

(100 MHz)

x1 x1

PS/2 KB/Mouse

AMD SB700

Floppy

IT8720

Dual BIOS

1 PCI Express x16

Hardware Installation- 9 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and first touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Chapter 1 Hardware Installation

GA-MA770-UD3/US3 Motherboard - 10 -

1-2 Product Specifications

CPU Support for Socket AM2+/AM2 processors:

AMD PhenomTM FX processor/AMD Phenom TM X4 processor/

AMD PhenomTM X3 processor/AMD AthlonTM X2 processor/

AMD AthlonTM processor/AMD SempronTM X2 processor/

AMD SempronTM processor

(Go to GIGABYTE's website for the latest CPU support list.)

Hyper Transport Bus 5200/2000 MT/s

Chipset North Bridge: AMD 770

South Bridge: AMD SB700

Memory 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR2 1200 (Note 2)/1066/800/667 MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Support for ECC memory (Note 3)

Audio Realtek ALC888 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF In/Out

Support for CD In

LAN Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIE_16)

(The PCI Express x16 slot conforms to PCI Express 2.0 standard.)

4 x PCI Express x1 slots

2 x PCI slots

Storage Interface South Bridge:

- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

- 6 x SATA 3Gb/s connectors supporting up to 6 SA TA 3Gb/s devices

- Support for SATA RAID 0, RAID 1 and RAID 10

iTE IT8720 chip:

- 1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394 T.I. TSB43AB23 chip

Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394a bracket

connected to the internal IEEE 1394a header)

USB Integrated in the South Bridge

Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

"*" The GA-MA770-UD3 adopt All-Solid Capacitor design.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-8VM800PMD-775-RH Manuel utilisateur

Gigabyte

Gigabyte 686LX4 Manuel utilisateur

Gigabyte

Gigabyte Z690 Series Manuel utilisateur

Gigabyte

Gigabyte GA-K8VT890 Manuel utilisateur

Gigabyte

Gigabyte GA-2CEWH Manuel utilisateur

Gigabyte

Gigabyte GA-8AENXP-DW Manuel utilisateur

Gigabyte

Gigabyte GA-VM900MC Manuel utilisateur

Gigabyte

Gigabyte GA-880GM-USB3 Manuel utilisateur

Gigabyte

Gigabyte GA-X170-Extreme ECC Manuel utilisateur

Gigabyte

Gigabyte GA-G41MT-D3PT Manuel utilisateur

Gigabyte

Gigabyte GA-N3150N-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-H61TN Manuel utilisateur

Gigabyte

Gigabyte GA-P55M-UD2 Manuel utilisateur

Gigabyte

Gigabyte GA-EP45T-USB3P Manuel utilisateur

Gigabyte

Gigabyte GA-890XA-UD3 Manuel utilisateur

Gigabyte

Gigabyte GA-EP45-DQ6 Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Gigabyte

Gigabyte GA-7N400E Manuel utilisateur

Gigabyte

Gigabyte 5AMMC Manuel utilisateur

Gigabyte

Gigabyte GA-H110M-DS2 DDR3 Manuel utilisateur

Gigabyte

Gigabyte GA-73VM-S2 Manuel utilisateur

Gigabyte

Gigabyte MA770T-UD3P Manuel utilisateur

Gigabyte

Gigabyte GA-Z87M-HD3 Manuel utilisateur

Gigabyte

Gigabyte GA-A75-DS3P Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
