Gigabyte 5AMMC Manuel utilisateur

Table of Contents

TABLE OF CONTENTS

1. INTRODUCTION

1.1. PREFACE................................................................................. 1-1

1.2. KEY FEATURES....................................................................... 1-1

1.3. PERFORMANCE LIST .............................................................. 1-3

1.4. BLOCK DIAGRAM..................................................................... 1-4

1.5. INTRODUCE THE PCI - BUS.................................................... 1-5

1.6. FEATURES............................................................................... 1-5

1.7. What is AGP............................................................................. 1-6

2. SPECIFICATION

2.1. HARDWARE............................................................................. 2-1

2.2. SOFTWARE.............................................................................. 2-2

2.3. ENVIRONMENT........................................................................ 2-2

3. HARDWARE INSTALLATION

3.1. UNPACKING............................................................................. 3-1

3.2. MAINBOARD LAYOUT.............................................................. 3-3

3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS.......... 3-3

3.4. SRAM INSTALLATION DRAM INSTALLATION.......................... 3-6

3.5. DRAM INSTALLATION.............................................................. 3-6

3.6. CPU INSTALLATION AND JUMPERS SETUP........................... 3-6

3.7. CMOS RTC & ISA CFG CMOS SRAM....................................... 3-8

3.8. SPEAKER CONNECTOR INSTALLATION................................. 3-8

5AMMC

3.9. HARDWARE RESET SWITCH CONNECTOR INSTALLATION...3-8

3.10. GREEN FUNCTION INSTALLATION....................................... 3-8

3.11. PERIPHERAL DEVICE INSTALLATION................................... 3-8

4. BIOS CONFIGURATION

4.1. ENTERING SETUP................................................................... 4-1

4.2. CONTROL KEYS ...................................................................... 4-2

4.3. GETTING HELP........................................................................ 4-3

4.3.1. Main Menu............................................................................. 4-3

4.3.2. Status Page Setup Menu / Option Page Setup Menu.............. 4-3

4.4. THE MAIN MENU...................................................................... 4-3

4.5. STANDARD CMOS SETUP MENU............................................ 4-5

4.6. BIOS FEATURES SETUP ......................................................... 4-9

4.7. CHIPSET FEATURES SETUP................................................... 4-14

4.8. POWER MANAGEMENT SETUP.............................................. 4-18

4.9. PNP/PCI CONFIGURATION...................................................... 4-21

4.10. LOAD BIOS DEFAULTS.......................................................... 4-23

4.11. LOAD SETUP DEFAULTS....................................................... 4-24

4.12. INTEGRATED PERIPHERALS ................................................ 4-25

4.13. SUPERVISOR / USER PASSWORD....................................... 4-31

4.14. IDE HDD AUTO DETECTION.................................................. 4-32

4.15. SAVE & EXIT SETUP.............................................................. 4-33

4.16. EXIT WITHOUT SAVING ........................................................ 4-34

Table of Contents

5. Troubleshooting .............................................................................5-1

Introduction

1-1

1. INTRODUCTION

1.1. PREFACE

Welcome to use the 5AMMC motherboard. The motherboard is a Pipeline 512 KB

CACHE PentiumProcessor based PC / AT compatible system with ISA bus and

PCI Local Bus, and has been designed to be the fastest PC / AT system. There are

some new features allow you to operate the system with the performance you want.

This manual also explains how to install the motherboard for operation, and how to

set up your CMOS CONFIGURATION with BIOS SETUP program.

1.2. KEY FEATURES

qPentiumProcessor based PC / AT compatible mainboard with PCI / ISA / AGP

Bus.

q3 PCI Bus slots, 2 ISA Bus slots.

qSupports :

•PentiumProcessor : 133/166/200 MHz; MMX (166 / 200 / 233)

•AMD : K6-(166 / 200 / 233 / 266 / 300)

K6-2(266 / 300 / 333 / 350 / 380 / 400 )

•Cyrix/IBM

6x86MX (PR166 / PR200 / PR233 / PR266) ;

M¢º-PR300 / PR333

•IDT : C6-(200 / 225 / 266)

qSupports true 64 bits CACHE and DRAM access mode.

qSupports 321 Pins (Socket 7) ZIF white socket on board.

qSupports 512 KB Pipeline Burst Sync. 2nd Level Cache.

5AMMC

1-2

qCPU L1 / L2 Write-Back cache operation.

qBuilt-in ATi RAGE IIC graphics acceleration chip (4MB SGRAM) .

qBuilt-in PCI ESS SOLO-1 ES1938S audio chip.

qSupports external Modem Ring-On on COM A and COM B.

qSupports Wake-up on LAN (J2).

qSupports 8 - 512 MB DRAM memory on board.

qSupports 2x168 pin 64/72 Bit DIMM module.

qSupports 2-channel Enhanced PCI IDE ports for 4 IDE Devices.

qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x1.44MB Floppy port.

qSupports Green function, Plug & Play function.

qLicensed AWARD BIOS, 2MB bit FLASH RAM for BIOS update.

q24.38cmx20cm, Micro ATX Form factor.

qSupports USB port & PS/2 Mouse and K/B port.

Introduction

1-3

1.3. PERFORMANCE LIST

The following list of performance data is the testing results of some popular

benchmark testing programs.

These data are just referred by users, and there is no responsibility for different

testing data values gotten by users. (The different Hardware & Software configuration

will result in different benchmark testing results.)

•CPU PentiumProcessor MMX-233 MHz, Cyrix 6x86MX-

PR233, AMD K6-2 300

•DRAM (64 × 2) MB SDRAM (LGS GM72V66841CT7J)

•CACHE SIZE 512 KB

•DISPLAY Onboard ATi RAGE IIC AGP Card (4MB SGRAM)

•STORAGE Onboard IDE (Seagate ST34520A)

•O.S. Windows® NT 4.0

•DRIVER Display Driver at 1024 x 768 x 256 colors x 75Hz.

ALi Bus Master IDE Driver

Processor Intel-MMX 233MHz

(66x3.5)

AMD K6-2 300

(100x3)

Cyrix 6x86MX-

PR233 (75x2.5 )

Winbench98

CPU mark32

468 769 468

FPU Winmark 916 984 424

Business Disk 1890 2020 1850

Hi-End Disk 4110 4710 3980

Business Graphics 102 145 103

Hi-End Graphics 112 162 120

Winstone98

Business 21.9 29 21.7

Hi-End 23.4 29.9 22.3

5AMMC

1-4

1.4. BLOCK DIAGRAM

CPU

PBSRAM

AGP

DEVICE

Host

Address

Host Data

Bus

ISA Bus

MD Bus

ALi M1543C

ALi M1541

DRAM

MA Bus

100MHz

33MHz

48MHz

14.318MH

PCI

Device

PCI

Device

PCI

Device

PCI Bus

ISA

Device

ISA

Device

COMA

COMB

LPT FDD

PS/2

GPIO

USB

100MHz

66MHz

14.318Hz

8MHz

100MHz

14.318Hz

66MHz

Mouse

Keyboard

IDE

DEVICE

66MHz

100MHz

ICS9148

BF-36

Introduction

1-5

1.5. INTRODUCE THE PCI - BUS

Connecting devices to a CPU local bus can dramatically increase the speed of I/O-

bound peripherals with only a slight increase in cost over traditional systems.

This price / Performance point has created a vast market potential for local bus

products.

The main barrier to this market has been the lack of an accepted standard for local

bus peripherals.

Many mainboard and chipset manufactures developed their own local bus

implementations, but they are incompatible with each other.

The VL (Video Electronics Standards Association) local bus and PCI (Peripheral

Component Interconnect) bus specification was created to end this confusion.

The PCI - bus standard, under development since Jun. 1992, which is designed to

bring workstation-level performance to standard PC platform. The PCI - bus removes

many of the bottlenecks that have hampered PC for several years.

On the PCI - bus, peripherals operate at the native speed of the computer system,

thus enabling data transfer between peripherals and the system at maximum speed.

This performance is critical for bandwidth-constrained devices such as video,

multimedia, mass storage, and networking adapters.

PCI - bus standard provides end-users with a low-cost, extendible and portable local

bus design, which will allow system and peripherals from different manufactures to

work together.

1.6. FEATURES

q32 bits bus transfer mode.

qBus Master or Slave access.

qMemory burst transfer to 132 MB/sec.

q33 MHz operation speed.

q10 device loading ability.

qCPU independent.

5AMMC

1-6

1.7. What is AGP

The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge device

that supports an AGP port. The main purpose of the AGP port is to provide fast

access to system memory.

The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits at

33MHz) or as an AGP port which supports 2x data-rate, a read queue, and side band

addressing. When the 2x-data rate is used the port can transmit data at 533Mb/sec

(66.6*2*4). The read-queue can be used to pipeline reads –removing the effects of

the reads-latency. Side band addressing can be used to transmit the data address on

a separate line in order to further speed the transaction.

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-MA78GM-S2H Manuel

Gigabyte

Gigabyte GA-946GMX-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-MA74GM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-B85M-D3V Manuel utilisateur

Gigabyte

Gigabyte GA-965G-DS3 Manuel utilisateur

Gigabyte

Gigabyte GA-7N400 Pro2 Manuel utilisateur

Gigabyte

Gigabyte 6VXDC7 Manuel utilisateur

Gigabyte

Gigabyte Xeon Processor Motherboard GA-5YXS-RH Manuel utilisateur

Gigabyte

Gigabyte Z590 AORUS XTREME Manuel utilisateur

Gigabyte

Gigabyte B760 DS3H AX Manuel utilisateur

Gigabyte

Gigabyte GA-K8N Pro Manuel utilisateur

Gigabyte

Gigabyte GA-M57SLI-S4 Manuel utilisateur

Gigabyte

Gigabyte GA-F2A88XM-DS2 Manuel utilisateur

Gigabyte

Gigabyte GA-8ID533 Manuel utilisateur

Gigabyte

Gigabyte Z690 AERO D Manuel utilisateur

Gigabyte

Gigabyte GA-990FXA-UD7 Manuel utilisateur

Gigabyte

Gigabyte GA-P67A-UD7-B3 Manuel utilisateur

Gigabyte

Gigabyte GA-M85M-US2H Manuel utilisateur

Gigabyte

Gigabyte G1.Sniper B6 Manuel utilisateur

Gigabyte

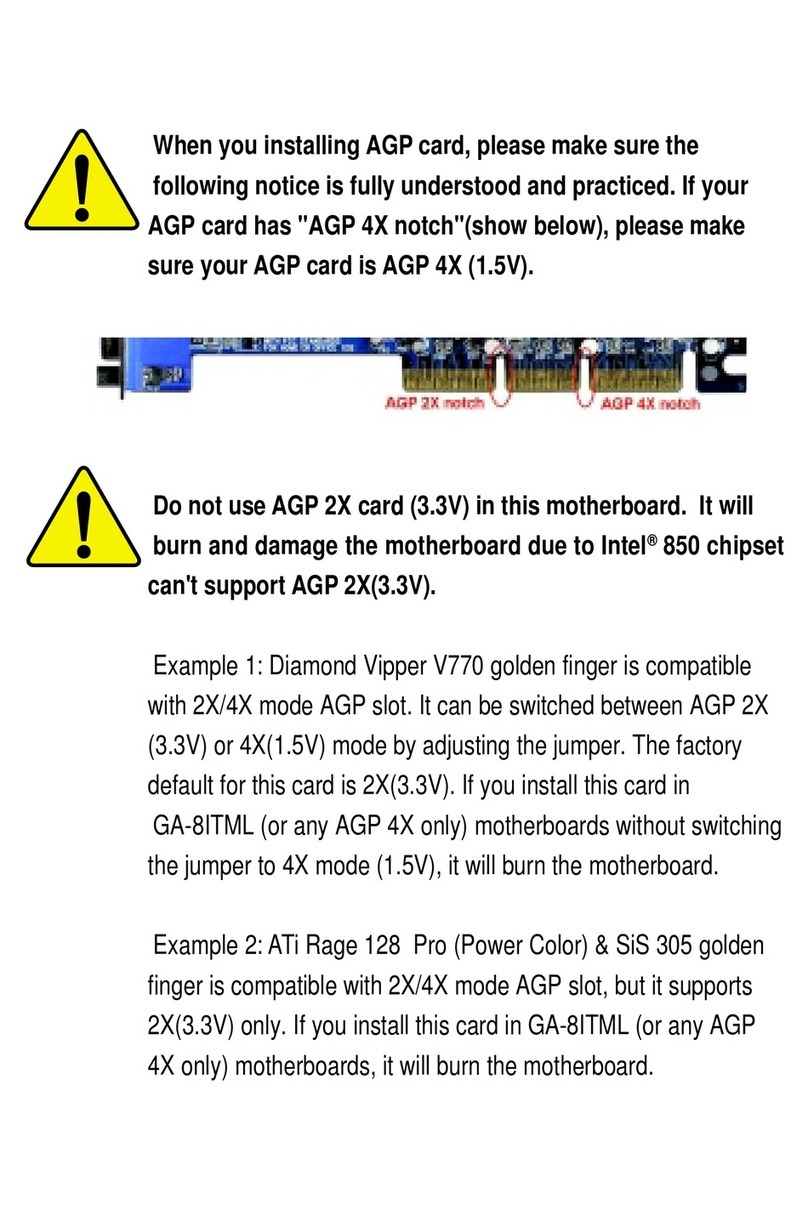

Gigabyte GA-8ITML Manuel utilisateur
