Gigabyte GA-8IR2003 Manuel utilisateur

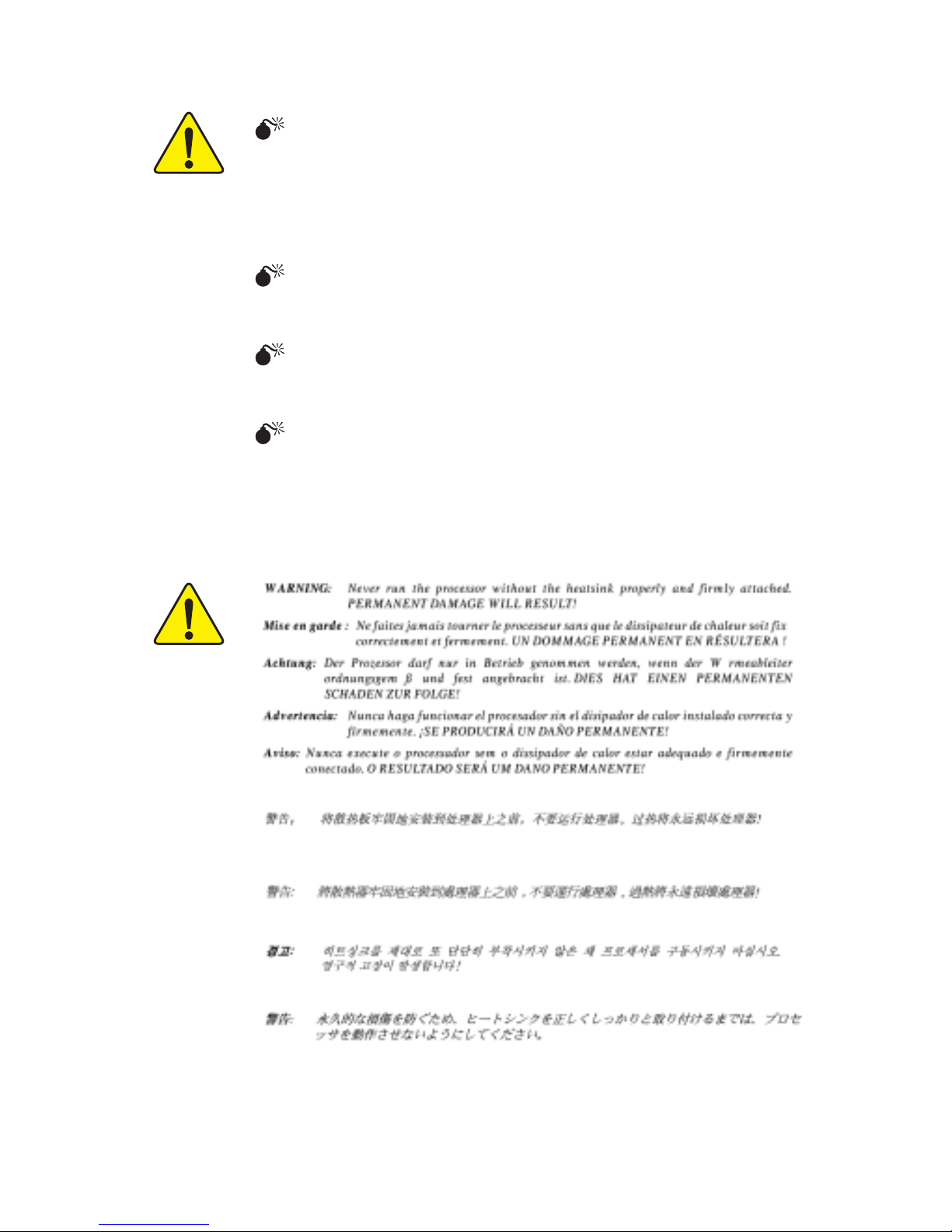

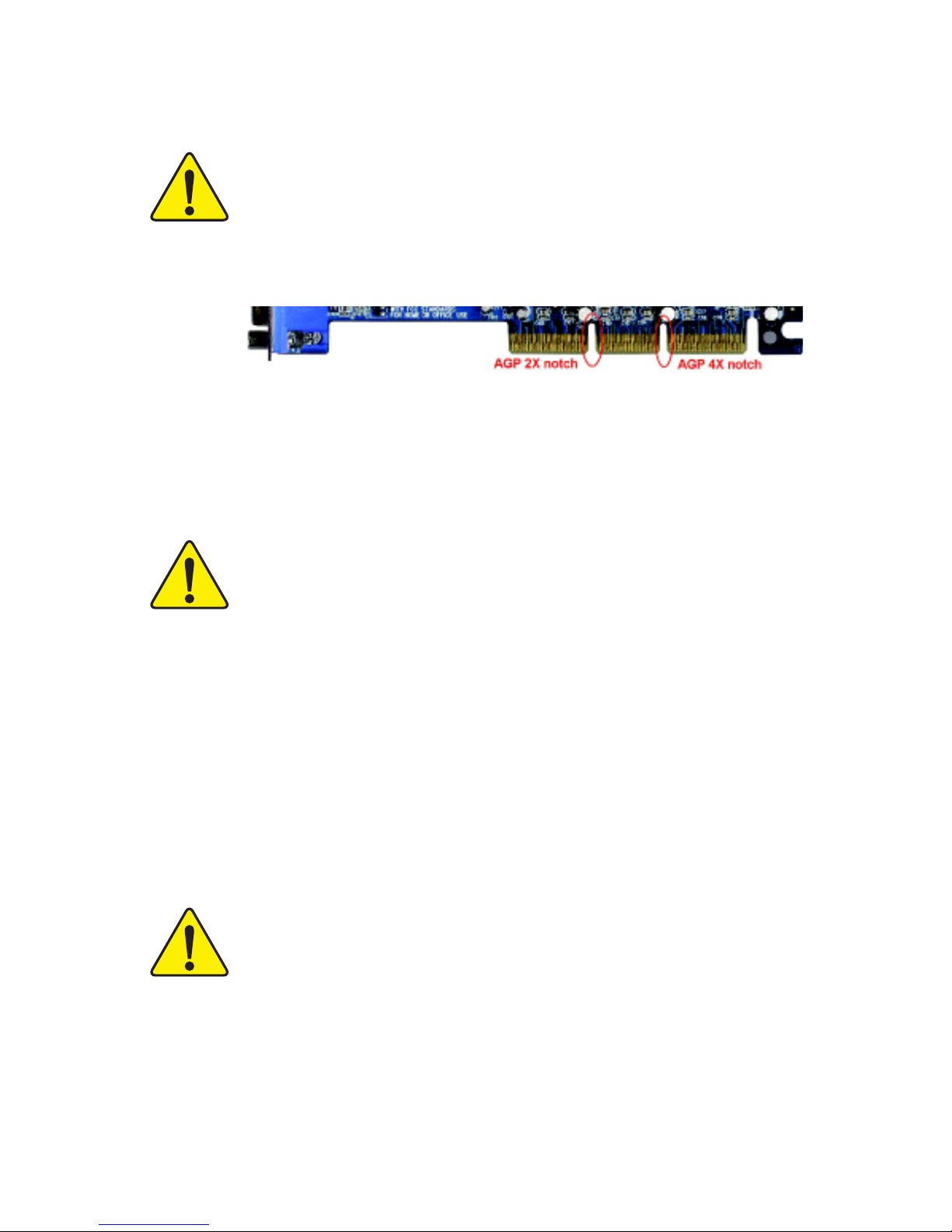

When you installing AGP card, please make sure the following

notice is fully understood and practiced. If your AGP card has "AGP

4X notch"(show below), please make sure your AGP card is AGP 4X

(1.5V).

Do not use AGP 2X card (3.3V) in this motherboard. It will burn and

damage the motherboard due to Intel®845(E/G) / 850(E) chipset

can't support AGP 2X(3.3V).

Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X

mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X (1.5V)

mode by adjusting the jumper. The factory default for this card is 2X (3.3V).

If you install this card in GA-8IR2003 (or any AGP 4X only) motherboards

without switching the jumper to 4X mode (1.5V), it will burn the motherboard.

Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",

the graphics card manufacturer & some SiS 305 cards, their golden finger is

compatible with 2X/4X mode AGP slot, but they support 2X(3.3V) only. If you

install this card in GA-8IR2003 (or any AGP 4X only) motherboards, it will

burn the motherboard.

Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage

128 Pro chip, the design of AG32S(G) is compliance with AGP 4X (1.5V)

specification. Therefore, AG32S(G) will work fine with Intel®845(E/G) /

850(E) based motherboards.

The author assumes no responsibility for any errors or

omissions that may appear in this document nor does

the author make a commitment to update the informa-

tion contained herein.

Third-party brands and names are the property of their

respective owners.

Please do not remove any labels on motherboard, this

may void the warranty of this motherboard.

Due to rapid change in technology, some of the

specifications might be out of date before publication

of this booklet.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

declare that the product

( description of the apparatus, system, installation to which it refers)

Mother Board

GA-8IR2003

is in conformity with

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive



EN 55011 Limits and methods of measurement

of radio disturbance characteristics of

industrial, scientific and medical (ISM

high frequency equipment



EN 61000-3-2*

7EN 60555-2

Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Harmonics”



EN 55013 Limits and methods of measurement

of radio disturbance characteristics of

broadcast receivers and associated

equipment



EN 61000-3-3* Disturbances in supply systems cause

by household appliances and similar

electrical equipment “Voltage fluctuations”



EN 55014 Limits and methods of measurement

of radio disturbance characteristics of

household electrical appliances,

portable tools and similar electrical

apparatus

7EN 50081-1 Generic emission standard Part 1:

Residual commercial and light industry

7EN 50082-1 Generic immunity standard Part 1:

Residual commercial and light industry



EN 55015 Limits and methods of measurement

of radio disturbance characteristics of

fluorescent lamps and luminaries

Generic emission standard Part 2:

Industrial environment



EN 55081-2

Immunity from radio interference of

broadcast receivers and associated

equipment

Generic emission standard Part 2:

Industrial environment



EN 55082-2

7EN 55022 Limits and methods of measurement

of radio disturbance characteristics of

information technology equipment

lmmunity requirements for household

appliances tools and similar apparatus



ENV 55104

Cabled distribution systems; Equipment

for receiving and/or distribution from

sound and television signals

EMC requirements for uninterruptible

power systems (UPS)



EN50091-2



EN 55020



DIN VDE 0855



part 10



part 12

(EC conformity marking)

7CE marking

The manufacturer also declares the conformity of above mentioned product

with the actual required safety standards in accordance with LVD 73/23 EEC

Safety requirements for mains operated

electronic and related apparatus for

household and similar general use



EN 60950



EN 60065

Safety of household and similar

electrical appliances



EN 60335

Manufacturer/Importer

Signature:

Name:

(Stamp) Date : May. 17, 2002

7EN 60555-3

Timmy Huang



EN 50091-1

Safety for information technology equipment

including electrical bussiness equipment

General and Safety requirements for

uninterruptible power systems (UPS)

G.B.T. Technology Trading GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a),

Class B Digital Device

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible PartyName:

Address:

Phone/FaxNo:

hereby declares that the product

ProductName:

Conforms to the following specifications:

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful and (2) this device must accept any inference received,

including that may cause undesired operation.

Representative Person’s Name:

Signature: Eric Lu

SupplementaryInformation:

ModelNumber:

17358 Railroad Street

City of Industry, CA 91748

G.B.T. INC. (U.S.A.)

(818) 854-9338/ (818) 854-9339

Motherboard

GA-8IR2003

Date:

ERIC LU

May 17, 2 002

USER'S MANUAL

GA-8IR2003

P4 Titan DDR Motherboard

Pentium®4 Processor Motherboard

Rev. 2002

12ME-8IR2003-2002

- 2 -

GA-8IR2003 Motherboard

English

Table of Content

Item Checklist ......................................................................................... 4

WARNING! ............................................................................................... 4

Chapter 1 Introduction ............................................................................ 5

Features Summary ...................................................................................... 5

GA-8IR2003 Motherboard Layout ............................................................... 7

Chapter 2 Hardware Installation Process ............................................... 8

Step 1: Install the Central Processing Unit (CPU)....................................... 9

Step 1-1: CPU Installation ................................................................................................ 9

Step 1-2: CPU Heat Sink Installation ............................................................................ 10

Step 2: Install memory modules ................................................................ 11

Step 3: Install expansion cards ................................................................. 13

Step 4: Connect ribbon cables, cabinet wires and power supply ............ 14

Step 4-1: I/O Back Panel Introduction ........................................................................... 14

Step 4-2: Connectors Introduction ................................................................................. 16

Chapter 3 BIOS Setup ......................................................................... 27

The Main Menu (For example: BIOS Ver. : E1) ........................................ 28

Standard CMOS Features......................................................................... 30

Advanced BIOS Features .......................................................................... 33

Integrated Peripherals .............................................................................. 35

Power Management Setup ....................................................................... 39

PnP/PCI Configurations ............................................................................. 42

PC Health Status........................................................................................ 43

Table of Content

English

- 3 -

Frequency/Voltage Control ........................................................................ 45

Top Performance ...................................................................................... 47

Load Fail-Safe Defaults ............................................................................. 48

Load Optimized Defaults ........................................................................... 49

Set Supervisor/User Password .................................................................. 50

Save & Exit Setup ....................................................................................... 51

Exit Without Saving ................................................................................... 52

Chapter 4 Technical Reference ........................................................... 53

Block Diagram ........................................................................................... 53

@BIOS™Introduction................................................................................. 54

EasyTune™4 Introduction ......................................................................... 55

Flash BIOS Method Introduction............................................................... 56

Method 1 : Q-Flash ......................................................................................................... 56

Method 2 : BIOS Flash Utility ........................................................................................ 58

Method 3 : @BIOS Utility ................................................................................................ 69

2- / 4- / 6-Channel Audio Function Introuction .......................................... 71

Chapter 5 Appendix ............................................................................. 77

- 4 -

GA-8IR2003 Motherboard

English

Item Checklist

Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To

protect them against damage from static electricity, you should follow some precautions whenever you

work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one, touch

both of your hands to a safely grounded object or to a metal object, such as the power supply

case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or other

components.

4. Place components on a grounded antistatic pad or on the bag that came with the components

whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX power

connector on the motherboard.

If the motherboard has mounting holes, but they don't line up with the holes on the base and there are

no slots to attach the spacers, do not become alarmed you can still attach the spacers to the mounting

holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so be careful of

your hands). In this way you can still attach the motherboard to the base without worrying about short

circuits. Sometimes you may need to use the plastic springs to isolate the screw from the motherboard

PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the screw contact

any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may damage the

board or cause board malfunctioning.

Installing the motherboard to the chassis...

WARNING!

The GA-8IR2003 motherboard

IDE cable x 1 / Floppy cable x 1

CD for motherboard driver & utility

GA-8IR2003 user's manual

I/O Shield

Quick PC Installation Guide

RAID Manual

2 Port USB Cable x 1

4 Port USB Cable x 1

SPDIF KIT x 1 (SPD-KIT)

IEEE 1394 Cable x 1

Audio Combo Kit x 1

Motherboard Settings Label

Introduction

English

- 5 -

Form Factor y19.6cm x 29.5cm ATX size form factor, 4 layers PCB

CPU ySocket 478 for Intel®Micro FC-PGA2 Pentium®4 processor

ySupport Intel®Pentium®4 (Northwood, 0.13 m) processor

ySupport Intel®Pentium®4 Processor with HT Technology *

yIntel®Pentium®4 400/533MHz FSB

yAuto detect and optimized setting for Pentium®4 processor

y2nd cache depends on CPU

Chipset yChipset Intel®845 HOST/AGP/Controller

yICH2 I/O Controller Hub

Memory y3 184-pin DDR DIMM sockets

ySupports PC2100 DDR or PC1600 DDR DIMM

ySupports up to 2GB DRAM (Max)

ySupports only 2.5V DDR DIMM

ySupports 64bit ECC type DRAM integrity mode

I/O Control yITE8712

Slots y1 AGP slot 4X (1.5V) device support

y5 PCI slot supports 33MHz & PCI 2.2 compliant

On-Board IDE y2 IDE bus master (DMA33/ATA66/ATA100) IDE ports for up to 4

ATAPI devices

ySupports PIO mode3, 4 (UDMA 33/ATA66/ATA100) IDE & ATAPI

CD-ROM

On-Board Peripherals y1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M

and 2.88M bytes

y1 Parallel port supports Normal/EPP/ECP mode

y2 Serial ports (COMA & COMB)

y4 x USB 1.1 (2 by cable )

y1 Front Audio connector

Hardware Monitor yCPU/System fan revolution detect

yCPU temperature detect

yCPU warning temperature

ySystem voltage detect

yCPU/System fan fail warning

to be continued......

Chapter 1 Introduction

Features Summary

- 6 -

GA-8IR2003 Motherboard

English

On-Board Sound yRealtek ALC650 CODEC

yLine Out / 2 front speaker

yLine In / 2 rear speaker(by s/w switch)

yMic In / center & subwoofer(by s/w switch)

ySPDIF In / Out

yCD In / AUX In / Game port

PS/2 Connector yPS/2 Keyboard interface and PS/2 Mouse interface

BIOS yLicensed AWARD BIOS, 2M bit FWH

ySupports Q-Flash

AdditionalFeatures yPS/2 Keyboard password power on

yPS/2 Mouse power on

ySTR(Suspend-To-RAM)

yAC Recovery

yUSB KB/Mouse wake up from S3

yPoly fuse for keyboard, USB, game port over-current protection

ySupports @BIOS

ySupports EasyTune 4

Jumper less yOver Clock (CPU/DDR/AGP) by BIOS

Overclocking

Please set the CPU host frequency in accordance with your processor's specifications.

We don't recommend you to set the system bus frequency over the CPU's specification because

these specific bus frequencies are not the standard specifications for CPU, chipset and most of the

peripherals. Whether your system can run under these specific bus frequencies properly will

depend on your hardware configurations, including CPU, Chipsets, SDRAM, Cards…etc.

"*" HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires all

of the following platform components:

- CPU: An Intel®Pentium 4 Processor with HT Technology

- Chipset: An Intel®Chipset that supports HT Technology

- BIOS: A BIOS that supports HT Technology and has it enabled

- OS: An operation system that has optimizations for HT Technology

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte 7VM400M-RZ Manuel utilisateur

Gigabyte

Gigabyte GA-8I845GE775-G Manuel utilisateur

Gigabyte

Gigabyte GA-970A-UD3P Manuel utilisateur

Gigabyte

Gigabyte X670E AORUS XTREME Manuel utilisateur

Gigabyte

Gigabyte GA-6VA+ Manuel utilisateur

Gigabyte

Gigabyte B760M GAMING X AX Manuel utilisateur

Gigabyte

Gigabyte GA-P67A-UD5 Manuel utilisateur

Gigabyte

Gigabyte GA-Z170X-Gaming 7 Manuel utilisateur

Gigabyte

Gigabyte R281-Z91 Manuel utilisateur

Gigabyte

Gigabyte GA-8PE800 Pro Manuel utilisateur

Gigabyte

Gigabyte H310M M.2 2.0 Manuel utilisateur

Gigabyte

Gigabyte GA-7IXE Manuel utilisateur

Gigabyte

Gigabyte MF51-ES0 Manuel utilisateur

Gigabyte

Gigabyte G1.Sniper B6 Manuel utilisateur

Gigabyte

Gigabyte GA-K8N51PVMT-9 Manuel utilisateur

Gigabyte

Gigabyte GA-B75M-D3P Manuel utilisateur

Gigabyte

Gigabyte GA-B250M-D2V Manuel utilisateur

Gigabyte

Gigabyte GS-R22PHL Manuel utilisateur

Gigabyte

Gigabyte GA-8EGXRP Series Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-DS2V Manuel utilisateur

Gigabyte

Gigabyte GA-F2A85X-UP4 Manuel utilisateur

Gigabyte

Gigabyte GA-8VD667K Manuel utilisateur

Gigabyte

Gigabyte GA-F2A78M-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-Z97N-WIFI Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
