Gigabyte 6EMMP Manuel utilisateur
6EMMP
1
TABLE OF CONTENTS
1. INTRODUCTION
1.1. PREFACE..........................................................................................................1-1
1.2. KEY FEATURES...............................................................................................1-1
1.3. PERFORMANCE LIST......................................................................................1-2
1.4. BLOCK DIAGRAM ............................................................................................1-3
1.5. INTRODUCE THE PentiumII Processor ......................................................1-4
1.6. What is AGP?....................................................................................................1-6
2. SPECIFICATION
2.1. HARDWARE.....................................................................................................2-1
2.2. SOFTWARE......................................................................................................2-2
2.3. ENVIRONMENT................................................................................................2-2
3. HARDWARE INSTALLATION
3.1. UNPACKING.....................................................................................................3-1
3.2. MAINBOARD LAYOUT.....................................................................................3-2
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS .............................3-1
3.4. DRAM INSTALLATION.....................................................................................3-6
3.5. CPU SPEED SETUP ........................................................................................3-6
3.6. CMOS RTC & ISA CFG CMOS SRAM.............................................................3-7
3.7. SPEAKER CONNECTOR INSTALLATION .....................................................3-7
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION....................3-7
3.9. POWER LED CONNECTOR INSTALLATION ................................................3-7
Table Of Contents
2
3.10. IDE & ATAPI DEVICE INSTALLATION..........................................................3-8
3.11. PERIPHERAL DEVICE INSTALLATION........................................................3-8
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION...............................................3-8
4. BIOS CONFIGURATION
4.1. ENTERING SETUP ..........................................................................................4-1
4.2. CONTROL KEYS..............................................................................................4-1
4.3. GETTING HELP................................................................................................4-2
4.4. THE MAIN MENU..............................................................................................4-2
4.5. STANDARD CMOS SETUP MENU .................................................................4-5
4.6. BIOS FEATURES SETUP................................................................................4-9
4.7. CHIPSET FEATURES SETUP.........................................................................4-13
4.8. POWER MANAGEMENT SETUP....................................................................4-16
4.9. PNP/PCI CONFIGURATION............................................................................4-21
4.10. LOAD BIOS DEFAULTS.................................................................................4-23
4.11. LOAD PERFORMANCE DEFAULTS.............................................................4-22
4.12. INTEGRATED PERIPHERALS ......................................................................4-23
4.13. SUPERVISOR/USER PASSWORD...............................................................4-30
4.14. IDE HDD AUTO DETECTION........................................................................4-31
4.15. SAVE & EXIT SETUP.....................................................................................4-32
4.16. EXIT WITHOUT SAVING...............................................................................4-33
APPENDIX A: On-Board Display Driver Installation
A.1. ATi RAGE PRO DISPLAY DRIVER INSTALLATION......................................A-1
A.2. YAMAHA SOUND DRIVER INSTALLATION...................................................A-6
6EMMP
21
6EMMP
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6EMMP motherboard. It is a PentiumII Processor based
PC / AT compatible system with AGP/ PCI / ISA Bus, and has been designed
to be the fastest PC / AT system. There are some new features allow you to
operate the system with just the performance you want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel PentiumII Processor based PC / AT compatible mainboard.
qSlot 1 supports PentiumII processor running at 233-633 MHz.
qIntel 440EX chipset, Supports SDRAM / Ultra DMA/33 IDE.
qBuilt-in ATi RAGE PRO 3D graphics acceleration chip.
qBuilt-in PCI YAMAHA audio chip.
qSupports external Modem Ring-On on COM A&B and internal Modem
Ring-On.
qSupports Wake-up on LAN (JP7).
qSupports 2xDIMMs using 3.3V EDO or SDRAM DIMM module.
qSupports 8 MB - 256 MB EDO / 256MB SDRAM memory on board.
q2xPCI Bus slots, 2xISA Bus slots.
qSupports 2 channels Ultra DMA/33 IDE ports for 4 IDE Devices.
qSupports 2xCOM (16550), 1xLPT (EPP / ECP), 1x Floppy port.
qSupports 2xUSB ports, 1xPS/2 Mouse, 1xPS/2 Keyboard.
qLicensed AWARD BIOS, 2Mbits FLASH RAM.
q24.3 cm x 20 cm Micro-ATX form factor, 4 layers PCB.
Introduction
1-2
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for different
testing data values gotten by users. (The different Hardware & Software
configuration will result in different benchmark testing results.)
•CPU PentiumII processor
•DRAM (128 x 1) MB SDRAM (SEC KM48S8030BT-GH)
•CACHE SIZE 512 KB included in CPU
•DISPLAY Onboard ATi AGP 3D graphics acceleration chip
(4MB SGRAM)
•STORAGE Onboard IDE (IBM DHEA-38451)
•O.S. Windows NT 4.0
•DRIVER Display Driver at 1024 x 768 x 64K colors x 75Hz.
INTEL Bus Master IDE Driver 3.01
Intel PentiumII
Processor 266MHz(66x4) 333MHz(66x5)
Winbench98
CPU mark32 721 865
FPU Winmark 1380 1720
Business Disk 1800 1870
Hi-End Disk 4500 4710
Business Graphics 156 176
Hi-End Graphics 174 198
Winstone98Business 27.2 32.4
Hi-End 32.2 36.1
6EMMP
1-3
3.3V EDO/SDRAM
DIMM Sockets
Floppy Port

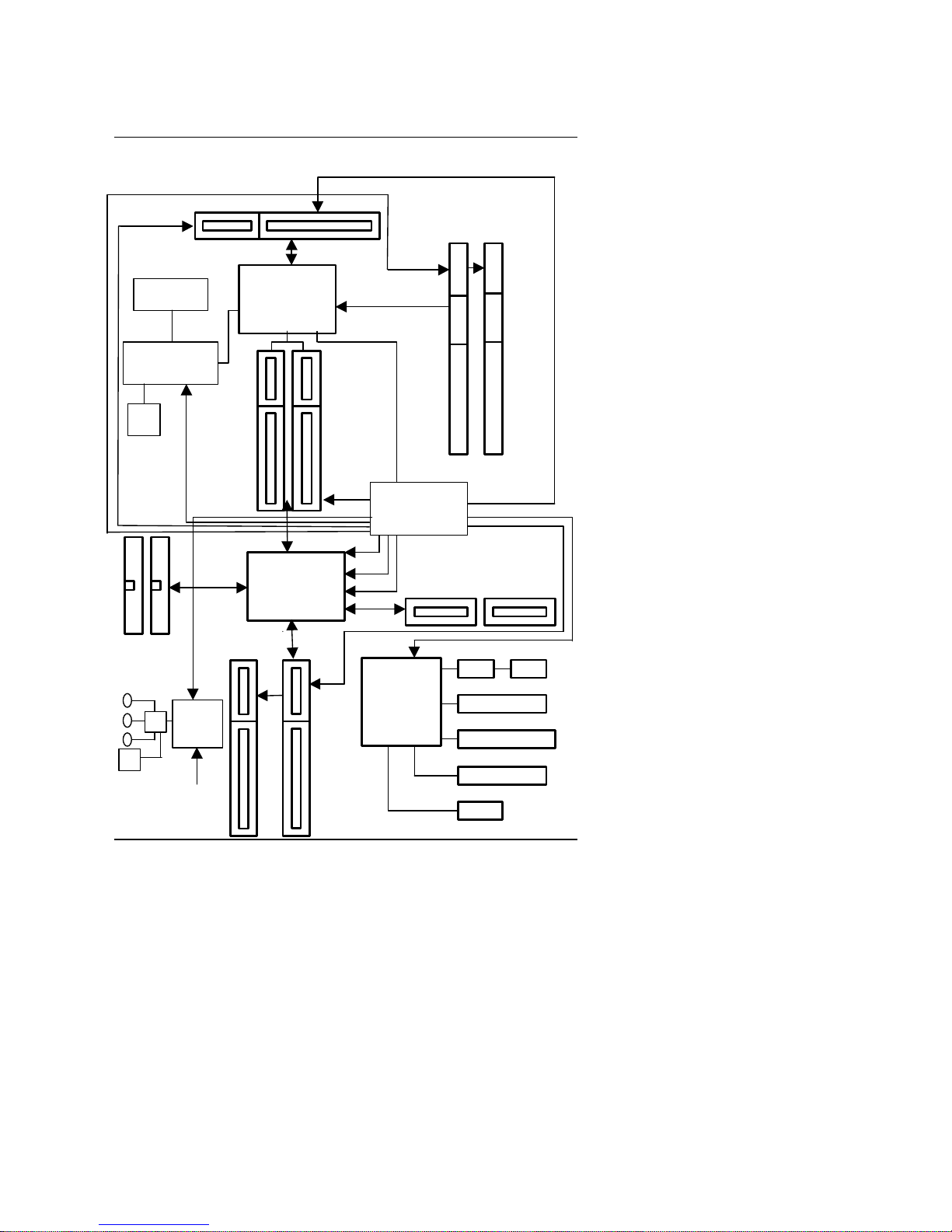

1.4. BLOCK DIAGRAM
PS/2 Keyboard
24MHz
33MHz
33MHz
33MHz
66MHz
66MHz
Ultra DMA/33
IDE Ports
IDE Bus
PCI Bus
ISA Bus
AGP Bus
LPT Port
COM Ports
DRAM Bus
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
IT8671F
Host Bus
PAC
82443EX
CHIPSET
PIIX4
82371EB
CHIPSET
Clock
Generator
ATi
RAGE PRO
VIDEO
MEMORY
100MHz
MIC
L-IN
L-OUT
YAMAHA
24.576MHz
14.318MHz
66MHz
VGA
Game
Port
AC-2
Introduction
1-4
1.5. INTRODUCE THE Pentium
II Processor
Figure 1:Retention Mechanism & attach Mount (Optional)
6EMMP
1-5
Figure 1:Retention Mechanism & attach Mount (Optional)
Figure 2:OEM PentiumII Processor
Figure 3:Heatsink / FAN & Heat sink support for OEM PentiumII Processor
Introduction
1-6
Figure 4:Boxed PentiumII Processor & Heat sink support
1.6 What is AGP
?
The Accelerated Graphics Port (AGP) is a new port on the Host-To-PCI bridge
device that supports an AGP port. The main purpose of the AGP port is to
provide fast access to system memory.
The AGP port can be used either as fast PCI port (32-bits at 66MHz vs. 32-bits
at 33MHz) or as an AGP port which supports 2x data-rate, a read queue, and
side band addressing. When the 2x-data rate is used, the port can transmit data
at 533MB/sec (66.6*2*4). The read-queue can be used to pipeline reads –
removing the effects of the reads-latency. Side band addressing can be used to
transmit the data address on a separate line in order to speed up the
transaction.
