GA-B75N
User's Manual
Rev. 1001
12ME-B75N-1001R
Motherboard
GA-B75N
Oct. 12, 2012
Oct. 12, 2012
Motherboard
GA-B75N
Copyright
©2012 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE
without prior notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
In order to assist in the use of this product, carefully read the User's Manual.
For product-related information, check on our website at: http://www.gigabyte.com

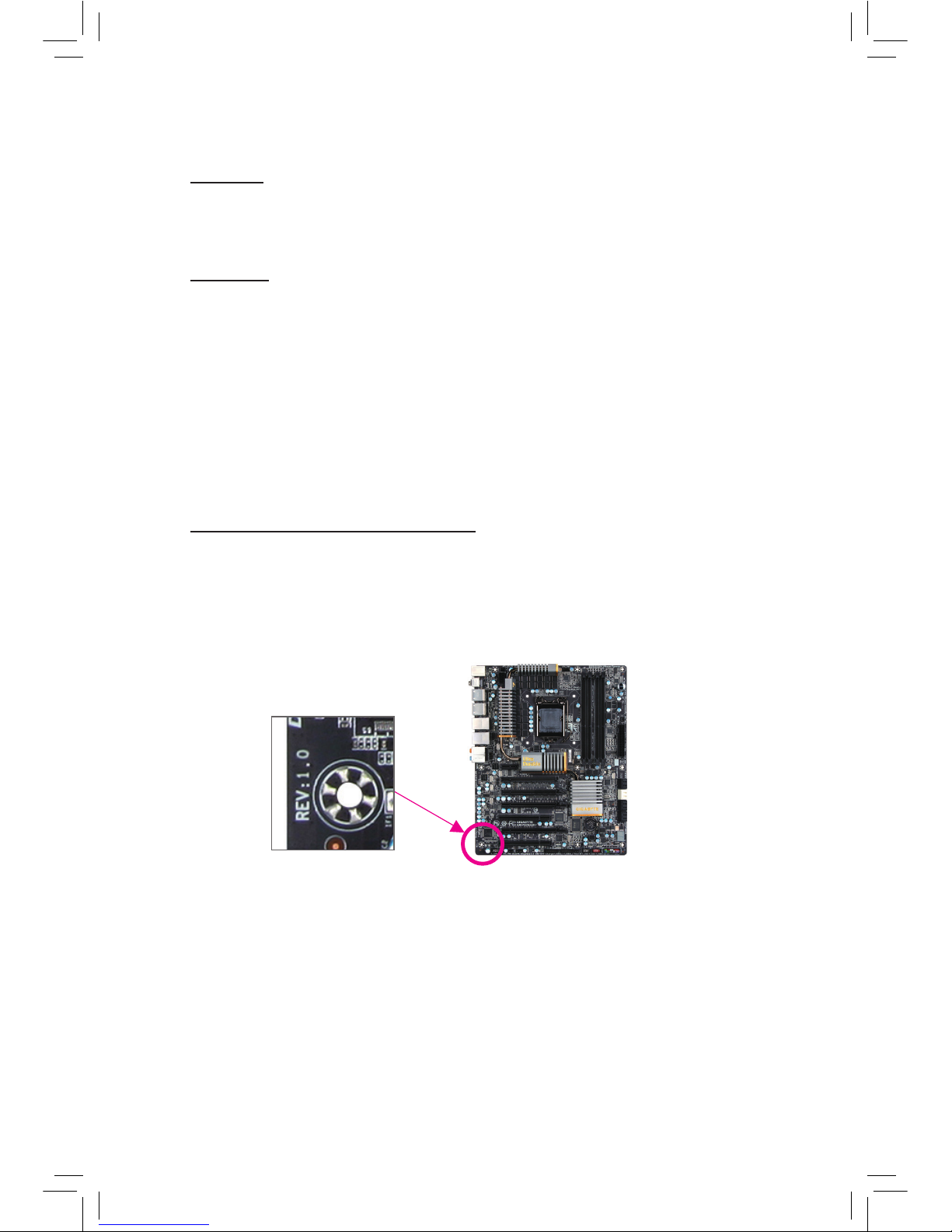

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:
1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before
updating motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
GA-B75N Motherboard Layout........................................................................................5
GA-B75N Motherboard Block Diagram ...........................................................................6
Chapter 1 Hardware Installation .....................................................................................7
1-1 Installation Precautions.................................................................................... 7
1-2 ProductSpecications...................................................................................... 8
1-3 Installing the CPU and CPU Cooler ............................................................... 10
1-4 Installing the Memory..................................................................................... 11
1-5 Installing an Expansion Card ......................................................................... 11
1-6 Back Panel Connectors.................................................................................. 12
1-7 Internal Connectors........................................................................................ 14
Chapter 2 BIOS Setup ..................................................................................................22
2-1 Startup Screen ............................................................................................... 22
2-2 The Main Menu .............................................................................................. 23
2-3 M.I.T. .............................................................................................................. 24
2-4 System ........................................................................................................... 32
2-5 BIOS Features ............................................................................................... 33
2-6 Peripherals..................................................................................................... 36
2-7 Power Management....................................................................................... 39
2-8 Save & Exit..................................................................................................... 41
Chapter 3 Drivers Installation........................................................................................42
Regulatory Statements.............................................................................................. 43
- 5 -
GA-B75N Motherboard Layout
(Note) The chip is located on the back of the motherboard.
KB_USB3
F_USB30
COM
DOUBLE_HDMI
CPU_FAN
LGA1155
ATX
GA-B75N
F_AUDIO
AUDIO
B_BIOS
M_BIOS
PCIEX16
DDR3_1
DDR3_2
BAT
ATX_12V
Intel®B75
DVI
USB_LAN1
USB_LAN2
CODEC
CLR_CMOS
F_PANEL
iTE
Super I/O (Note)
F_USB1
SYS_FAN
SPDIF_O
Realtek
GbE LAN
Realtek
GbE LAN
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
Box Contents
5GA-B75N motherboard
5Motherboard driver disk 5Two SATA 6Gb/s cables
5User's Manual 5I/O Shield
SATA2
SATA3
SATA2
0
1
3
2
- 6 -

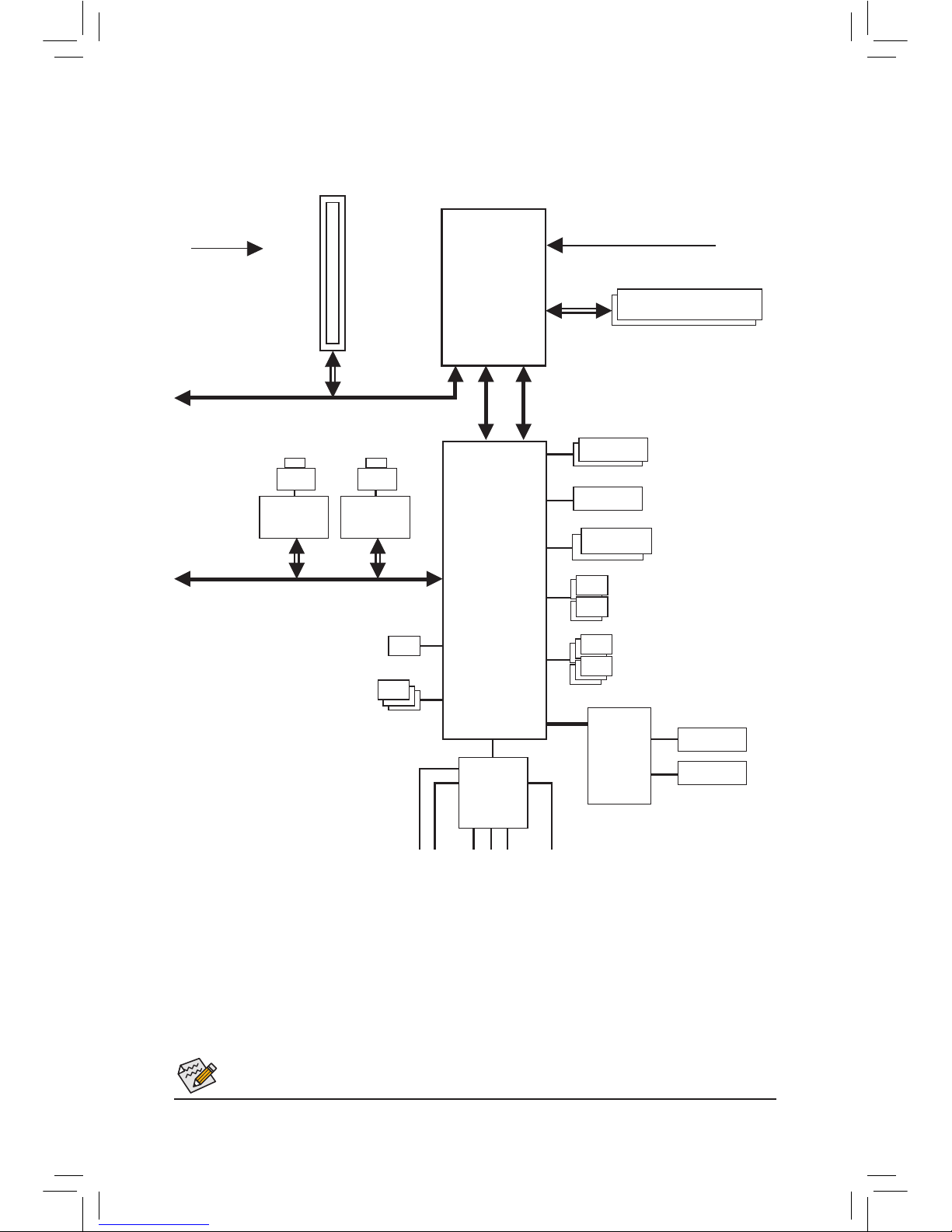

GA-B75N Motherboard Block Diagram
Fordetailedproductinformation/limitation(s),referto"1-2ProductSpecications."
LGA1155
CPU
PCI Express Bus
CPU CLK+/- (100 MHz)
PCIe CLK
(100 MHz)
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Rear Speaker Out
CODEC
DDR3 1600/1333/1066/800 MHz
Dual Channel Memory
1 PCI Express x16
x16
DMI Interface
FDI Interface
PCI Express Bus
LAN LAN
RJ45 RJ45
Realtek
GbE LAN
Realtek
GbE LAN
6 USB 2.0/1.1
4 USB 3.0/2.0
3 SATA 3Gb/s
Dual BIOS
DVI-I
iTE
Super I/O
LPC
Bus
1 SATA 6Gb/s
HDMI
x1 x1
PS/2 KB/Mouse
COM
Intel®B75
- 7 -
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, make sure the chassis is suitable for the motherboard.
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard, make
sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product,pleaseconsultacertiedcomputertechnician.
Chapter 1 Hardware Installation
- 8 -
1-2 ProductSpecications
CPU Support for Intel®Core™i7 processors/Intel®Core™i5 processors/
Intel®Core™i3 processors/Intel®Pentium®processors/Intel®Celeron®processors
in the LGA1155 package (Go to GIGABYTE's website for the latest CPU
support list.)
L3 cache varies with CPU
Chipset Intel®B75 Express Chipset
Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of
physical memory is installed, the actual memory size displayed will be less than
the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3 1600/1333/1066/800 MHz memory modules
* To support DDR3 1600 MHz, you must install an Intel 22nm (Ivy Bridge) CPU.
Support for non-ECC memory modules
SupportforExtremeMemoryProle(XMP)memorymodules
(Go to GIGABYTE's website for the latest supported memory speeds and
memory modules.)
Onboard Graphics Chipset:
- 1 x DVI-I port, supporting a maximum resolution of 1920x1200
- 2 x HDMI ports, supporting a maximum resolution of 1920x1200
Audio Realtek ALC892 codec
HighDenitionAudio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN 2 x Realtek GbE LAN chips (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
* Whether PCI Express 3.0 is supported depends on CPU and graphics card
compatibility.
Storage Interface Chipset:
- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
- 3 x SATA 3Gb/s connectors (SATA2 1/2/3) supporting up to 3 SATA 3Gb/s
devices
USB Chipset:
- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available
through the internal USB header)
- Up to 6 USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available
through the internal USB header)
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x serial port header
1 x SATA 6Gb/s connector
3 x SATA 3Gb/s connectors
- 9 -
Internal
Connectors
1 x USB 3.0/2.0 header
1 x USB 2.0/1.1 header
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1xClearCMOSjumper
Back Panel
Connectors
1 x PS/2 keyboard/mouse port
2 x HDMI ports
1 x DVI-I port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5xaudiojacks(Center/SubwooferSpeakerOut,RearSpeakerOut,LineIn,
Line Out, Mic In)
I/O Controller iTE I/O Controller Chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU
cooler you install.
BIOS 2x64Mbitash
Use of licensed AMI EFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features Support for @BIOS
Support for Q-Flash
Support for Xpress Install
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Auto Green
Support for ON/OFF Charge
Support for Q-Share
Support for EZ Setup
Bundled Software Norton Internet Security (OEM version)
Intel®Rapid Start Technology
Intel®Smart Connect Technology
- 10 -
Operating System Support for Microsoft®Windows 8/7/XP
Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm
* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout
prior notice.
* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)
for the software listed in the "Unique Features" and "Bundled Software" columns.
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before installing the
CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage
of the CPU may occur.
•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended
thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics
card, memory, hard drive, etc.

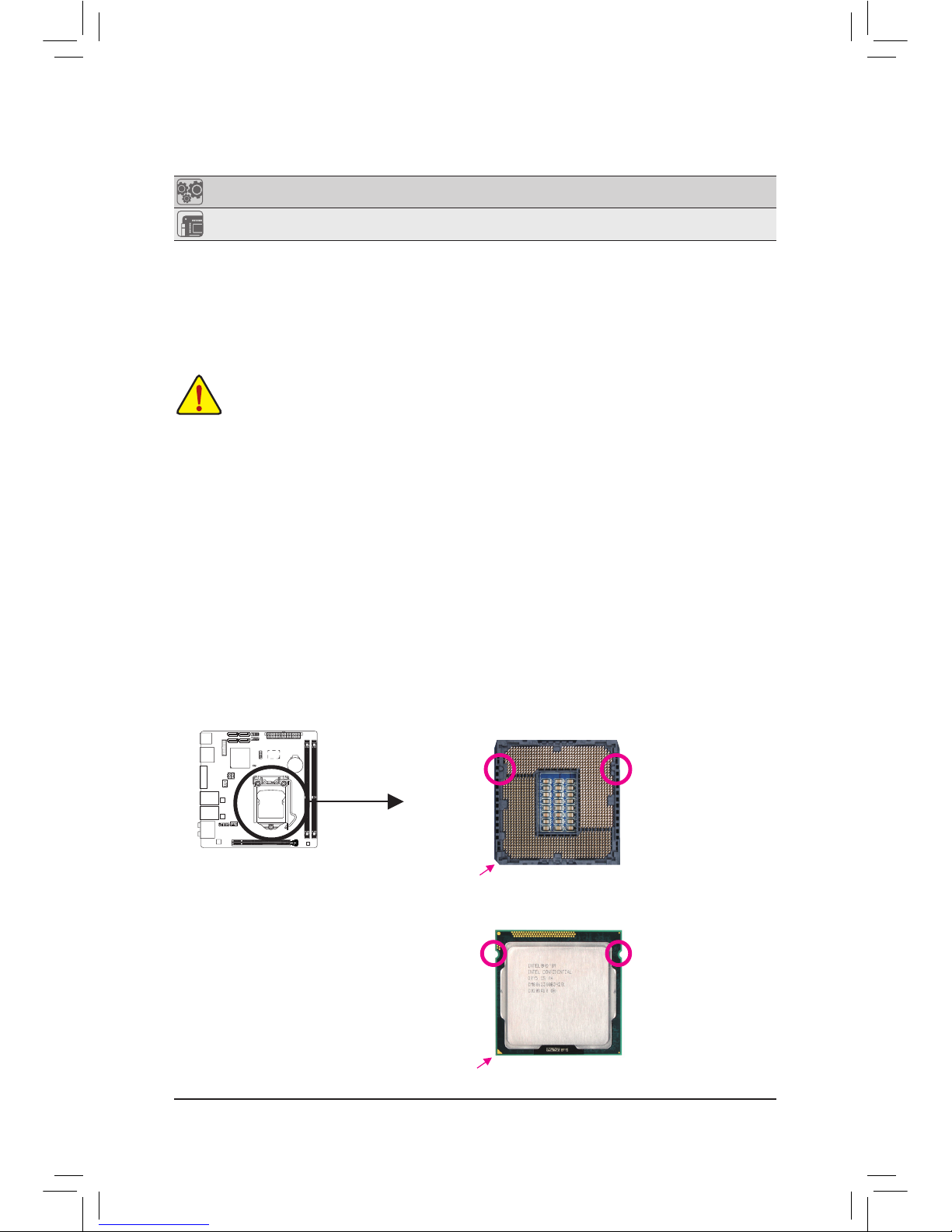

Installing the CPU
Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Notch
Alignment KeyAlignment Key
Notch
LGA1155 CPU
LGA1155 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU
Autres manuels pour GA-B75N
1
Table des matières
Autres manuels Gigabyte Carte mère
Gigabyte
Gigabyte GA-K8N51PVMT-9-RH Manuel utilisateur
Gigabyte
Gigabyte GA-7ZXE Manuel utilisateur
Gigabyte
Gigabyte GA-7PESLN Manuel utilisateur
Gigabyte
Gigabyte GA-EX38-DS5 Manuel utilisateur
Gigabyte
Gigabyte GA-8IG1000MK Manuel utilisateur
Gigabyte
Gigabyte GA-X58A-UD5 Manuel utilisateur
Gigabyte
Gigabyte GA-8GEM800 Manuel utilisateur
Gigabyte
Gigabyte GS-R12P4G Manuel utilisateur
Gigabyte
Gigabyte 6BXDU Manuel utilisateur
Gigabyte
Gigabyte GA-8IP900 Manuel utilisateur
Gigabyte
Gigabyte GA-M56S-S3 Manuel utilisateur
Gigabyte
Gigabyte GA-F2A68HM-S1 Manuel utilisateur
Gigabyte
Gigabyte P310 D3 Manuel utilisateur
Gigabyte
Gigabyte Z690 AORUS MASTER Manuel utilisateur
Gigabyte
Gigabyte GA-K8U Manuel utilisateur
Gigabyte
Gigabyte GA-8I865P Manuel utilisateur
Gigabyte
Gigabyte GA-7VT600-P Manuel utilisateur
Gigabyte
Gigabyte GA-P41T-USB3L Manuel utilisateur
Gigabyte
Gigabyte Z490 UD AC Manuel utilisateur
Gigabyte
Gigabyte B550 AORUS PRO AX Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
Biostar
Biostar M7VIT Bravo Instructions d'utilisation et d'installation
