GA-C7V7-RH

VIA C7 Processor Motherboard

User's Manual

Rev. 100

12ME-C7V7RH-1001R

- 2 -

Table of Contents

GA-C7V7-RHMotherboardLayout................................................................................ 3

BlockDiagram................................................................................................................ 4

Chapter1HardwareInstallation..................................................................................... 5

1-1 ConsiderationsPriortoInstallation .................................................................... 5

1-2 FeatureSummary ............................................................................................ 6

1-3 InstallationofMemory ...................................................................................... 8

1-4 InstallationofExpansionCards ........................................................................ 9

1-5 I/OBackPanelIntroduction ........................................................................... 10

1-6 ConnectorsIntroduction ...................................................................................11

Chapter 2 BIOSSetup................................................................................................ 19

The Main Menu (For example: BIOS Ver. :F4) ........................................................ 20

2-1 StandardCMOSFeatures ............................................................................. 22

2-2 Advanced BIOS Features.............................................................................. 24

2-3 AdvancedChipsetFeatures ........................................................................... 27

2-3 IntegratedPeripherals ..................................................................................... 33

2-4 PowerManagementSetup ............................................................................. 37

2-5 PnP/PCIConfigurations................................................................................. 41

2-6 PCHealth Status ........................................................................................... 42

2-7 Frequency/VoltageControl ........................................................................... 43

2-8 LoadFail-SafeDefaults................................................................................... 44

2-9 LoadOptimizedDefaults ................................................................................. 44

2-10 Set Supervisor/User Password..................................................................... 45

2-11 Save & Exit Setup......................................................................................... 46

2-12 ExitWithoutSaving ....................................................................................... 46

- 3 -

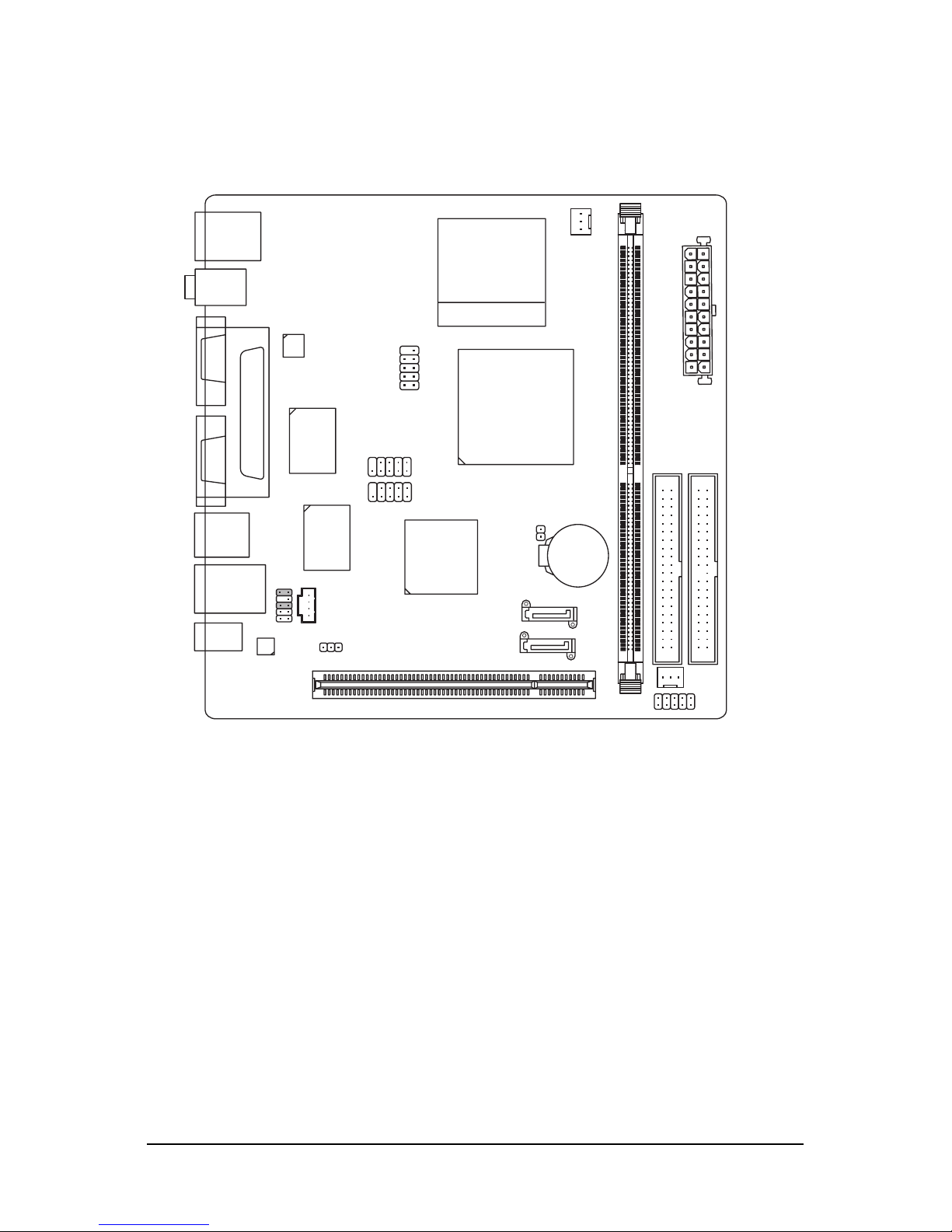

GA-C7V7-RH Motherboard Layout

BAT

IDE2IDE1

CPU_FAN

DDRII

RCA SV

COMB

ATX

GA-C7V7-RH

USB

LAN

AUDIO

F_USB2

SATA1

CLR_CMOS

VT8237R Plus

USB

F_PANEL

PCI1

SYS_FAN

F_USB1

IT8712

CD_IN

SPDIF_IO

F_AUDIO

CODEC

RTL8100C

BIOS

SATA2

VGACOMA

LPT

VIA C7

CPU

VIA

CN700

- 4 -

Block Diagram

VIA

CN700

VIA

VT8237R Plus

533/400 MHz FSB

LPC BUS

1 PCI

PCICLK

(33MHz)

AC97 Link

8 USB

Ports

RTL8100C

LPT Port

PS/2 KB/Mouse

MIC

LINE-IN

VIA C7

Processor

6 Channel

CODEC

66MHz V_Link

VGA Port

BIOS

LINE-OUT

RJ45

IT8712

COM Ports

ATA33/66/100/133

IDE Channels

2 Serial ATA

S-Video / AV out 533/400 MHz

DDRII

Hardware Installation- 5 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please

follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components

(CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic pad or

within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector

from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are required

for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read theinformation

in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with the

motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the product,

please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1 Hardware Installation

GA-C7V7-RH Motherboard - 6 -

English

1-2 Feature Summary

CPU VIA C7 processor

Front Side Bus 533 / 400MHz

Chipset Northbridge: VIA CN700

Southbridge: VIA 8237R Plus

LAN Onboard RTL8100C chip (10/100 Mbit)

Audio Realtek ALC653 CODEC

Supports 2 / 4 / 6 channel audio

Supports Line In ; Line Out ; MIC

SPDIF Out connection

CD In connection

Storage VIA 8237R Plus

- 1 FDD connector, allowing connection of 2 FDD device

- 2 IDE connectors (IDE1, IDE2) with UDMA33/ATA 66/ATA 100/ATA 133

support, allowing connection of 4 IDE devices

- 2 SATA connectors (SATA1/SATA2), allowing connection of 2 SATA

devices

O.S Support Microsoft Windows 2000/XP

Memory 1 DDRII DIMM memory slots

Supports 1.8V DDRII DIMMs

Expanstion Slots 1 PCI slots

Internal Connectors 1 20-pin ATX power connector

2 IDE connectors

2 SATA connectors

1 CPU fan connector

1 system fan connector

1 front panel connector

1 front audio connector

1 CD In connector

2 USB 2.0/1.1 connectors for additional 4 USB 2.0/1.1 ports by cables

1 SPDIF In/Out connector

Rear Panel I/O 1 PS/2 keyboard port

1 PS/2 mouse port

1 parallel port

1 COMA port

1 VGA port

1 TV Out (Optional)

1 S-Video port (Optional)

4 USB 2.0/1.1 ports

1 RJ-45 port

3 audio jacks (Line In / Line Out / MIC In)

Hardware Installation- 7 -

English

I/O Control IT8712 chip

Hardware Monitor System voltage detection

CPU / System temperature detection

CPU / System fan speed detection

CPU warning temperature

CPU / System fan failure warning

Supports CPU / System Smart Fan function

BIOS Use of licensed AWARD BIOS

Form Factor Mini-ITX form factor; 17.0cm x 17.0cm

GA-C7V7-RH Motherboard - 8 -

English

Before installing the memory modules, please comply with the following conditions:

1. Please make sure that the memory used is supported by the motherboard. It is recommended that

memory of similar capacity, specifications and brand be used.

2. Before installing or removing memory modules, please make sure that the computer

power is switched off to prevent hardware damage.

3. Memory modules have a foolproof insertion design. A memory module can be

installed in only one direction. If you are unable to insert the module, please switch the

direction.

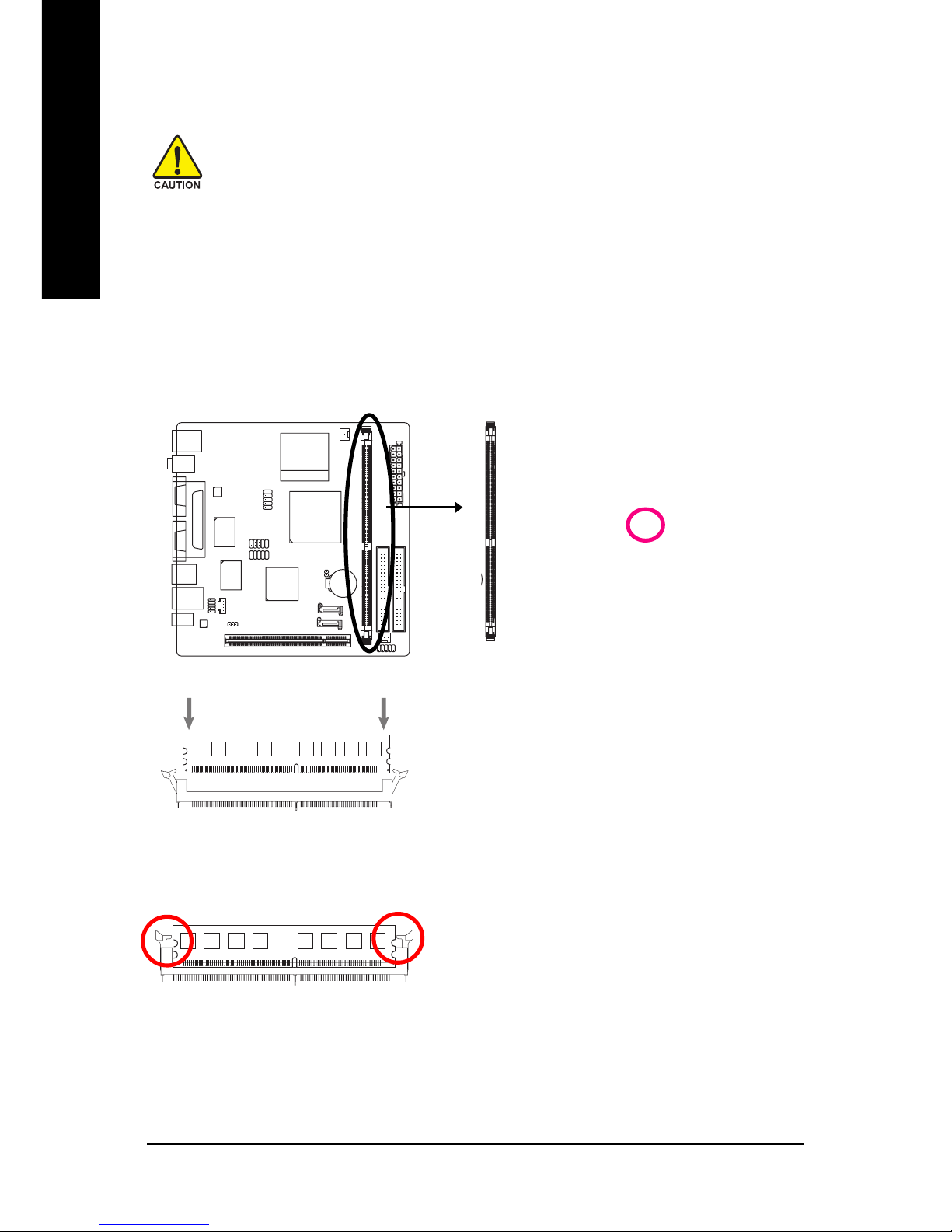

1-3 Installation of Memory

DDRII memory module

notch

Fig.1

The DIMM socket has a notch, so the DIMM memory

module can only fit in one direction. Insert the DIMM memory

module vertically into the DIMM socket. Then push it down.

Fig.2

Close the plastic clip at both edges of the DIMM sockets to

lock the DIMM module.

Reverse the installation steps when you wish to remove

the DIMM module.

The motherboard supports DDR II memory modules, whereby BIOS will automatically detect memory

capacity and specifications. Memory modules are designed so that they can be inserted only in one

direction. The memory capacity used can differ with each slot.

Hardware Installation- 9 -

English

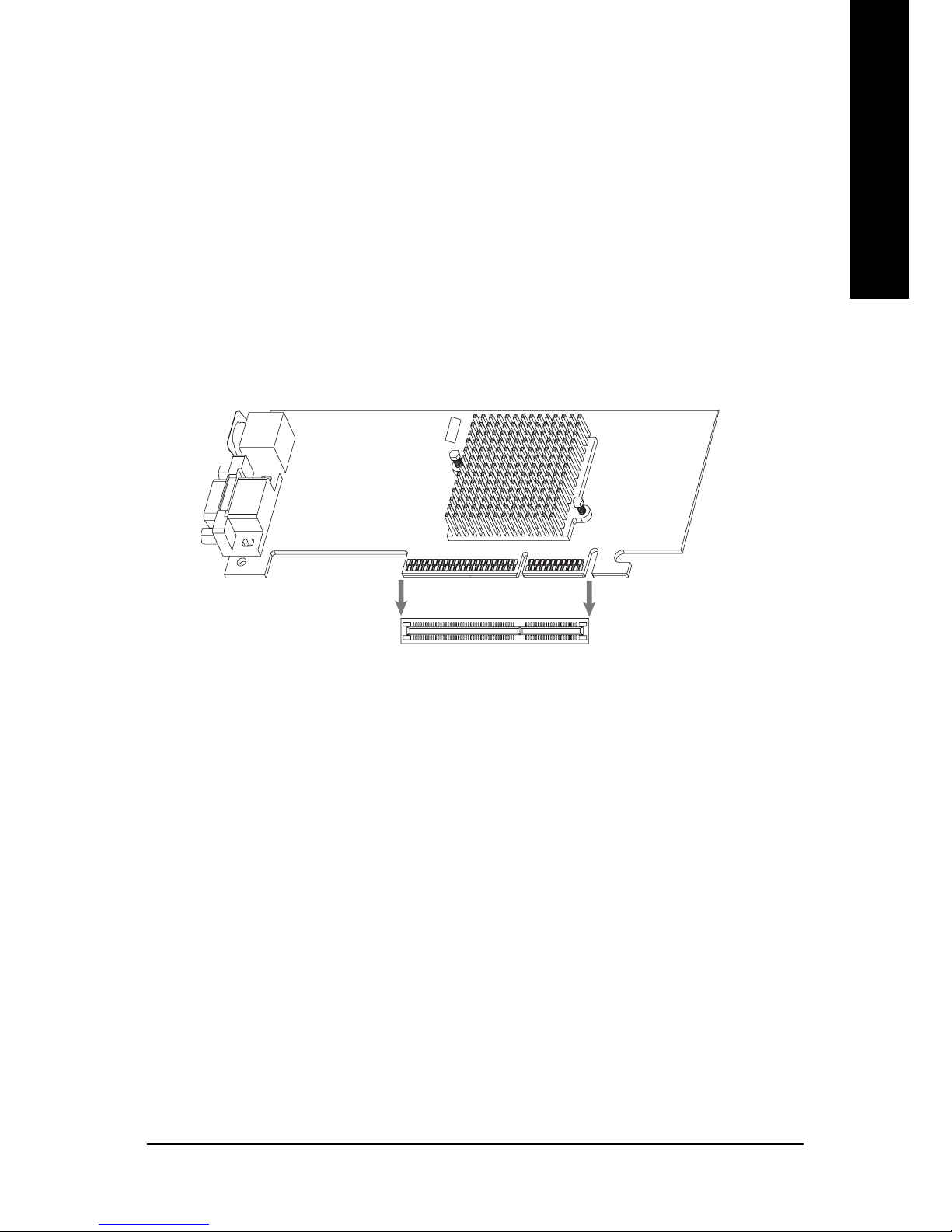

1-4 Installation of Expansion Cards

You can install your expansion card by following the steps outlined below:

1. Read the related expansion card's instruction document before installing the expansion card into

the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer's chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

GA-C7V7-RH Motherboard - 10 -

English

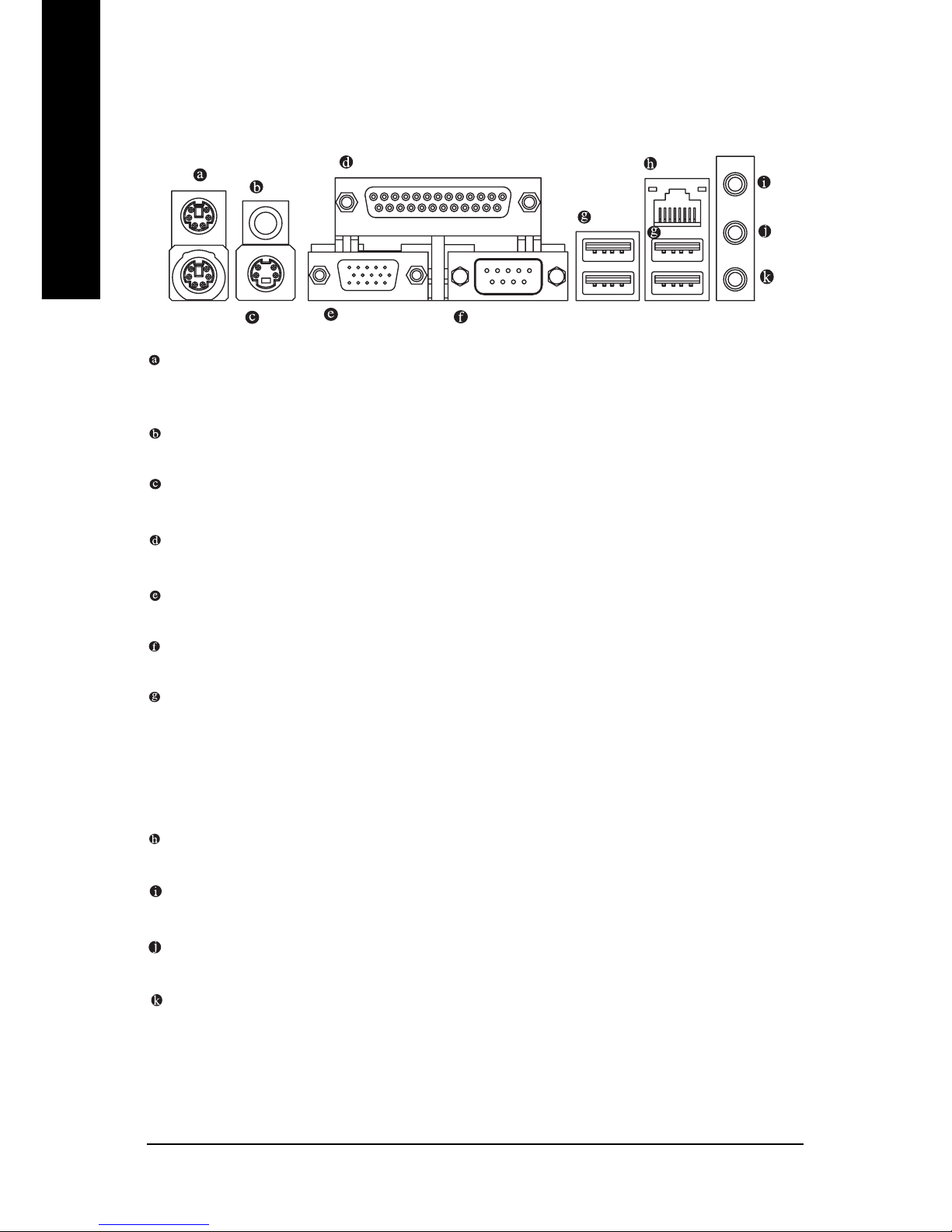

1-5 I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

ToinstallaPS/2portkeyboardand mouse, plug the mouse to the upper port (green) and the keyboard to the

lower port (purple).

Parallel Port

The parallel port allows connection of a printer, scanner and other peripheral devices.

S-Video port

TV can be connected to S-Video port.

TV Out

TV can be connected to TV Out port.

VGA Port

Monitor can be connected to VGA port.

Serial Port

Devices like mouses, modems, and etc. can be connected to Serial port.

USB port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such

as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make

sure your OS supports USB controller. If your OS does not supportUSB controller, please con-

tact OS vendor for possible patch or driver upgrade. For more information please contact your

OS or device(s) vendors.

LAN Port

The provided Internet connection is fast Ethernet, providing data transfer speeds of 10/100Mbps.

Line In

Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out (Front Speaker Out)

Connect the stereo speakers, earphone or front surround channels to this connector.

MIC In

Microphone can be connected to MIC In jack.
