GA-A75-UD4H
User's Manual
Rev. 1002
12ME-A75UD4H-1002R
Motherboard
GA-A75-UD4H
Jun. 10, 2011
Jun. 10, 2011
Motherboard
GA-A75-UD4H
Copyright
©2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE with-
out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com

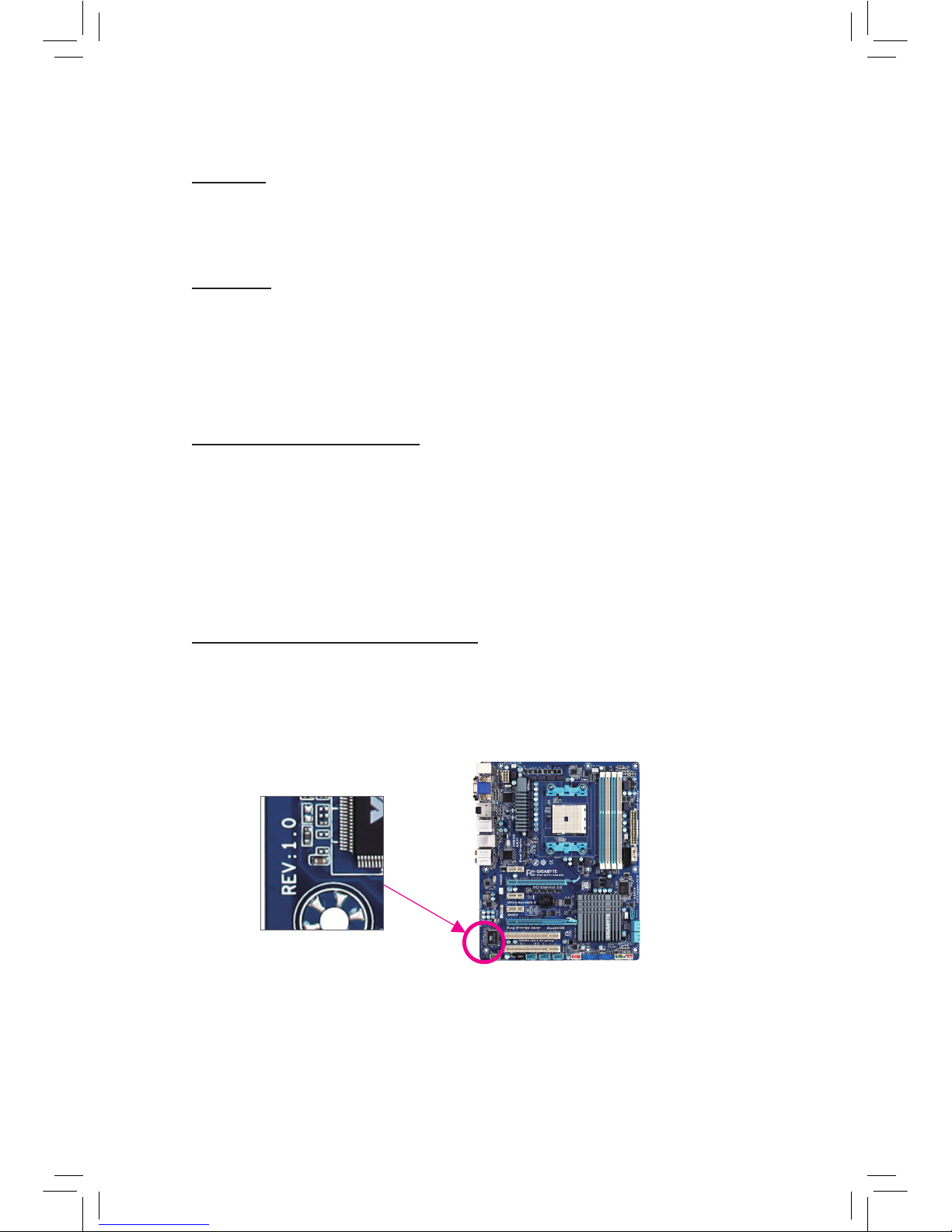

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.
Example:
- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-A75-UD4H Motherboard Layout................................................................................7
GA-A75-UD4H Motherboard Block Diagram...................................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 Product Specications.................................................................................... 10
1-3 Installing the APU and APU Cooler................................................................ 13
1-3-1 Installing the APU ...................................................................................................13
1-3-2 Installing the APU Cooler........................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 Dual Channel Memory Conguration .....................................................................16
1-4-2 Installing a Memory ...............................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Setup of the AMD Dual Graphics Conguration............................................. 19
1-7 Back Panel Connectors.................................................................................. 20
1-8 Internal Connectors........................................................................................ 23
Chapter 2 BIOS Setup ..................................................................................................33
2-1 Startup Screen ............................................................................................... 34
2-2 The Main Menu .............................................................................................. 35
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 37
2-4 Standard CMOS Features.............................................................................. 42
2-5 Advanced BIOS Features .............................................................................. 44
2-6 Integrated Peripherals.................................................................................... 46
2-7 Power Management Setup............................................................................. 49
2-8 PC Health Status............................................................................................ 51
2-9 Load Fail-Safe Defaults.................................................................................. 53
2-10 Load Optimized Defaults................................................................................ 53
2-11 Set Supervisor/User Password ...................................................................... 54
2-12 Save & Exit Setup .......................................................................................... 55
2-13 Exit Without Saving........................................................................................ 55
- 5 -
Chapter 3 Drivers Installation........................................................................................57
3-1 Installing Chipset Drivers ............................................................................... 57
3-2 Application Software ...................................................................................... 58
3-3 Technical Manuals.......................................................................................... 58
3-4 Contact........................................................................................................... 59
3-5 System ........................................................................................................... 59
3-6 Download Center ........................................................................................... 60
3-7 New Utilities ................................................................................................... 60
Chapter 4 Unique Features...........................................................................................61
4-1 Xpress Recovery2.......................................................................................... 61
4-2 BIOS Update Utilities ..................................................................................... 64
4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................64
4-2-2 Updating the BIOS with the @BIOS Utility .............................................................67
4-3 EasyTune 6 .................................................................................................... 68
4-4 Q-Share.......................................................................................................... 69
4-5 SMART Recovery........................................................................................... 70
4-6 Auto Green..................................................................................................... 71
Chapter 5 Appendix ......................................................................................................73
5-1 Conguring SATA Hard Drive(s) .................................................................... 73
5-1-1 Conguring SATA Controllers ................................................................................73
5-1-2 Installing the SATA RAID/AHCI Driver and Operating System ...............................79
5-2 Conguring Audio Input and Output............................................................... 83
5-2-1 Conguring 2/4/5.1/7.1-Channel Audio...................................................................83
5-2-2 Conguring S/PDIF Out..........................................................................................85
5-2-3 Enabling the Dolby Home Theater Function...........................................................86
5-2-4 Conguring Microphone Recording........................................................................87
5-2-5 Using the Sound Recorder .....................................................................................89
5-3 Troubleshooting.............................................................................................. 90
5-3-1 Frequently Asked Questions ..................................................................................90
5-3-2 Troubleshooting Procedure ....................................................................................91
- 6 -
Box Contents
GA-A75-UD4H motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
Four SATA cables
I/O Shield
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-0*R)
COM port cable (Part No. 12CF1-1CM001-3*R)
3.5" Front Panel with 2 USB 3.0/2.0 ports (Part No. 12CR1-FPX582-0*R)
The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
- 7 -

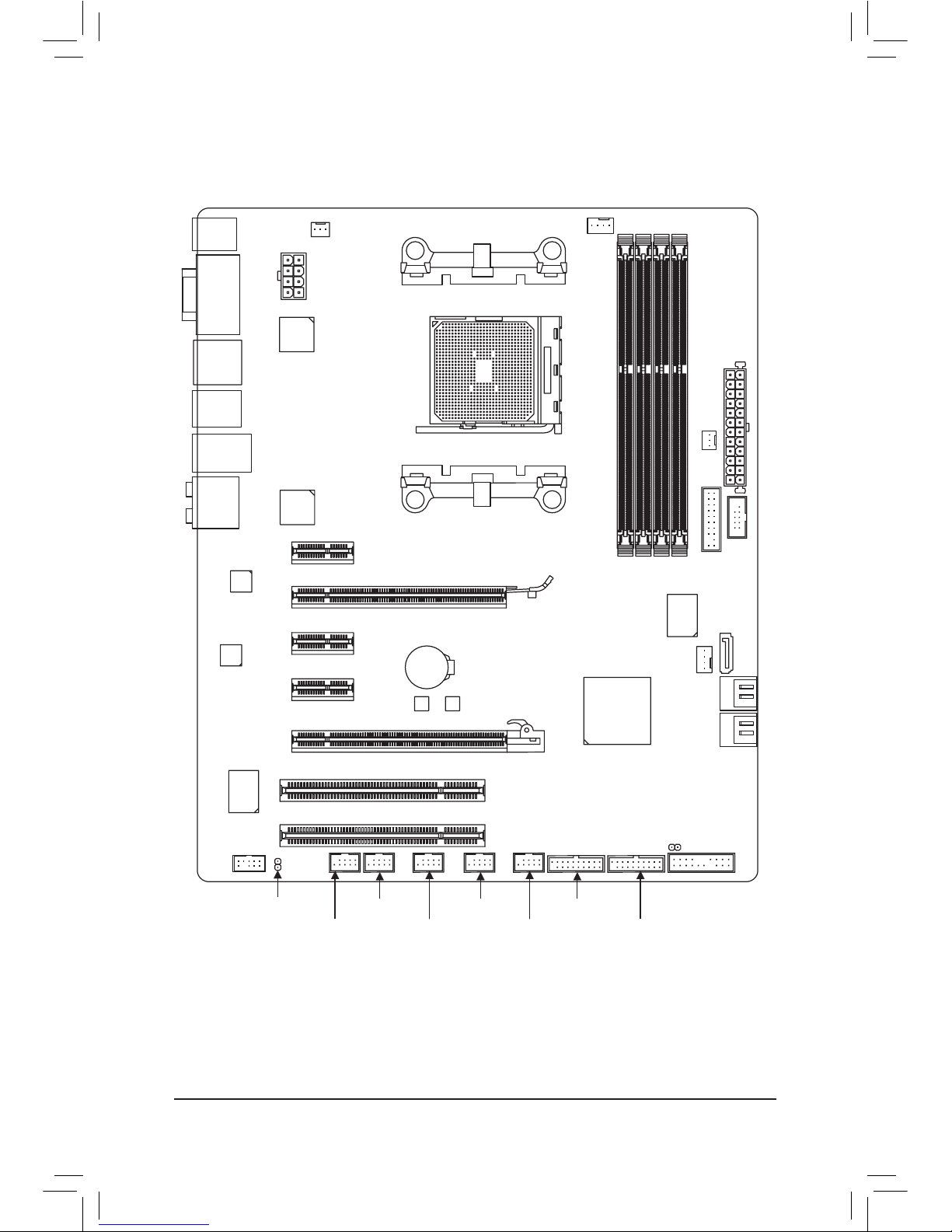

GA-A75-UD4H Motherboard Layout
KB_MS_USB3 CPU_FAN
Socket FM1
ATX
GA-A75-UD4H
AUDIO
PCIEX16
DDR3_4
DDR3_2
BAT
F_PANEL
COM
ATX_12V
AMD A75
PCIEX8
ESATA_1394_USB
CODEC
PCI1
Realtek
RTL8111E
VGA_DVI
DP_HDMI_SPDIF
USB30_LAN
PCIEX1_1
M_BIOSB_BIOS
CLR_CMOS
SATA3_4
SATA3_0
SATA3_3
DDR3_3
DDR3_1
SPDIF_O F_USB4
F_1394 F_USB1
iTE
IT8720
SATA3_2
SYS_FAN2
VIA
VT6308
F_AUDIO
SATA3_1
F_USB30_2
TPM
Etron
EJ168
Etron
EJ168
PCI2
PCIEX1_2
PCIEX1_3
F_USB3
F_USB2
F_USB30_1
SYS_FAN
PWR_FAN
- 8 -

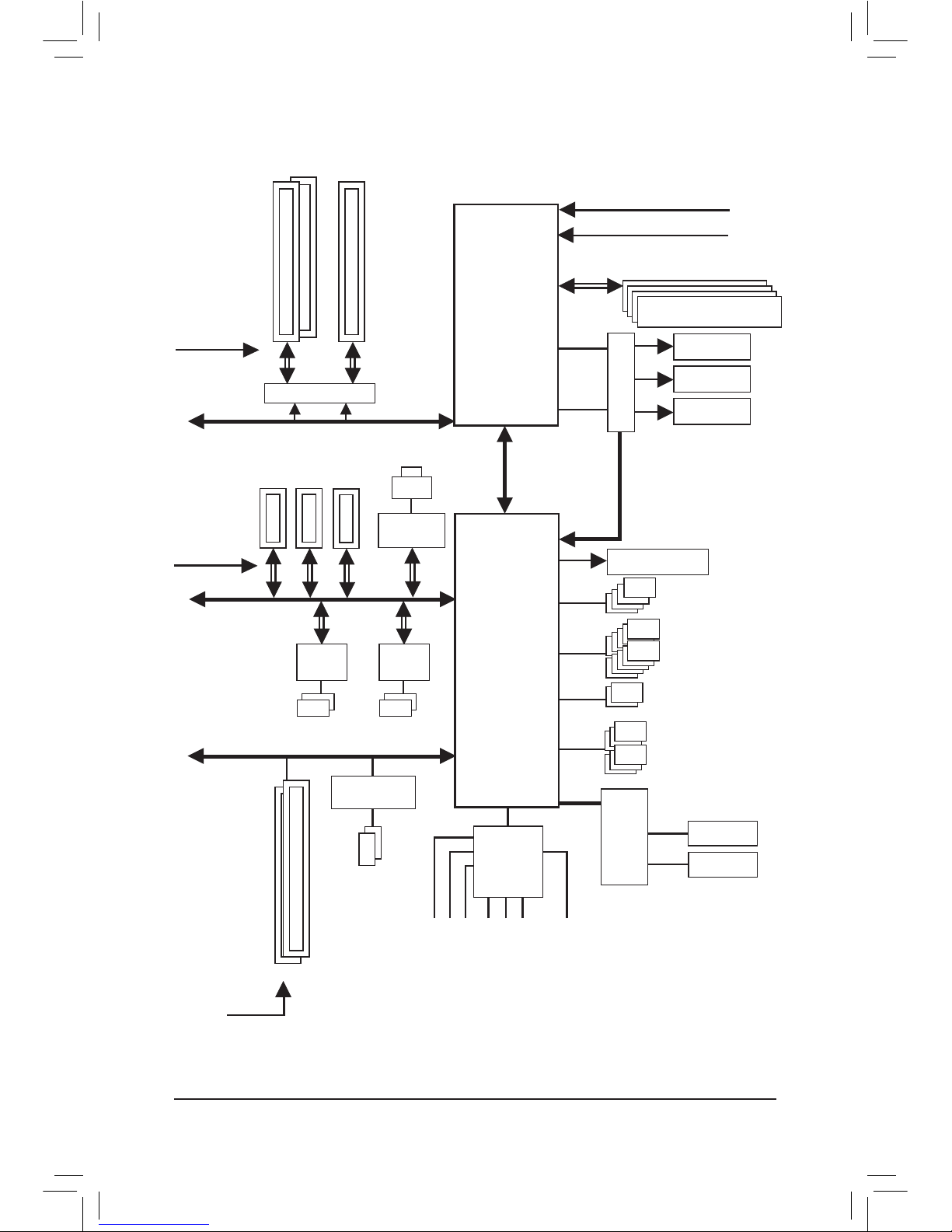

GA-A75-UD4H Motherboard Block Diagram
AMD APU
UMI
PCI Express Bus
iTE
IT8720 COM Port
LPC
Bus
6 SATA 6Gb/s
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
2 PCI
PCI Bus
PCI CLK
(33 MHz)
VIA
VT6308
2 IEEE 1394a
Dual BIOS
PCIe CLK
(100 MHz)
PCI Express Bus
PS/2 KB/Mouse
10 USB 2.0/1.1
4 USB 3.0/2.0
D-Sub
LAN
RJ45
x1
Realtek
RTL8111E
x1
3 PCI Express x1
PCIe CLK
(100 MHz)
1 PCI Express x16
2 PCI Express x8
Switch
or
x8 x16
x1x1
x1
2 USB 3.0/2.0
Etron
EJ168
x1
2 USB 3.0/2.0
Etron
EJ168
AMD A75
APU CLK+/- (100 MHz)
Dual Channel Memory
DVI-D
HDMI
DisplayPort
Switch
DISP CLK+/- (100 MHz)
DDR3 2400 (O.C.)/1866/
1600/1333/1066 MHz
- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, APU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
•
Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface
.
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation
Hardware Installation - 10 -
1-2 Product Specications
APU FM1 Socket:
- AMD A series processors/AMD E2 series processors
(Go to GIGABYTE's website for the latest APU support list.)
Chipset AMD A75
Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture
Support for DDR3 2400 (O.C.)/1866/1600/1333/1066 MHz memory modules
* The 1866 MHz (or above) memory speed is supported only when one or two DDR3
1866 MHz (or above) DIMMs are installed. It is not supported when four DIMMs
are installed. (Dual channel memory mode must be enabled when installing two
DIMMs.)
(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)
Onboard
Graphics
APU:
- 1 x D-Sub port
- 1 x DVI-D port, supporting a maximum resolution of 2560x1600
* The DVI-D port does not support D-Sub connection by adapter.
*
The resolution of 2560x1600 is supported only when Dual Link DVI mode is enabled.
- 1 x HDMI port, supporting a maximum resolution of 1920x1200
- 1 x DisplayPort, supporting a maximum resolution of 2560x1600
(All integrated graphics ports do not support Hot plug. If you want to change to
another graphics port when the computer is on, be sure to turn off the computer
rst.)
Audio Realtek ALC889 codec
High Denition Audio
2/4/5.1/7.1-channel
Support for Dolby®Home Theater
Support for S/PDIF Out
LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed,
be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
3 x PCI Express x1 slots
(All PCI Express slots conform to the PCI Express 2.0 standard.)
2 x PCI slots
Multi-Graphics
Technology
Support for AMD CrossFireX™ technology
* The PCIEX16 slot operates at up to x8 mode when AMD CrossFireX™is enabled.
Support for AMD Dual Graphics technology
* Only A series APUs support AMD Dual Graphics.
Table des matières
Autres manuels Gigabyte Carte mère
Gigabyte
Gigabyte GA-Z68XP-UD5 Manuel utilisateur
Gigabyte
Gigabyte GA-7VMM Manuel utilisateur
Gigabyte
Gigabyte GA-F2A88XM-D3HP Manuel utilisateur
Gigabyte
Gigabyte Z590 AORUS PRO AX Manuel utilisateur
Gigabyte
Gigabyte GA-Q170M-MK Manuel utilisateur
Gigabyte
Gigabyte GA-9ITDW Manuel utilisateur
Gigabyte
Gigabyte GA-H110M-Gaming 3 Manuel utilisateur
Gigabyte
Gigabyte GA-6VEM Manuel utilisateur
Gigabyte
Gigabyte MZ72-HB2 Manuel utilisateur
Gigabyte
Gigabyte GA-H61M-S2PH Manuel utilisateur
Gigabyte
Gigabyte Z590 Series Manuel utilisateur
Gigabyte
Gigabyte GA-7PCSLD Manuel utilisateur
Gigabyte
Gigabyte GA-8I915P-D Manuel utilisateur
Gigabyte
Gigabyte GA-M61PME-S2 Manuel utilisateur
Gigabyte
Gigabyte GA-6WMMC7 Manuel utilisateur
Gigabyte
Gigabyte A620I AX Manuel utilisateur
Gigabyte
Gigabyte Z690 AERO G Manuel utilisateur
Gigabyte
Gigabyte GA-G41MT-S2 Manuel utilisateur
Gigabyte
Gigabyte GA-MA790XT-UD4P Manuel utilisateur
Gigabyte
Gigabyte GA-B150N-GSM Manuel utilisateur
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
Biostar
Biostar M7VIT Bravo Instructions d'utilisation et d'installation
