Gigabyte GA-G41MT-S2 Manuel utilisateur

GA-G41MT-S2

LGA775 socket motherboard for Intel®Core™ processor family/

Intel®Pentium®processor family/Intel®Celeron®processor family

User's Manual

Rev. 1301

12ME-G41MTS2-1301R

Motherboard

GA-G41MT-S2

Oct. 1, 2010

Motherboard

GA-G41MT-S2

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE with-

out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-G41MT-S2 Motherboard Layout................................................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU and CPU Cooler ................................................................. 9

1-3-1 Installing the CPU.....................................................................................................9

1-4 Installing the Memory..................................................................................... 10

1-4-1 Dual Channel Memory Conguration .....................................................................10

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 11

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................19

2-1 Startup Screen ............................................................................................... 19

2-2 The Main Menu .............................................................................................. 19

2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 20

2-4 Standard CMOS Features.............................................................................. 26

2-5 Advanced BIOS Features .............................................................................. 27

2-6 Advanced Chipset Features........................................................................... 29

2-7 Integrated Peripherals.................................................................................... 30

2-8 Power Management Setup............................................................................. 31

2-9 PnP/PCI Congurations ................................................................................. 33

2-10 PC Health Status............................................................................................ 33

2-11 Load Fail-Safe Defaults.................................................................................. 34

2-12 Load Optimized Defaults................................................................................ 35

2-13 Set Supervisor/User Password ...................................................................... 35

2-14 Save & Exit Setup .......................................................................................... 36

2-15 Exit Without Saving........................................................................................ 36

Chapter 3 Drivers Installation........................................................................................37

3-1 Installing Chipset Drivers ............................................................................... 37

Regulatory Statements..................................................................................................38

- 5 -

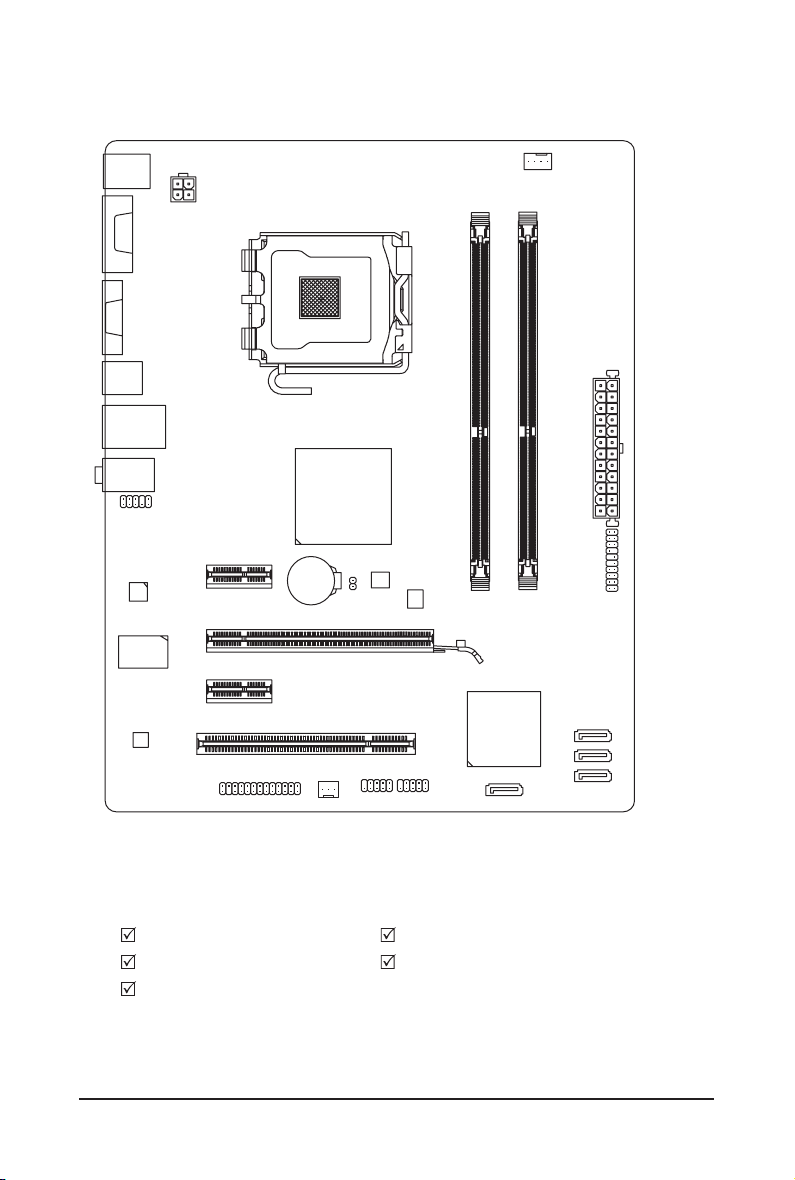

GA-G41MT-S2 Motherboard Layout

Box Contents

GA-G41MT-S2 motherboard Motherboard driver disk

Two SATA cables User's Manual

I/O Shield

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

KB_MS

COMA

CPU_FAN

LGA775

GA-G41MT-S2

F_AUDIO

AUDIO

B_BIOS

M_BIOS

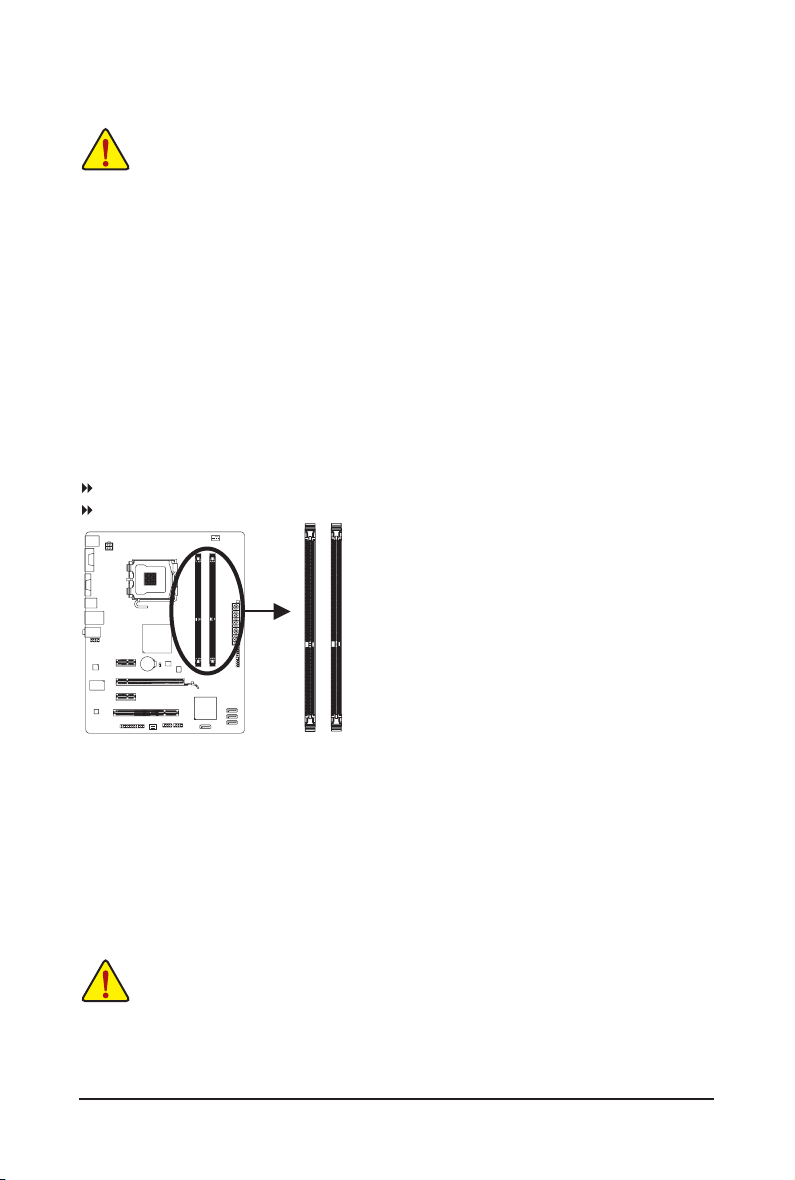

DDR3_1

DDR3_2

BATTERY

ATX_12V

Intel®G41

Intel®ICH7

PCIEX16

VGA

USB_LAN

CLR_CMOS

CODEC

SYS_FAN

F_USB1

F_USB2

F_PANEL

SATA2_0

SATA2_1

SATA2_2

SATA2_3

R_USB

PCI

PCIEX1_2

PCIEX1_1

LPT

ATX

iTE

IT8718

Atheros

AR8151

Hardware Installation - 6 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

- 7 - Hardware Installation

1-2 ProductSpecications

CPU wSupport for an Intel®Core™ 2 Extreme processor/

Intel®Core™ 2 Quad processor/Intel®Core™ 2 Duo processor/

Intel®Pentium®processor/Intel®Celeron®processor in the LGA775 package

(Go to GIGABYTE's website for the latest CPU support list.)

wL2 cache varies with CPU

Front Side Bus w1333/1066/800 MHz FSB

Chipset w

North Bridge: Intel®G41 Express Chipset

w

South Bridge: Intel®ICH7

Memory w2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory

w

Dual channel memory architecture

wSupport for DDR3 1066/800 MHz memory modules



(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard Graphics wIntegrated in the North Bridge:

- 1 x D-Sub port

Audio   w VIA VT1708S codec

w High Denition Audio

w 2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you need connect with the port of HD Audio standard

via front panel and enable the multi-channel audio feature through the audio driver.

LAN w1 x Atheros AR8151 chip (10/100/1000 Mbit)

Expansion Slots w1 x PCI Express x16 slot, running at x16

w2 x PCI Express x1 slots

w

1 x PCI slot

Storage Interface wSouth Bridge:

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB wSouth Bridge:

- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

Internal w1 x 24-pin ATX main power connector

Connectors w1 x 4-pin ATX 12V power connector

w4 x SATA 3Gb/s connectors

w1 x CPU fan header

w1 x system fan header

w1 x front panel header

w1 x front panel audio header

w2 x USB 2.0/1.1 headers

w1 x parallel port

w 1 x clearing CMOS jumper

Hardware Installation - 8 -

Back Panel w1 x PS/2 keyboard port

Connectors w1 x PS/2 mouse port

w1 x serial port

w

1 x D-Sub port

w4 x USB 2.0/1.1 ports

w1 x RJ-45 port

w 3 x audio jacks (Line In/Line Out/Microphone)

I/O wiTE IT8718

Hardware Monitor wSystem voltage detection

wCPU/System temperature detection

wCPU/System fan speed detection

wCPU overheating warning

wCPU/System fan fail warning

wCPU fan speed control

* Whether the CPU fan speed control function is supported will depend on the CPU

cooler you install.

BIOS w 2 x 8 Mbit ash

wUse of licensed AWARD BIOS

wSupport for DualBIOS™

wPnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features wSupport for @BIOS

wSupport for Q-Flash

wSupport for Xpress BIOS Rescue

wSupport for Download Center

wSupport for Xpress Install

wSupport for Xpress Recovery2

wSupport for EasyTune

* Available functions in EasyTune may differ by motherboard model.

wSupport for Easy Energy Saver

* Due to the hardware limitation, you must install the Intel®CoreTM 2 Extreme/CoreTM 2

Quad/ CoreTM 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series CPU

to enable support for Easy Energy Saver.

wSupport for Time Repair

wSupport for ON/OFF Charge

wSupport for Q-Share

Bundled Software wNorton Internet Security (OEM version)

Operating System wSupport for Microsoft®Windows®7/Vista/XP

Form Factor wMicro ATX Form Factor; 24.4cm x 19.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

- 9 - Hardware Installation

1-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing

the CPU to prevent hardware damage.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-

age of the CPU may occur.

• Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graph-

ics card, memory, hard drive, etc.

1-3-1 Installing the CPU

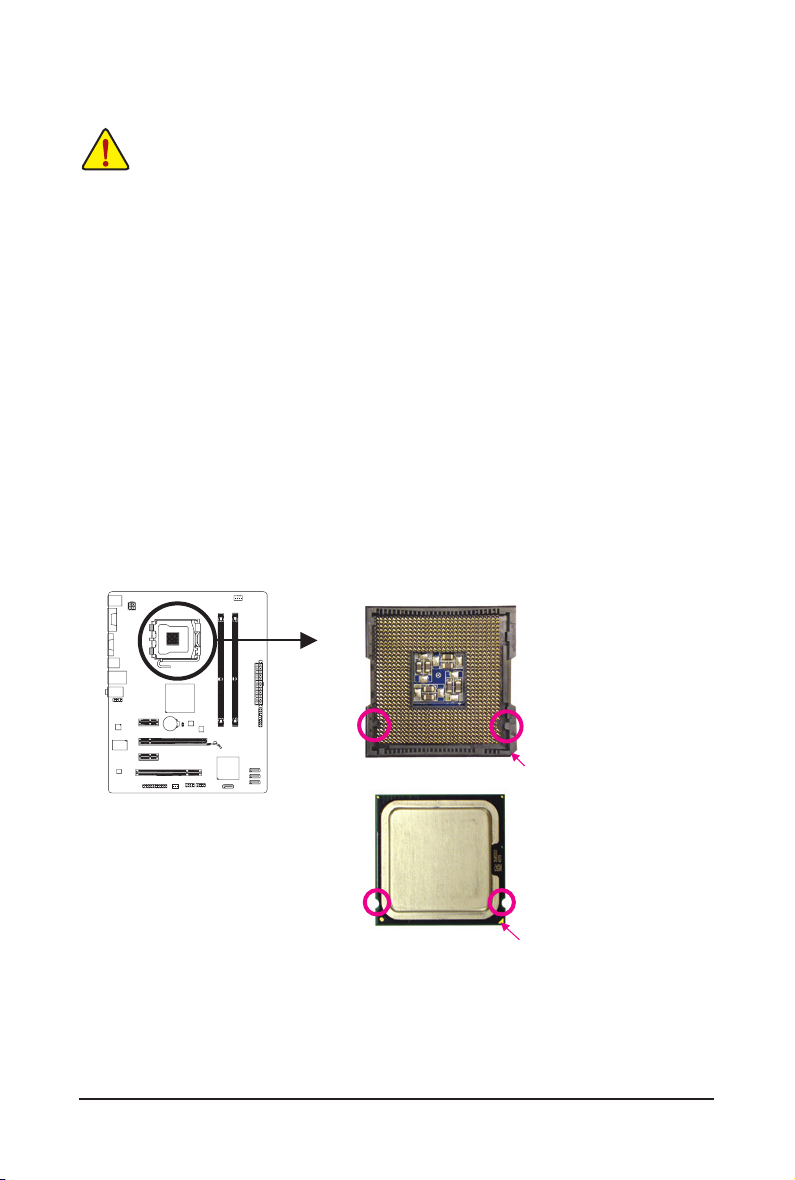

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Notch Notch

Alignment KeyAlignment Key

LGA775 CPU

LGA775 CPU Socket

Pin One Corner of the CPU Socket

Triangle Pin One Marking on the CPU

Hardware Installation - 10 -

DDR3_1

DDR3_2

Due to chipset limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing

the memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direc-

tion. If you are unable to insert the memory, switch the direction.

1-4-1 DualChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the

memory is installed, the BIOS will automatically detect the specications and capacity of the memory. En-

abling Dual Channel memory mode will double the original memory bandwidth.

The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel 0: DDR3_1

Channel 1: DDR3_2

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing

an expansion card to prevent hardware damage.

Autres manuels pour GA-G41MT-S2

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte Z390 UD Manuel utilisateur

Gigabyte

Gigabyte GA-5BXWL-RH Manuel utilisateur

Gigabyte

Gigabyte GA-8GE667 Pro Manuel utilisateur

Gigabyte

Gigabyte H470M S2 Manuel utilisateur

Gigabyte

Gigabyte GA-Z170-HD3P Manuel utilisateur

Gigabyte

Gigabyte GA-8SMMLP Manuel utilisateur

Gigabyte

Gigabyte 6WXM7 Series Manuel utilisateur

Gigabyte

Gigabyte G1.Sniper 3 Manuel utilisateur

Gigabyte

Gigabyte GA-7TCSV4 Manuel utilisateur

Gigabyte

Gigabyte GA-8I845GE775-G Manuel utilisateur

Gigabyte

Gigabyte GA-6VTXE-A Manuel utilisateur

Gigabyte

Gigabyte GA-MA790FX-DQ6 Manuel utilisateur

Gigabyte

Gigabyte GA-Q170M-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-X58A-UD7 Manuel utilisateur

Gigabyte

Gigabyte W773-W80 Manuel utilisateur

Gigabyte

Gigabyte GA-Z170X-Gaming 7 Manuel utilisateur

Gigabyte

Gigabyte GA-965QM-DS2 Manuel utilisateur

Gigabyte

Gigabyte GA-8S648 Manuel utilisateur

Gigabyte

Gigabyte GA-C1037UN-L Manuel utilisateur

Gigabyte

Gigabyte GA-8IGML-T Manuel utilisateur

Gigabyte

Gigabyte GA-Z87P-D3 Manuel utilisateur

Gigabyte

Gigabyte GA-8GE800 Pro Manuel utilisateur

Gigabyte

Gigabyte Z590I AORUS ULTRA Manuel utilisateur

Gigabyte

Gigabyte GA-EP43T-UD3L Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
