Gigabyte X670E AORUS PRO X Manuel utilisateur

X670E AORUS PRO X

User's Manual

Rev. 1001

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

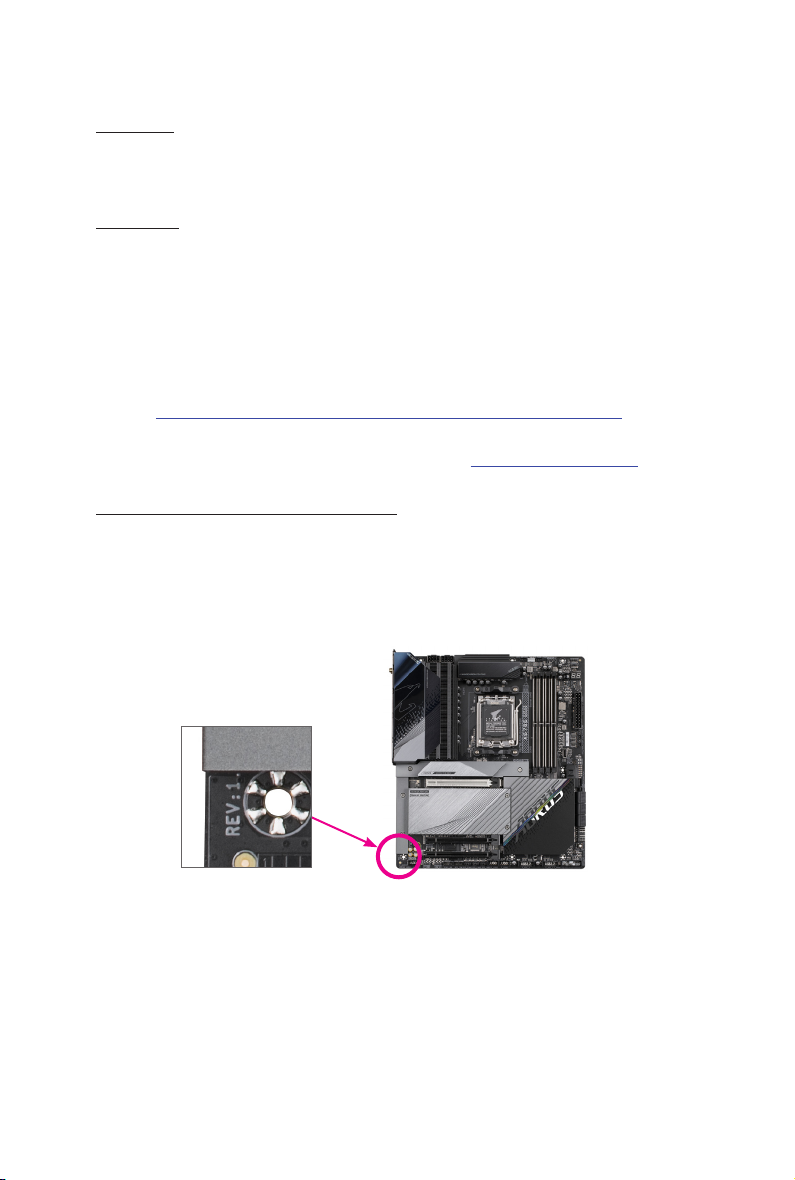

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 5

Chapter 2 Hardware Installation .....................................................................................6

2-1 Installation Precautions.................................................................................... 6

2-2 Product Specications...................................................................................... 7

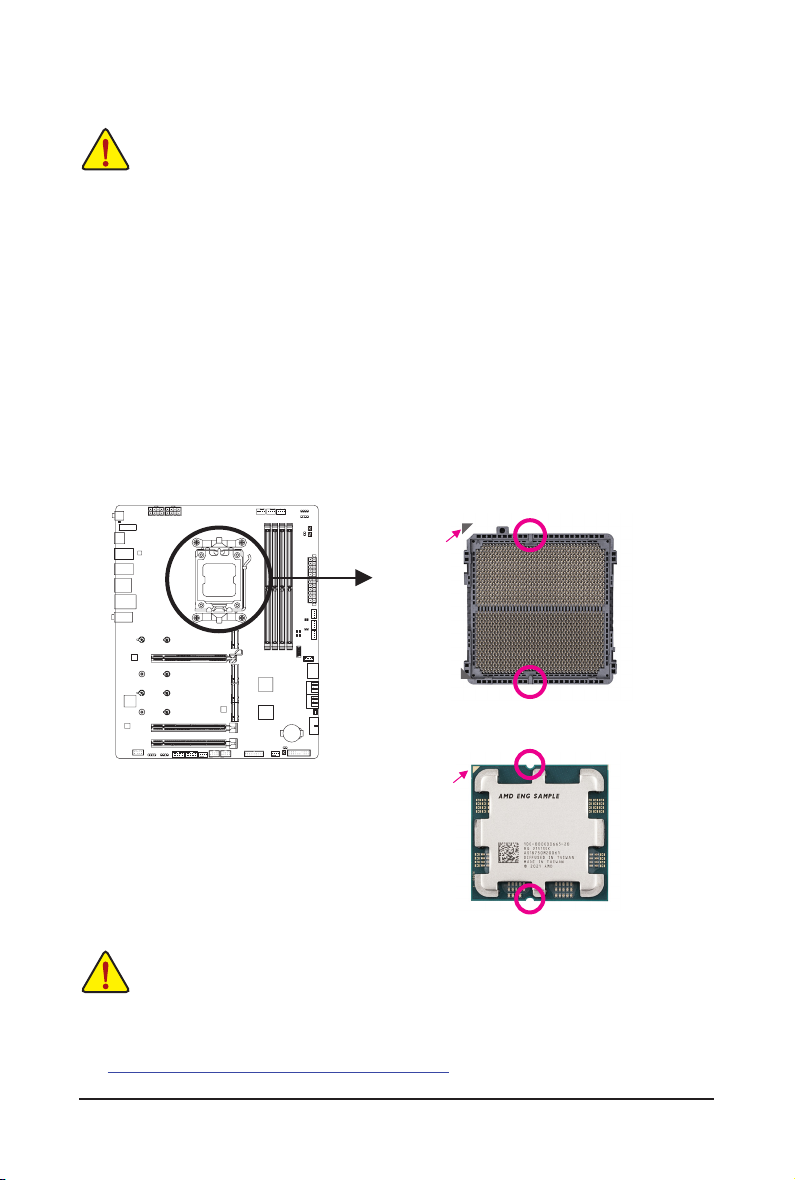

2-3 Installing the CPU and CPU Cooler ............................................................... 10

2-4 Installing the Memory..................................................................................... 13

2-5 Installing an Expansion Card ......................................................................... 14

2-6 Back Panel Connectors.................................................................................. 15

2-7 Onboard Buttons and LEDs ........................................................................... 17

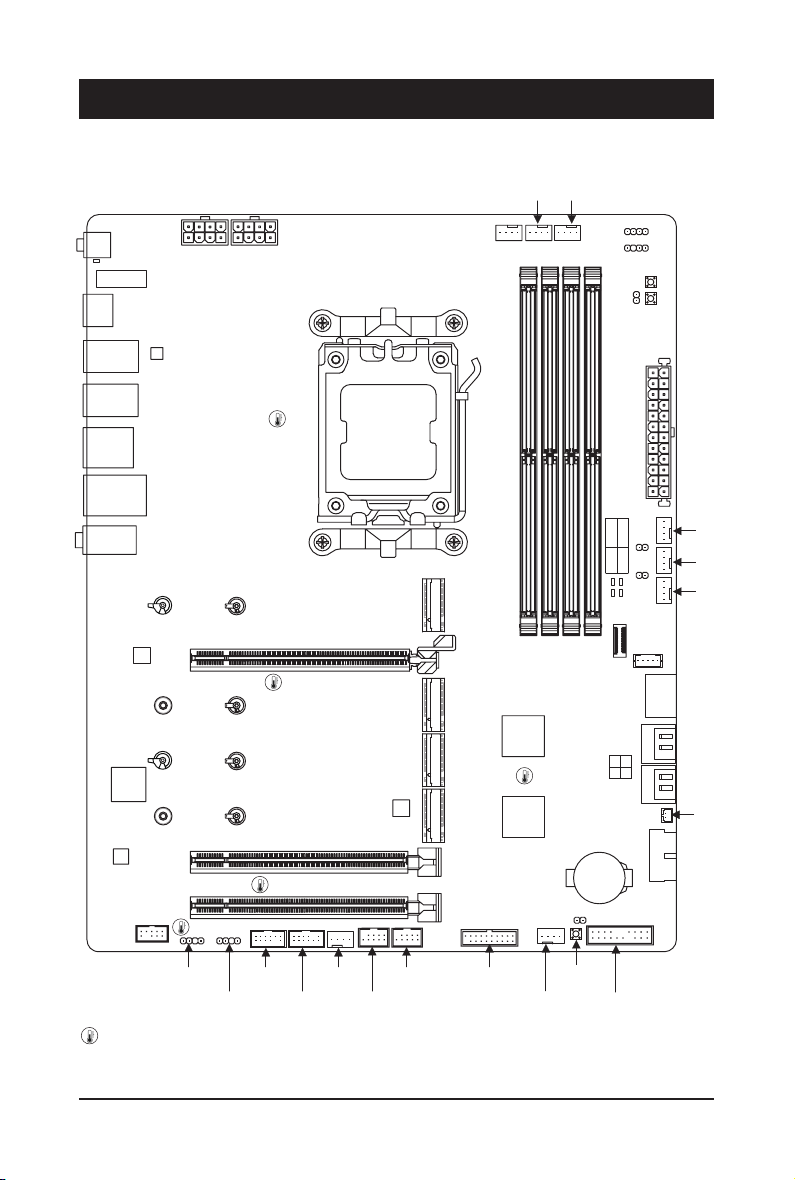

2-8 Internal Connectors........................................................................................ 18

Chapter 3 BIOS Setup ..................................................................................................32

Chapter 4 Installing the Operating System and Drivers................................................34

4-1 Operating System Installation ........................................................................ 34

4-2 Drivers Installation.......................................................................................... 35

Chapter 5 Appendix ......................................................................................................36

5-1 Conguring a RAID Set.................................................................................. 36

Regulatory Notices.................................................................................................... 37

Contact Us ................................................................................................................ 40

- 4 -

1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature sensor

M2_WIFI

USB20

U320G

U32G2_LAN

ATX

AUDIO

DDR5_A1

DDR5_A2

DDR5_B1

DDR5_B2

BAT

THB_U4

CODEC

PCIEX16

PCIEX4

PCIEX2

F_U320G

QFLASH_PLUS

80110

M2A_CPU

X670E AORUS PRO X

F_U32_2

F_USB2SPI_TPM

F_AUDIO

F_USB1

SYS_FAN2

SYS_FAN1

F_PANEL

CPU_FAN

CPU_OPT

CMOS_SW

iTE®

Super I/O

ATX_12V1ATX_12V

USB 2.0 Hub

SATA3

2 0

3 1

VGA CPU

BOOT DRAM

HDMI

Intel®

2.5GbE LAN

SYS_FAN3

M2C_SB

M2D_SB

LED_C

ARGB_V2_2

PW_SW

RST_SW

RST

F_U32_1

ESPI_DB1

ARGB_V2_1

ARGB_V2_3

M2B_CPU

QFLED

U32

U32G2

CLR_CMOS

M_BIOS

Socket AM5

AMD

Chipset

AMD

Chipset

80110

SYS_FAN4

F_HDMI

SYS_FAN5_

PUMP

EC_TEMP1

EC_TEMP2

NOISE_

SENSOR

SYS_FAN6_

PUMP

- 5 -

1-2 Motherboard Block Diagram

(Note) Actual support may vary by CPU.

AM5 CPU

CPU CLK+/- (100 MHz)

LAN

RJ45

4 SATA 6Gb/s

PCI Express 4.0 Bus

PCI Express 4.0 Bus PCI Express 3.0 Bus

2 USB 3.2 Gen 1

x4 x1x1

M.2 WIFI

1 M.2 Socket 3

(M2C_SB)

1 M.2 Socket 3

(M2D_SB)

Intel®

2.5GbE LAN

DDR5 5200/4800/4400 MT/s

PCIe x4PCIe x4

eSPI

Bus

SPI

Bus

iTE®

Super I/O

BIOS

TPM

AMD Chipset

1 PCI Express x4

(PCIEX4)

1 PCI Express x2

(PCIEX2)

PCI Express 5.0 (Note) Bus

2 M.2 Socket 3

(M2A_CPU, M2B_CPU)

Line Out

MIC

Line In

CODEC

2 HDMI

x16

1 PCI Express x16

4 USB 2.0/1.1

1 USB Type-C®,

with USB 3.2 Gen 2x2 support

1 USB Type-C®,

with USB 3.2 Gen 2x2 support

2 USB 3.2 Gen 1

4 USB 3.2 Gen 1

USB 2.0

Hub

4 USB 2.0/1.1

2 USB 3.2 Gen 2 Type-A

1 USB 3.2 Gen 2 Type-A

- 6 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 7 -

2-2 ProductSpecications

CPU AMD Socket AM5, support for:

AMD Ryzen™7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD X670

Memory Support for DDR55200/4800/4400 MT/s memory modules

4 xDDR5DIMM sockets supportingup to 192 GB (48 GB single DIMM capacity)

of systemmemory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support forAMD EXtended Proles for Overclocking(AMD EXPO™) and Extreme

Memory Prole (XMP) memory modules

(The CPU and memory conguration may affect the supported memory types, data

rate (speed), and number of DRAM modules, please refer to "Memory Support

List"on GIGABYTE's website for more information.)

Onboard

Graphics

Integrated Graphics Processor withAMD Radeon™Graphics support:

- 1 xHDMI port, supportinga maximumresolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

* Support for native HDMI 2.1 TMDS compatible ports.

- 1 xFront HDMI port, supportinga maximumresolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version

(Graphics specications may vary dependingon CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jackusingthe audio software. To congure

7.1-channel audio, access the audio software for audio settings.

LAN Intel®2.5GbE LAN chip (2.5Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Module

Qualcomm®Wi-Fi 7 QCNCM865(PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting2.4/5/6 GHzcarrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHzwireless standard

MediaTekWi-Fi 7 MT7927, RZ738 (PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supporting2.4/5/6 GHzcarrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHzwireless standard

(Actual data rate may vary dependingon environment and equipment.)

Expansion Slots CPU:

- 1 xPCI Express x16 slot, supportingPCIe 5.0 (Note) and runningat x16

(PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

Chipset:

- 1 xPCI Express x16 slot, supportingPCIe 3.0 and runningat x4 (PCIEX4)

- 1 xPCI Express x16 slot, supportingPCIe 3.0 and runningat x2 (PCIEX2)

(Note) Actual support may vary by CPU.

- 8 -

Storage Interface CPU:

- 1 xM.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 (Note) x4/x2

SSD support) (M2A_CPU)

- 1 xM.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 (Note) x4/x2

SSD support) (M2B_CPU)

Chipset:

- 2 xM.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

support)(M2C_SB, M2D_SB)

- 4 xSATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB CPU:

- 1 xUSB 3.2 Gen 2 Type-A port (red) on the backpanel

- 2 xUSB 3.2 Gen 1 ports on the backpanel

CPU +USB 2.0 Hub:

- 4 xUSB 2.0/1.1 ports on the backpanel

Chipset:

- 2 xUSB Type-C®ports, withUSB 3.2 Gen 2x2 support (1 port on the back

panel, 1 port available through the internal USB header)

- 2 xUSB 3.2 Gen 2 Type-A ports (red) on the backpanel

- 6 xUSB 3.2 Gen 1 ports (2 ports on the backpanel, 4 ports available through

the internal USB headers)

- 4 xUSB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x24-pin ATXmain power connector

2 x8-pin ATX12Vpower connectors

1 xCPU fan header

1 xCPU fan/water coolingpump header

4 xsystemfan headers

2 xsystemfan/water coolingpump headers

3 xaddressable RGB Gen2 LED strip headers

1 xRGB LED strip header

4 xSATA 6Gb/s connectors

4 xM.2 Socket 3 connectors

2 xtemperature sensor headers

1 xfront panel header

1 xfront panel audio header

1 xUSB Type-C®header, withUSB 3.2 Gen 2x2 support

2 xUSB 3.2 Gen 1 headers

2 xUSB 2.0/1.1 headers

1 xnoise detection header

1 xTHB_U4 add-in card connector

1 xHDMI port

1 xTrusted PlatformModule header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/

GC-TPM2.0 SPI V2 module only)

(Note) Actual support may vary by CPU.

- 9 -

Internal

Connectors

1 xpower button

1 xreset button

1 xClear CMOSbutton

1 xreset jumper

1 xClear CMOSjumper

BackPanel

Connectors

1 xQ-FlashPlus button

2 xSMA antenna connectors (2T2R)

1 xHDMI port

4 xUSB 3.2 Gen 1 ports

4 xUSB 2.0/1.1 ports

3 xUSB 3.2 Gen 2 Type-A ports (red)

1 xUSB Type-C®port, withUSB 3.2 Gen 2x2 support

1 xRJ-45port

3 xaudio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water coolingow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

Noise detection

BIOS1 x256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP1.0a, DMI 2.7, WfM 2.0, SM BIOS2.7, ACPI 5.0

Unique Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions

of eachapplication may also vary dependingon motherboard specications.

Support for Q-Flash

Support for Q-FlashPlus

Support for Smart Backup

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidthmanagement software

Operating

SystemSupport for Windows 11 64-bit

FormFactor ATXFormFactor; 30.5cmx24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest

version of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 10 -

2-3 Installing the CPU and CPU Cooler

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically after you insert the CPU and close the load plate.

&Please visit GIGABYTE's website for details on hardware installation.

https://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graphics

card, memory, hard drive, etc.

A. Note the CPU Orientation

Note the alignment keys on the motherboard CPU socket and the notches on the CPU.

Notch

Triangle Pin One

Marking on the

CPU

AM5 CPU

Alignment Key

AM5 CPU Socket

Triangle Pin One

Marking of the CPU

Socket

Autres manuels pour X670E AORUS PRO X

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte GA-Z77-D3H Manuel utilisateur

Gigabyte

Gigabyte GA-F2A78M-DASHV Manuel utilisateur

Gigabyte

Gigabyte Z790M A ELITE AX ICE Manuel utilisateur

Gigabyte

Gigabyte B650M AORUS PRO AX Manuel utilisateur

Gigabyte

Gigabyte Z690 GAMING X Manuel utilisateur

Gigabyte

Gigabyte GA-890XA-UD3 Manuel utilisateur

Gigabyte

Gigabyte 6VM7-4I Manuel utilisateur

Gigabyte

Gigabyte B760I AORUS PRO DDR4 Manuel utilisateur

Gigabyte

Gigabyte GA-Z77-D3H Manuel utilisateur

Gigabyte

Gigabyte MZ72-HB2 Manuel utilisateur

Gigabyte

Gigabyte GA-965P-DQ6 Manuel utilisateur

Gigabyte

Gigabyte GA-AB350M-Gaming 3 Manuel utilisateur

Gigabyte

Gigabyte GA-H81M-D2 Manuel utilisateur

Gigabyte

Gigabyte B365M GAMING HD Manuel utilisateur

Gigabyte

Gigabyte GA-7DPXDW-P Manuel utilisateur

Gigabyte

Gigabyte GA-B85M-D2V Manuel utilisateur

Gigabyte

Gigabyte GA-8IEX Series Manuel utilisateur

Gigabyte

Gigabyte MSH61DI Manuel utilisateur

Gigabyte

Gigabyte GA-M68SM-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-7GEWH-RH Manuel utilisateur

Gigabyte

Gigabyte GA-H81M-D2V Manuel utilisateur

Gigabyte

Gigabyte GA-B150M-D2V DDR3 Manuel utilisateur

Gigabyte

Gigabyte GA-N650SLI-DS4 Manuel utilisateur

Gigabyte

Gigabyte GA-8GEM667K Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
