Gigabyte B760 AORUS ELITE AX Manuel utilisateur

B760 AORUS ELITE AX

B760 AORUS ELITE

B760 A ELITE AX DDR4

(B760 AORUS ELITE AX DDR4)

B760 AORUS ELITE DDR4

User's Manual

Rev. 1101

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B760-AORUS-ELITE-AX-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B760-AORUS-ELITE-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B760-AORUS-ELITE-AX-DDR4-rev-10?m=ma#kf

https://www.gigabyte.com/Motherboard/B760-AORUS-ELITE-DDR4-rev-10?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_quick-guide_am5.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

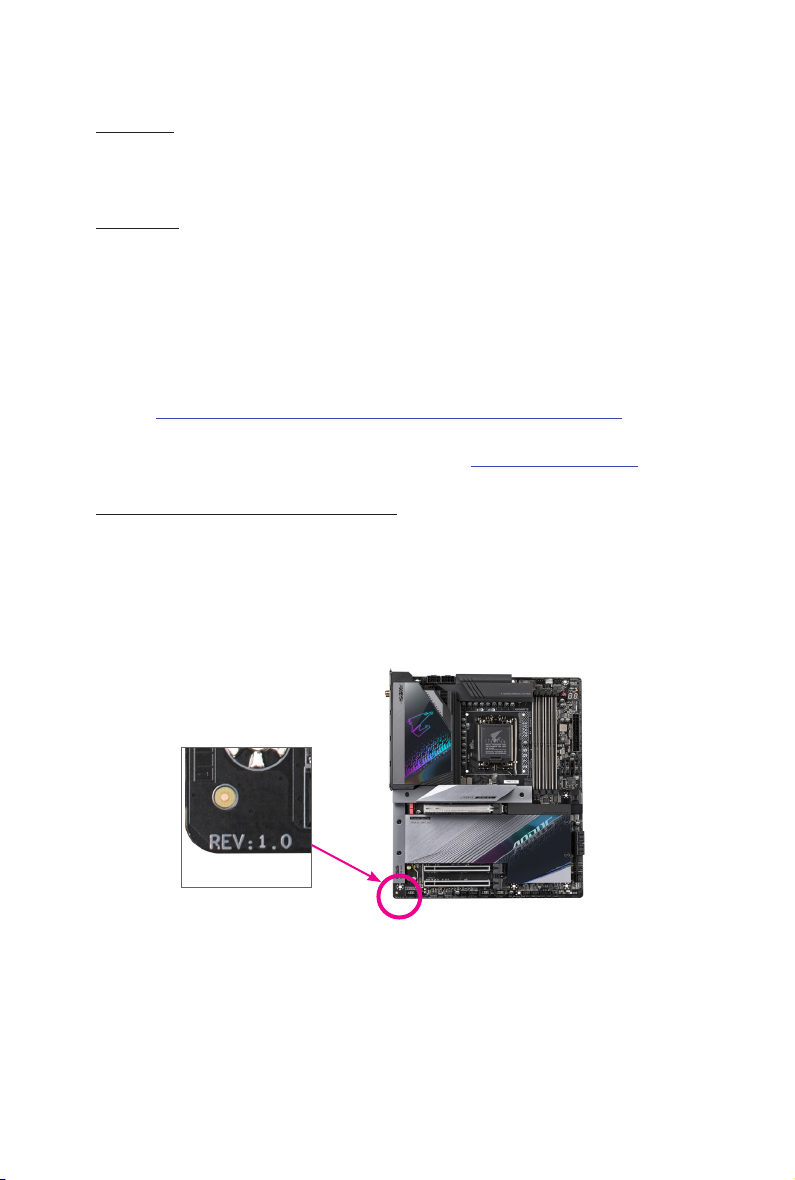

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 6

1-3 Box Contents.................................................................................................... 7

Chapter 2 Hardware Installation .....................................................................................8

2-1 Installation Precautions.................................................................................... 8

2-2 Product Specications...................................................................................... 9

2-3 Installing the CPU and CPU Cooler ............................................................... 12

2-4 Installing the Memory..................................................................................... 15

2-5 Installing an Expansion Card ......................................................................... 16

2-6 Back Panel Connectors.................................................................................. 17

2-7 Onboard Buttons and LEDs ........................................................................... 19

2-8 Internal Connectors........................................................................................ 21

Chapter 3 BIOS Setup ..................................................................................................33

Chapter 4 Installing the Operating System and Drivers................................................35

4-1 Operating System Installation ........................................................................ 35

4-2 Drivers Installation.......................................................................................... 36

Chapter 5 Appendix ......................................................................................................37

5-1 Conguring a RAID Set.................................................................................. 37

Regulatory Notices.................................................................................................... 38

Contact Us ................................................................................................................ 41

- 4 -

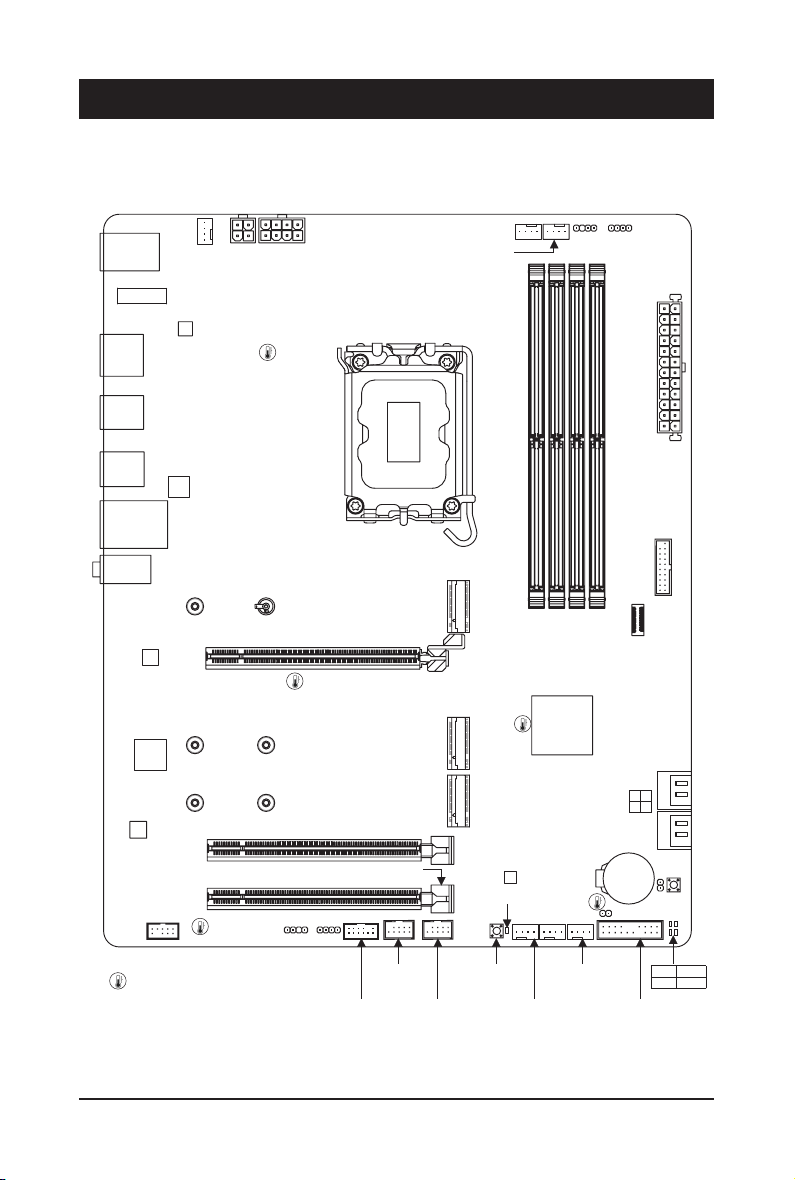

1-1 Motherboard Layout

Chapter 1 Product Introduction

jOnly for B760 AORUS ELITE AX.

M2_WIFIj

DP_HDMI20

U32

U32_LAN

LGA1700

ATX

AUDIO

DDR5_A1

DDR5_A2

DDR5_B1

DDR5_B2

BAT

Intel®B760

CLR_CMOS

M_BIOS

CODEC

PCIEX16

PCIEX1_1

F_U32C

F_U32

USB20

B760 AORUS ELITE AX

B760 AORUS ELITE

SYS_FAN1

F_USB2

D_LED1

F_AUDIO

F_USB1

LED_C1 SYS_FAN3

SPI_TPM F_PANEL

CPU_FAN

iTE®

Super I/O

D_LED2

LED_C2

ATX_12V_2X4

USB 2.0 Hub

SATA3 5 7

4 6

Realtek®

2.5GbE LAN

RST_SW

RST

QFLED

QFLASH_PLUS

M2A_CPU

110

U32G2C

ATX_12V_2X2 CPU_OPT

U32G2

USB 3.2 Gen 1 Hub

PCIEX1_2

M2P_SB

110

M2M_SB

110

SYS_FAN2

SYS_FAN4_PUMP CPU DRAM

VGA BOOT

USB 2.0 Hub

Temperature sensor

- 5 -

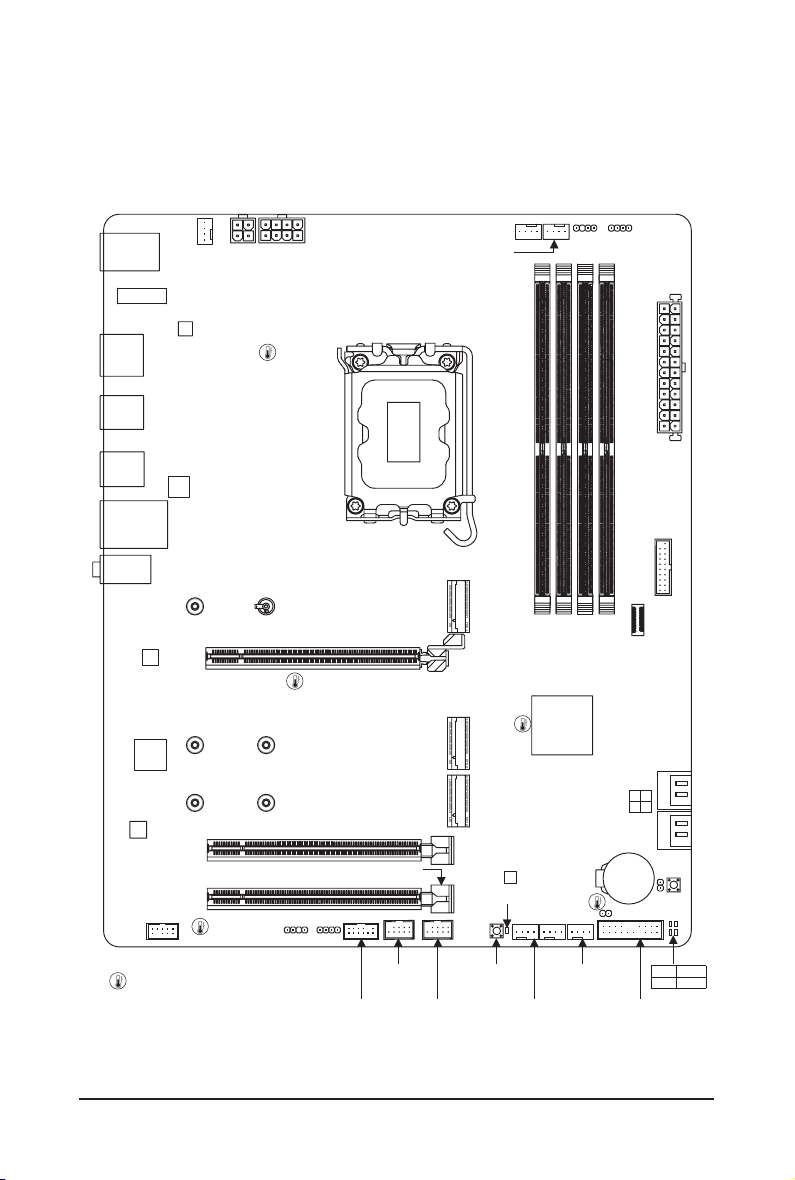

M2_WIFIl

DP_HDMI20

U32

U32_LAN

LGA1700

ATX

AUDIO

DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

BAT

Intel®B760

CLR_CMOS

M_BIOS

CODEC

PCIEX16

PCIEX1_1

F_U32C

F_U32

USB20

B760 AORUS ELITE AX DDR4

B760 AORUS ELITE DDR4

SYS_FAN1

F_USB2

D_LED1

F_AUDIO

F_USB1

LED_C1 SYS_FAN3

SPI_TPM F_PANEL

CPU_FAN

iTE®

Super I/O

D_LED2

LED_C2

ATX_12V_2X4

USB 2.0 Hub

SATA3 5 7

4 6

Temperature sensor

Realtek®

2.5GbE LAN

RST_SW

RST

QFLED

QFLASH_PLUS

lOnly for B760 AORUS ELITE AX DDR4.

M2A_CPU

110

U32G2C

ATX_12V_2X2 CPU_OPT

U32G2

USB 3.2 Gen 1 Hub

PCIEX1_2

M2P_SB

110

M2M_SB

110

SYS_FAN2

SYS_FAN4_PUMP CPU DRAM

VGA BOOT

USB 2.0 Hub

- 6 -

DMI 4.0

PCI Express 4.0 Bus

1-2 Motherboard Block Diagram

1 PCI Express x16

x16

LGA1700 CPU

1 M.2 Socket 3

(M2A_CPU)

jOnly for B760 AORUS ELITE AX.

kOnly for B760 AORUS ELITE.

lOnly for B760 AORUS ELITE AX DDR4.

mOnly for B760 AORUS ELITE DDR4.

DDI 1 DisplayPort

DDI 1 HDMI

DDR5 5600/5200/4800/4400 MT/sjk

DDR4 3200/3000/2933/2666/2400/2133 MT/slm

eSPI

Bus

SPI

Bus

Line Out

MIC

S/PDIF Out

iTE®

Super I/O

1 USB 3.2 Gen 2 Type-A

BIOS

TPM

2 USB Type-C®,

with USB 3.2 Gen 2 support

CODEC

4 USB 3.2 Gen 1

8 USB 2.0/1.1

USB 3.2

Gen 1 Hub

USB 2.0

Hub

2 USB 3.2 Gen 1

4 SATA 6Gb/s

PCI Express 4.0 Bus

2 M.2 Socket 3

(M2P_SB, M2M_SB)

LAN

RJ45

x1 x1

2 PCI Express x1

Realtek®

2.5GbE LAN

PCI Express Bus

x4 x4

PCI Express 3.0 Bus

CNVi

Intel®B760

M.2 WIFIjl

- 7 -

1-3 Box Contents

5B760 AORUS ELITE AX, B760 AORUS ELITE, B760 AORUS ELITE AX DDR4, or

B760 AORUS ELITE DDR4 motherboard

5User's Manual

5One antennajl

5Two SATA cables

5One G Connector

5M.2 screw

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

jOnly for B760 AORUS ELITE AX.

lOnly for B760 AORUS ELITE AX DDR4.

- 8 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its

installation and/or grounding instructions.

Chapter 2 Hardware Installation

- 9 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for the 13th and 12th Generation Intel®Core™, Pentium®

Gold and Celeron®Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B760 Express Chipset

Memory Support for DDR5 5600/5200/4800/4400 MT/s memory modulesjk

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory moduleslm

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specications may vary depending on CPU support.)

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN Realtek®2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Modulejl

Intel®Wi-Fi 6E AX211

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots CPU:

-1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1

(PCIEX1_1, PCIEX1_2)

jOnly for B760 AORUS ELITE AX.

kOnly for B760 AORUS ELITE.

lOnly for B760 AORUS ELITE AX DDR4.

mOnly for B760 AORUS ELITE DDR4.

- 10 -

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

support) (M2A_CPU)

Chipset:

- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

support) (M2P_SB, M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset:

- 2 x USB Type-C®ports, with USB 3.2 Gen 2 support (1 port on the back

panel, 1 port available through the internal USB header)

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C®header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Carte mère

Gigabyte

Gigabyte B450M DS3H Manuel utilisateur

Gigabyte

Gigabyte GA-H61M-D2H Manuel utilisateur

Gigabyte

Gigabyte GA-K8NE-RH Manuel utilisateur

Gigabyte

Gigabyte B660M GAMING AC DDR4 Manuel utilisateur

Gigabyte

Gigabyte GA-P31-S3G Manuel utilisateur

Gigabyte

Gigabyte B650M H Manuel utilisateur

Gigabyte

Gigabyte Z790 AORUS PRO X Manuel utilisateur

Gigabyte

Gigabyte GA-X99-UD4 Manuel utilisateur

Gigabyte

Gigabyte GA-M68MT-S2 Manuel utilisateur

Gigabyte

Gigabyte GA-A75N-USB3 Manuel utilisateur

Gigabyte

Gigabyte GA-P61A-D3 Manuel utilisateur

Gigabyte

Gigabyte B550 AORUS PRO AC Manuel utilisateur

Gigabyte

Gigabyte GA-H270-Gaming 3 Manuel utilisateur

Gigabyte

Gigabyte GA-Z170-D3H Manuel utilisateur

Gigabyte

Gigabyte R180-F34 Manuel utilisateur

Gigabyte

Gigabyte GA-EP45-DS4 Manuel utilisateur

Gigabyte

Gigabyte GA-H67MA-UD2H Manuel utilisateur

Gigabyte

Gigabyte GA - 586ATX2 Manuel utilisateur

Gigabyte

Gigabyte GA-6OXC Manuel utilisateur

Gigabyte

Gigabyte 889523024416 Manuel utilisateur

Gigabyte

Gigabyte GA-970A-D3 Manuel utilisateur

Gigabyte

Gigabyte GA-6VA+ Manuel utilisateur

Gigabyte

Gigabyte Z790 EAGLE AX Manuel utilisateur

Gigabyte

Gigabyte GA-EP35-DS3 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
