Gigabyte GA-6WMM7 Manuel utilisateur

R-20-03-000331

6WMM7 Series

USER'S MANUAL

1. The 6WMM7 motherboard Series includes 6WMM7

(82810-DC100) , 6WMM7-1(82810) and 6WMM7-E(82810E).

2. Support Dual BIOS(Optional).

3. Support ISA Bus Slot (Optional).

4. Support YAMAHA YMF744 Sound Chip (Optional).

5. Support Suspend To RAM Function.

6. System power on by PS/2 Mouse: First, enable this function

in CMOS Setup, then you can power on the system by double

clicking the right or left button of your PS/2 Mouse.

7. System power on by Keyboard: If your ATX power supply

supports larger than 300 mA 5V Stand-By current (depends

on the specification of keyboards), you can power on your

system by entering password from the Keyboard after setting

the “Keyboard power on” jumper and password in CMOS

Setup(Optional).

8. Support 3 steps ACPI LED selectable.

9. Support Modem Ring-On (Include internal Modem and

external modem on COM A and COM B).

10. Support Wake-up On LAN (Your ATX power supply must

support larger than 720 mA 5V Stand-By current).

11. Support TV/DFP(Digital Flat Panel) function by TV/DFP

daughter card (Optional).

12. The PCB version 2.0 and above have supported Intel

Pentium®!!! 256K Socket 370 Processor.

13. Support AMR function.

INTELCeleron TM /Pentium®!!! Socket 370 Processor MAIN BOARD

REV. 2.0 Third Edition

6WMM7 Series Motherboard

The author assumes no responsibility for any errors or omissions that may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

Mar. 31, 2000 Taipei, Taiwan

Quick Installation Guide

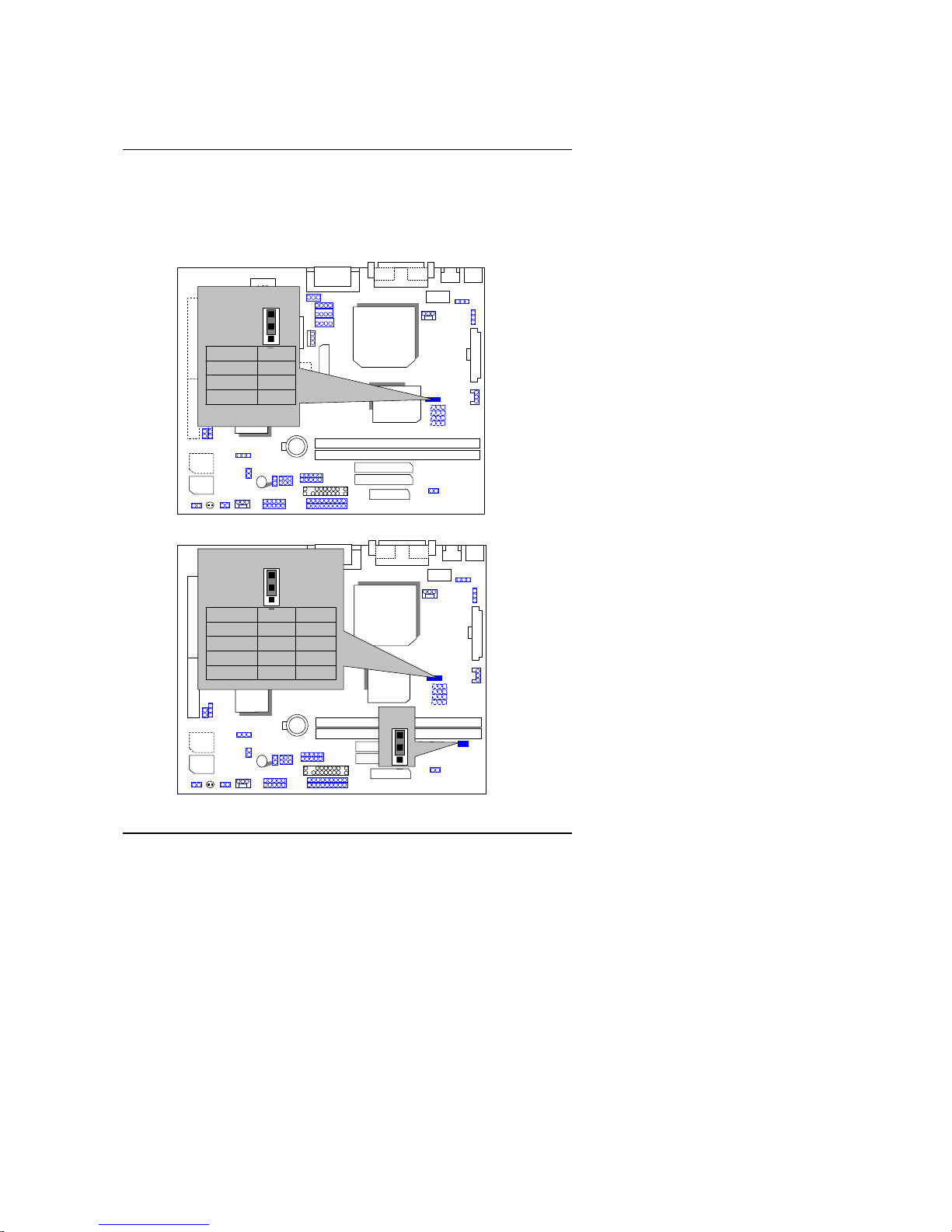

I. Quick Installation Guide :

The system bus frequency can be switched between 66MHz ~ 133MHz by

adjusting JP1 & JP33. The CPU Frequency is control by BIOS.

The CPU speed must match with the frequency RATIO. It will cause

system hanging up if the frequency RATIO is higher than that of CPU.

6WMM7-1/

6WMM7

ICH/

82801

GMCH/

82810/

82810-DC100

CPU

AC9

YMF

744

Main

BIOS

Back

JP1

CPU JP1

AUTO 1-2

66 2-3

100 NC

Figure 1: other chipset CPU speed setup

6WMM7-E

ICH/

82801

GMCH/

82810E

CPU

AC9

YMF

744

Main

BIOS

Back

JP1

CPU JP1 JP33

AUTO 1-2 1-2

66 2-3 2-3

100 NC 2-3

133 NC NC

JP33

Figure 2: for 82810E chipset CPU speed setup

6WMM7 Series Motherboard

Note: Please set the CPU host frequency in accordance with your

processor’s specifications. We don’t recommend you to set the

system bus frequency over the CPU’s specification because these

specific bus frequencies are not the standard specifications for

CPU, chipset and most of the peripherals. Whether your system

can run under these specific bus frequencies properly will depend

on your hardware configurations, including CPU, Chipsets,

SDRAM,Cards….etc.

Note: JP33 is only available when the motherboard use 82810E

chipset.

JP17~JP20 (Optional) (See Figure 3) (ICS 9248-73)

CPU SDRAM PCI JP20 JP19 JP18 JP17

AUTO 100 33 open open 2-3 2-3

150 150 37.5 1-2 2-3 2-3 1-2

140 140 35 2-3 2-3 2-3 1-2

133.3 133.3 44.43 2-3 1-2 1-2 2-3

133.3 133.3 33.32 1-2 1-2 1-2 2-3

124 124 41.33 1-2 2-3 1-2 2-3

120 120 40 2-3 2-3 1-2 2-3

114.99 114.99 38.33 2-3 1-2 2-3 1-2

105 105 35 2-3 1-2 2-3 2-3

100.9 100.9 33.63 1-2 2-3 2-3 2-3

100.23 100.23 33.41 2-3 2-3 2-3 2-3

95 95 31.67 1-2 1-2 1-2 1-2

90 90 30 2-3 1-2 1-2 1-2

83.31 124.96 41.65 1-2 2-3 1-2 1-2

75 112.5 37.5 2-3 2-3 1-2 1-2

70 105 35 1-2 1-2 2-3 1-2

66.89 100.33 33.44 1-2 1-2 2-3 2-3

Note: We don’t recommend you to set up your system speed to

70,75,83,90,95,105,115,120,124,140 or 150MHz because these

frequencies are not the standard specifications for CPU, Chipset

and most of the peripherals. Whether your system can run under

70,75,83,90,95,105,115,120,124,140 or 150MHz properly will

depend on your hardware configurations: CPU, SDRAM, Cards,

etc.

Quick Installation Guide

JP17/ JP18 / JP19 / JP20 (Optional) :

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

JP17

JP18

JP19

JP20

66 MHz

JP17

JP18

JP19

JP20

100 MHz

Figure 3

6WMM7 Series Motherboard

II. Jumper setting :

GN : Green Function Switch

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

Open Normal Operation

Close Entering Green

Mode

GD : Green Function LED

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

1LED+

2LED 



Quick Installation Guide

HD : IDE Hard Disk Active LED

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

1LED+

2LED 



SPK : External Speaker Connector

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

External S

eaker

PIN No. Function

1VCC

2NC

3NC

4Data

6WMM7 Series Motherboard

J16 : Buzzer Enable (Optional)

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

Open Internal Buzzer Disable

Close Internal Buzzer Enable

RES : Reset Switch

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

Open Normal

Operation

Close Reset Hardware

System

Quick Installation Guide

PWR : Power LED Connector (as 3 steps ACPI LED)

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

1 LED +

2 LED 

3 LED 

+ 

PW : Soft Power Connector

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

Open Normal operation

Close Soft ON/OFF

6WMM7 Series Motherboard

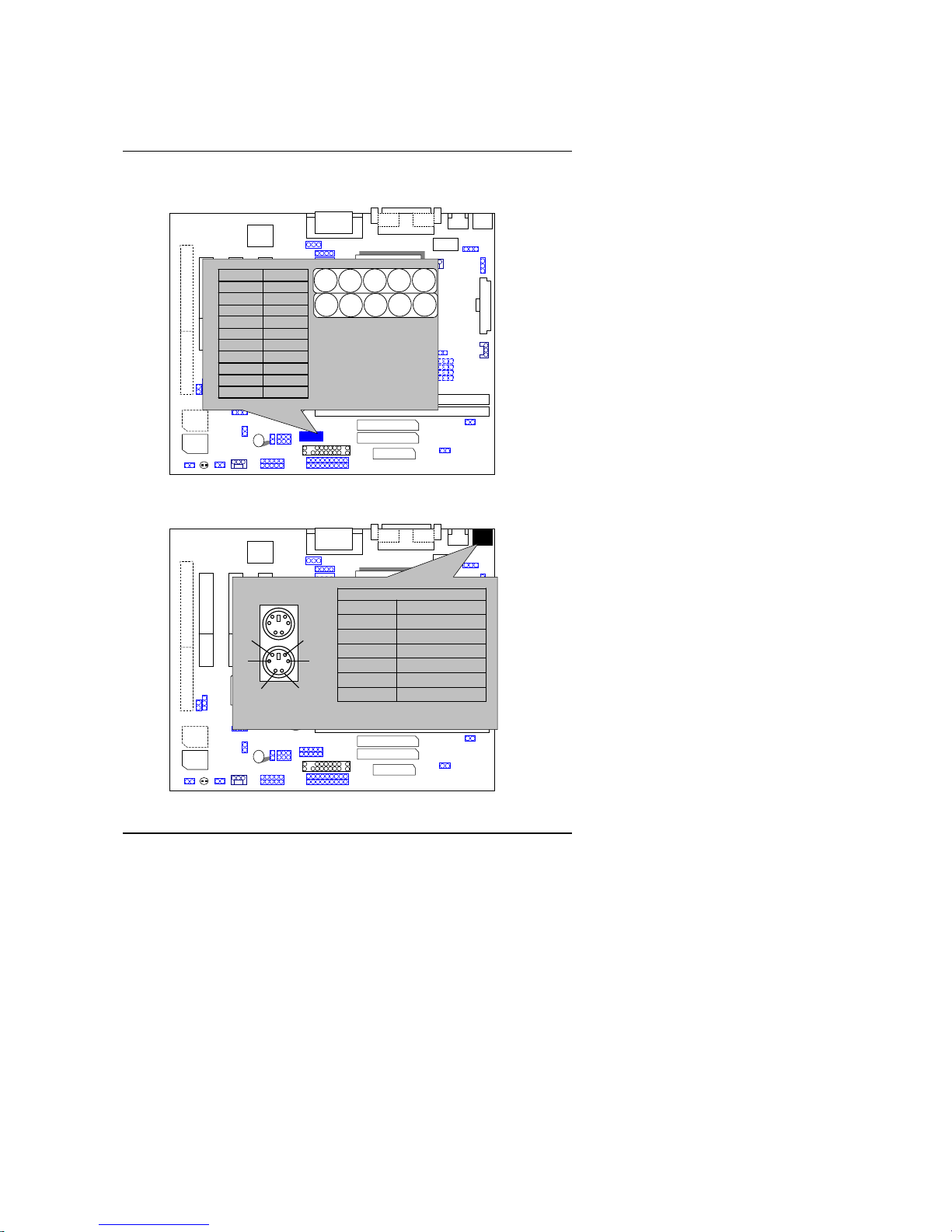

IR / CIR : Infrared Connector

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PIN No. Function

1 VCC

2 NC

3 IRRX

4 GND

5 IRTX

6 NC

7 CIRRX

8 VCC

9 NC

10 NC

1 10

432

PS/2 Mouse / Keyboard Connector

6WMM7

ICH/

82801

GMCH/

82810

CPU

AC97

YMF

744

Main

BIOS

Backup

BIOS

PS/2 Mouse/ Keyboard

Pin No. Function

1 Data

2 NC

3 GND

4 VCC(+5V)

5 Clock

6 NC

PS/2 Keyboard

PS/2 Mouse
