For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

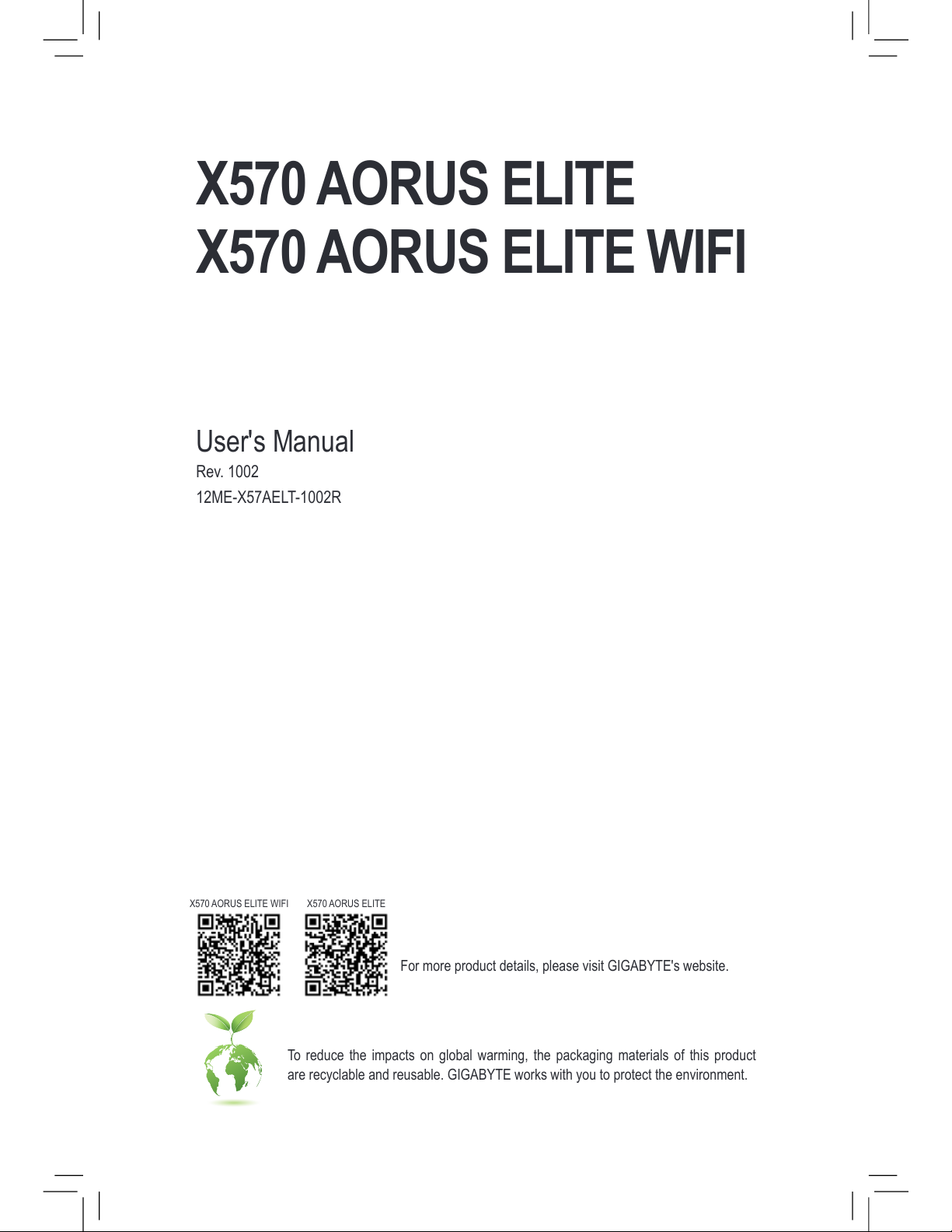

X570 AORUS ELITE WIFI X570 AORUS ELITE

X570 AORUS ELITE

X570 AORUS ELITE WIFI

User's Manual

Rev. 1002

12ME-X57AELT-1002R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifcations and eatures in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

For quick set-up of the product, read the Quick Installation Guide included with the product.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Motherboard

X570 AORUS ELITE

Jun. 14, 2019

Motherboard

X570 AORUS ELITE

-3-

Motherboard

X570 AORUS ELITE WIFI

Jul. 26, 2019

Wireless Module Country Approvals:

Jul. 26, 2019

Motherboard

X570 AORUS ELITE WIFI

-4-

Table of Contents

X570 AORUS ELITE/X570 AORUS ELITE WIFI Motherboard Layout............................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU .......................................................................................... 11

1-4 Installing the Memory..................................................................................... 12

1-5 Installing an Expansion Card ......................................................................... 12

1-6 Back Panel Connectors.................................................................................. 13

1-7 Internal Connectors........................................................................................ 15

Chapter 2 BIOS Setup ..................................................................................................24

2-1 Startup Screen ............................................................................................... 24

2-2 The Main Menu .............................................................................................. 25

2-3 Favorites (F11) ............................................................................................... 26

2-4 Tweaker.......................................................................................................... 27

2-5 Settings .......................................................................................................... 29

2-6 System Info. ................................................................................................... 34

2-7 Boot................................................................................................................ 35

2-8 Save & Exit..................................................................................................... 38

Chapter 3 Appendix ......................................................................................................39

3-1 Conguring a RAID Set.................................................................................. 39

3-2 Drivers Installation.......................................................................................... 41

Regulatory Statements.............................................................................................. 42

Contact Us ................................................................................................................ 48

-5-

X570 AORUS ELITE/X570 AORUS ELITE WIFI Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain. The

box contents are subject to change without notice.

Box Contents

5X570 AORUS ELITE or X570 AORUS ELITE WIFI motherboard

5Motherboard driver disk 5One G Connector

5User's Manual 5M.2 screw(s)/M.2 standoff(s)

5Quick Installation Guide 5One antennaj

5Four SATA cables

R_USB1

CPU_FAN

ATX_12V

ATX

F_AUDIO

AUDIO

PCIEX4

DDR4_A2

DDR4_B2

F_USB31C

DDR4_A1

DDR4_B1

BAT

F_PANELQFLASH_PLUS

AMD X570

CLR_CMOS

M_BIOS

PCIEX16

F_USB30_2

USB 2.0 Hub

Socket AM4

X570 AORUS ELITE

X570 AORUS ELITE WIFI

USB31_LAN

iTE®

Super I/O

F_USB2 F_USB1

TPM

M2A_SOCKET

SATA3

4 2 0

5 3 1

CPU_OPT

R_USB30_1

HDMI

Intel®

GbE LAN

PCIEX1_1

PCIEX1_2

LED_C1

80 60 42

F_USB30_1

D_LED1

SYS_FAN1

SYS_FAN2

LED_CPU

110

R_USB30_2

LED_C2

CODEC

M2B_SOCKET

80 60 42

D_LED2

QFLED

M2_WIFIj

jOnly for the X570 AORUS ELITE WIFI.

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result oelectrostatic discharge (ESD). Prior to installation, careully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. Iyou do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surace.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

-6-

1-2 Product Specifcations

CPU AMD Socket AM4, support or:

3rd Generation AMD Ryzen™processors/

2nd Generation AMD Ryzen™processors/

2nd Generation AMD Ryzen™with Radeon™Vega Graphics processors/

AMD Ryzen™with Radeon™Vega Graphics processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD X570

Memory 3rd Generation AMD Ryzen™processors:

- Support or DDR4 3200/2933/2667/2400/2133 MHz memory modules

2nd GenerationAMD Ryzen™processors/2nd GenerationAMD Ryzen™with Radeon™

Vega Graphics processors/AMD Ryzen™with Radeon™Vega Graphics processors:

- Support or DDR4 2933/2667/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support or ECC Un-buered DIMM 1Rx8/2Rx8 memory modules

Support or non-ECC Un-buered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support or Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard

Graphics (Note 1)

Integrated Graphics Processor:

- 1 x HDMI port, supporting a maximum resolution o4096x2160@60 Hz

* Support or HDMI 2.0 version, HDCP 2.2, and HDR.

Maximum shared memory of 16 GB

Audio Realtek®ALC1200 codec

High Denition Audio

2/4/5.1/7.1-channel

Support or S/PDIF Out

LAN Intel®GbE LAN chip (10/100/1000 Mbit)

Wireless

Communication

Module j

Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2

Support for 11ac wireless standard and up to 433 Mbps data rate

* Actual data rate may vary depending on environment and equipment.

(Note 1) For 2nd GenerationAMD Ryzen™with Radeon™Vega Graphics processors/AMD Ryzen™with Radeon™

Vega Graphics processors only.

jOnly for the X570 AORUS ELITE WIFI.

-7-

Expansion Slots Integrated in the CPU (PCIEX16):

3rd Generation AMD Ryzen™processors:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

2nd Generation AMD Ryzen™processors:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

2nd Generation AMD Ryzen™with Radeon™Vega Graphics processors/AMD

Ryzen™with Radeon™Vega Graphics processors:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8

Integrated in the Chipset (PCIEX4/PCIEX1):

- 1 x PCI Express x16 slot, supporting PCIe 4.0 (Note 2)/3.0 and running at x4

(PCIEX4)

- 2 x PCI Express x1 slots, supporting PCIe 4.0 (Note 2)/3.0

Multi-Graphics

Technology (Note 3) Support orAMD Quad-GPU CrossFire™and 2-WayAMD CrossFire™technologies

Storage Interface Integrated in the CPU (M2A_SOCKET):

3rd Generation AMD Ryzen™processors:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and

PCIe 4.0 x4/x2 SSD support)

2nd GenerationAMD Ryzen™processors/2nd GenerationAMD Ryzen™with Radeon™

Vega Graphics processors/AMD Ryzen™with Radeon™Vega Graphics processors:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and

PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET):

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and

PCIe 4.0 (Note 2)/3.0 x4/x2 SSD support)

- 6 x SATA 6Gb/s connectors

- Support or RAID 0, RAID 1, and RAID 10

USB Integrated in the CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Integrated in the Chipset:

- 1 x USB Type-C™port with USB 3.2 Gen 2 support, available through the

internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+2 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through

the internal USB headers)

(Note 2) For 3rd Generation AMD Ryzen™processors only.

(Note 3) For 3rd Generation AMD Ryzen™processors/2nd Generation AMD Ryzen™processors only.

-8-

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C™header, with USB 3.2 Gen 2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x Clear CMOS jumper

1 x Q-Flash Plus button

Back Panel

Connectors

4 x USB 2.0/1.1 ports

2 x SMA antenna connectors (1T1R)j

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 3.2 Gen 2 Type-A ports (red)

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling fow rate detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS 1 x 128 Mbit fash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WM 2.0, SM BIOS 2.7, ACPI 5.0

jOnly for the X570 AORUS ELITE WIFI.

-9-

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

unctions oeach application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

cFosSpeed

Operating

System Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related inormation without

prior notice.

Please visit GIGABYTE's website for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest

version of apps.

X570 AORUS ELITE WIFI X570 AORUS ELITE

- 10 -

Autres manuels pour X570 AORUS MASTER

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Gigabyte Matériel informatique

Gigabyte

Gigabyte GC-WIFI7 Manuel utilisateur

Gigabyte

Gigabyte GC-MAPLE RIDGE Manuel utilisateur

Gigabyte

Gigabyte GH-ESB21-TH Manuel utilisateur

Gigabyte

Gigabyte GP-ASACNE6800TTTDA Manuel utilisateur

Gigabyte

Gigabyte AORUS LIQUID COOLER Series Manuel utilisateur

Gigabyte

Gigabyte GH-PDU22-SC Manuel utilisateur

Gigabyte

Gigabyte WATER FORCE Manuel utilisateur

Gigabyte

Gigabyte GA-8GPNXP Duo Manuel utilisateur

Gigabyte

Gigabyte TO23-H60 Manuel utilisateur

Gigabyte

Gigabyte R133-X11-AAB1 Manuel utilisateur

Gigabyte

Gigabyte B450M K Manuel utilisateur

Gigabyte

Gigabyte GT-P8000 Manuel utilisateur

Gigabyte

Gigabyte GT-PTV-TAF-RH Manuel utilisateur

Gigabyte

Gigabyte U7300 Manuel utilisateur

Gigabyte

Gigabyte E163-S30-AAB1 Manuel utilisateur

Gigabyte

Gigabyte GC-TITAN RIDGE 2.0 Manuel utilisateur

Gigabyte

Gigabyte GC-CI11M-B Manuel utilisateur

Gigabyte

Gigabyte Z690 AORUS ELITE STEALTH Manuel utilisateur

Gigabyte

Gigabyte GT-P6000 Manuel utilisateur

Gigabyte

Gigabyte GN-WLMR101 Manuel utilisateur

Gigabyte

Gigabyte GC-CI22M A Manuel utilisateur

Gigabyte

Gigabyte NVIDIA N730D5-2GL Manuel utilisateur

Gigabyte

Gigabyte GSmart MD800 Manuel utilisateur

Gigabyte

Gigabyte GT-U7000-RH Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
