Gigabyte GSmart MD800 Manuel utilisateur

All products by GIGA-BYTE Communications mentioned in this document, including the device,

accessories, software are owned or authorized by original manufacturers to GIGA-BYTE

Communications. Reproduction, transfer, distribution, or storage of part or all of the contents in this

document in any form without the prior written permission of GIGA-BYTE Communications Inc. is

prohibited.

GIGA-BYTE Group, GIGA-BYTE Communications Inc.

MD800

General Information

Welcome to use the GSmart ExpressCard MD800. With this, you can easily:

- Access the Internet

- Send and receive text messages

- Use the function of contacts

Before using the GSmart ExpressCard MD800, please read the safety precautions carefully, so

that you can use your express card correctly and safely.

- Do not switch on your express card when it is prohibited to use wireless device or when the

express card may cause interference or danger.

- Switch off your express card in aircraft. The express card may cause interference to control

signals of the aircraft.

- Switch off your express card near high-precision electronic devices. The wireless data card

may affect the performance of these devices.

- Do not attempt to disassemble your express card or its accessories. Only the qualified

personnel is allowed to service or repair the wireless data card.

MD800

Safety Information

Important Notice

Due to the transmission and reception properties of cellular communications, data can occasionally

be lost or delayed. This can be due to the variation in radio signal strength that results from

changes in the characteristics of the radio transmission path.

Although data loss is rare, the environment where you operate the GSmart MD800 may adversely

affect communications. Variations in radio signal strength are referred to as fading. Fading is

caused by several different factors including signal reflection, the ionosphere, and interference

from other radio channels.

Potential Hazards

Do not operate the GSmart MD800 in an environment that may be susceptible to radio interference

resulting in danger; specifically:

Areas where prohibited by the law.

- Follow any special rules and regulations and obey all signs and notices. Always turn off the

host device and remove the GSmart MD800 from the card slot when instructed to do so, or

when you suspect that it may cause interference or danger.

Where explosive atmospheres may be present

- Do not operate your GSmart MD800 in any area where a potentially explosive atmosphere

may exist. Sparks in such areas could cause an explosion or fire resulting in bodily injury or

even death. Be aware and comply with all signs and instructions.

- Users are advised not to operate the GSmart MD800 while at a refueling point or service

station. Users are reminded to observe restrictions on the use of radio equipment in fuel

depots (fuel storage and distribution areas), chemical plants or where blasting operations are

in progress.

- Areas with a potentially explosive atmosphere are often but not always clearly marked.

Potential locations can include gas stations, below deck on boats, chemical transfer or storage

facilities, vehicles using liquefied petroleum gas (such as propane or butane), areas where the

air contains chemicals or particles, such as grain, dust or metal powders, and any other area

where you would normally be advised to turn off your vehicle engine.

Near Medical and life support equipment

- Do not operate your GSmart MD800 in any area where medical equipment, life support

equipment, or near any equipment that may be susceptible to any form of radio interference.

In such areas, the host communications device must be turned off. The GSmart MD800 may

transmit signals that could interfere with this equipment.

On an aircraft, either on the ground or airborne

- In addition to FAA requirements, many airline regulations state that you must suspend

wireless operations before boarding an airplane. Please ensure that the host device is

turned off and your GSmart MD800 is removed from the card slot prior to boarding aircraft in

order to comply with these regulations. The GSmart MD800 can transmit signals that could

interfere with various onboard systems and controls.

MD800

While operating a vehicle

- The driver or mobile network operator of any vehicle should not operate a express card while

when driving a vehicle. Doing so will detract from the driver or mobile network operator’s

control and operation of that vehicle. In some countries, operating such communications

devices while in control of a vehicle is an offense.

Electrostatic Discharge (ESD)

- Electrical and electronic devices are sensitive to electrostatic discharge (ESD). The

Connection Manager will attempt to reinitialize the device should a substantial electrostatic

discharge reset the device. If the software is not operational after an ESD occurrence, then

restart the GSMART MD800.

MD800

Regulations

CE Marking

This device has been tested to and conforms to the regulatory requirements of the European Union

and has attained CE Marking. The CE Mark is a conformity marking consisting of the letters “CE”.

The CE Mark applies to products regulated by certain European health, safety and environmental

protection legislation. The CE Mark is obligatory for products it applies to: the manufacturer affixes

the marking in order to be allowed to sell his product in the European market.

This product conforms to the essential requirements of the R&TTE directive 1999/5/EC in order to

attain CE Marking. A notified body has determined that this device has properly demonstrated that

the requirements of the directive have been met and has issued a favorable certificate of expert

opinion. As such the device will bear the notified body number 0681 after the CE mark.

The CE Marking is not a quality mark. Foremost, it refers to the safety rather than to the quality of a

product. Secondly, CE Marking is mandatory for the product it applies to, whereas most quality

markings are voluntary.

Marking: The product shall bear the CE mark, the notified body number(s) as depicted to the right.

CE0681.

MD800

Table of Contents

General Information………………………………………………………………………………………..2

Safety Information………………………………………………………………………………3

Regulation……………………………………………………………………………………………………5

Chapter 1 Getting Started……………………………………………………………...………………1-1

1.1 Software Installation….................…………………………………………………………………..1-1

1.2 Remove your express card……...…………………………………………………………………..1-1

Chapter 2 Using Your Express Card…..……………………………………………………………. 2-1

2.1 The Screen…………................................................................................................................2-1

2.2 Connection…… .......................................................................................................................2-2

2.3 Information and Status Displayed............................................................................................2-3

2.4 LED Indicator Status………………….......................................................................................2-4

2.5 Saving Power…………............................................................................................................2-4

Chapter 3 Messages.......................................................................................................3-1

3.1 SMS……………………………………………. .…………………………………………………….3-1

Chapter 4 Contacts ………….......................................................................................................4-1

4.1 Adding Contacts.……………....................................................................................................4-1

4.2 Editing Contacts ......................................................................................................................4-1

4.3 Deleting Contacts ....................................................................................................................4-2

Chapter 5 Settings …………........................................................................................................4-1

5.1 General Setting.………….…....................................................................................................4-1

5.2 SMS Setting ............................................................................................................................4-1

5.3 SIM Setting .............................................................................................................................4-2

5.4 Radio Setting ..........................................................................................................................4-3

Chapter 6 Status, Statistic & Information...……........................................................................5-1

6.1 Status……………..……. .… ....................................................................................................5-1

6.2 Statistic………….……….. ....................................................................................................5-2

6.3 Information…………….. .......................................................................................................5-2

Chapter 7 Q&A…………………….................................................................................................6-1

7.1 Q&A………..............................................................................................................................6-1

Chapter 8 Specifications………...................................................................................8-1

8.1 Specifications………………… .................................................................................................8-2

1-1

MD800

1. Getting Started

1.1 Software Installation

System requirement

Wireless function works with the following

versions of the Windows®Operating system:

zWindows XP Service Pack 2 (SP2) 32-bit

(x86)

zWindows Vista™; 32-bit (x86)

Software Installation

The process and appearance of certain

software elements in Windows Vista will be

somewhat different in XP. These differences

are minor and should not limit the functionality

of MD800.

New Hardware Detection:

Windows XP

Once MD800 is connected, a dialog box

should pop-up from the Toolbar Hardware

Connection Icon. The device will be identified

as GSmart MD800 ExpressCard.

Windows Vista

In Vista, a pop-up window may appear. Click

Allow to proceed

After the first pop-up, all other aspects for

software installation will be identical in all

compatible versions of Windows

1.2 Remove your express card

You must shut down your GSmart MD800

correctly before you attempt to remove it. It

ensures that your GSmart MD800 is removed

safely.

To remove the express card

1. Click Disconnect to end all active connection

2. Click to finish the screen

3. On the Windows desktop, go to the

Notification Area, choose Safely Remove

GSmart ExpressCard

4. A message box will be displayed indicating

that it is safe to be removed the modem.

Note: Incorrect removal of your GSmart

ExpressCard may damage the device

MD800

2-1

2. Using Your Express Card

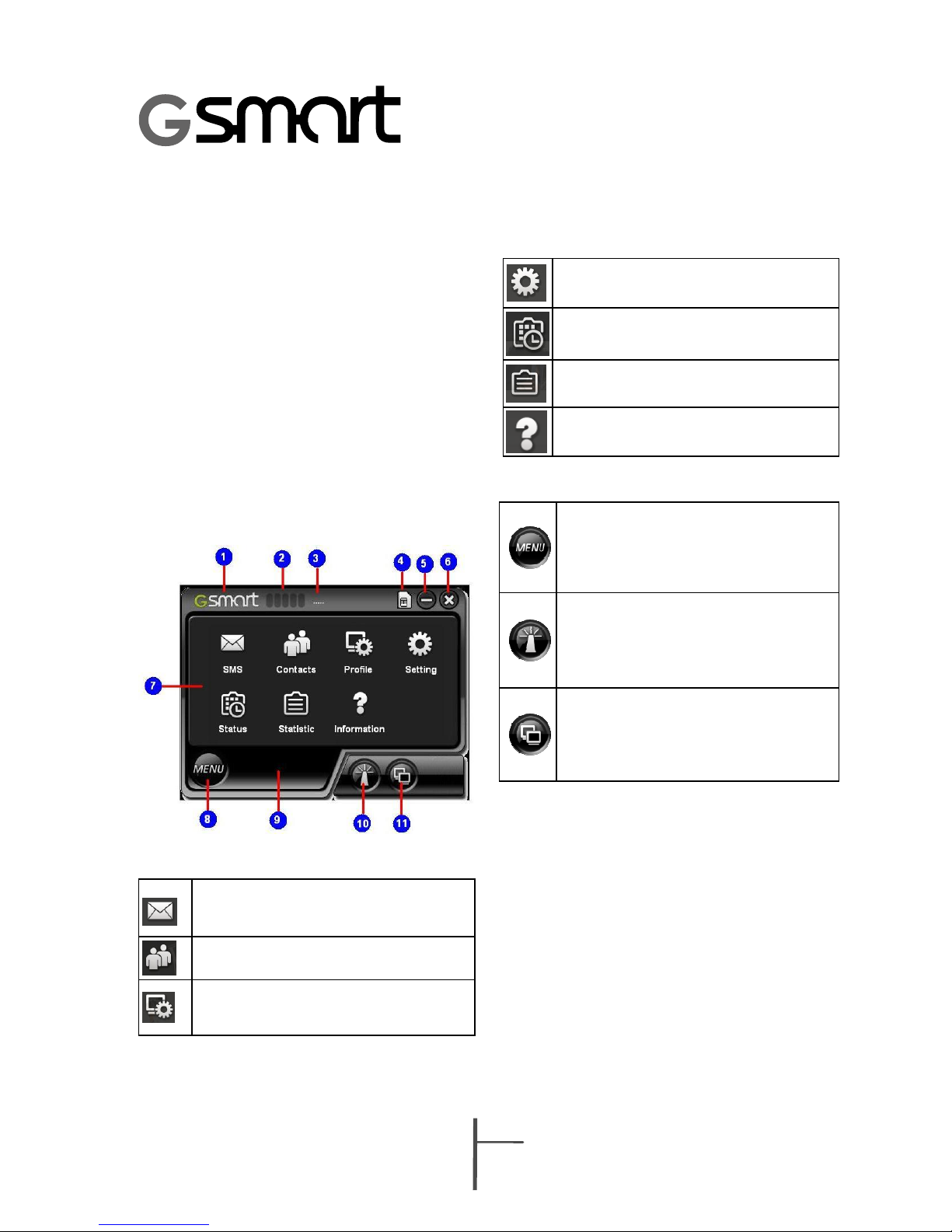

2.1 The Screen

Home Screen:

1. GSmart Logo

2. Signal Strength

3. Radio Technology

4. SIM card

5. Minimize

6. Close

7. Menu Screen

8. Back to Menu

9. Current Status

10. Radio On/Off

11 Connect/Disconnect

Menu Screen:

SMS: Text message folders such as

Inbox, Outbox, Draft, etc.

Contacts: SIM Card contact lists.

Profile: Connection profile setup

and edit.

Setting: General, SMS, SIM, Radio.

Status: connection status.

Statistics: Upload, Download graphs.

Information: Device, Version specifics.

Button bar:

Menu : No matter which function

you’re using, just press Menu button,

you can go back to Main screen

Radio On/Off︰When the application is

on, the light will be on also. If you want

to close it, press the button, and then

the light will be off

Connect/Disconnect︰First, you have

to create a connection information in

Profile, and then press Connect button

To start the express card

1. From the Windows desktop, select Start Æ

All Programs ÆGSmart ÆGSmart

ExpressCard

From the Windows desktop, double click the

GSmart ExpressCard icon

2. If it is requested, enter your SIM card PIN

code and press OK

3. After few seconds, MD800 will search for

service and signal strength.

MD800

2-2

Note: You are allowed to enter the PIN code

three times. If you fail over three times, your

SIM card will be blocked. Contact your network

operator for your Personal Unblocking Key

(PUK). Enter the unblock key, and then you

can enter a new PIN code and confirm it.

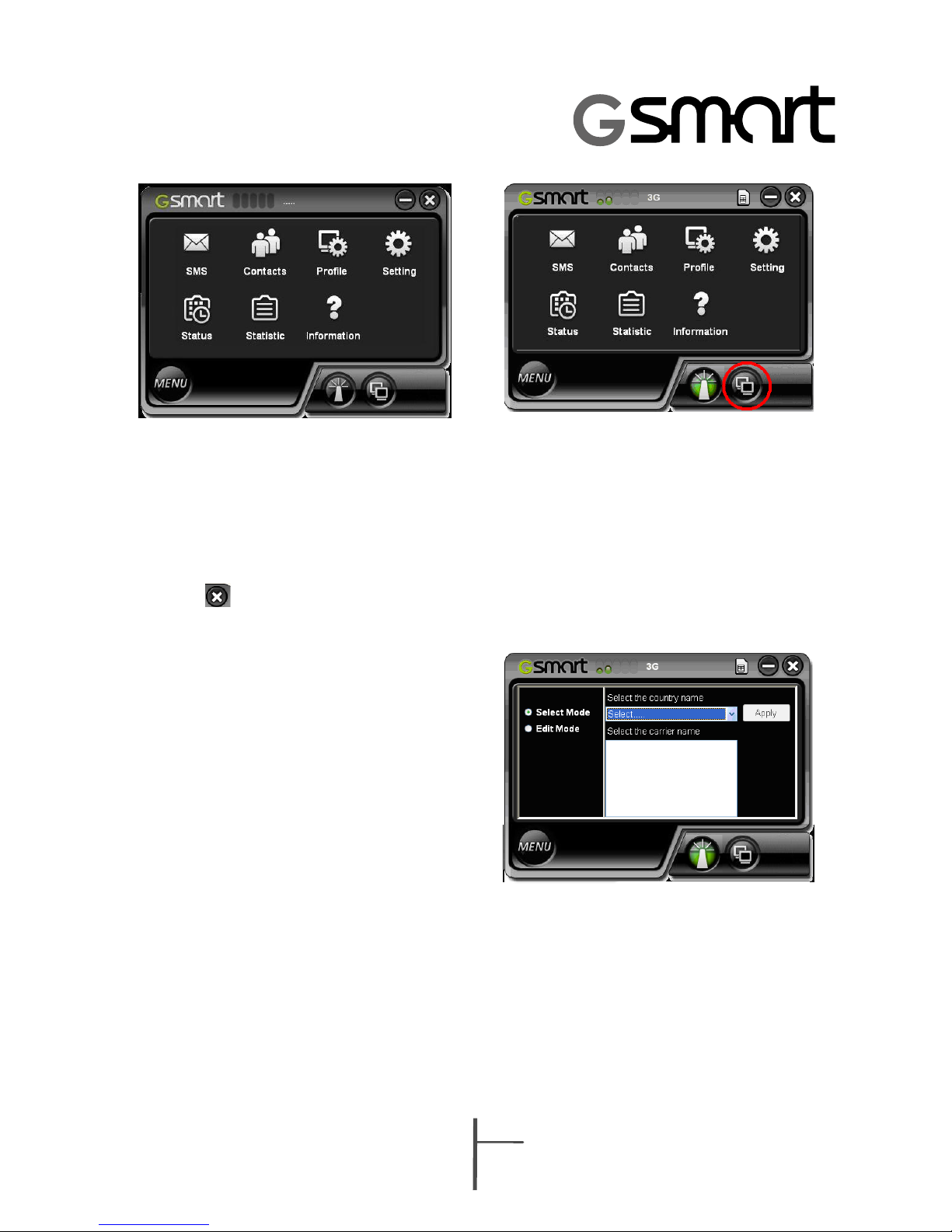

To close Express Card

1. Press button to close MD800 window.

2. If you want to exit MD800 program, press

GSmart MD800 icon on the bottom, choose

Exit to close the program.

3. If the Internet is still connecting when you

close MD800 program. A confirmation

window will show to ask you to disconnect.

4. Remove your GSmart MD800 ExpressCard.

2.2 Connection

To make a connection

1. Start up ExpressCard program.

2. Please make sue the Radio function is on.

3. Press Connect icon. Once connected, the

icon will light up.

To disconnect a connection

1. Click connect button to disconnect the

connection, and then the light is off

Create a Profile

You can choose which way you want to use by

selecting a mode or editing yourself.

To select a Mode

1. Select a country name. Each country has a

list of settings for many mobile networks.

2. Choose which operator network you need.

3. Finally, press Apply to set this profile.

MD800

2-3

To Edit a Mode

1. Create a new profile. Depending on the

carrier, 4 fields may not really need to be

filled.

2. Choose a Profile Name. The name is

arbitrary and is helpful when different

connection methods are available.

3. Inquire with the Mobile network operator

(SIM carrier) whether the User Name and

Password are required.

4. The Password can be any combination of

letters, numbers or symbols. There is a

difference in a lowercase letter and a capital

letter.

5. Enter the Access Point Name (APN),

supplied by the SIM card carrier. When all

required slots are filled, press Save to set

this profile.

2.3 Information and Status

Displayed

Status Information

When you start the program, it shows “During

the searching”. This area usually shows status

of the program.

Signal

strength and service type

information

Status Description

H HSDPA service and signal

strength

3G UMTS service and signal

strength

E EDGE service and signal

strength

G GPRS service and signal

strength

Roaming

Autres manuels pour GSmart MD800

Table des matières

Autres manuels Gigabyte Matériel informatique

Gigabyte

Gigabyte NVIDIA N730D5-2GL Manuel utilisateur

Gigabyte

Gigabyte GC-TITAN RIDGE 2.0 Manuel utilisateur

Gigabyte

Gigabyte GT-U7100 Manuel utilisateur

Gigabyte

Gigabyte GH-PDU22-SC Manuel utilisateur

Gigabyte

Gigabyte WATER FORCE Manuel utilisateur

Gigabyte

Gigabyte U7300 Manuel

Gigabyte

Gigabyte GC-CI11M-B Manuel utilisateur

Gigabyte

Gigabyte ICH5R Guide rapide

Gigabyte

Gigabyte AORUS GP-ASACNE6200TTTDA Manuel utilisateur

Gigabyte

Gigabyte GA-8GPNXP Duo Manuel utilisateur

Gigabyte

Gigabyte BRIX Pro Manuel utilisateur

Gigabyte

Gigabyte Sil3112 Guide rapide

Gigabyte

Gigabyte MC13-LE0 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Gigabyte

Gigabyte GA-8I915G Duo Manuel utilisateur

Gigabyte

Gigabyte H610M D2VX SI DDR4 Manuel utilisateur

Gigabyte

Gigabyte 3D Galaxy II GH-WIU02 Manuel utilisateur

Gigabyte

Gigabyte Z590M GAMING X Manuel utilisateur

Gigabyte

Gigabyte AORUS LIQUID COOLER Series Manuel utilisateur

Gigabyte

Gigabyte U7300 Manuel utilisateur

Gigabyte

Gigabyte GH-PCU23-VE Manuel utilisateur

Gigabyte

Gigabyte GA-8GPNXP Duo Manuel utilisateur

Gigabyte

Gigabyte Z690 AORUS ELITE STEALTH Manuel utilisateur

Gigabyte

Gigabyte GT-P6000 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
