User Manual
Please read these instructions carefully before operating the unit
and keep for further reference.
2MP 4-in-1 AHD IR Vandal
Resistant Dome Camera with
2.8–12mm Auto Focus Lens
WAHD2DVAF
ii
Intro Section
Please read this instruction carefully before operating the product and keep it for further
reference. All examples and pictures used here are for reference only.
The contents of this manual are subject to change without notice.
CAUTION:
• If the product does not work properly, please contact your dealer or the nearest service
center. Never attempt to disassemble the camera yourself. We shall not be responsible
for any problems caused by unauthorised repair or maintenance.
• Do not allow water or liquid intrusion into the camera while in use.
• In the use of the product, you must be strict compliance with the electrical safety
regulations of the nation and region.
• When the product is mounted on wall or ceiling, the device shall be firmly fixed.
• Make sure the power supply voltage is correct before using the camera.
• Do not drop the camera or subject it to any physical shock.
• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently
• Do not aim the camera at the sun or in any area where there is bright lighting.
• The device may be burned out by a laser beam, so when any laser equipment is in use,
make sure that the surface of the device will not be exposed to the laser beam.
• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not
expose it to high electromagnetic radiation.
• To avoid heat accumulation, good ventilation is required for operating environment.
Contents
iii
1.0 Introduction..........................................................................................................4
1.1 Product Features...........................................................................................4
1.2 Product Dimensions.....................................................................................4
1.3 Specification.................................................................................................5
1.4 Functions ......................................................................................................6
2.0 Cables ..................................................................................................................7
3.0 Product Installation..............................................................................................8
4.0 Call Up Main Menu ...............................................................................................9
4
The Genie WAHD2DVAF is a professional, modern dome design CCTV camera that
boasts 4-in-1 technology (AHD, TVI, CVI, CVBS) and utilises a 2.8–12mm auto focus
lens. The camera offers IP67 and IK10 protection and up to 30m viewing when the
IR illumination is switched on.
1.1 Product Features
• 1080p real-time image, high resolution, true colour
• AHD / TVI / CVI /CVBS standard video output
• CMOS progressive scan, perfectly captures the moving object
• High speed, long distance and real time transmission
• Auto Colour to B&W at low illumination
• Supports ICR switch, true day / night
• Up to 1000 TVL resolution
• Supports OSD menu
• Support noise reduction function
• 20 ~ 30m IR night view distance
• IP67 & IK10 ingress protection
• Support COC
• Support 960H CVBS output
• Motorised zoom lens
• NDAA compliant
1.2 Product Dimensions
1.0 Introduction
141mm
100.2mm
User Manual 2MP 4-in-1 AHD IR Vandal Resistant Dome Camera with 2.8–12mm Auto Focus Lens
5
1.3 Specification
Camera
Image Sensor 1 / 2.8” CMOS
Image Size 1920×1080
Image System PAL / NTSC
Resolution 2MP
Electronic Shutter Auto: 1/25s~1/50000s (PAL), 1/30s~1/50000s (PAL)
Minimum Illumination Colour : 0.001 Lux @ F1.2, AGC ON: B&W : 0 Lux with IR
Lens 2.8–12 mm, motorised
Lens Mount D14
S / N Ratio ≥52dB (AGC OFF)
Frame Rate 30fps (60Hz), 25fps (50Hz)
Video Output AHD / TVI / CVI / CVBS
Functions
IR Distance 20 ~ 30 m
Function Control OSD (COC Control)
Day & Night ICR
WDR Yes (120dB)
3D NR Yes
Global Exposure No
Central Exposure No
AGC Yes
Auto White Balance Yes
BLC Yes
HLC Yes
Freeze Yes
Mirror Yes
Defog No
Sharpness Yes
Smart IR Yes
Motion Detection Yes
Privacy Mask Yes
Defect Correction Auto
Language 16 languages
Angle Adjustment Pan: 0°~345°, Tilt: 0°~77°, Rotation: 0°~345°
Others
Ingress Protection IP67 and IK10
Power Supply DC12V (± 15%)
Power Consumption IR Off : < 1.5W, IR On : < 5W
Working Environment - 30°C ~ 50°C, 10 % ~ 90 % (Relative Humidity)
Dimensions 141 × 100.2 mm
Weight Approximately 0.82Kg (Net)
User Manual 2MP 4-in-1 AHD IR Vandal Resistant Dome Camera with 2.8–12mm Auto Focus Lens
6
1.4 Functions
High Resolution
Adopt high performance sensor, providing high definition and clear image.
High Transmission Performance
Real-time transmission with high speed and long distance.
DNR
Reduce noise from brightness and colour signal.
OSD
It’s easy for the user to call the setup menu and configure the menu. The camera settings
can be clearly displayed through the main menu.
White Balance
Adjust the colour temperature according to the environment automatically.
ICR Auto Switch
The filter will filter infrared light during the daytime and change to normal at night to
ensure a high sensitivity and clear image.
AGC
Adjust the gain of amplifier, enabling the camera to output the standard video signal in
different lighting condition.
Wide Dynamic Range (WDR)
When there are both very bright and very dark areas simultaneously in the field of view, this
function will balance the brightness level and provide clear images.
Backlight Compensation (BLC)
When the back of the captured object is too much bright, you can set BLC for the captured
object to make it clearer.
7

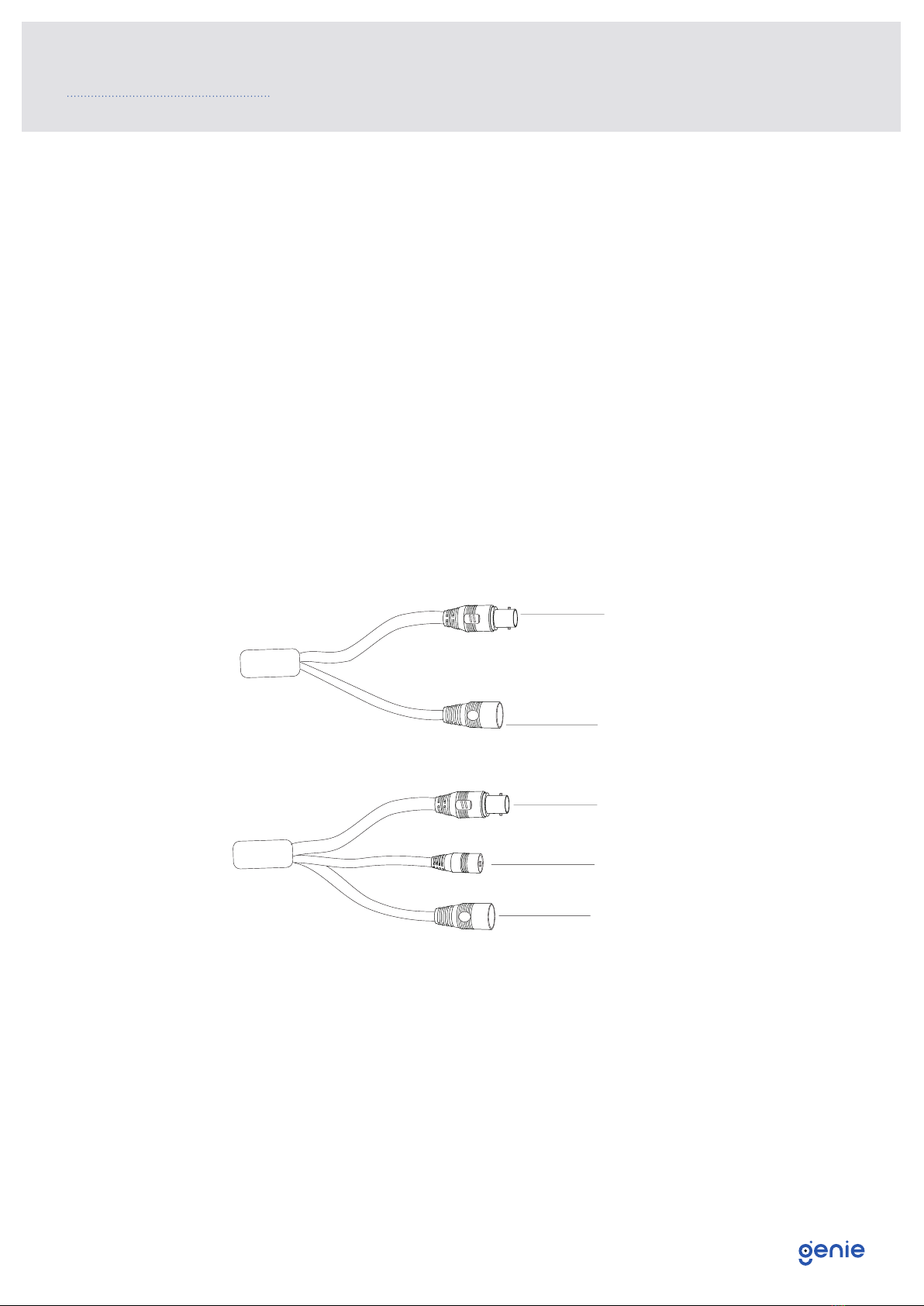

The cables are only for reference. The default video output will be different for different
cameras.
For the camera with video switch cable, there are two kinds of video switches, button
switch and dial switch.
Button Switch: The video outputs will recycle by holding and pressing the button in the
video switch cable for 5 seconds.
Dial Switch: Please set the video output according to the directions described on the tag
of the video switch cable.
Note:
Before switching video outputs, remove the cover of the video switch cable first.
* Some models do not have the video switch cable, please go to OSD to change video
outputs.
2.0 Cables
Video Output
Power Cable
Power Cable
Video Output
Video Switch Cable
8
Before you start, please make sure that the wall or ceiling is strong enough to withstand 3x
the weight of the camera. Please install the camera in the dry environment.
3.0 Product Installation
Lower Dome
Lock Screw
6
148
22
88 mm
89mm
Sponge
Mounting Base
Fo cus
Zo om
Rotation
0°~360 °
Pa n 0°~360°
Tilt 0°~75°
1. Loosen the screws to open the lower
dome and then loosen the lock
screw to remove the mounting base.
2. Attach the drill template to the place
where you want to fix the camera
and then drill 4 screw holes and 1
cable hole (if you want to route the
cables through the mounting base)
according to the drill template.
3. Route and connect the cables and
then secure the mounting base to
the ceiling or wall with screws.
4. Fix the camera to the mounting base
with the lock screw.
5. Three-axis adjustment. Before
adjustment, preview the image of
the camera on a monitor and then
adjust the camera according to the
figure below number 6 to get an
optimum angle.
6. Adjust the Focus and Zoom screw to
get a clear image (if your camera is a
fixed lens or motorised lens, please
skip this step).
7. Install the lower dome back to
the camera with the screws and
remove the protection film softly to
complete the installation.
9
Access Main Menu
1. Press Enter key of the rear panel or cable of the camera to go to the main menu.
2. Select the preview window and right click the mouse to show the following menu list
on the DVR.
3. Click on the toolbar at the bottom of the live preview window (or right click the
mouse to select “PTZ Control”).
4. Select the “OSD” tab and then click / to call up the main menu.
Menu Operation
You can select the menu by clicking (U) or (D) key on the direction area. Click (L) or
(R) key to select the menu on the left. The menu with arrow icon which means it has sub-
menu. Click / to go to the sub-menu or confirm the settings.
If there are direction keys and enter key on the cables of the camera, you can also use
these direction keys to select menu and the enter key to go to the sub-menu or confirm the
settings.
Note: This series of the camera must be connected to the DVR which supports calling up
main menu of camera. Different DVRs manufactured by different DVR manufacturers may
have different modes of menu operation. Please refer to the relevant User Manual of DVR.
* Some models may not support calling up main menu, please take the final product as
the standard.
4.0 Call Up Main Menu
Camera Camera1
OSD PresetCruise
