Genie GIPW4NPIR Manuel utilisateur

Quick Start Guide

Please read these instructions carefully before operating the unit

and keep for further reference. All the examples and pictures used

here are for reference only. The contents of this manual are subject

to change without notice.

4MP Dual Stream IP PIR

Camera

GIPW4NPIR

Introduction

The Genie GIPW4NPIR is an NDAA compliant, PIR with a 4MP IP camera pre in-

stalled. The camera is supplied with a 3.7mm pinhole lens and can be powered

with either a 12v psu or a PoE switch / injector.

Features

• 4MP resolution

• 1/ 3” 4MP CMOS sensor

• Smart H.265+/H.265/H.264+/H.264

• Dual streaming

• Support ROI

• Remote access from Mobile

• SD card up to 256g

• 5–10m invisible 36pcs IR

• Wi-Fi Device

• NDAA compliant

• POE/12V DC

Speciﬁcations

Quick Start Guide 4MP Dual Stream IP PIR Camera

Camera

Image Sensor 1/3” CMOS 4 Megapixel Image Sensor

Scan Method Progressive Scan

Elec. Shutter Auto, Manual

Colour Adjust Bright / Contrast / Saturation / Sharpness

Max. Resolution 2560(H) x 1440 (V)

ROM / RAM 16MB / 64MB

Min. Illumination Colour: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2,

AGC ON), 0 Lux with IR

S/N Ratio 38 dB

Illumination Distance 10m (IR) 36pcs SMD IR

Illumination On/Off Auto Manual

Lens 3.7mm Pinhole

Lens Field of View 95°

Network

Protocol IPv4;HTTP; TCP/UDP;RTSP;DHCP;CGI

ONVIF (Proﬁle S/ Proﬁle T); P2P;

Storage Micro SD card (support max. 256g)

Browser Microsoft Edge, Chrome, Firefox, Safari

Mobile iOS; Android

Others

Operating Temperature -10°C to +50°C /Less than 95% RH

Storage Temperature -20°C to +60°C /Less than 95% RH

Power Supply 12V DC/PoE (802.3af )

Power Consumptio Basic: 4.96W

Protection Grade IP64

Alarm Motion Detection

Quick Start Guide 4MP Dual Stream IP PIR Camera

Video

Compress Format H.265 / H.264

Resolution 4M (2560×1440);1080P (1920×1080); 720p (1280×720);D1

(720×576);CIF (352×288)

Video Frame Rate

Main Stream: 2560×1440@ (25fps)/1080p (1920 × 1080)@

(25fps)/720p (1280 × 720)@(25fps) Sub Stream: 720 × 5762@

(25fps)/ 352 × 288@(25 fps)

Bit Rate Control CBR / VBR

Video Bit Rate Main Stream: 512/1024/1536/2048/3072/4096 kbps

Sub Stream: 512/1024 kbps

Streaming 2 Streams

Day & Night Auto / Manual

BLC Yes

HLC Yes

WDR Yes (>100 dB)

White Balance Auto, Manual

Gain Control Auto, Manual

Noise Reduction 3D NR

Motion Detection Yes (396 areas)

Region of Interest (RoI) Yes (8 areas)

Smart Illumination Yes

Defog Yes

Image Mirror / Flip Yes / Yes

Privacy Masking Yes (5 areas)

POE Connect

Connect the camera to the power supply and NVR as shown below.

Quick Start Guide 4MP Dual Stream IP PIR Camera

Use of search tools

1. Connect the device to the power supply and network cable, then connect the

computer to the local area network and open the IP55 application in the search

tool.

2. After opening the application software, click “Network” in the upper left corner,

select the network segment where the computer is located, and after conﬁrming,

you can search for devices in the local area network, and the device information is

arranged in the list on the right.

3. Click the IP on the right to view the device ID, and then modify the IP on the

device in the options below.

4. Enter the IP displayed by the device in the browser. Click the “Enter” button

to enter the web interface on the device. Enter the default account: admin and

password: 123456 to enter the preview interface of the device to view the real-time

image of the device.

5. In the left column menu, you can operate a series of device parameters as shown

in the ﬁgure.

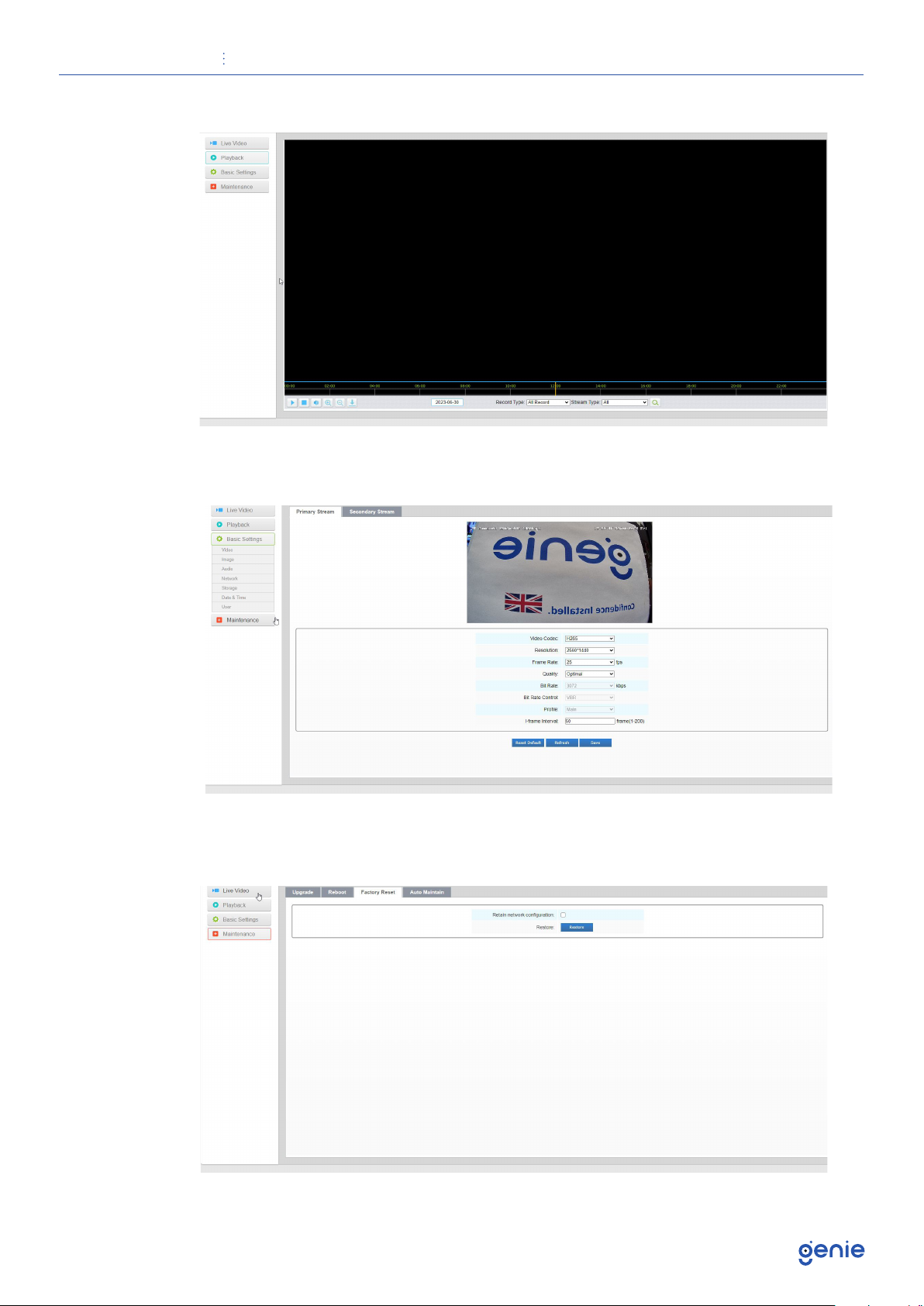

Main/Substream:

Video playback:

Quick Start Guide 4MP Dual Stream IP PIR Camera

Parameter viewing and modiﬁcation:

Device upgrade, reboot, reset, maintenance:

Sales +44(0)1707 330541

Enquiries [email protected]o.uk

Website www.genieproducts.co.uk
