Genie WIP2BVLG Manuel utilisateur

Quick Start Guide

Please read these instructions carefully before operating the unit

and keep for further reference.

2MP IP Lite IR Varifocal Bullet

Camera with 2.8-12mm Lens

WIP2BVLG

Intro Section

Please read this instruction carefully before operating the product and keep it for further

reference. All examples and pictures used here are for reference only.

The contents of this manual are subject to change without notice.

CAUTION:

• If the product does not work properly, please contact your dealer or the nearest service

centre. Never attempt to disassemble the camera yourself. We shall not be responsible

for any problems caused by unauthorised repair or maintenance.

• Do not allow water or liquid into the camera while in use.

• When using the product, you must be in strict compliance with the electrical safety

regulations of the nation and region.

• When the product is mounted on wall or ceiling, the device needs to be ﬁrmly ﬁxed.

• Make sure the power supply voltage is correct before using the camera.

• Do not drop the camera or subject it to any physical shock.

• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently.

• Do not aim the camera at the sun or in any area where there is bright lighting.

• The device may be burned out by a laser beam, so when any laser equipment is in use,

make sure that the surface of the device will not be exposed to the laser beam.

• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not

expose it to high electromagnetic radiation.

• To avoid heat accumulation, good ventilation is required for operating environment.

Contents

iii

1.0 Introduction..........................................................................................................4

1.1 Product Features...........................................................................................4

1.2 Product Dimensions.....................................................................................4

1.3 Contents ......................................................................................................4

1.4 Speciﬁcation ................................................................................................5

2.0 Overview..............................................................................................................6

3.0 Installation............................................................................................................7

4.0 Network Connection ...........................................................................................9

The Genie WIP2BVLG is an IP IR varifocal bullet camera with a 2.8–12mm lens and 20-

30m IR distance in ideal conditions. The camera has 1080p full real time coding as well as

remote monitoring in a grey ﬁnish.

1.1 Product Features

• 1080p full real time coding

• 20–30m IR distance (In ideal conditions)

• 2.8–12mm megapixel lens

• 3D DNR

• Digital WDR

• True day / night

• MIC / Line in G.711A / U Audio Codec

• IP and MAC address ﬁltering

• Conﬁguration backup

• Alarm image size dependent on set stream resolution

• RTSP streaming with or without authentication

• Mirror and ﬂip image

• Multiple privacy masking

• Remote monitoring

• Supports smart phones and tablets

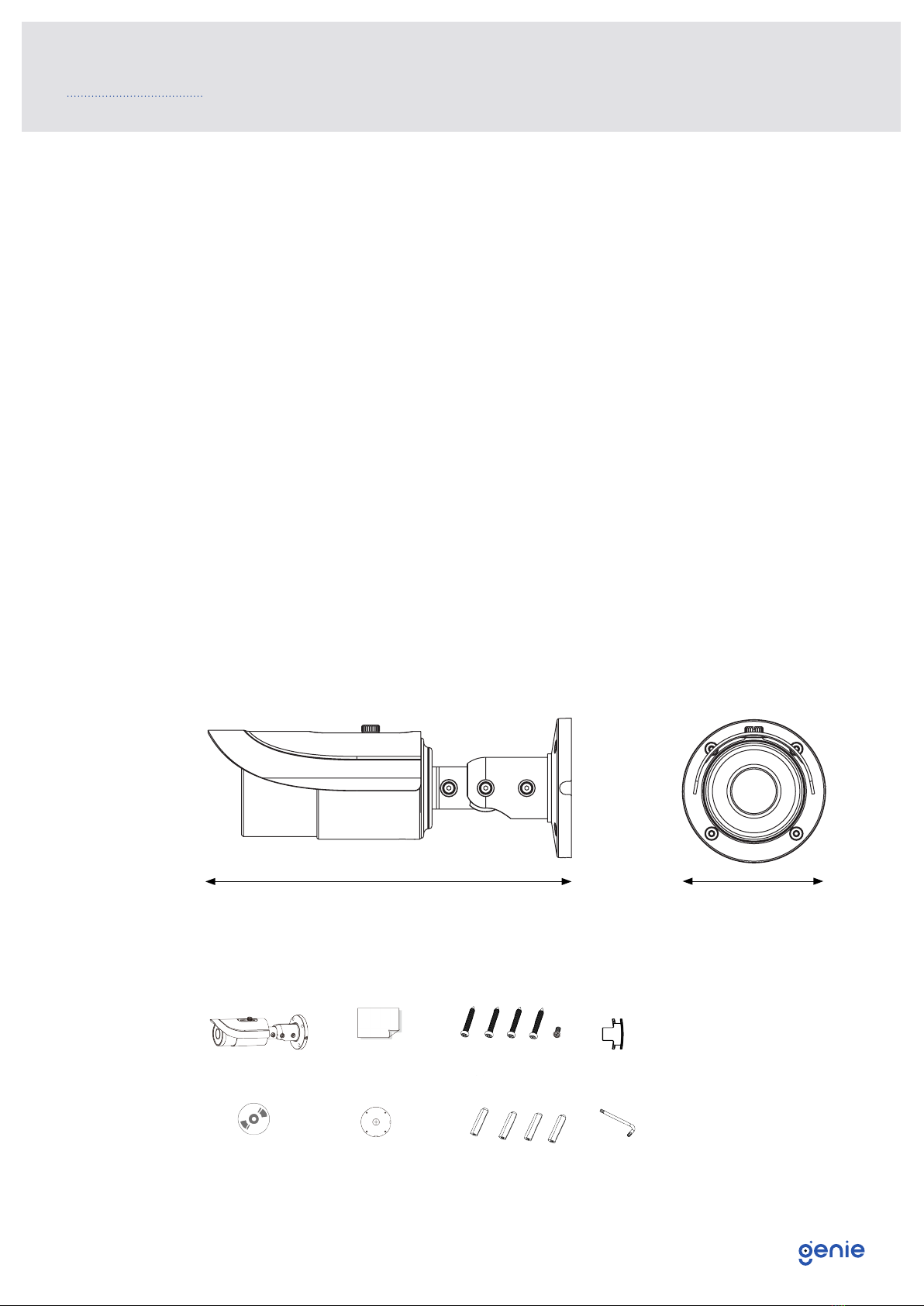

1.2 Product Dimensions

1.3 Contents

1.0 Introduction

284mm 109mm

Camera Quick Start Guide 4 Tapping Screws PA 4×25

1 Machine Screw PWM3×5

CD Drill Template Plastic Plug x4 L-Wrench

Rubber Plug

Quick Start Guide 2MP IP Lite IR Varifocal Bullet Camera with 2.8-12mm Lens

1.4 Speciﬁcation

Camera

Image Sensor 1/3” CMOS

Image Size 1920 × 1080

Electronic Shutter 1/25s ~ 1/100,000s

Effective Pixels 752 (H) x 582 (V)

Minimum Illumination 0 Lux (IR LED On)

Lens 2.8 ~ 12mm

Video Format PAL / NTSC

Wide Dynamic Range Yes

3D DNR Yes


Video Compression H.264

Resolution 1080p (1920 × 1080), 720p (1280 × 720), VGA (640 × 480),

QVGA (320 × 240)

Multi-Stream

1920 × 1080 (1–30fps), 1280 × 720 (1–30fps),

1280 × 720 (1–10fps), 640 × 480 (1–30fps),

320 × 240 (1–30fps)

Bit Rate 64Kbps ~ 4Mbps

Encode Mode VBR / CBR

Audio Compression G711A

Quality Five levels under VBR, Freely

adjustable under CBR

Image Settings

Saturation, Brightness, Contrast, etc

(Adjustable through client software or

web browser)

Functions

Remote Monitoring IE browsing, CMS remote control

Online Connection

Supports simultaneous monitoring for

up to 4 Users. Supports multi-stream

real time transmission

Protocol TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE,

DDNS, SMTP, FTP

Day & Night ICR

Smart Alarm Motion alarm

IR Distance Up to 25m (In ideal conditions)

Interface Network RJ45

Audio One way audio (MIC in x1)

Others

Ingress Protection IP66

Power Supply DC12V / PoE

Operating Environment Temperature: -40°C ~ 50°C,

Humidity: 10% ~ 90%

Dimensions 109 × 284 mm

Weight 1115g

1. Sunshield

2. Bracket

3. Mounting Base

2.0 Overview

Security Cap

DC12V

It is recommended to install the security cap for outdoor installation.

If the PoE switch is used, the DC12V power supply is not required.

4. Network Cable

5. MIC In Cable

6. Power Cable

1. Loosen the nut from the main element.

2. Run the network cable (without RJ 45 connector) through both elements. Then crimp

the cable with RJ 45 connector.

3. Connect the cable to the hermetic connector. Then tighten the nut and the main

cover.

Connecting Network Cable

Please make sure that the wall or ceiling is strong enough to withstand 3 times the weight

of the camera. Please install the camera in and under a dry environment and place the

cover of the camera within 4 hours of removing it.

1. Drill the screw holes and the cable hole (if you want to route through the ceiling) on the

wall or ceiling according to the drill template.

2. Route and connect the cables.

3. Secure the mounting base with camera to the wall with the screws provided.

4. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor

and then loosen the ﬁxed screws to adjust the view angle of the camera.

3.0 Installation

Rubber Plug

Fixed Screws

360° Pan

90° Tilt

360° Rotation

Quick Start Guide 2MP IP Lite IR Varifocal Bullet Camera with 2.8-12mm Lens

5. Focus and zoom adjustment (If the model you get is prime lens, please skip this step).

Remove the lens cover and then adjust the focus and zoom screws to get a clear

image. Finally, tighten these two screws and the lens cover.

6. Remove the protection ﬁlm softly to ﬁnish the installation.

Lens Cover

Zoom

Focus

Access the Camera through the IP Tool

1. Make sure that the camera and the PC are well connected via LAN.

2. Find the IP-Tool from the CD and then install it in the computer. After that, run the IP

Tool as shown below.

3. Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the

information of the camera listed in the above table to show the network information

on the right hand. Modify the IP address and gateway of the camera and make sure its

network address is in the same local network segment as that of the computer. Please

modify the IP address of your device according to the practical situation.

4. Double-click the camera listed in the IP-Tool or manually enter the IP address in

the address bar of the web browser to connect IP-CAM. Then follow directions to

download and install the plugin. Enter the username and password in the login

interface. The default username is admin; the default password is 123456.

4.0 Network Connection

For example, the IP address of your computer is 192.168.1.4. So the IP address of the

camera shall be changed to 192.168.1.X and the gateway shall be changed to 192.168.1.1.

After modiﬁcation, please enter the password of the administrator and click “Modify”

button to modify the settings. The default password of the administrator is “123456”.

Quick Start Guide 2MP IP Lite IR Varifocal Bullet Camera with 2.8-12mm Lens

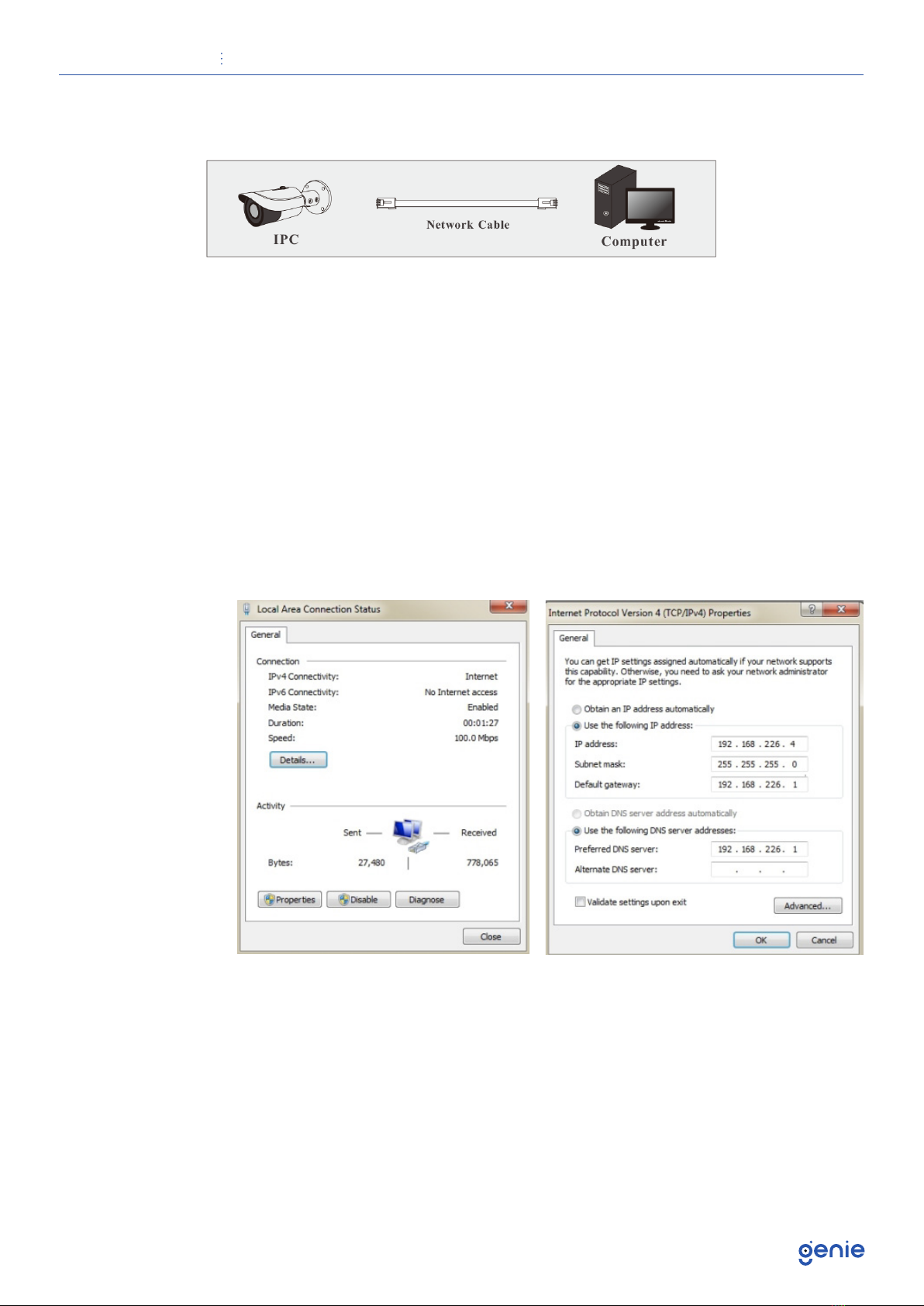

Direct Access Through IE

The default network settings are as shown below:

IP address: 192.168.226.201

Subnet Mask: 255.255.255.0

Gateway: 192.168.226.1

HTTP: 80

Data Port: 9008

You can use the above default settings when you log into the camera for the ﬁrst time.

1. Set the IP address of the PC and make sure the network segment should be as the

same as the default settings of IP-CAM. Open the network and share center. Click

“Local Area Connection” to pop up the following window. Select “Properties” and then

select Internet protocol according to the actual situation (for example: IPv4). Next, click

“Properties” button to set the network of the PC.

2. Open the IE browser and input the default address of IP-CAM and conﬁrm. The IE

browser will download Active X control automatically.

3. After the Active X control is downloaded, the login dialog box will pop up.

4. Input the default username and password and then enter to view.
