Gefen MINIDVI-142 Manuel utilisateur
Mini DVI Hub
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday.
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
Mini DVI Hub is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
Features
Panel Descriptions
Connecting and Operating the Mini DVI Hub
Specifications
Warranty
1
2
3
4
5
6
Congratulations on your purchase of the ex•tend•it Mini DVI Hub. Your complete satis-
faction is very important to us.
Gefen’s line of KVM (Keyboard Video & Mouse), DVI, ADC, USB, switches, extenders,
converters and hubs is designed to make computer use more comfortable, more pro-
ductive and less expensive.
KVM switches allow access to multiple computers from a single keyboard, while the ex-
tenders give the user control over a computer up to 330 feet away from the work area.
The ex•tend•it line offers solutions for noise, space and security concerns, data center
control, information distribution, conference room presentation, and school and
corporate training environments.
The ex•tend•it Mini DVI Hub allows computers with DVI graphic cards to be connected
to one or two DVI compatible monitors or projectors.
The Mini DVI Hub also lets you keep your DVI monitor next to your computer, while add-
ing a second DVI display such as a projector, another DVI monitor, Plasma display or
analog monitor.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime of support from a team of outstanding engineers.
INTRODUCTION
1
FEATURES
Features
• Connects computers with DVI graphics to two DVI compatible monitors or projectors
• Allows two DVI display monitors to be connected at the same time to the same video
source
• Maintains highest DVI single link video resolution
• Supports Apple Flat Panel Displays
• Supports HDCP compliant devices for output one
• Supports DDWG standard for DVI compliant monitors
• Simultaneous display at local and remote locations
• Installs in seconds
Includes:
(1) Mini DVI Hub
(1) 6’ DVI cable (m-m)
(1) 5V DC Power Supply
(1) User's Manual
2
PANEL DESCRIPTIONS

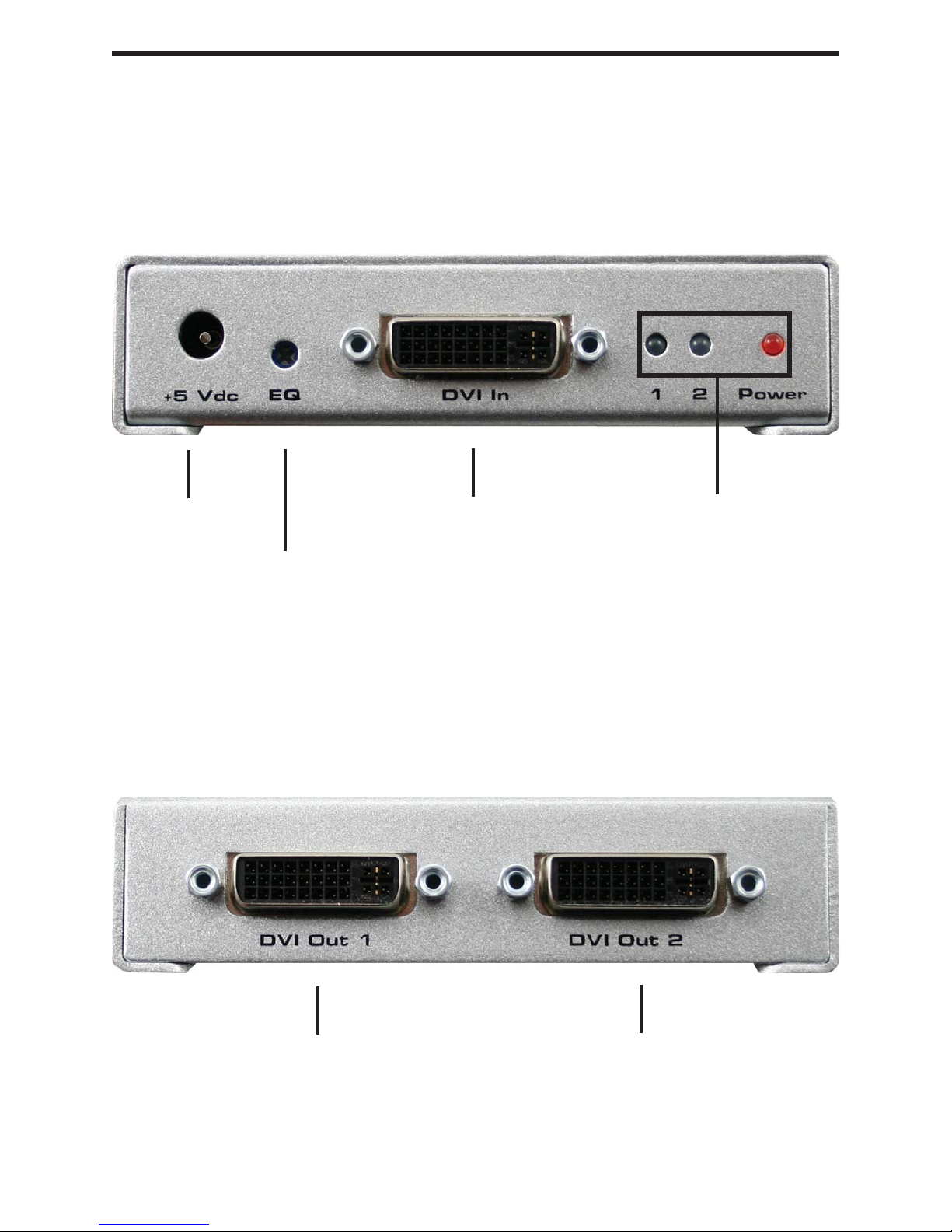

3
DVI In
5V Power
Input
DVI Out 1 DVI Out 2
Status LEDs
Input Equalization
Adjustment
CONNECTING AND OPERATING THE MINI DVI HUB
How to Connect the Mini DVI Hub to your devices
1- Connect the supplied DVI cable from the back of the computer into the back of the
Mini DVI Hub.
2- Connect the cable from your first display (monitor or projector) into the DVI Out 1 slot
in the back of the Mini DVI Hub. (this will be what the computer will recognize)
3- Connect the cable from your second display (monitor or projector) into the DVI Out 2
slot in the back of the Mini DVI Hub.
4- Plug the 5v power supply into the Mini DVI Hub.
5- Plug the 5v wallmount power supply into the wall outlet.
6- Restart your computer only after you’ve made all the connections.
7- Adjust the EQ to resolve any imperfections in the image.
*Note: Only output #1 of the Mini DVI Hub is HDCP pass-through.
4
SPECIFICATIONS
5
Video Amplifier Bandwidth ................................................................................ 1.65 Gbps
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Maximum Single Link Range ............................................................ 1920 x 1200, 1080p
DVI Input/Output Connector Type ........................................................................... DVI-D
Power Consumption .................................................................................. 5 Watts (max.)
Power Supply ......................................................................................................... 5V DC
Dimensions .......................................................................................... 4” W x 1” H x 3” D
Shipping Weight ....................................................................................................... 2 lbs.
Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within two
(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace
the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose,
all of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cable must be free from any
scratches, markings, and neatly coiled.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission
in this manual, even if advised of the possibility of such damages. The technical
information contained herein regarding Mini DVI Hub features and specifications is
subject to change without notice.
WARRANTY
6
