Gefen HD-441AA Manuel utilisateur

4x1 HD Analog

Audio Switcher

USER MANUAL

www.gefen.com

Technical Support:

Telephone 818-772-9100

800- 545-6900

Fax 818-772-9120

Technical Support Hours: 8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth CA 91311

www.gefen.com -- [email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

4x1 HD Analog Audio Switcher is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

Introduction

Features

Panel Descriptions

Connecting and Operating the 4x1 HD Analog Audio Switcher

RMT4-IR Installation

RS232 Interface

Speciﬁcations

Warranty

Congratulations on your purchase of the ex•tend•it 4x1 HD Analog Audio Switcher. Your

complete satisfaction is very important to us.

Gefen’s line of HDTV switches, extenders, and splitters are designed to make yourA/V

equipment use more comfortable, more productive and less expensive.

The 4x1 HD Analog Audio Switcher allow access to multiple HDTV devices, using a

single HDTV display while the HDTV extender product line can extend the HDTV video

signal up to 1640 feet (500 meters).

The ex•tend•it line offers solutions for noise, space and security concerns, data center

control, information distribution, conference room presentation, school and corporate

training environments.

Our Commitment

Gefen will always offer the ﬁnest quality product at the best possible price. Included in

that price is a lifetime of support from a team of outstanding engineers.

The ex•tend•it 4x1 HD Analog Audio Switcher allows four HDTV devices and analog

audio to be switched easily in to one HDTV compatible monitor or projector and analog

receiver. Simply connect your HDTV display to the Switcher’s display output and your

analog audio to the analog out. The 4x1 HDAnalogAudio Switcher can also be placed

at the end of a long DVI cable to regenerate the HDTV signal.

INTRODUCTION

FEATURES

Features

• Switches easily between any four HDTV sources

• Switches easily between any four analog audio sources

• Maintains 480i, 480p, 720p, 720i, 1080i, and 1080p resolutions

• No loss of audio quality

• Extends any DVI compliant device by regenerating the DVI signal

• Maintains highest DVI single link video resolution

• Supports DDWG standard for DVI compliant monitors

• Supports HDCP compliant devices

• Optional RMT-4 remote control

• DVI cables are used to connect the DVI inputs and 4x1 HD Analog Audio Switcher

output

• Installs in seconds

Includes:

4x1 HD Analog Audio Switcher

4x 6’ HDMI cables (m-m)

4x Mini Din Stereo to RCA cable

5VDC Power Supply

RMT4-IR

User's Manual

PANEL DESCRIPTIONS

5VDC power

supply

Connects to IR

extender

IR eye

Input Indicator

LEDs

HD in 2HD in 1

DVI Out

RCAAudio

Out Contact Closure

Control

HD in 4HD in 3

Audio In 1 Audio In 2 Audio In 3 Audio In 4 RS232

Interface

Connecting and Operating the 4x1 HD Analog Audio Switcher

How to Connect the 4x1 HD Analog Audio Switcher to your devices

1Connect the supplied HDMI cables from the HDTV sources into the HD Switcher HD

inputs. Connect the supplied Mini Din Stereo to RCA cables from the Analog Audio

sources into the

HD Switcher Audio inputs.

2Connect the DVI cable from your display (monitor or projector) into the “HD Out” of

the HDTV Switcher.

3Connect an RCA cable from the “Output” into your audio reciever or display.

4 Plug the 5VDC power supply into the 4x1 HD Analog Audio Switcher.

How to Operate the 4x1 HD Analog Audio Switcher

1 Use the RMT4-IR remote control port to remotely toggle between sources.

RMT4-IR Installation

1. Remove battery cover from the back of the RMT4-IR remote.

2. Verify that dip switches 1 & 2 are in the down (OFF) position.

3. Insert the battery, hold the battery so that you can see the positive side facing up. The

side that is not marked must be facing down.

4. Test the RMT4-IR remote by pressing ONLY one button at a time. The indicator light

on the remote will ﬂash once each time you press a button. WARNING: Do not press

multiple buttons simultaneously and do NOT press buttons rapidly. These actions will

cause the remote to reset and steps 1-4 will have to be repeated.

Note: The RMT4-IR ships with two batteries. One battery is required for operation, the

second battery is complimentary.

The optional IR extender allows you to re-

locate your 4x1 HD Analog Audio Switcher

and still have IR control of the 4x1 HD Ana-

log Audio Switcher

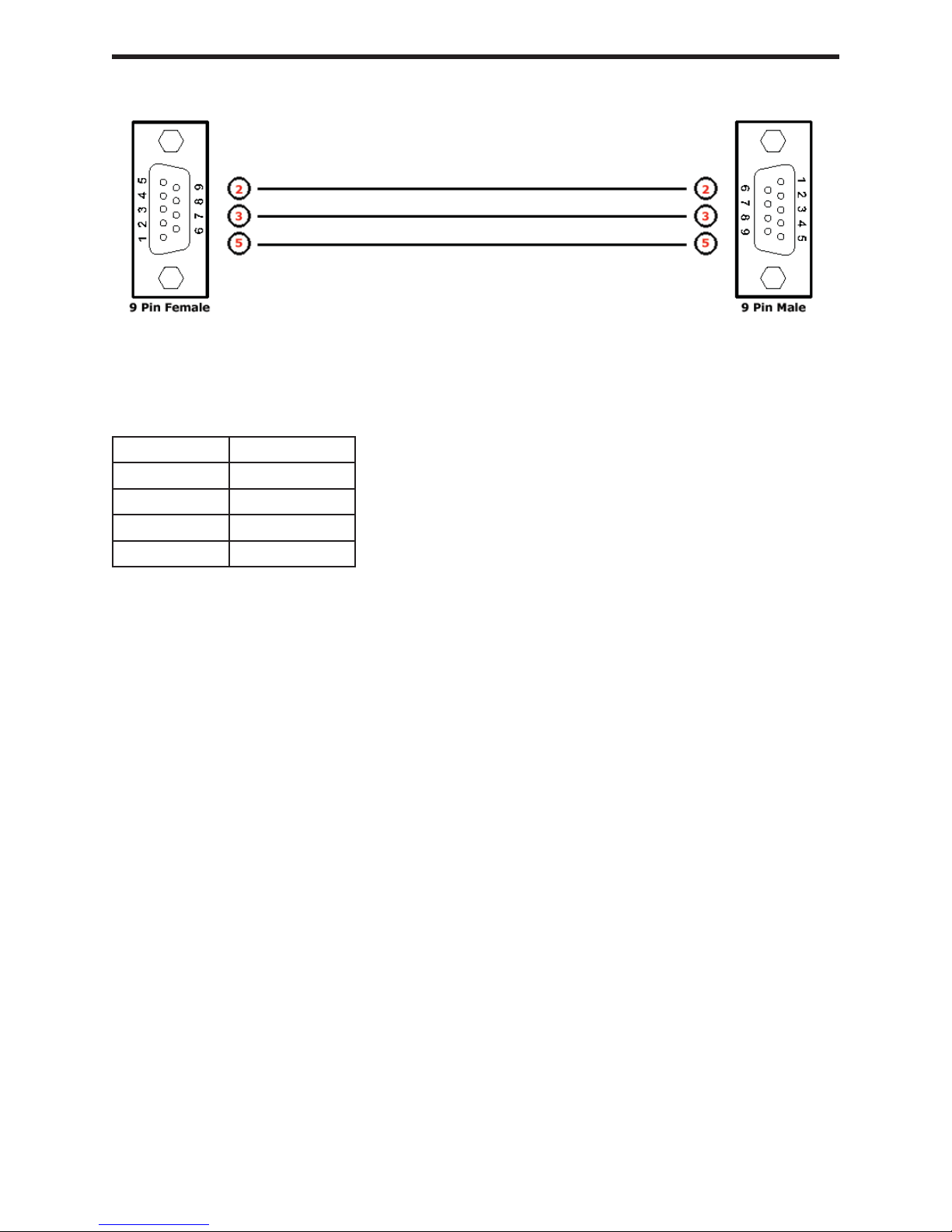

RS-232 Interface

Binary Table

Input Binary

1 0011 0001

2 0011 0010

3 0011 0011

4 0011 0100

Terminal Settings

Bits per second ...................................................................................................... 19200

Data bits ......................................................................................................................... 8

Parity ....................................................................................................................... None

Stop bits ..........................................................................................................................1

Flow Control ............................................................................................................ None

SPECIFICATIONS

Video Ampliﬁer Bandwidth ................................................................................ 1.65 Gbps

Input Video Signal ......................................................................................... 1.2 volts p-p

Input DDC Signal .................................................................................... 5 volts p-p (TTL)

Single Link Range ......................................................................................... 1920 x 1200

Video Output Connector Type ...................................... DVI-I 29 pin Female (digital only)

Video Input Connector Type .................................................. HDMI type A 19 pin Female

Audio Sample Rate .................................................................... 5kHz(min) - 48kHz(max)

Audio Frequency Response......................................................................... 20Hz - 20kHz

Audio Interface ................................................................................................ RCAAudio

Power Consumption ................................................................................. 10 Watts (max)

Power Supply ......................................................................................................... 5V DC

Dimensions ........................................................................... 5.125”D x 11.25”W x 1.25”H

Shipping Weight ....................................................................................................... 7 lbs.
