Gefen GTV-HDMI1.3-441 Manuel utilisateur
4x1 Gefen TV Switcher
User Manual
www.gefentv.com
GTV-HDMI1.3-441
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefentv.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
4x1 Gefen TV Switcher is a trademark of Gefen Inc.
HDMI™ is a trademark of HDMI.org
© 2008 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction / Operation Notes1.
Features / HDMI 1.3 Features / Package Includes2.
Panel Descriptions3.
Connecting and Operating the 4x1 Gefen TV Switcher / Device Buttons4. / Automatic Switching
GTV4-IR Installation5.
IR Code Configuration6.
Wiring Diagram7.
Specifications8.
Warranty9.
INTRODUCTION
1
Congratulations on your purchase of the 4x1 Gefen TV Switcher. Your complete
satisfaction is very important to us.
Gefen TV
Gefen TV is a unique product line catering to the growing needs for innovative
home theater solutions. We specialize in total integration for your home theater,
while also focusing on going above and beyond customer expectations to en-
sure you get the most from your hardware. We invite you to explore our distinct
product line and hope you find your solutions.. Don’t see what you are looking for
here? Please call us so we can better assist you with your particular needs.
The Gefen TV Switcher
Gefen’s 4x1 HDMI™ Switcher routes high definition video in multiple resolutions
up to 1080p plus multichannel digital audio from any of four sources. four inputs
accommodate the simultaneous connection of up to four high definition video
sources, such as satellite systems and HD DVD players. The output sends the
high definition audio/video signals to a high definition display. Switching is done
via the IR remote that is provided with the unit.
How It Works
You simply connect all your sources to the Switcher’s inputs. Then connect the
display on the output port. Once the sources, the Switcher and the display(s) are
powered and connected, you simply select which source you want to view using
the IR remote.
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 4X1 GEFEN TV SWITCHER
HDMI 1.3 compliant (please see the next page for supported HDMI 1.3 features)•
HDCP compliant•
Compatible with all HDMI and DVI* displays•
*When used with a HDMI to DVI adapter
OPERATION NOTES
FEATURES
2
Features
Connects and Switches up to four HDMI video sources at the same time to• one video source
Included IR Remote control allows switching from a comfortable distance• away
Maintains high resolution video -- beautiful, sharp HDTV resolutions up to• 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
Allows Simultaneous Displays•
HDCP Compliant•
HDMI 1.3 Features
Lip-Sync Pass Through•
340 MHz (up to 16 bit YUV 444 supported @ 1080p)•
Deep Color Supported (XV Color Supported)•
Dolby TrueHD & DTS HD Master Audio Supported•
CEC Pass Through•
Package Includes
(1) Gefen TV Switcher
(1) 6' HDMI cable (M-M)
(1) 5V DC Power Supply
(1) GTV4-IR Remote Control
(1) User Manual
PANEL DESCRIPTIONS
3
Power and Channel
LED Indicators
IR Eye
HDMI
Output
EQ and
Input
Button Input 4Input 3Input 2Input 1
Power Supply
Input
CONNECTING AND OPERATING THE 4X1 GEFEN TV SWITCHER
DEVICE BUTTONS
AUTOMATIC SWITCHING
4
How to Connect the 4x1 Gefen TV Switcher
Connect the supplied cables from the HDTV HDMI sources into the Gefen1. TV Switcher inputs.
Connect the cable from your display (monitor or projector) into the HDMI out2. of the Gefen TV Switcher.
Plug the 5VDC power supply into the Gefen TV Switcher.3.
How to Control the Gefen TV Switcher
Use either the GTV4-IR remote control to toggle between sources or press the
input button on the rear of the unit.
EQ Button
By pressing the EQ button you allow the switcher to do a pre-emphasis on the
signal. This will help the video signal when long distances or low quality cable is
used.
Input Select Button
Pressing this button will toggle between the inputs in succession.
Automatic switching is done very easily. Whenever a connected device is
powered on, the 4x1 Gefen TV Switcher will switch to that input. Once that
device is powered down, the switcher will revert back to the previous input that
was active. The remote and input select button will always allow you to switch
manually. The remote will switch discretely to any input, while the input select
button will allow you to toggle between inputs.
GTV4-IR INSTALLATION
5
Remove battery cover from the back of the GTV4-IR remote.1.
Verify that dip switches 1 & 2 are in the down (OFF) position.2.
Insert the battery, hold the battery so that you can see the positive side3. facing up. The side that is not marked must be facing down.
Test the GTV4-IR remote by pressing ONLY one button at a time. The4. indicator
light on the remote will flash once each time you press a button. WARNING:5. Do not press multiple buttons simultaneously and do NOT press buttons
rapidly.
These actions will cause the remote to reset and steps 1-4 will have to be6. repeated.
Note: The GTV4-IR ships with two batteries. Only one battery is needed for
operation, the other is complimentary.
G
T
V
-
4
I
R
IR CODE CONFIGURATION
6
How to Resolve IR Code Conflicts
If you are experiencing IR conflicts, you can change the IR Code of the remote
and switcher. You can do so by holding the EQ button down for 5 seconds and
wait for the LED's to flash in front of the unit. The LED's will flash the current IR
channel. (One flash for channel 1, two flashes for channel 2, etc.) Press the Input
button to select which IR Code channel you wish to use. Press the EQ button to
finish. Using the guide below, make sure that the unit and remote are both set
to the same channel. If this does not work, please call Gefen's tech support for
further assistance.
Remote Channel 1:Remote
Remote Channel 2:
Remote Channel 3:
Remote Channel 4:
1 2
1 2
1 2
1 2

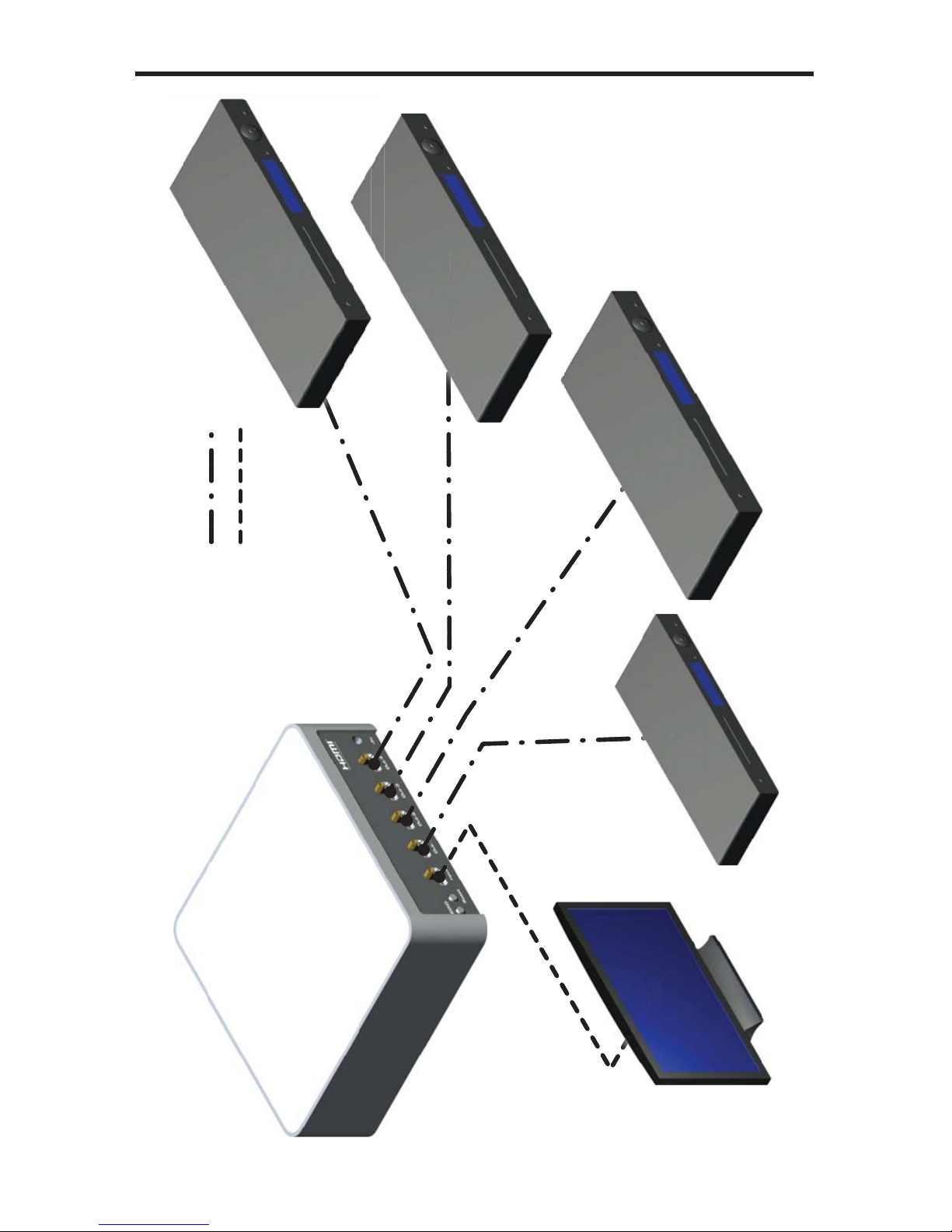

WIRING DIAGRAM
7
HDMI IN
HDMI OUT
