Congratulations on your purchase of the Gefen HDMI Switcher. Your complete satis-
faction is very important to us.
About Gefen
Gefen’s line of HDMI switches, extenders, and splitters are designed to make your
A/V equipment use more comfortable, more productive and less expensive.
The HDMI Switcher allow access to multiple HDMI devices, using a single HDMI dis-
play while the HDTV extender product line can extend HD video signal up to 1640
feet (500 meters).
Gefen products offer solutions for noise, space and security concerns, data center
control, information distribution, conference room presentation, school and corporate
training environments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included
in that price is a lifetime of support from a team of outstanding engineers.
The Gefen HDMI Switcher allows two HDMI devices to be switched easily in to one
HDMI compatible monitor or projector. The HDMI Switcher can also be placed at the
end of a long HDMI cable to regenerate the HDMI signal.
INTRODUCTION
1
FEATURES
Features
• Switches easily between any two HDMI sources
• Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions
• Extends any HDMI compliant device by regenerating the HDMI signal
• Maintains high resolution video—beautiful, sharp HDTV resolutions up to 1080P
are easily achieved. For computer users, the 2x1 HDMI Switcher conforms with
HDMI specifications for resolutions up to 1920 x 1200.
• Supports DDWG standard for HDMI compliant monitors
• Supports HDCP compliant devices
• Optional RMT-2 remote control
• Installs in seconds
Includes:
(1) HDMI Switcher
(2) 6’ HDMI cables (M-M)
(1) 5V DC Power Supply
(1) RMT2-IR
(1) Manual
2
PANEL DESCRIPTIONS
3
Connects to IR
extender IR eye Indicates if port 1 or
port 2 is selected Selects port 1
or port 2
Connects to
5VDC power
supply
HDMI In 2
HDMI In 1 HDMI Out
CONNECTING AND OPERATING THE HDMI SWITCHER
How to Connect the HDMI Switcher to your devices
1 Connect the supplied HDMI to HDMI cables from the HDMI sources into the HDMI
Switcher Input.
2Connect the cable from your display (monitor or projector) into the HDMI Out of
the HDMI Switcher.
3Plug the 5VDC power supply into the HDMI Switcher.
How to Operate the HDMI Switcher
1 Use the front panel push button to switch between sources.
2 Alternatively, use the RMT2-IR remote control port to remotely toggle between
sources.
4

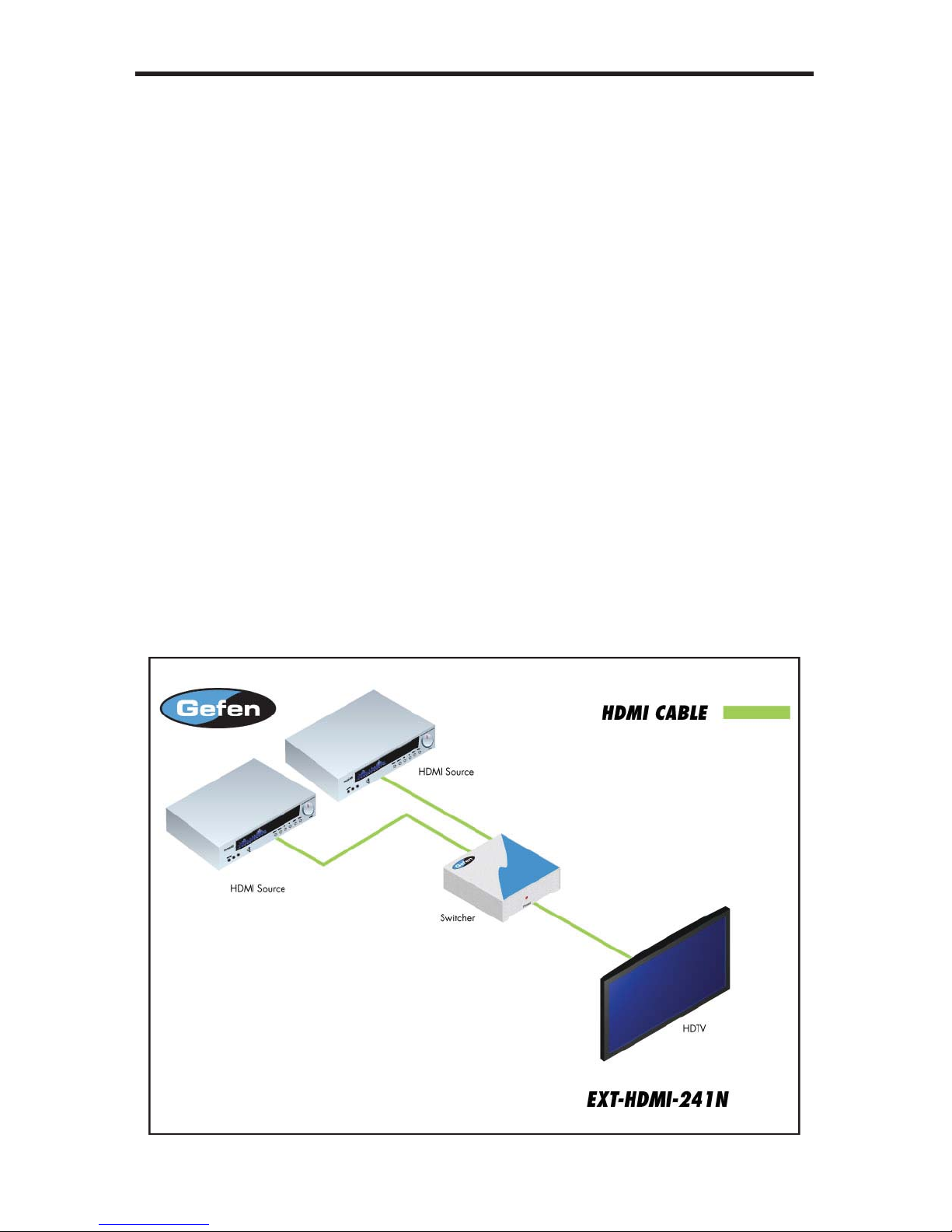

Connection diagram for the 2x1 HDMI Switcher:
RMT2-IR INSTALLATION
1. Remove battery cover from the back of the RMT2-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up.
The side that is not marked must be facing down.
4. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator
light on the remote will flash once each time you press a button. WARNING: Do not
press multiple buttons simultaneously and do NOT press buttons rapidly. These ac-
tions will cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT2-IR* ships with two batteries. One battery is required for operation,
the second battery is complimentary.
5
The optional IR extender allows you to
relocate your HDMI Switcher and still
have IR control of the HDMI Switcher.
This product is Gefen SKU# EXT-RMT-
EXTIR.
* The color of the product shown here may differ from the one you receive.
IR CODE CONFLICTS
How to Resolve IR Code Conflicts
There are matching pairs of dip switches underneath the Switcher unit (outlined below)
and under the remote battery cover. Each has two switches which need to be matched
for the remote to work. There are 4 possible sets of IR codes and at least one of these
sets should be able to resolve any IR conflicts with other home theater devices.
6
DIP Switch Banks
IR EXTENDER INSTALLATION
How to Connect the IR Extender
1 Plug the IR extender into the Remote port on the front of the Switcher Unit
2Flip the Dip Switch #1 underneath the unit from the set that is not outlined on the
previous page to the ON position
7
IR CODES
In the event of IR conflicts, please do the following:
1. Remove the battery cover from the back of the RMT4-IR remote.
2. Locate the Dip Switches above the batteries.
3. Switch the Dip Switches on the RMT4-IR to any of the combinations pictured
below.
4. Dip Switches 1 and 2 in the RMT4-IR correspond with Dip Switches 3 and 4 on
the bottom of the 4x1 DVI Switch respectively. Switch the switches on the bottom of
the 4x1 DVI Switch to match the dip switches on the RMT4-IR. The 4x1 DVI Switch-
er is now set to a new IR Code.
12
Remote Channel 0:
12
Remote Channel 1:
12
Remote Channel 2:
12
Remote Channel 3:
