Gefen USB 2.0 LR Extender EXT-USB2.0-LR Manuel utilisateur

www.gefen.com

USB 2.0 LR

Extender

EXT-USB2.0-LR

User Manual

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and

any accompanying documentation without prior written notice.

USB 2.0 LR Extender is a trademark of Gefen Inc.

All trademarks are the property of their respective companies

ASKING FOR ASSISTANCE

Rev X1

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Sender Panel Layout

5 Sender Panel Descriptions

6 Receiver Panel Layout

7 Receiver Panel Descriptions

8 Connecting And Operating The USB 2.0 LR Extender

9 Troubleshooting

10 Network Cable Wiring Diagram

11 Wiring Diagram

12 Speciﬁcations

13 Warranty

Congratulations on your purchase of the USB 2.0 LR Extender. Your complete

satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to implement and simple to operate.

The Gefen USB 2.0 LR Extender

Gefen’s USB 2.0 LR extends high-speed USB devices simply and reliably.

The compact USB 2.0 LR Sender/Receiver units install in minutes and fully

support all USB versions (V1.1 and V2.0), at speeds of up to 480 mbps

-- essential for high-performance applications such as digital imaging and

interactive gaming.

The two-port USB 2.0 LR hub is ideal for remotely accessing laser printers,

scanners, web cameras, external hard drives, CD/DVD burners, and ﬂash

drives. Additional applications include security, industrial control, digital signage,

scientiﬁc data acquisition and much more due to the universal implementation of

USB standards.

How It Works

Gefen’s USB 2.0 LR supports all major operating systems -- Windows, MacOS

and Linux. No software drivers are required.

When using in-wall building wiring, stranded patch cables may be used to

connect the Sender and Receiver to CAT5 wall plates. The combined length of all

patch cables must not exceed 33 feet (10m) and must be included as part of the

total extension.

A powered USB hub may be connected to the USB 2.0 Extender LR Receiver

to allow more USB devices to be extended. A maximum of 14 USB devices

(including hubs) may be connected to the USB 2.0 LR Receiver.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING OR

OPERATING THE USB 2.0 LR EXTENDER

• Use industry standard CAT-5, CAT-5e or CAT-6. Gefen recommends using solid

core cabling for maximum performance.

• The USB 2.0 LR Extender is USB 2.0/1.1 compliant

• The USB 2.0 LR Extender can extend USB a maximum of 330 ft (100m)

• Use only theAC adapter supplied with the USB 2.0 LR Extender. Use of

substitute adapters may cause permanent damage to the system and will

void the warranty.

OPERATION NOTES

Features

• Operate USB 2.0 peripherals up to 330ft (100m) from a computer

• Supports low and high-speed USB

• Uses industry-standard CAT5, CAT5e, or CAT6 cable

• Supports all major operating systems -- Windows, MacOS and Linux.

• True plug-and-play, 100% hardware solution with no drivers required

• Operates at full 480 Mbps speed when running in USB 2.0 mode

• Receiver supports up to 2 USB powered connections at 500 mAeach

• Speciﬁcations:

Package Includes

(1) Gefen USB 2.0 Extender over CAT5 LR Sender

(1) Gefen USB 2.0 Extender over CAT5 LR Receiver

(1) 5V DC Power Supply

(1) 6 ft. USB Cable

(1) User’s Manual

FEATURES

Front Panel

Back Panel

Front

Panel

4 5 6 7

2 3

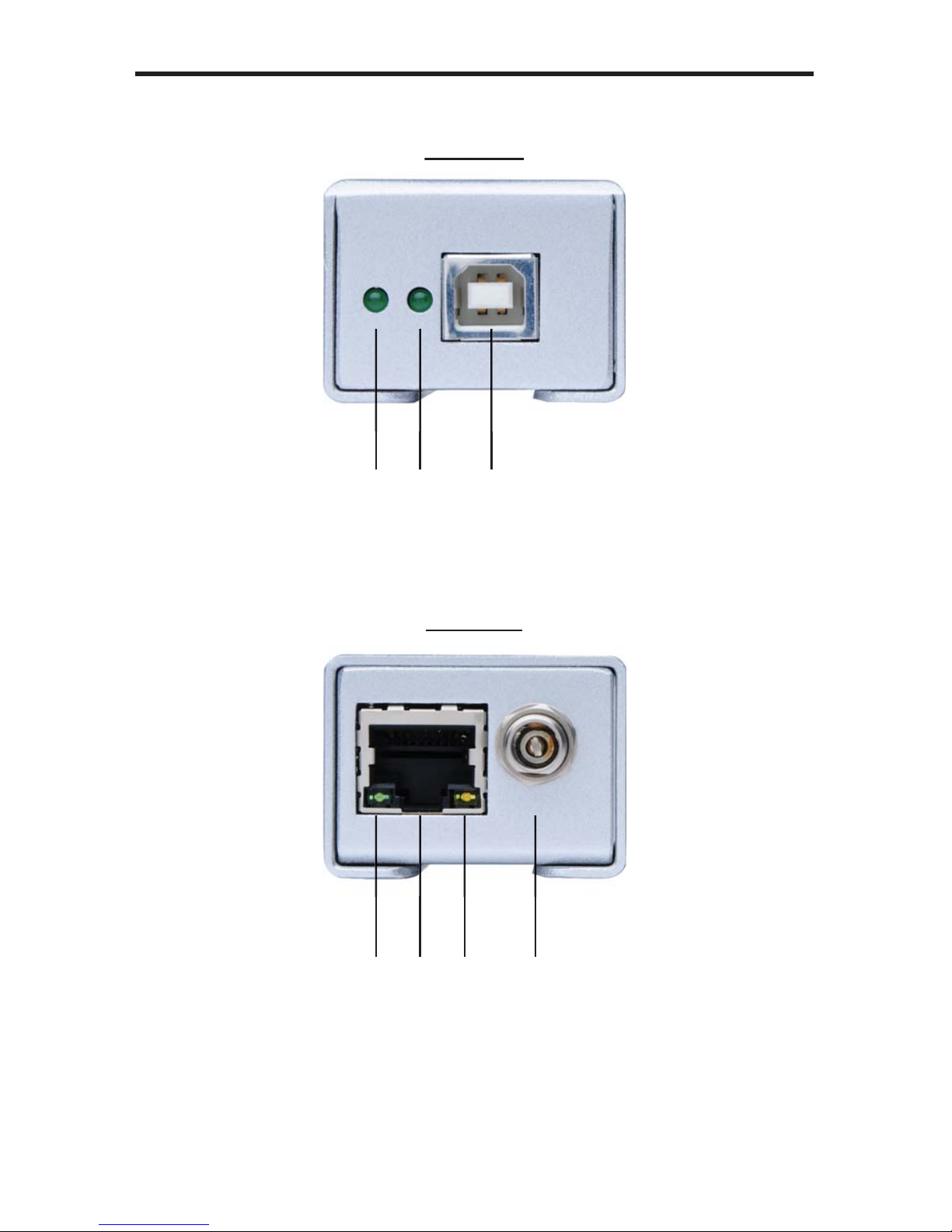

SENDER PANEL LAYOUT

1 Host Connection LED Indicator

This LED will become active once a valid connection is made by the host source

and the USB 2.0 LR Extender.

2 Power LED Indicator

This LED will become active once a valid connection is made between the

included 5V DC power supply and an open wall power socket.

3 USB “B” Input

Connect the USB source to this input.

4 Link LED Indicator

This LED will become active once a valid connection is between the sender and

receiver units.

5 CAT-5 Connection Port

Connect a CAT-5, CAT-5e or CAT-6 cable between this port and the CAT-5

connection port on the receiving unit.

6 Activity LED Indicator

This LED will be active when trafﬁc is passing between the sending and

receiving units.

7 5V DC Locking Power Receptacle

Connect the included locking 5V DC power supply between this port and an

open wall power socket.

SENDER PANEL DESCRIPTIONS

Front Panel

Back Panel

5 6 7 8

2 3 4

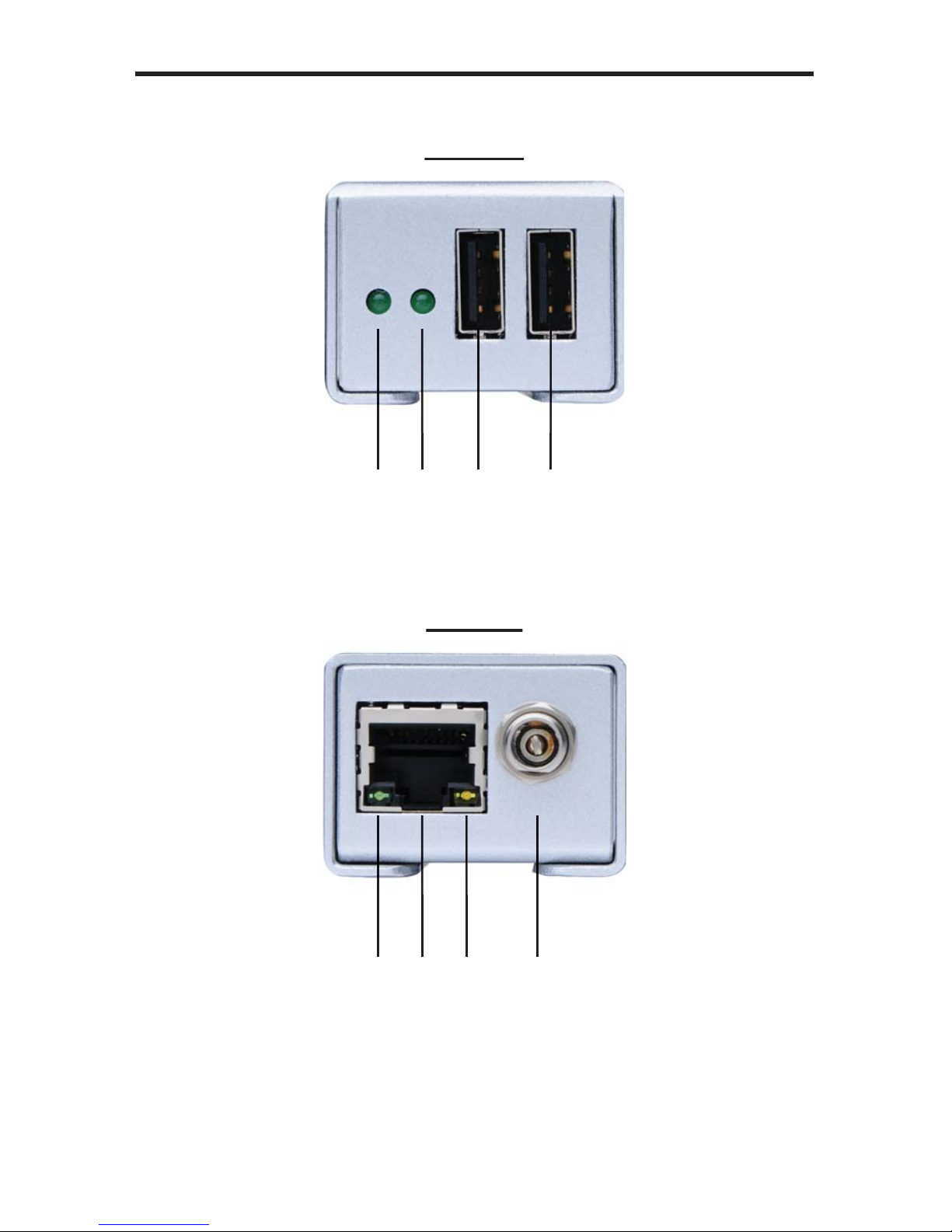

RECEIVER PANEL LAYOUT

1 Host Connection LED Indicator

This LED will become active once a valid connection is made by the host source

and the USB 2.0 LR Extender.

2 Power LED Indicator

This LED will become active once a valid connection is made between the

included 5V DC power supply and an open wall power socket.

3 USB “A” Input 1

Connect the USB device to this input.

4 USB “A” Input 2

Connect the USB device to this input.

5 Link LED Indicator

This LED will become active once a valid connection is between the sender and

receiver units.

6 CAT-5 Connection Port

Connect a CAT-5, CAT-5e or CAT-6 cable between this port and the CAT-5

connection port on the sending unit.

7 Activity LED Indicator

This LED will be active when trafﬁc is passing between the sending and

receiving units.

8 5V DC Locking Power Receptacle

Connect the included locking 5V DC power supply between this port and an

open wall power socket.

RECEIVER PANEL DESCRIPTIONS
