Gefen EXT-DP-141B Manuel utilisateur

www.gefen.com

DisplayPort

Booster

EXT-DP-141B

User Manual

ASKING FOR ASSISTANCE

Rev A2

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday through Friday, Pacic Time

Write To:

Gefen LLC

c/o Customer Service

20600 Nordhoff St

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen LLC reserves the right to make changes in the hardware, packaging, and

any accompanying documentation without prior written notice.

DisplayPort Booster is a trademark of Gefen LLC

All trademarks are the property of their respective owners.

CONTENTS

1 Introduction

2 Operation Notes

3 Features

4 Panel Layout

5 Panel Descriptions

6 Connecting the DisplayPort Booster

6 Wiring Diagram

7 Operating the DisplayPort Booster

7 Signal Adjustment

8 Specications

9 Warranty

Congratulations on your purchase of the Gefen DisplayPort Booster.

Your complete satisfaction is very important to us.

Gefen

Gefen delivers innovative, progressive computer and electronics add-on solutions

that harness integration, extension, distribution and conversion technologies.

Gefen’s reliable, plug-and-play products supplement cross-platform computer

systems, professional audio/video environments and HDTV systems of all sizes

with hard-working solutions that are easy to install and simple to operate.

The Gefen DisplayPort Booster

The Gefen DisplayPort Booster allows extension of DisplayPort up to 150 feet

(45 meters) at 1920 x 1200 (WUXGA) and 100 feet (33 meters) at 2560 x 1600

(WQXGA), using high-quality copper DisplayPort cables. The Gefen DisplayPort

Booster improves the reliability of HDCP and DPCP handshaking EDID trans-

mission over long distances of copper cable.

How It Works

Connect a DisplayPort cable between the DisplayPort source and the Gefen

DisplayPort Booster input. Connect a short DisplayPort cable from the

DisplayPort Booster output to the display. Connect the included 5V DC power

supply to the power receptacle on the DisplayPort Booster and connect the plug

to an available electrical outlet.

INTRODUCTION

OPERATION NOTES

THIS PAGE LEFT INTENTIONALLY BLANK

FEATURES

Features

• Extends DisplayPort up to 150 feet (45 meters)

• Supports 1080p Full HD at 120Hz and dual-link resolutions up to

2560 x 1600 (WQXGA)

• EQ trim-switch for optimal signal quality at varying distances

• External 5V DC power supply

• HDCP, DPCP, and DDC pass-through

• DisplayPort 1.1-compliant

• Compact design

Package Includes

(1) DisplayPort Booster

(1) 5V / 1A DC Power Supply

(1) Quick-Start Guide

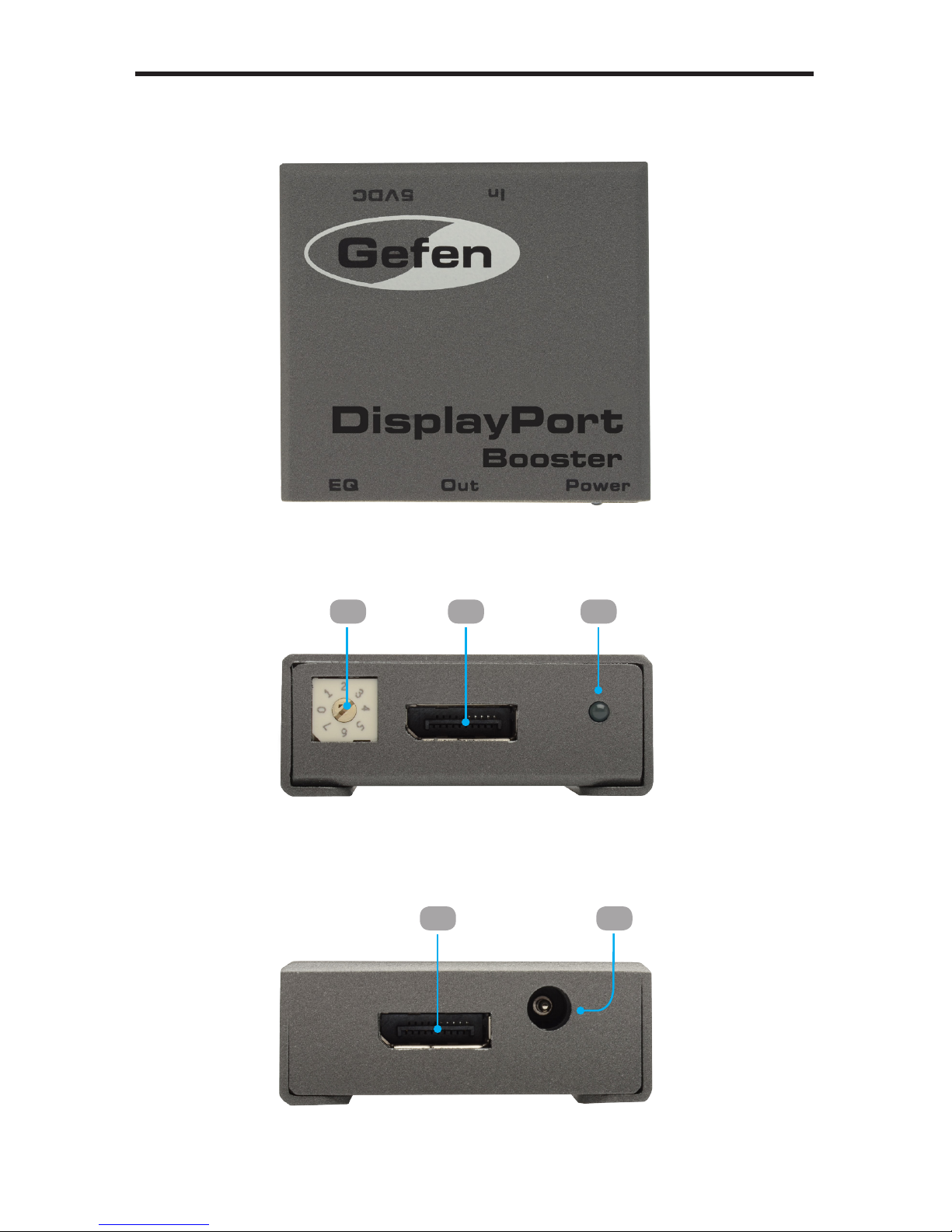

PANEL LAYOUT

Top

Front

Back

1 2

4 5

1 EQ

Provides ne-tuning for optimal signal quality at varying distances. See page

7 for more information

2 Out

Connect a DisplayPort cable from this output to the display.

3 Power

This LED indicator will glow bright blue when the included power supply is

connected to the DisplayPort Booster.

4 In

Connect a DisplayPort cable from this port to the DisplayPort source.

5 5V DC

Connect the included 5V DC power supply to this power receptacle and connect

the power cord to an available electrical outlet.

PANEL DESCRIPTIONS

How to Connect the DisplayPort Booster

1. Connect a DisplayPort cable between the DisplayPort source and the In port

of the DisplayPort Booster.

2. Connect a DisplayPort cable from the Out port on the DisplayPort Booster to

the display.

3. Connect the included 5V DC power supply to the power receptacle on the

DisplayPort Booster and connect the plug to an available electrical outlet.

Wiring Diagram for the DisplayPort Booster

Computer

DISPLAYPORT CABLE

Short DisplayPort Cable

Long DisplayPort Cable

(Up To 150 Feet)

DisplayPort Booster

DisplayPort Monitor

EXT-DP-141B

CONNECTING THE DISPLAYPORT BOOSTER
